Power Window Regulator Switch Circuit (Rear RH)

POWER WINDOW REGULATOR SWITCH CIRCUIT (REAR RH)

CIRCUIT DESCRIPTION

This circuit transmits signals from the power window regulator switch assembly on the rear door RH to the rear door RH ECU.

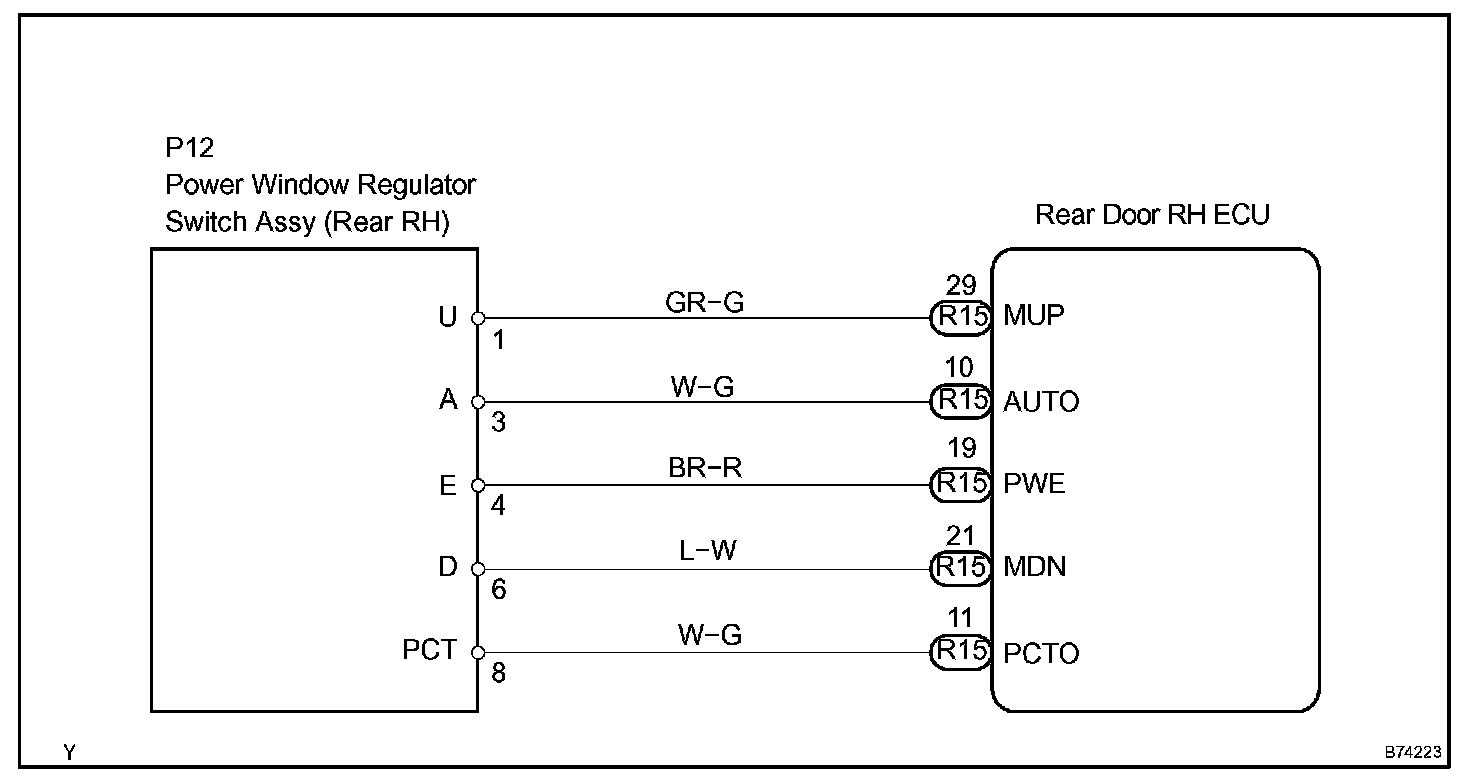

Wiring Diagram:





INSPECTION PROCEDURE

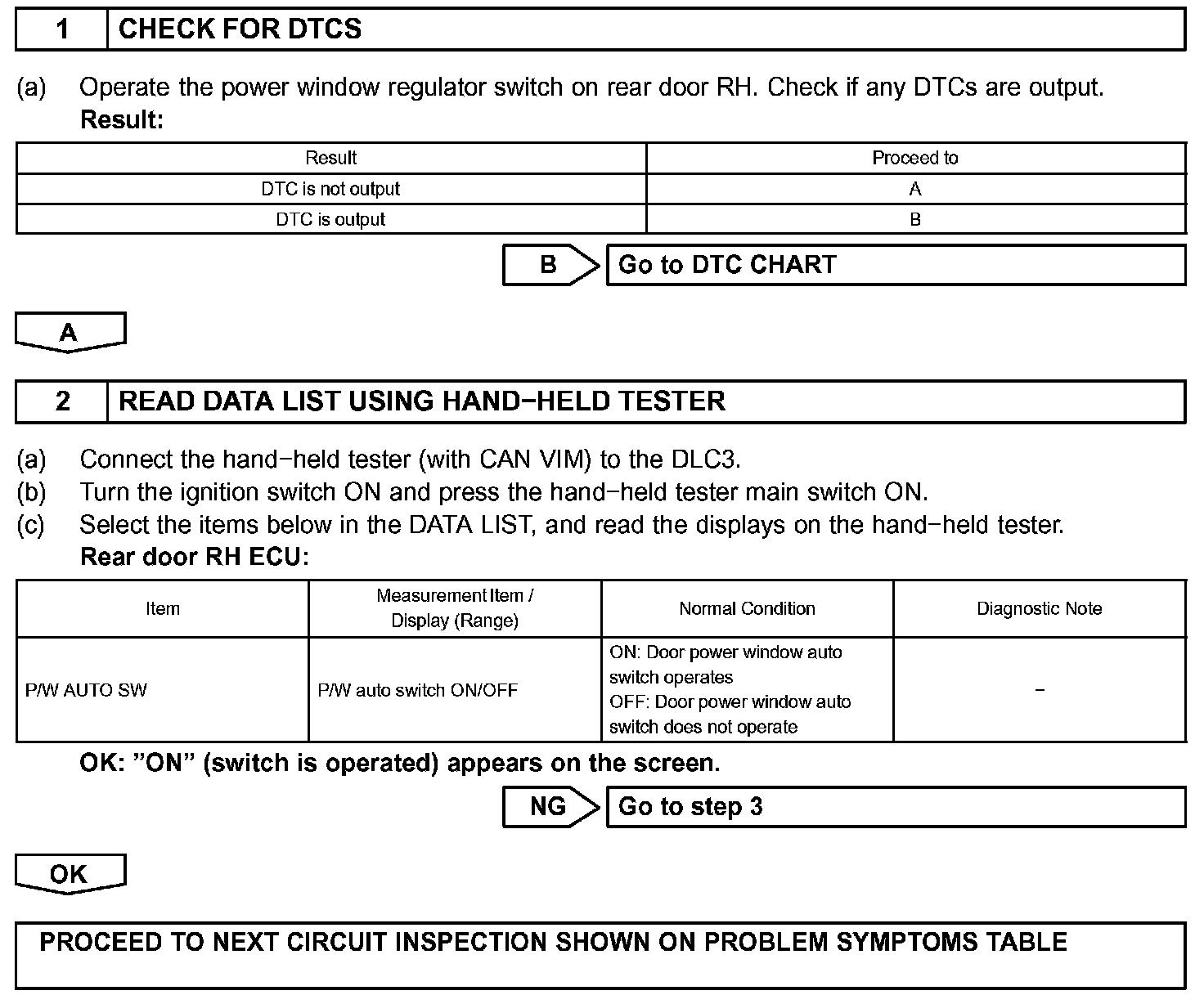

Step 1-2:

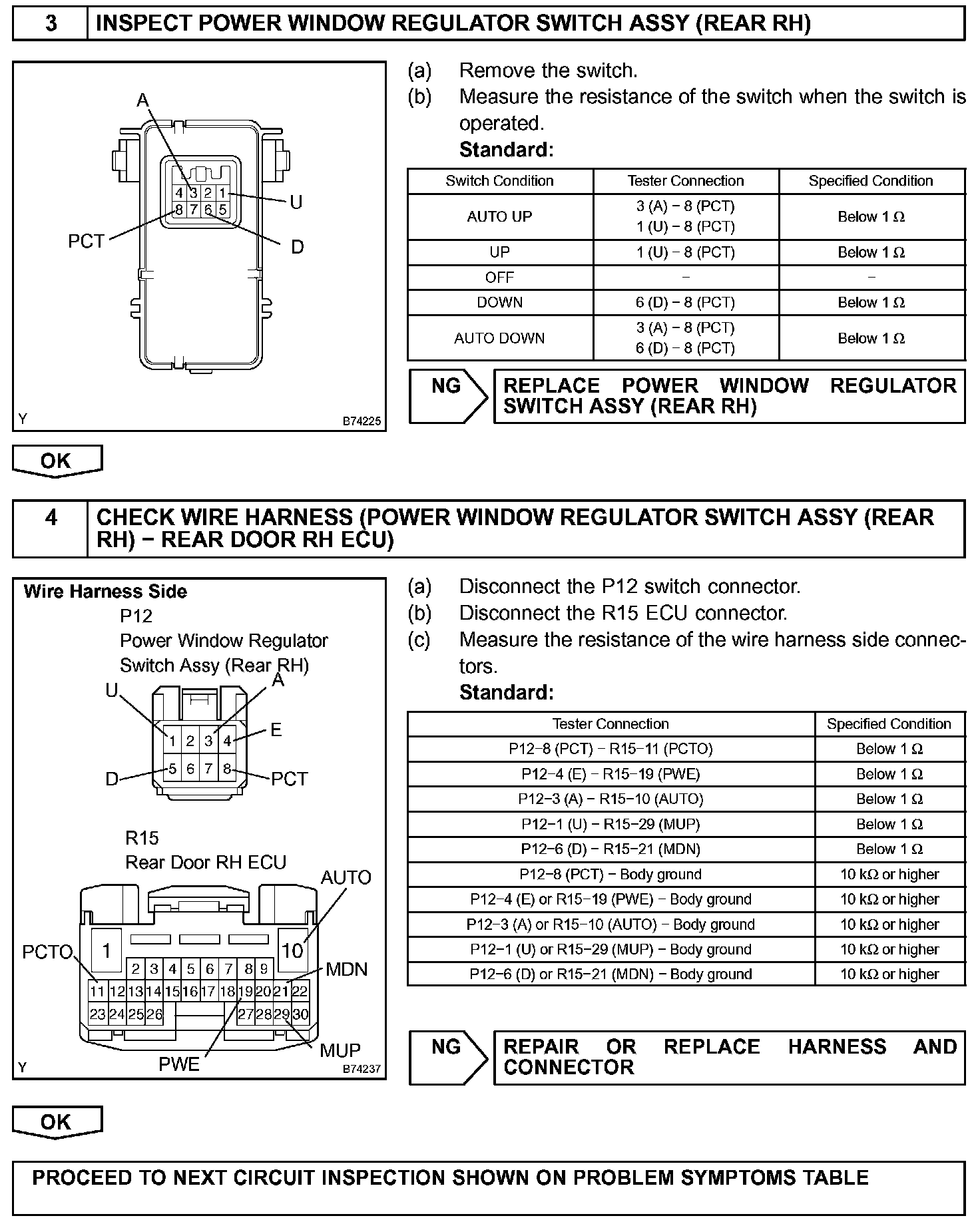

Step 3-4:
