Power Window Regulator Switch Circuit (Rear LH)

POWER WINDOW REGULATOR SWITCH CIRCUIT (REAR LH)

CIRCUIT DESCRIPTION

This circuit transmits signals from the power window regulator switch assembly on the rear door LH to the rear door LH ECU.

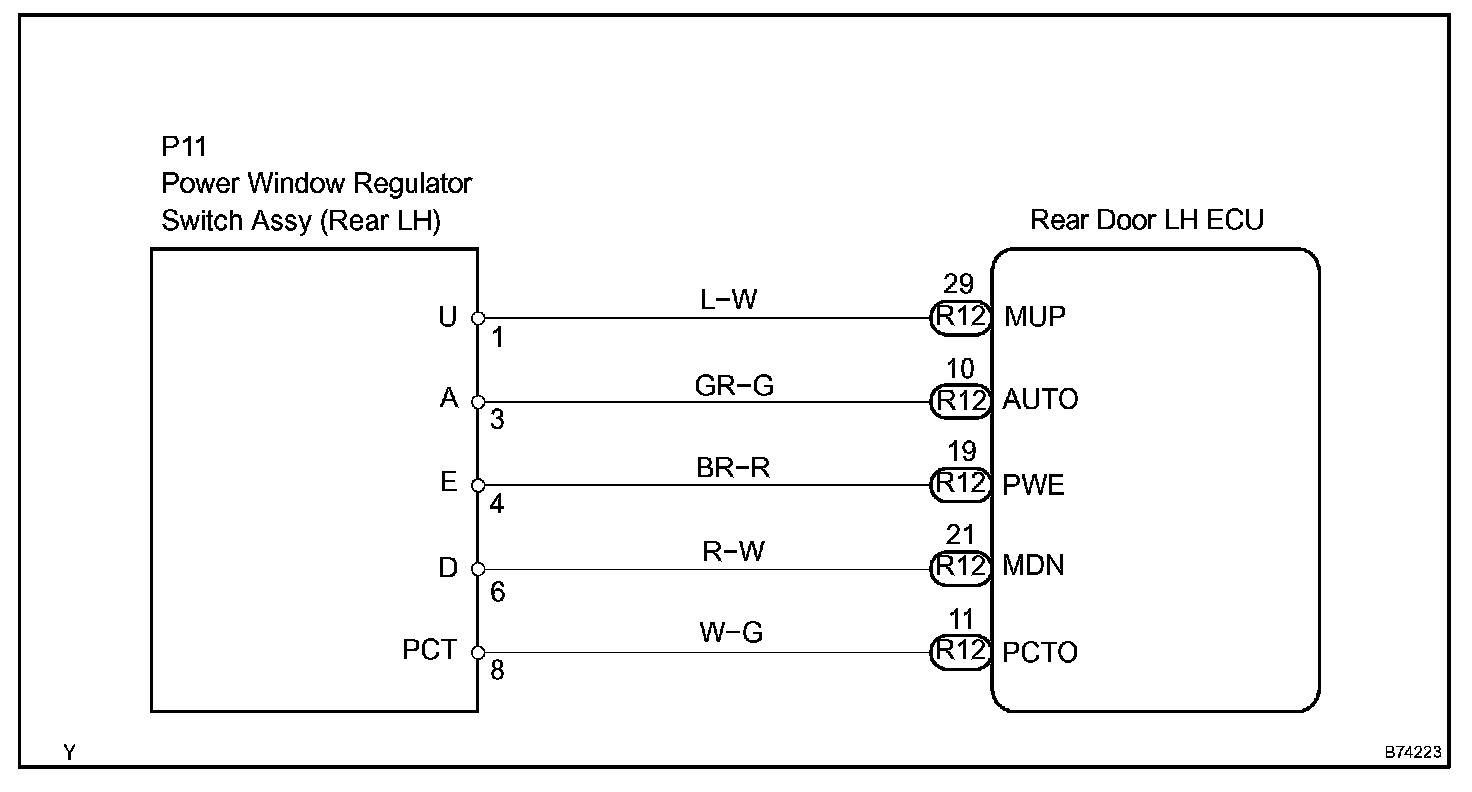

Wiring Diagram:





INSPECTION PROCEDURE

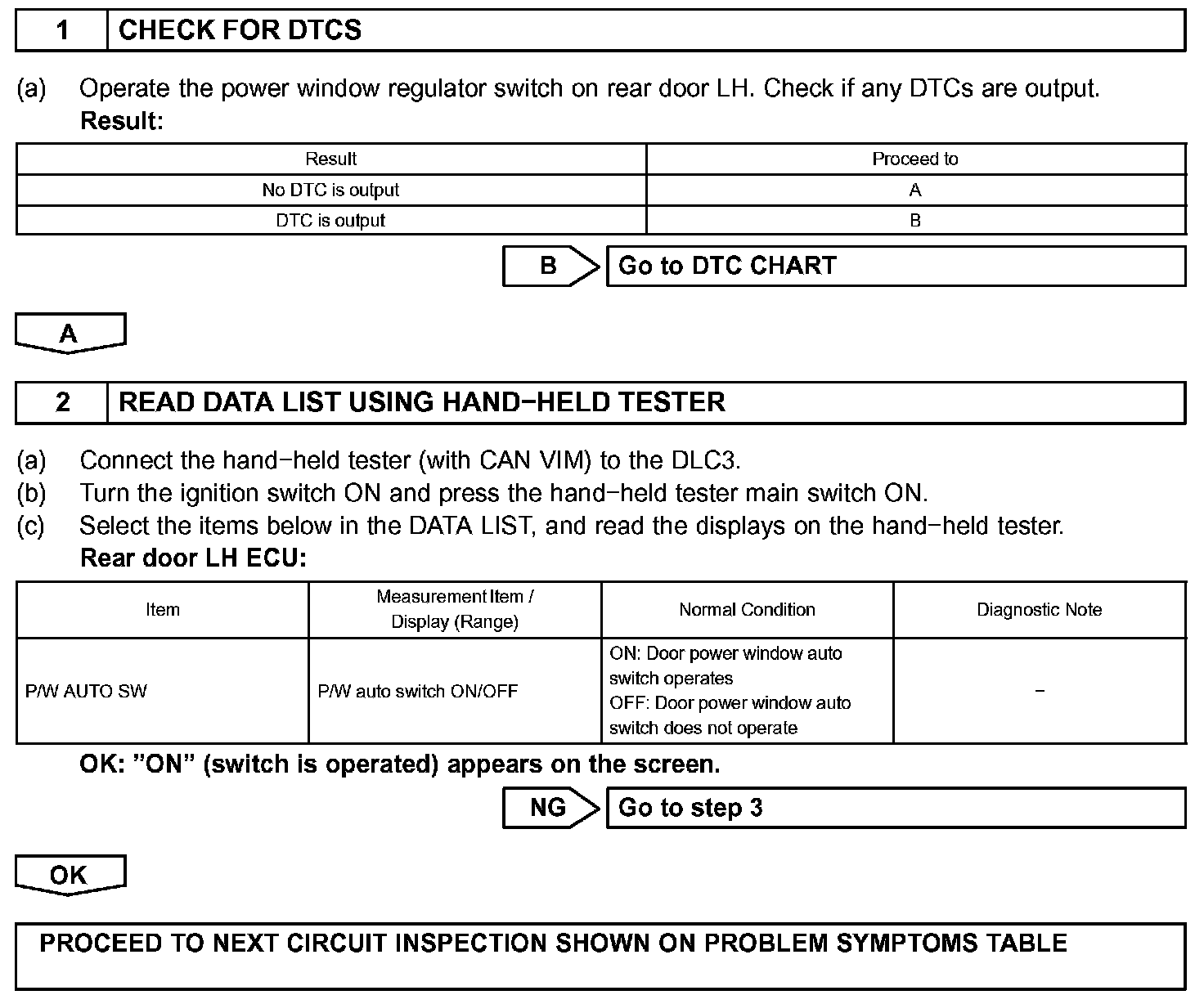

Step 1-2:

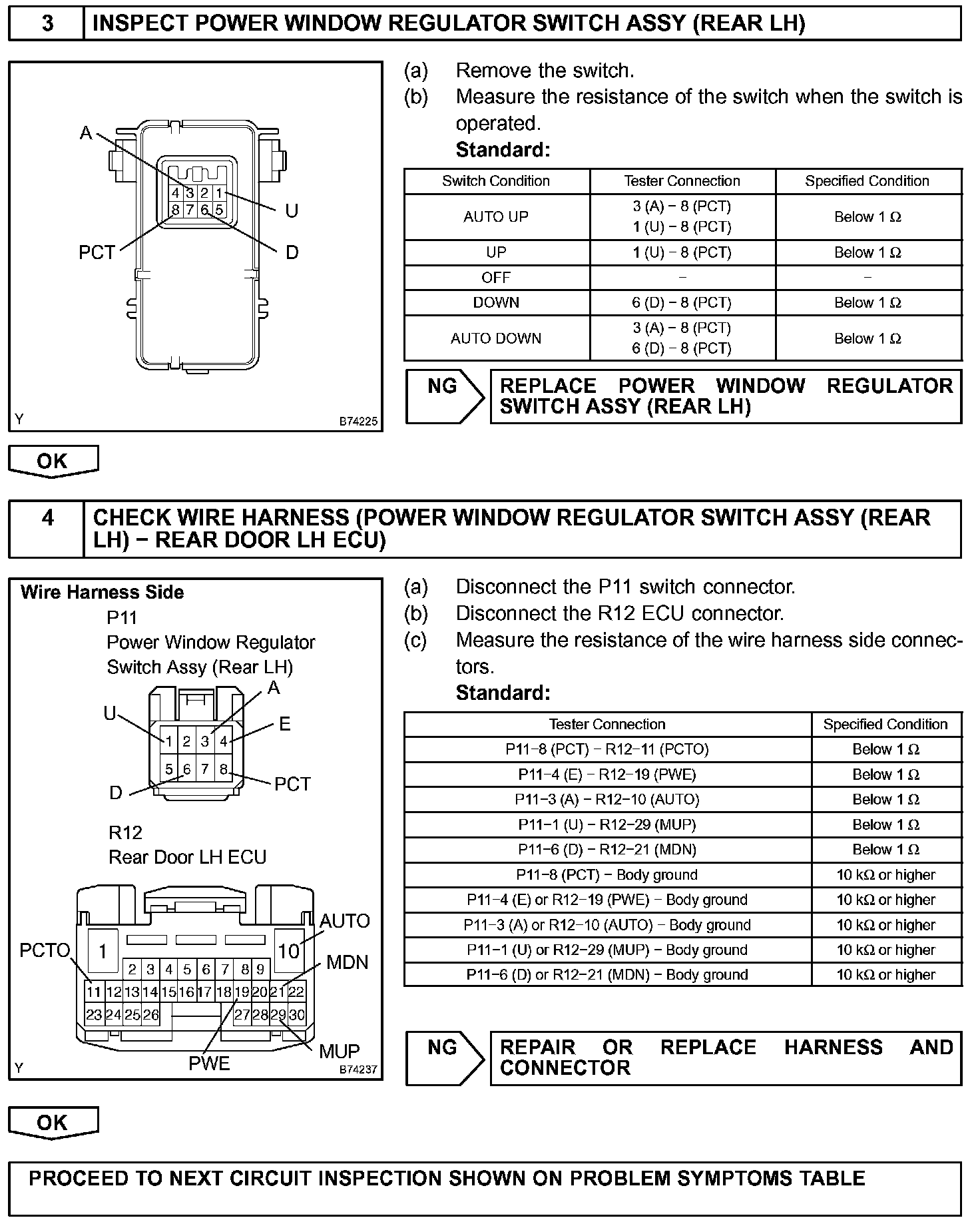

Step 3-4:
