Power Window Regulator Switch Circuit (Passenger Side)

POWER WINDOW REGULATOR SWITCH CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

This circuit transmits signals from the power window regulator switch assembly on the passenger's door to the passenger door ECU.

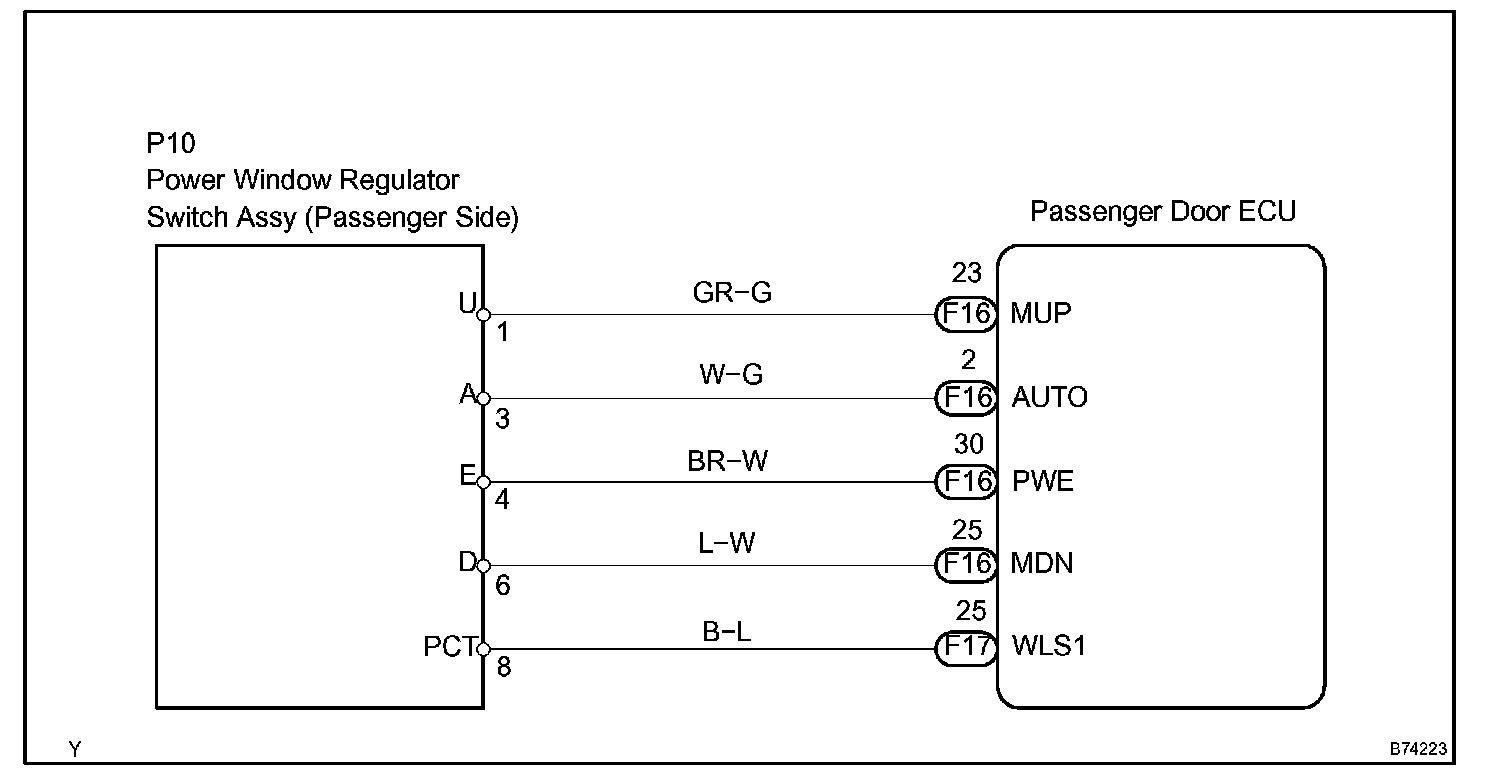

Wiring Diagram:





INSPECTION PROCEDURE

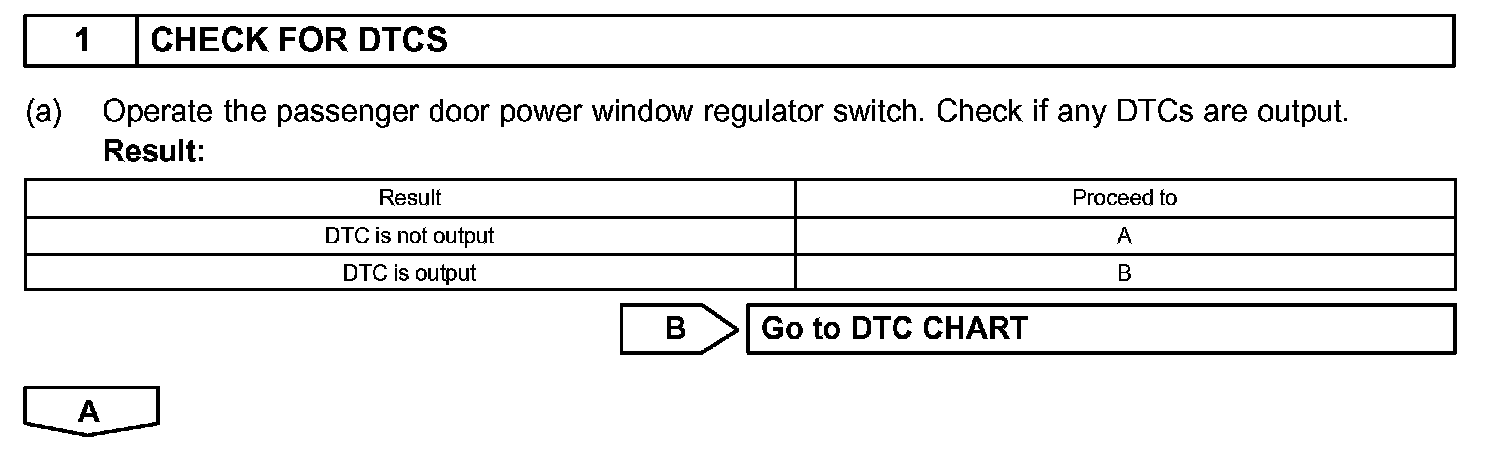

Step 1:

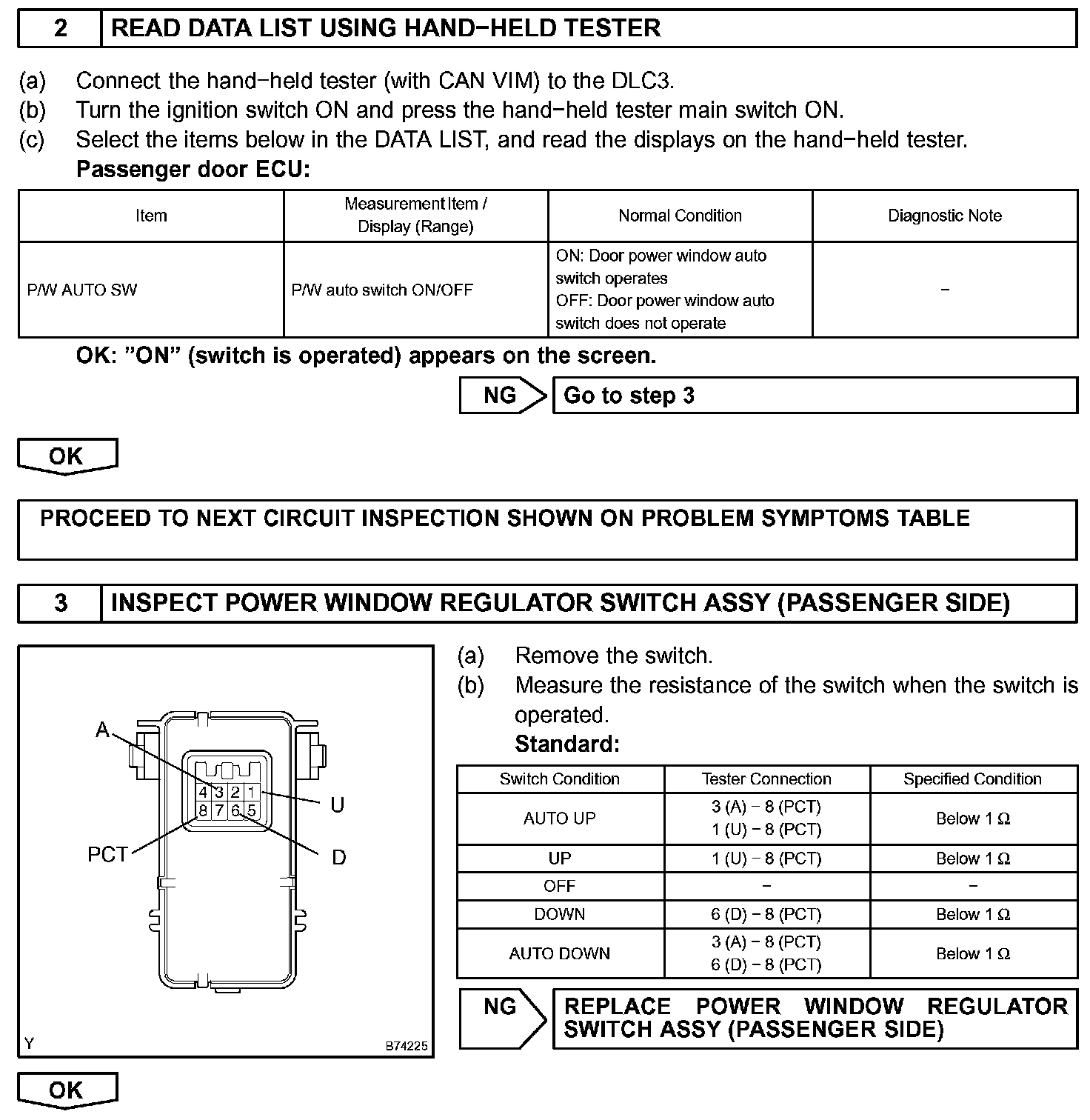

Step 2-3:

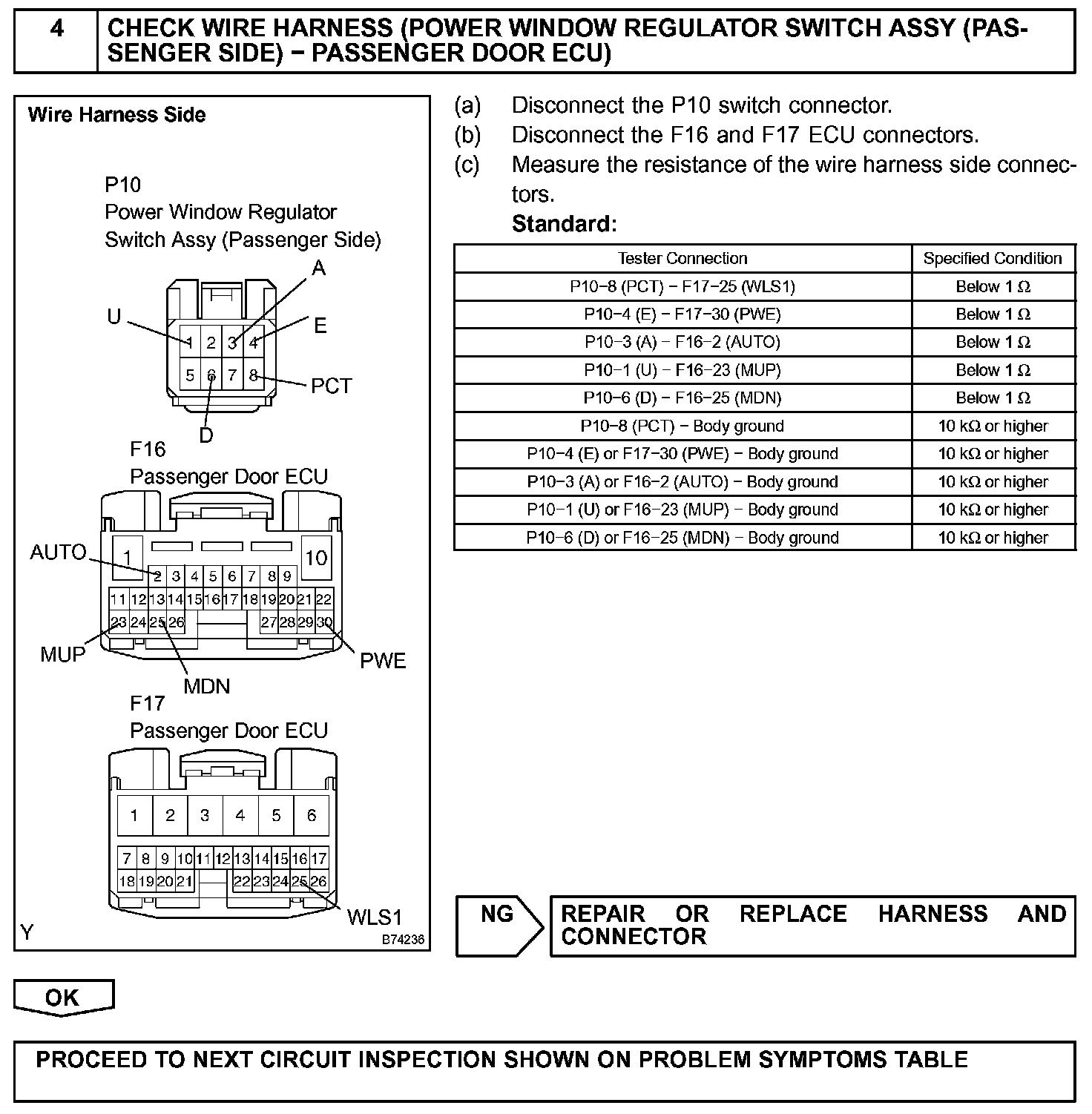

Step 4:
