Passenger Door ECU Power Source Circuit

PASSENGER DOOR ECU POWER SOURCE

CIRCUIT DESCRIPTION

This circuit supplies power to operate the passenger door ECU.

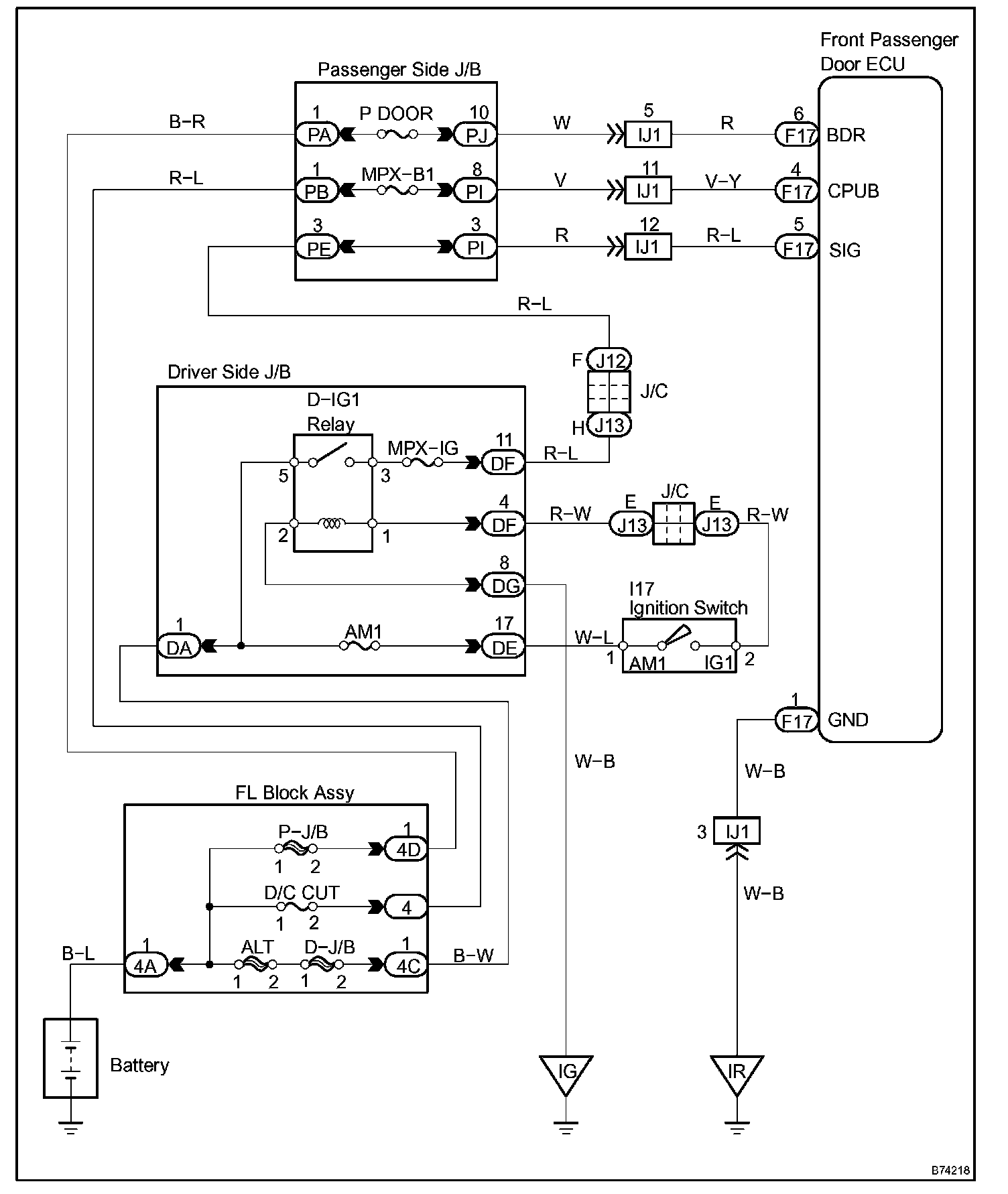

Wiring Diagram:

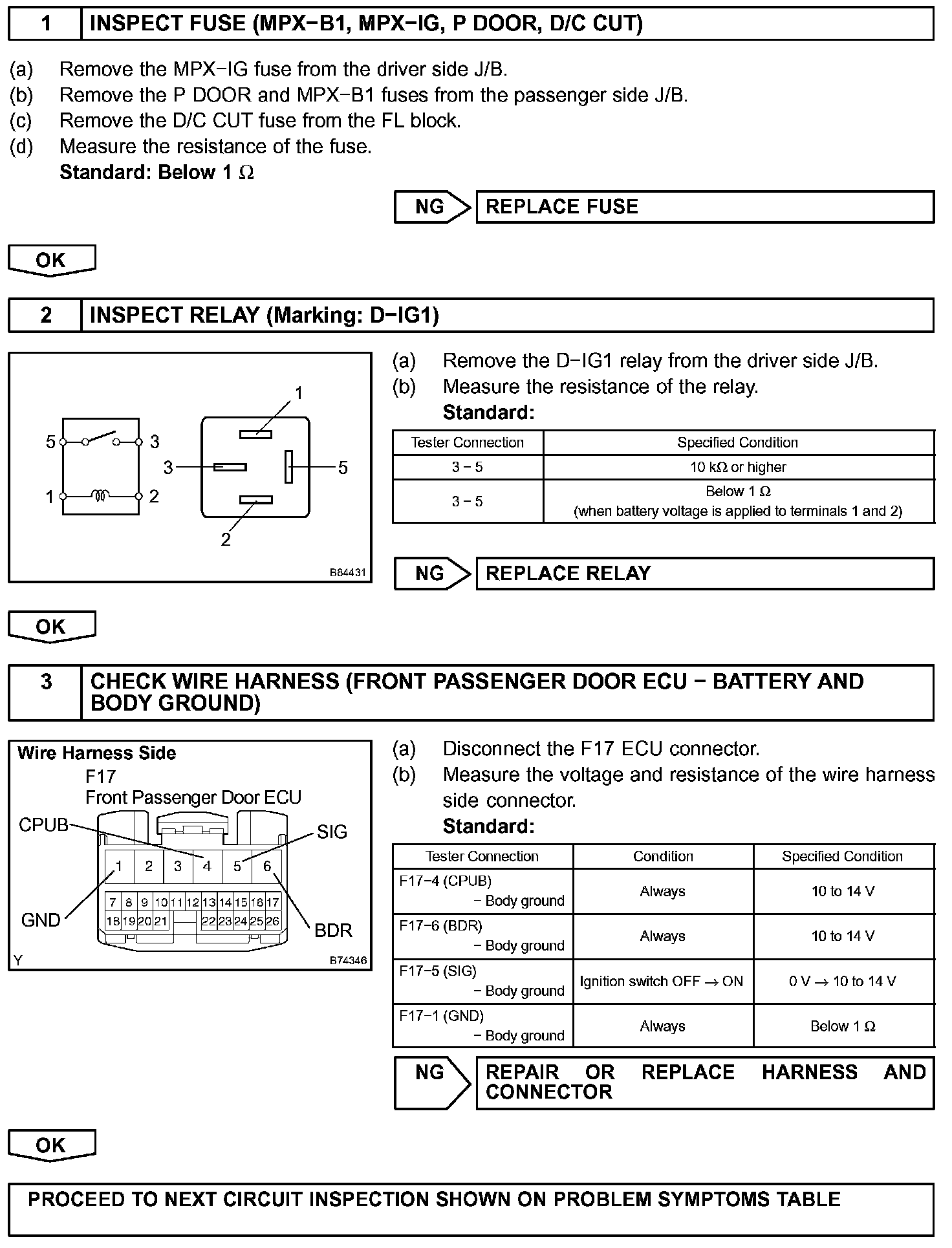

INSPECTION PROCEDURE

Step 1-3:
