Home >> Lexus >> 2006 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Description and Operation >> System Schematic

System Schematic

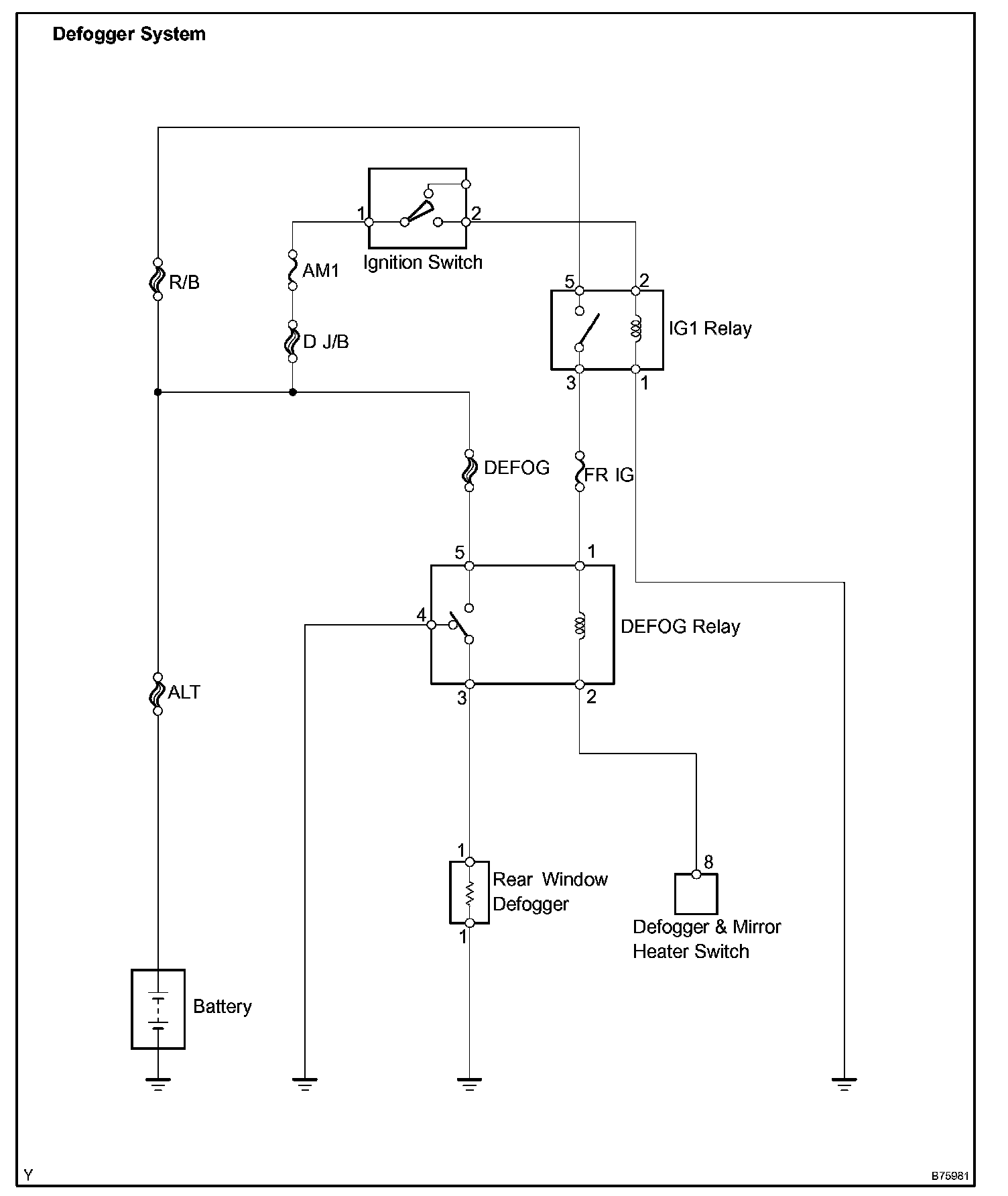

Defogger System:

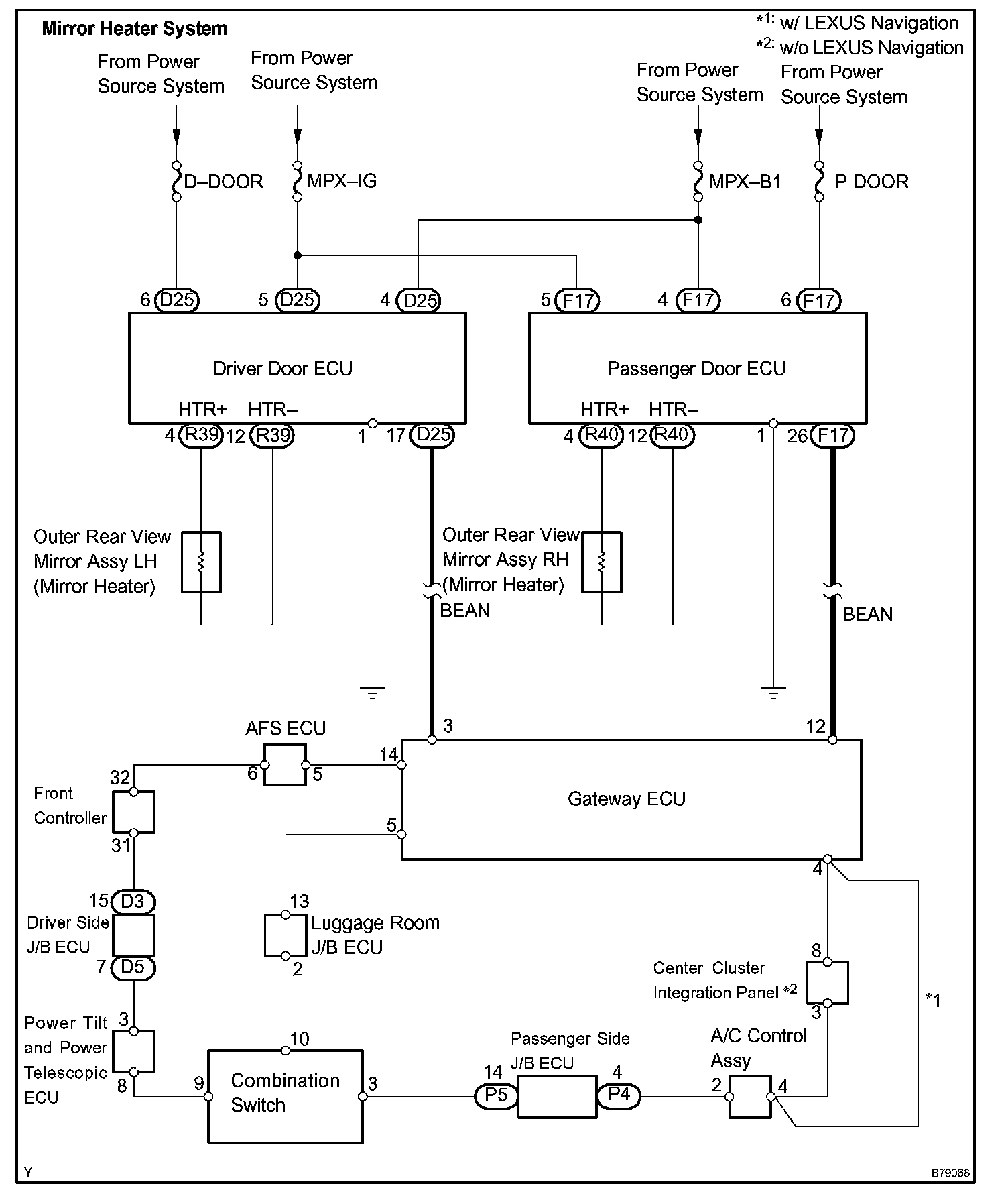

Mirror Heater System:
