Rear


















REAR AXLE HUB & BEARING ASSEMBLY LH
REPLACEMENT
1. REMOVE REAR TIRE
2. SEPARATE HEIGHT CONTROL SENSOR LINK SUB-ASSEMBLY REAR
3. REMOVE REAR AXLE SHAFT NUT
4. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH
5. REMOVE REAR DISC
6. SEPARATE SPEED SENSOR REAR LH
7. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING
SST 09703-30010
8. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET
9. REMOVE PARKING BRAKE SHOE ASSEMBLY LH NO.1
SST 09718-00010
10. REMOVE PARKING BRAKE SHOE ASSEMBLY LH NO.2
SST 09718-00010
11. REMOVE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY LH
12. REMOVE PARKING BRAKE CABLE ASSEMBLY NO.3
13. REMOVE PARKING BRAKE ANCHOR BLOCK SUB-ASSEMBLY

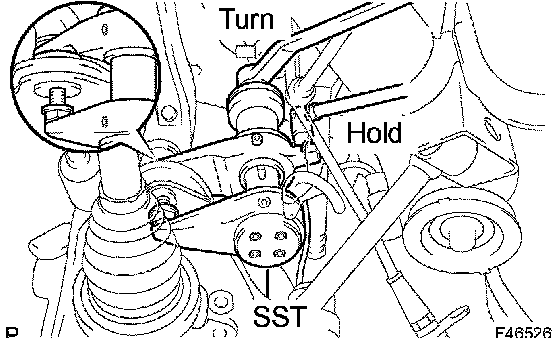

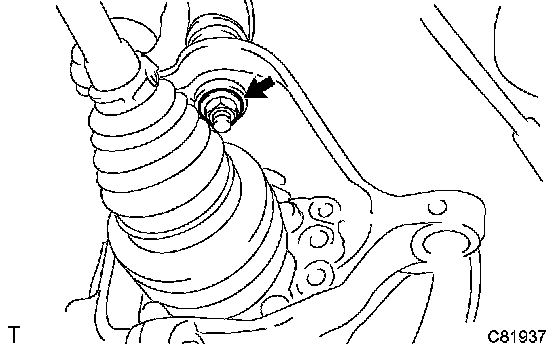

14. SEPARATE TOE CONTROL LINK SUB-ASSEMBLY LH
a. Remove the nut.
b. Using SST, disconnect the toe control link LH from the rear axle carrier.
SST 09628-00011

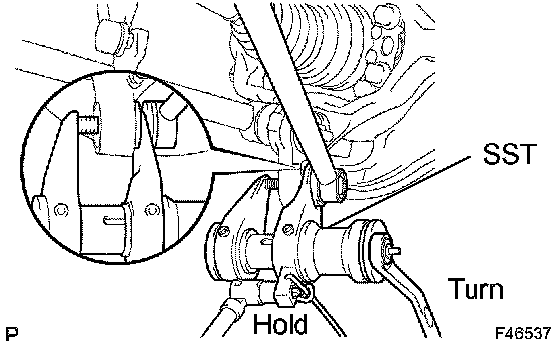

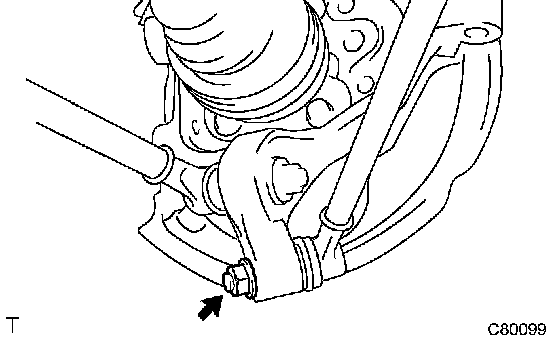

15. SEPARATE UPPER CONTROL ARM ASSEMBLY REAR LH
a. Loosen the nut to the top line of the bolt.

HINT: Do not remove the nut.

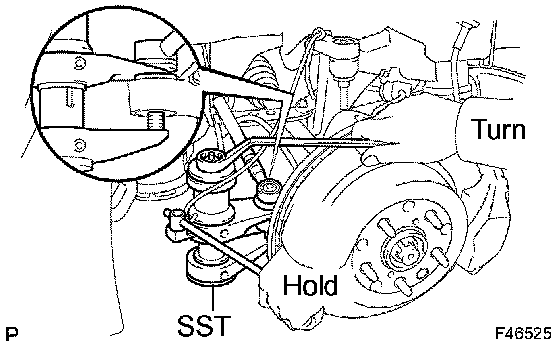

b. Using SST, disconnect the upper control arm LH from the rear axle carrier.
SST 09628-00011

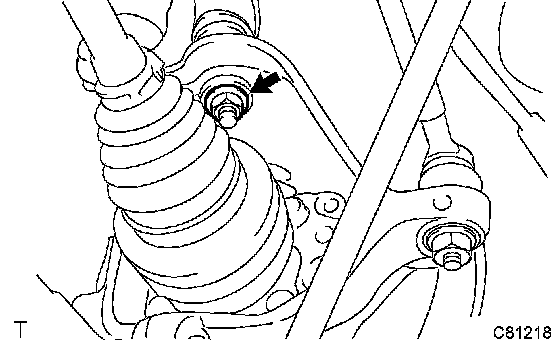

16. SEPARATE SHOCK ABSORBER ASSEMBLY REAR LH
a. Remove the nut and disconnect the shock absorber assembly rear LH from the axle carrier.





17. SEPARATE REAR SUSPENSION ARM ASSEMBLY NO.1 LH
a. Remove the nut.

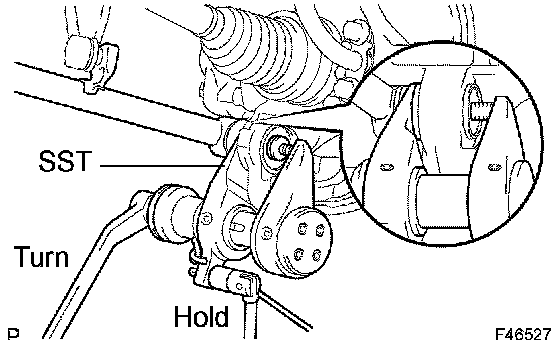

b. Using SST, disconnect the suspension arm assembly No.1 from the rear axle carrier.
SST 09628-00011

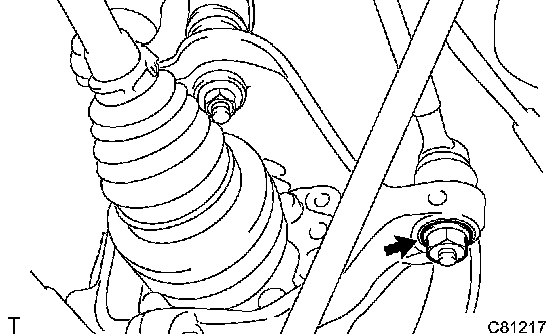

18. SEPARATE REAR SUSPENSION ARM ASSEMBLY NO.2 LH
a. Remove the nut.
b. Using SST, disconnect the suspension arm assembly No.2 LH from the rear axle carrier.
SST 09628-00011
19. SEPARATE REAR AXLE ASSEMBLY LH
a. Using a plastic hammer, separate the rear drive shaft assembly LH from the rear axle hub sub-assembly LH.

NOTICE: Be careful not to damage the boot and ABS speed sensor rotor.

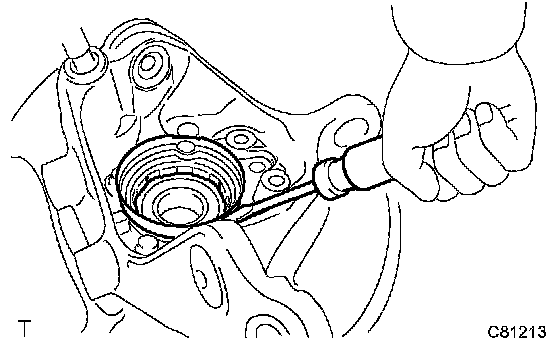

20. REMOVE REAR WHEEL BEARING DUST DEFLECTOR NO.2 LH
a. Using a screwdriver, remove the bearing dust deflector No.2 LH.

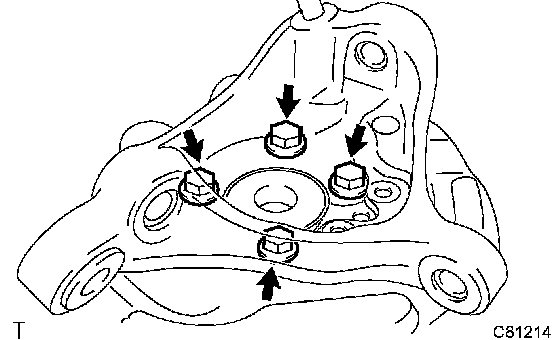

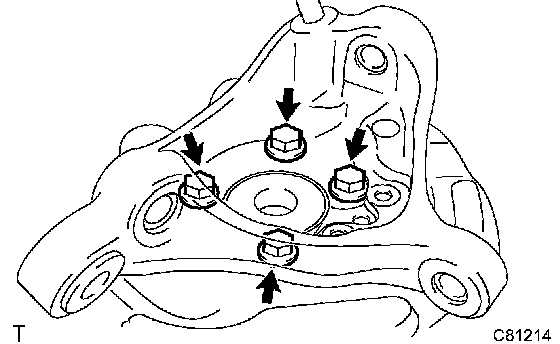

21. REMOVE REAR AXLE HUB & BEARING ASSEMBLY LH
a. Remove the 4 bolts and axle hub & bearing assembly LH.





22. INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH
a. Install the axle hub & bearing assembly LH with the 4 bolts.
Torque: 65 Nm (660 kgf-cm, 48 ft. lbs.)

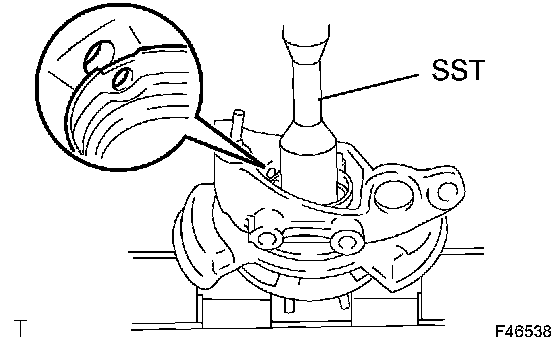

23. INSTALL REAR WHEEL BEARING DUST DEFLECTOR NO.2 LH
a. Using SST and a hammer, install the bearing dust deflector No.2 LH.

HINT: Align the hole for the speed sensor in the bearing dust deflector No.2 LH with the steering knuckle.

SST 09214-76011
24. INSTALL REAR AXLE ASSEMBLY LH
a. Install the rear drive shaft assembly LH and rear axle carrier.

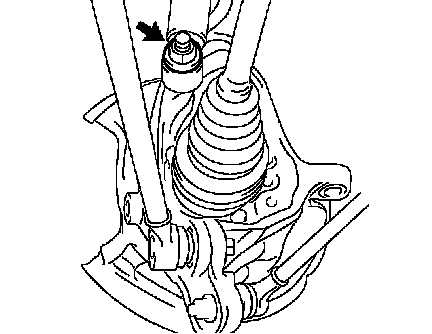

25. TEMPORARILY TIGHTEN UPPER CONTROL ARM ASSEMBLY REAR LH
a. Temporarily tighten the upper control arm assembly rear LH with the new nut.





26. INSTALL REAR SUSPENSION ARM ASSEMBLY NO.2 LH
a. Install the rear suspension arm assembly No.2 LH with the new nut.
Torque: 70 Nm (714 kgf-cm, 52 ft. lbs.)





27. INSTALL REAR SUSPENSION ARM ASSEMBLY NO.1 LH
a. Install the rear suspension arm assembly No. 1 LH with the new nut.
Torque: 70 Nm (714 kgf-cm, 52 ft. lbs.)





28. TEMPORARILY TIGHTEN SHOCK ABSORBER ASSEMBLY REAR LH
a. Temporarily tighten the shock absorber assembly rear LH with the new nut.





29. INSTALL TOE CONTROL LINK SUB-ASSEMBLY LH
a. Install the toe control link assembly LH with the new nut.
Torque: 50 Nm (510 kgf-cm, 37 ft. lbs.)

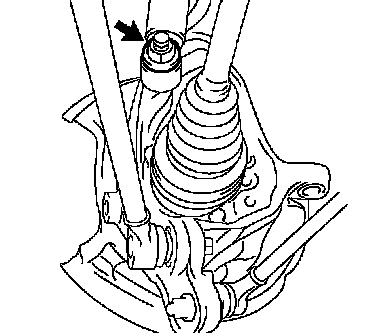

30. FULLY TIGHTEN UPPER CONTROL ARM ASSEMBLY REAR LH
a. Fully tighten the upper control arm assembly LH with the new nut.
Torque: 70 Nm (714 kgf-cm, 52 ft. lbs.)
31. INSTALL HEIGHT CONTROL SENSOR LINK SUB-ASSEMBLY REAR
32. APPLY HIGH TEMPERATURE GREASE
33. INSTALL PARKING BRAKE ANCHOR BLOCK SUB-ASSEMBLY
34. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.3
35. INSTALL PARKING BRAKE SHOE LEVER SUB-ASSEMBLY LH
36. INSTALL PARKING BRAKE SHOE ASSEMBLY LH NO.2
SST 09718-00010
37. INSTALL PARKING BRAKE SHOE ASSEMBLY LH NO.1
SST 09718-00010
38. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET
39. INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING
SST 09703-30010
40. CHECK PARKING BRAKE INSTALLATION
41. CHECK PARKING BRAKE PEDAL TRAVEL
42. ADJUST PARKING BRAKE PEDAL TRAVEL
43. INSTALL SPEED SENSOR REAR LH
a. Install the speed sensor with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
44. INSTALL REAR DISC
45. ADJUST PARKING BRAKE SHOE CLEARANCE
46. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH
47. INSTALL REAR AXLE SHAFT NUT
48. INSPECT AXLE HUB BEARING LOOSENESS
49. INSPECT AXLE HUB BEARING RUNOUT
50. STABILIZE SUSPENSION
51. FULLY TIGHTEN SHOCK ABSORBER ASSEMBLY REAR LH
a. Fully tighten the shock absorber assembly LH with the new nut.
Torque: 70 Nm (714 kgf-cm, 52 ft. lbs.)
52. INSTALL REAR TIRE
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
53. ADJUST VEHICLE HEIGHT (W/ AIR SUSPENSION)
54. INSPECT HEADLIGHT AIM ONLY
55. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
56. CHECK ABS SPEED SENSOR SIGNAL
