Shifter A/T: Adjustments
FLOOR SHIFT ASSEMBLYADJUSTMENT
1. INSPECT SHIFT LEVER POSITION
a. When shifting from the P to R position with the ignition switch on and brake pedal depressed, make sure that the shift lever moves smoothly and moves correctly into position.
b. Start the engine and make sure that the vehicle moves forward when shifting from the N to D position and moves rearward when shifting to the R position.
If operation cannot be done as specified, inspect the park/neutral position switch assembly and check the shift lever assembly installation condition.
2. ADJUST SHIFT LEVER POSITION
a. Remove the nut and disconnect the shifting rod from the connecting rod swivel.

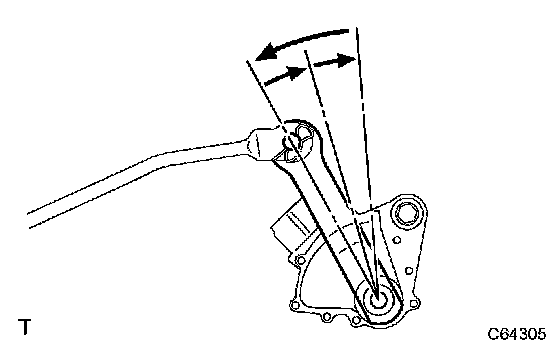

b. Turn the control shaft lever of the neutral start switch counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.
c. Move the shift lever to the N position and tighten the nut while lightly pushing the lever toward the R position.
NOTICE: Do not push the shift lever too hard.
d. After adjustment, check that the shift lever moves smoothly and the shift lever and gear operate correctly.
