AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
REPLACEMENT
1. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
2. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY LH
3. REMOVE INSTRUMENT PANEL FINISH PANEL
4. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.1
5. REMOVE SWITCH BRACE HOLE COVER
6. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY NO.1
7. REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY
8. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
9. REMOVE CONSOLE BOX CARPET
10. REMOVE REAR CONSOLE ARMREST ASSEMBLY
11. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
12. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
13. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
14. REMOVE CONSOLE BOX
15. SEPARATE OXYGEN SENSOR
16. REMOVE EXHAUST PIPE ASSEMBLY
17. REMOVE PROPELLER W/CENTER BEARING SHAFT ASSEMBLY
18. DRAIN AUTOMATIC TRANSMISSION FLUID
a. Remove the drain plug, gasket and drain the ATF.
b. Install a new gasket and the drain plug.
Torque: 20 Nm (205 kgf-cm, 15 ft. lbs.)
19. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY





a. Using SST and a hammer, loosen the staked part of the nut.
SST 09930-00010

HINT: Move the shift lever to the P position.

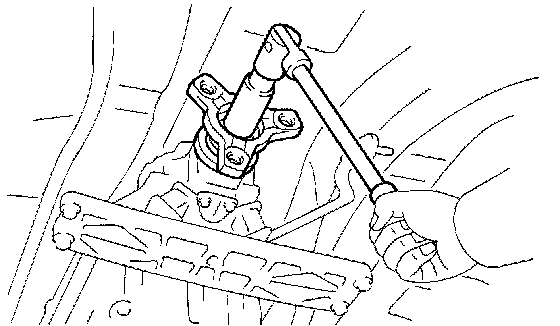

b. Using a 30 mm deep socket wrench, remove the nut.
c. Tap the output flange with a plastic hammer to remove it.

HINT: Move the shift lever to the P position.





d. Using a screwdriver, remove the oil seal from the output flange.





20. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

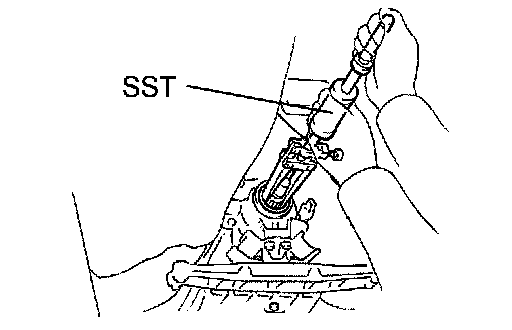

a. Using SST, remove the oil seal.
SST 09308-00010
21. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
a. Coat the lip of a new oil seal with MP grease.





b. Using SST and a hammer, drive in the oil seal with the lip facing downward.
SST 09309-37010
Oil seal depth from flat end: 2.0 mm (0.079 inch)
22. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

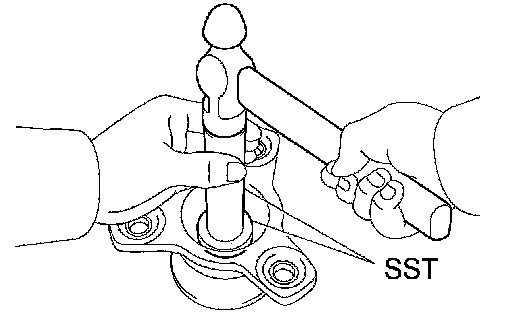

a. Using SST and a hammer, drive in a new oil seal.
SST 09950-60010 (09951-00350), 09950-70010 (09951-07100)





b. Install the output flange.

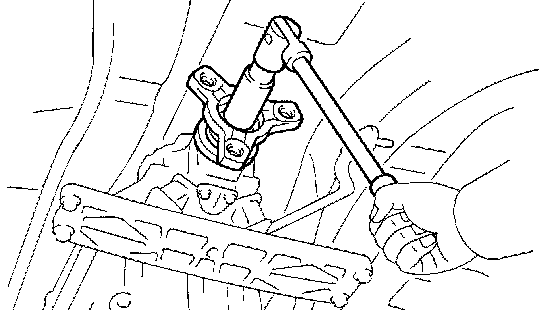

c. Using a 30 mm deep socket wrench, install and torque a new nut.
Torque: 126 Nm (1,280 kgf-cm, 92 ft. lbs.)

HINT: Move the shift lever to P position.





d. Using a chisel and hammer, securely stake the nut.
23. INSTALL PROPELLER W/CENTER BEARING SHAFT ASSEMBLY
24. FULLY TIGHTEN CENTER SUPPORT BEARING ASSEMBLY NO.1
25. INSTALL EXHAUST PIPE ASSEMBLY
26. ADD AUTOMATIC TRANSMISSION FLUID
Fluid type: ATF WS
Capacity: 1.7 liters (1.8 US qts, 1.5 Imp. qts)
