Data List

DATA LIST

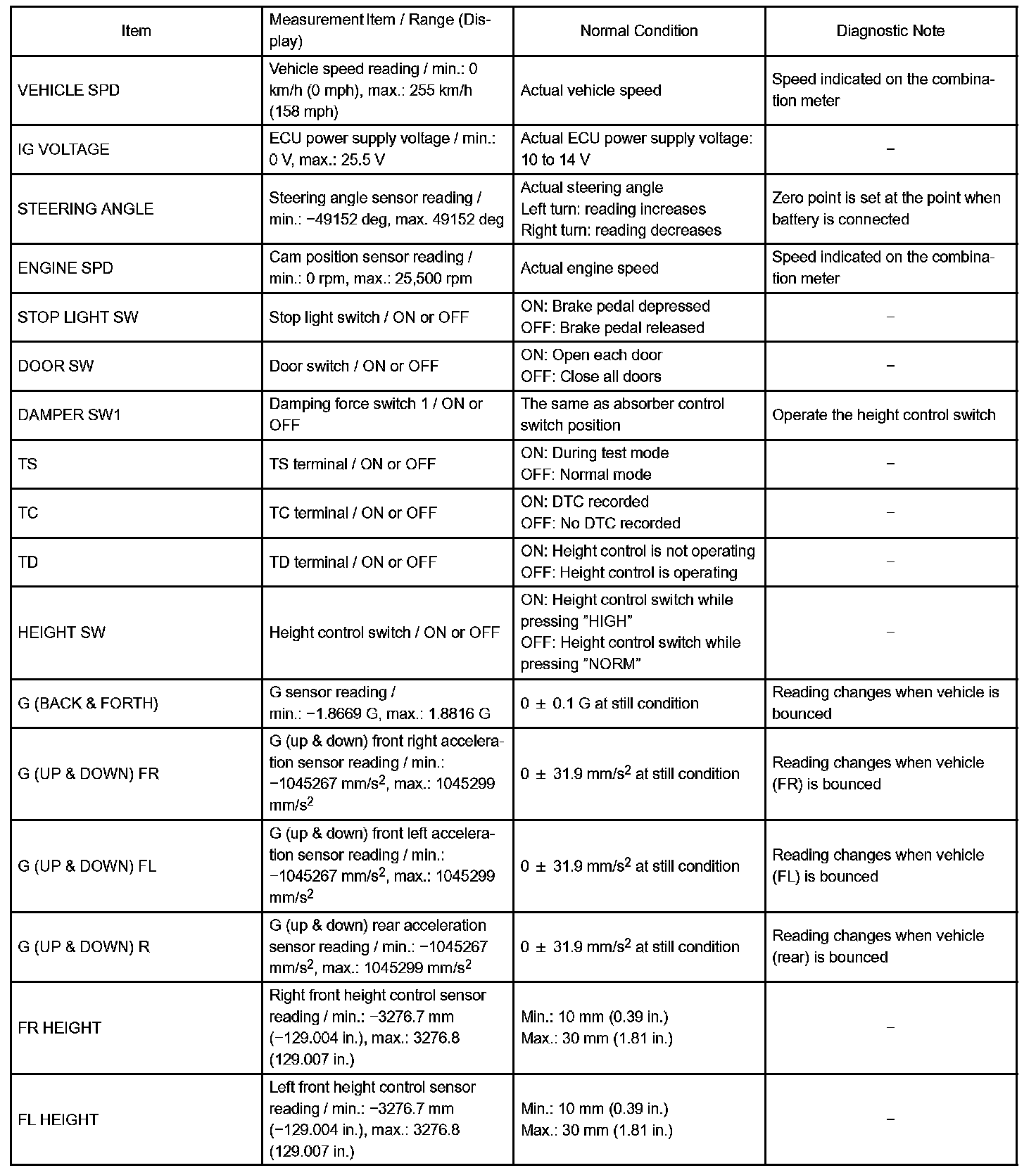

Data List (Part 1):

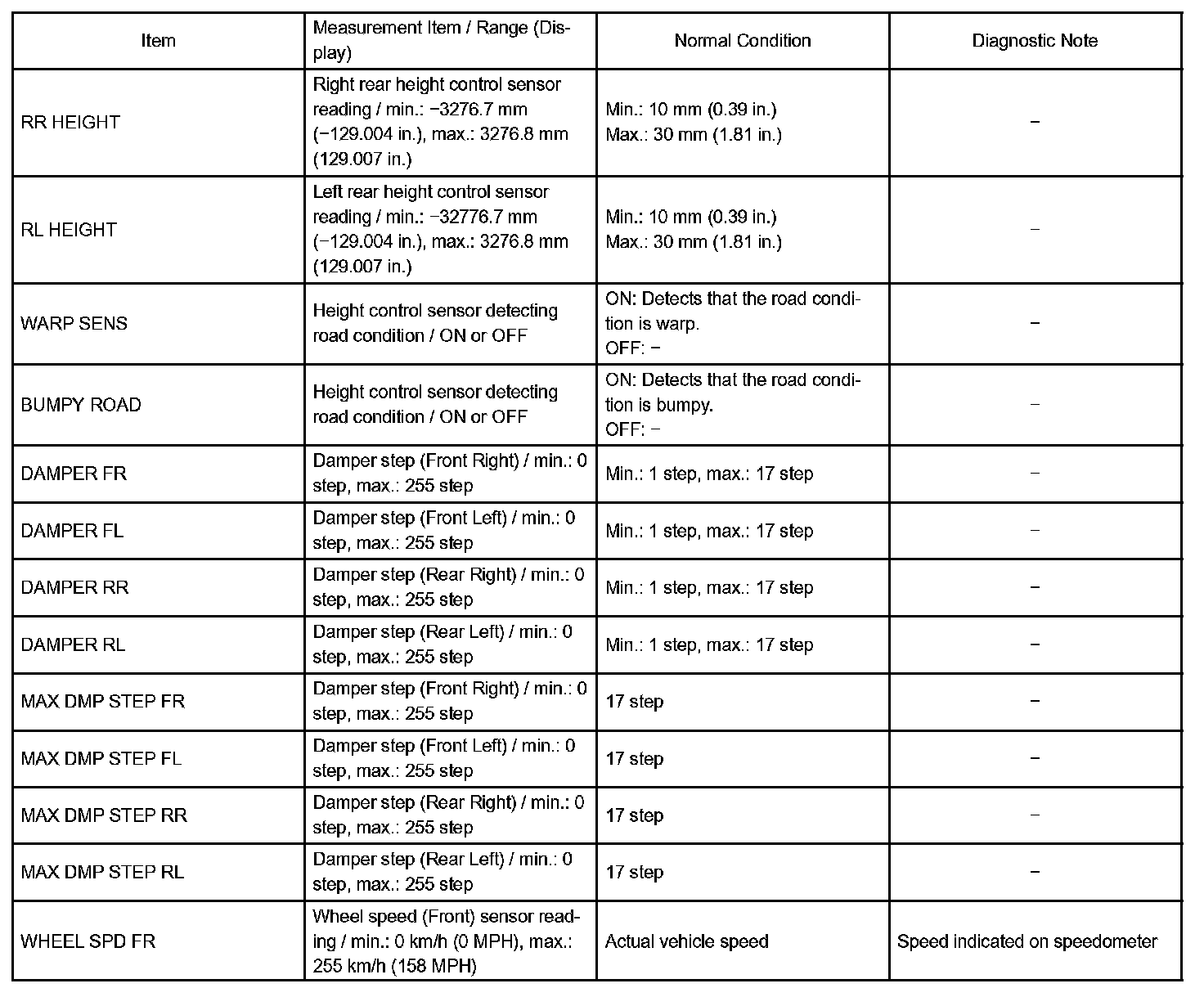

Data List (Part 2):

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position.
c. Following the display on the hand-held tester, read the "DATA LIST".
