Fail-Safe Chart

FAIL-SAFE CHART

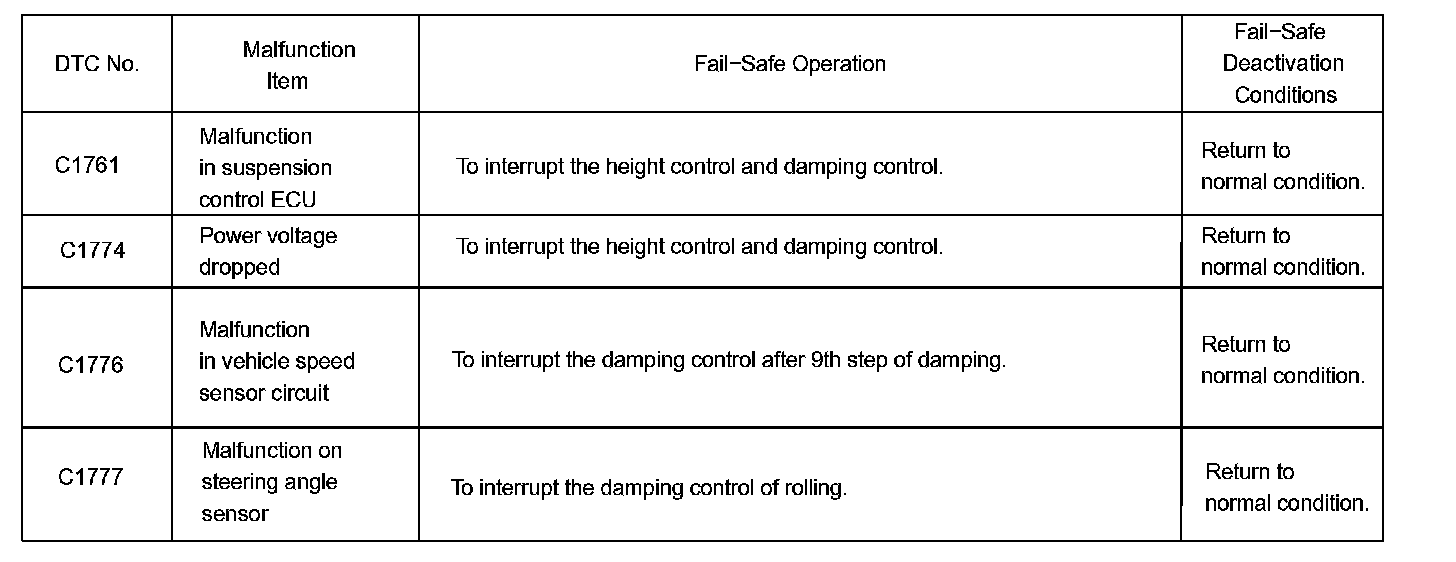

Fail-Safe Chart (Part 1):

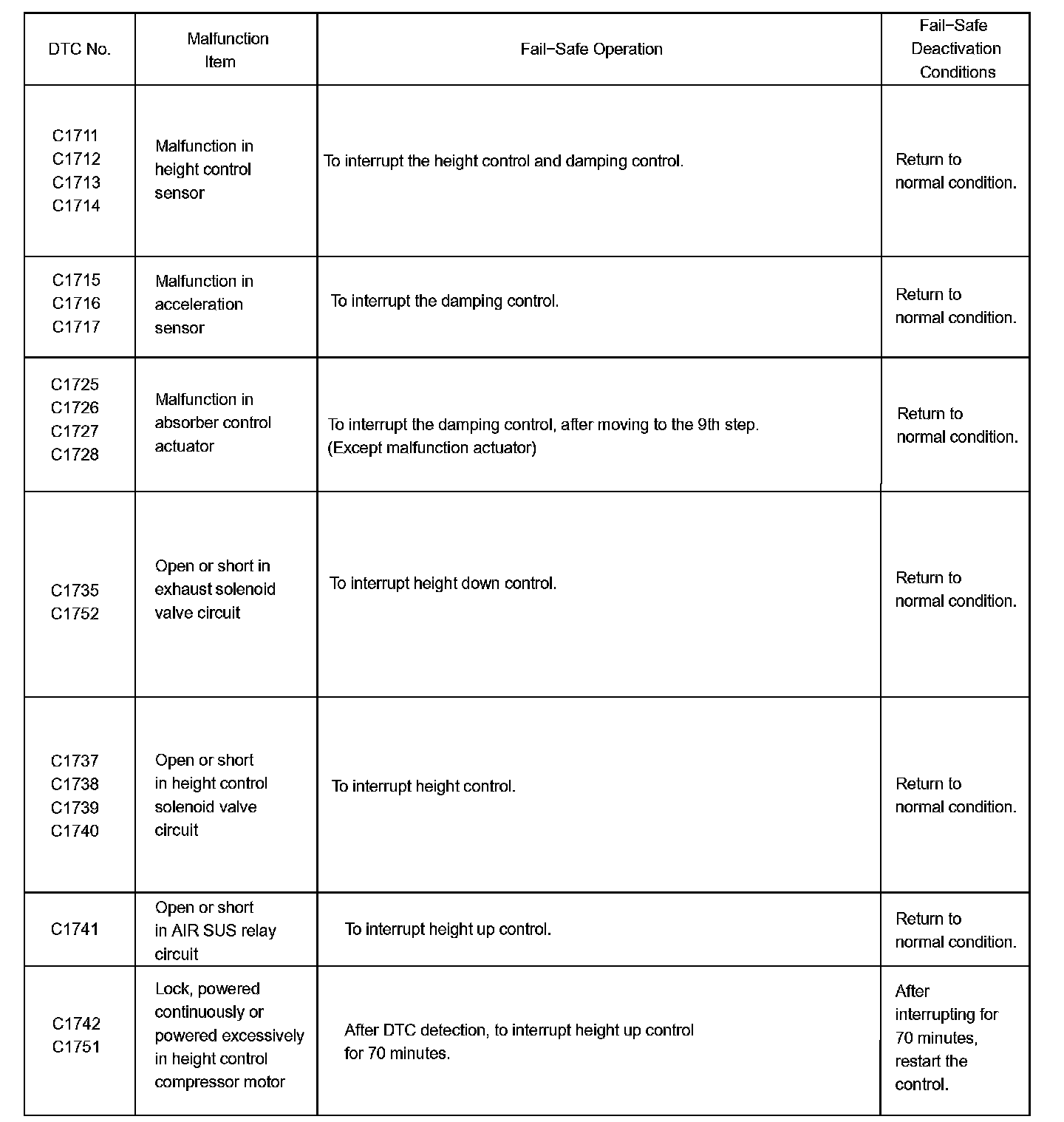

Fail-Safe Chart (Part 2):

1. FAIL-SAFE FUNCTION

a. When an air suspension system malfunction is detected under the normal control operation, the suspension control ECU will suspend the switch control of the height control operation.
