Absorber Control Indicator Light Circuit

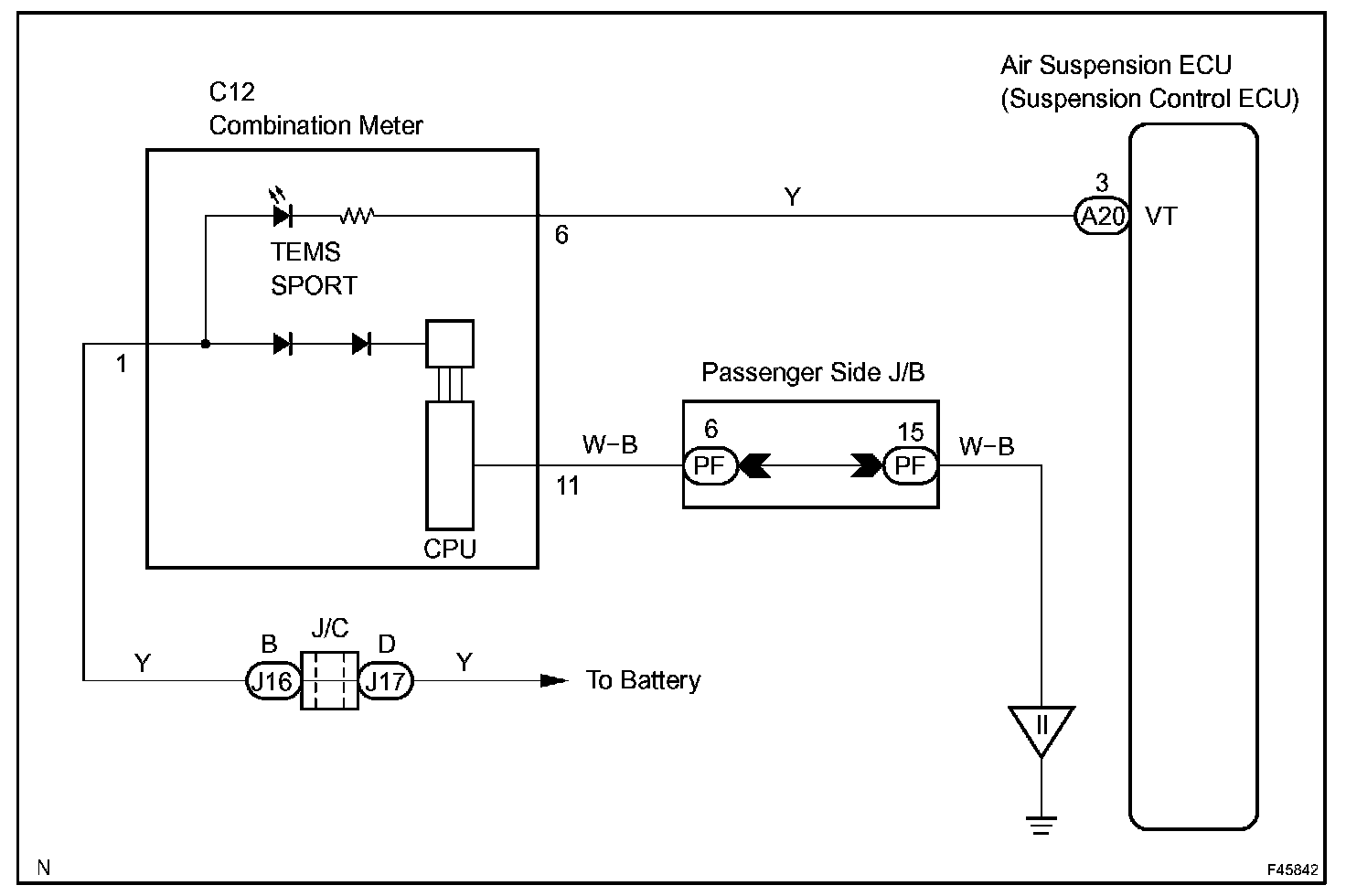

ABSORBER CONTROL INDICATOR LAMP CIRCUIT

CIRCUIT DESCRIPTION

The absorber control indicator is displayed when pressing the "SPORT" button of the absorber control switch. If the suspension control ECU detects trouble, it lights the absorber control indicator and at the same time prohibits suspension control. At this time, the ECU records the DTC in memory.
