Height Control Valve Sub-Assembly No.2

HEIGHT CONTROL VALVE SUB-ASSEMBLY NO.2
REPLACEMENT
1. REMOVE HEIGHT CONTROL VALVE SUB-ASSEMBLY NO.2
a. Disconnect the connector.
b. Disconnect the 3 air tubes.

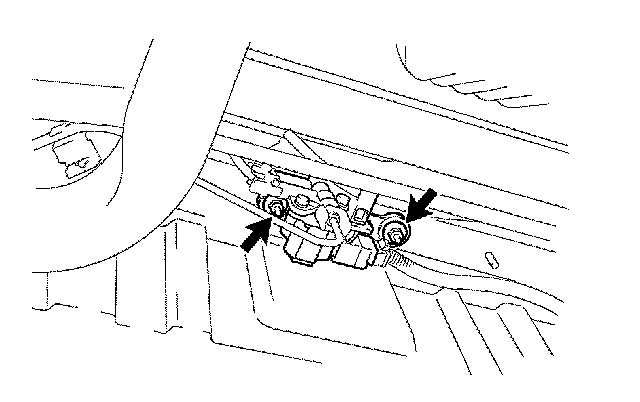

c. Remove the 2 nuts and height control valve sub-assembly No.2.





2. INSTALL HEIGHT CONTROL VALVE SUB-ASSEMBLY NO.2

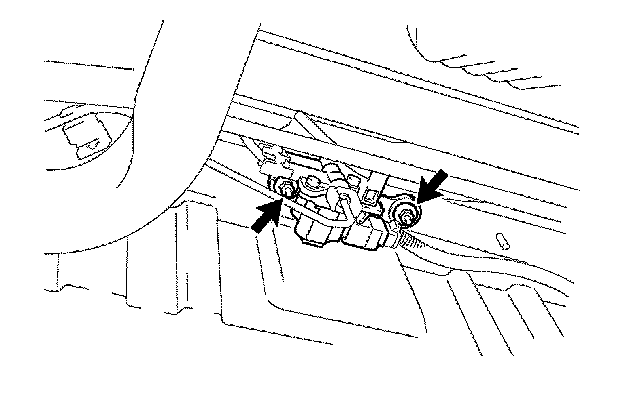

a. Install the height control valve sub-assembly No.2 with 2 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
b. Connect the 3 air tubes.
c. Connect the connector.
3. INSPECT AIR LEAK
