Data List

DATA LIST

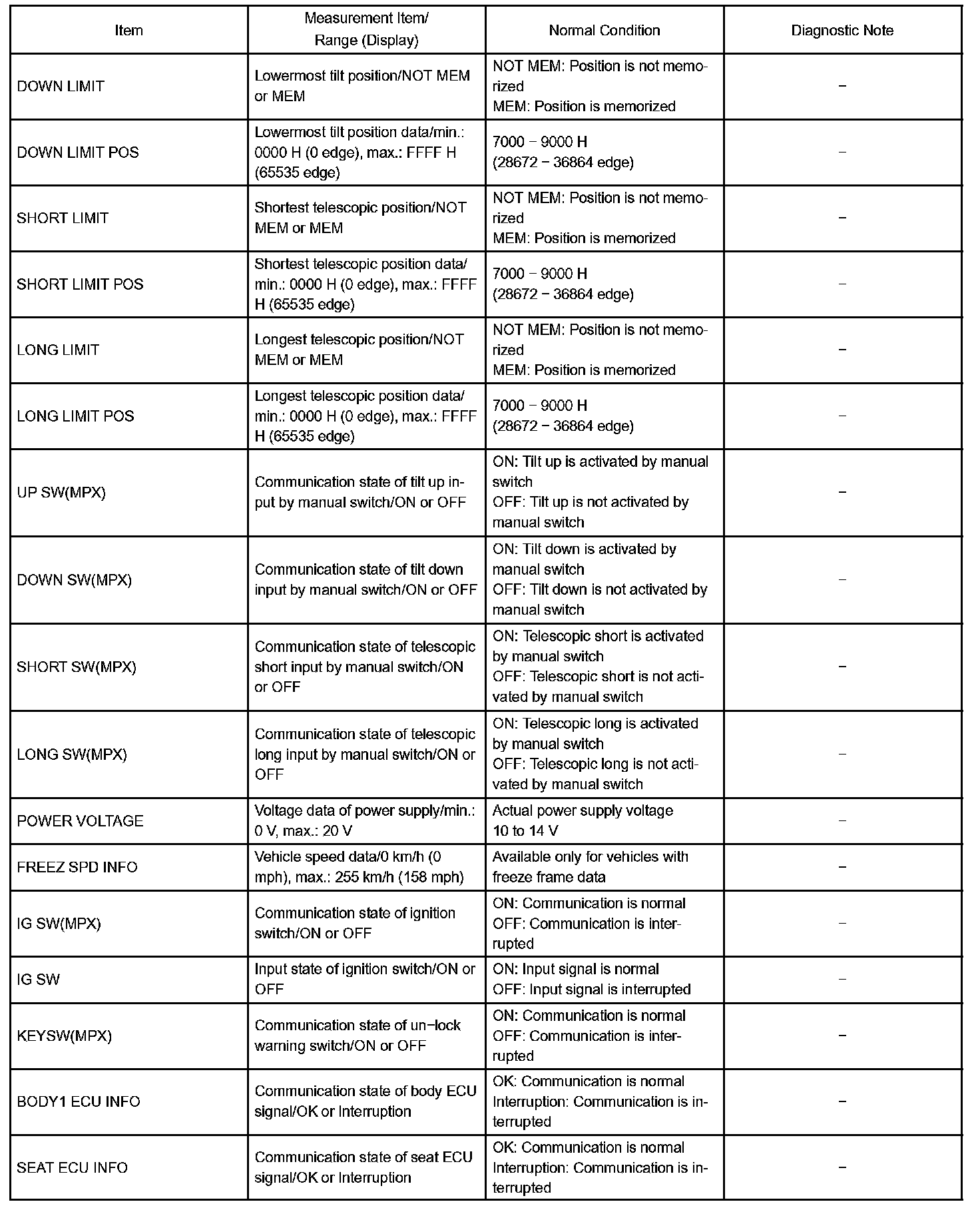

Data List (Part 1):

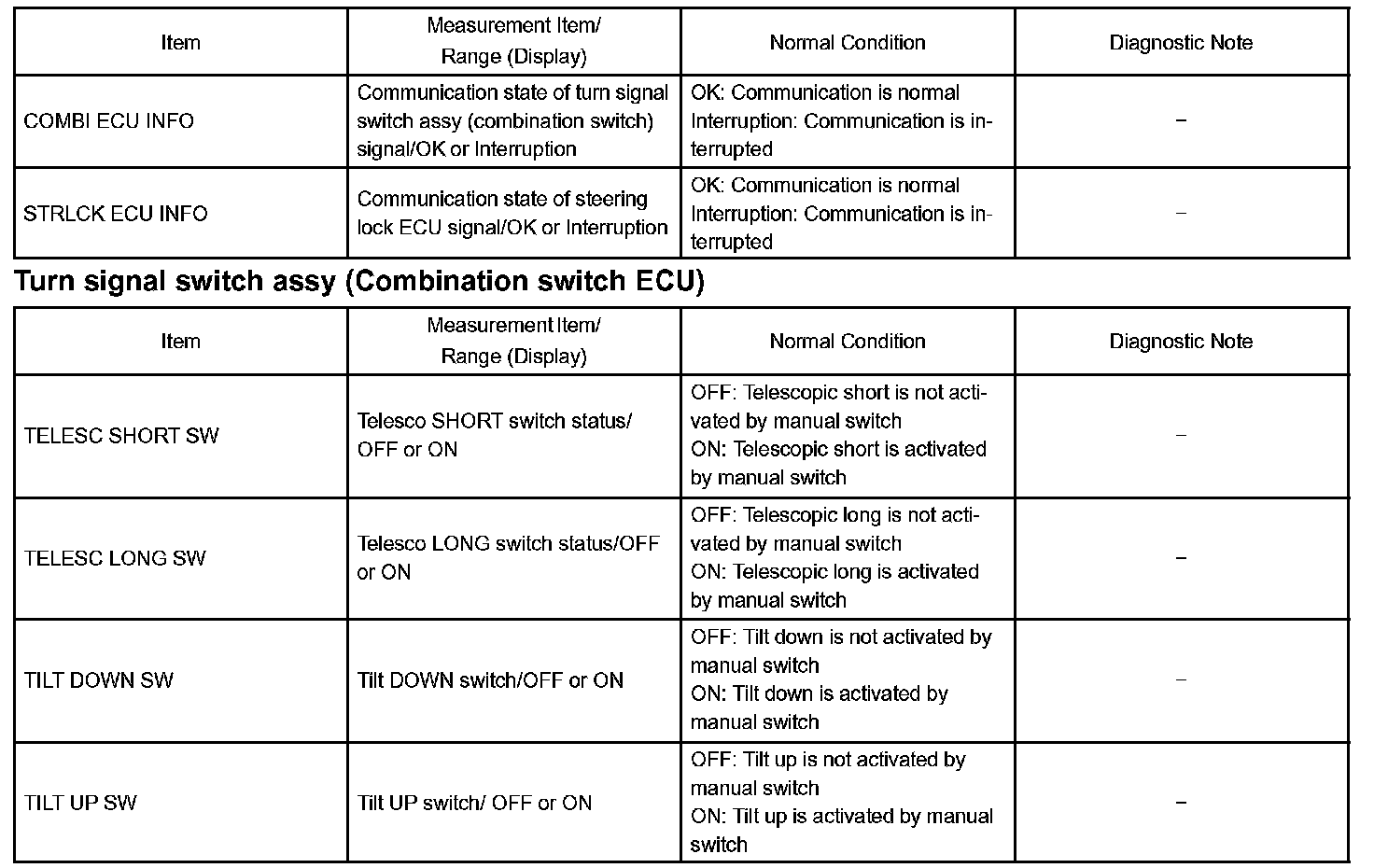

Data List (Part 2):

Data List (Part 3):

a. Connect the hand-held tester to the DLC3.
b .Turn the ignition switch to the ON position and turn the hand-held tester on.
c. Operate the hand-held tester according to the steps on the display and select "DATA LIST".
