Fail-Safe Chart

FAIL-SAFE CHART

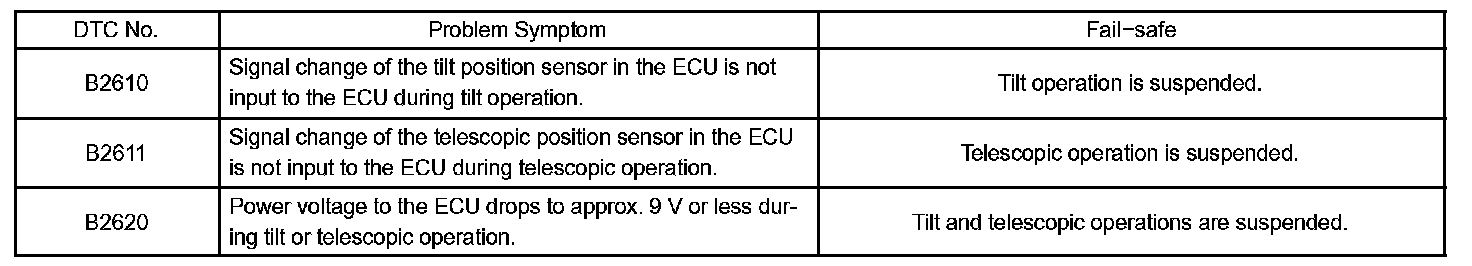

FAIL-SAFE OPERATION

HINT: If the power voltage to the ECU returns to normal within 10 seconds during tilt or telescopic operation, the operation will be resumed. If it returns to normal after 10 seconds have elapsed, the operation restarts when a tilt or telescopic operation signal is again input to the ECU.

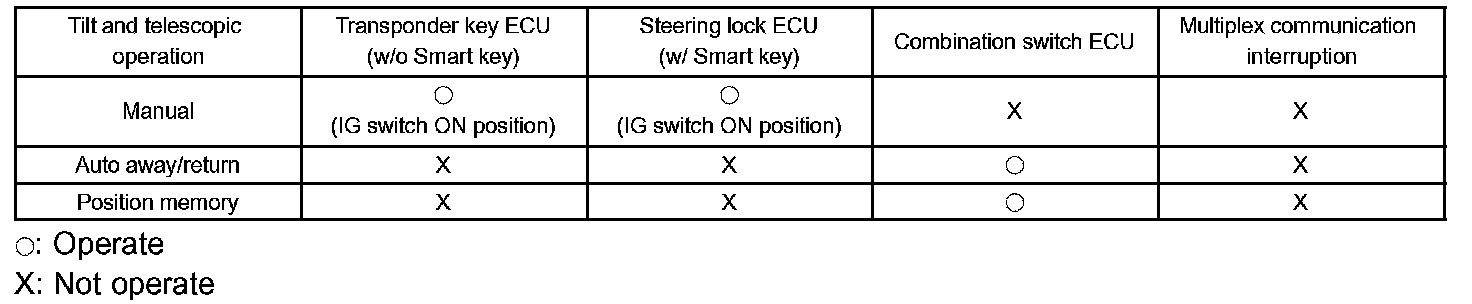

a. If the communication of an ECU related to this system is interrupted, the ECU effects the controls listed. (Example: When the turn signal switch assembly (combination switch ECU) is defective, manual operation is not available but auto away/return and position memory can operate.)
