Actuator Power Source Circuit

ACTUATOR POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit is the power source for the motors. The ECU boosts this electric power to approximately 200 V alternating current, and then supplies it to the motors.

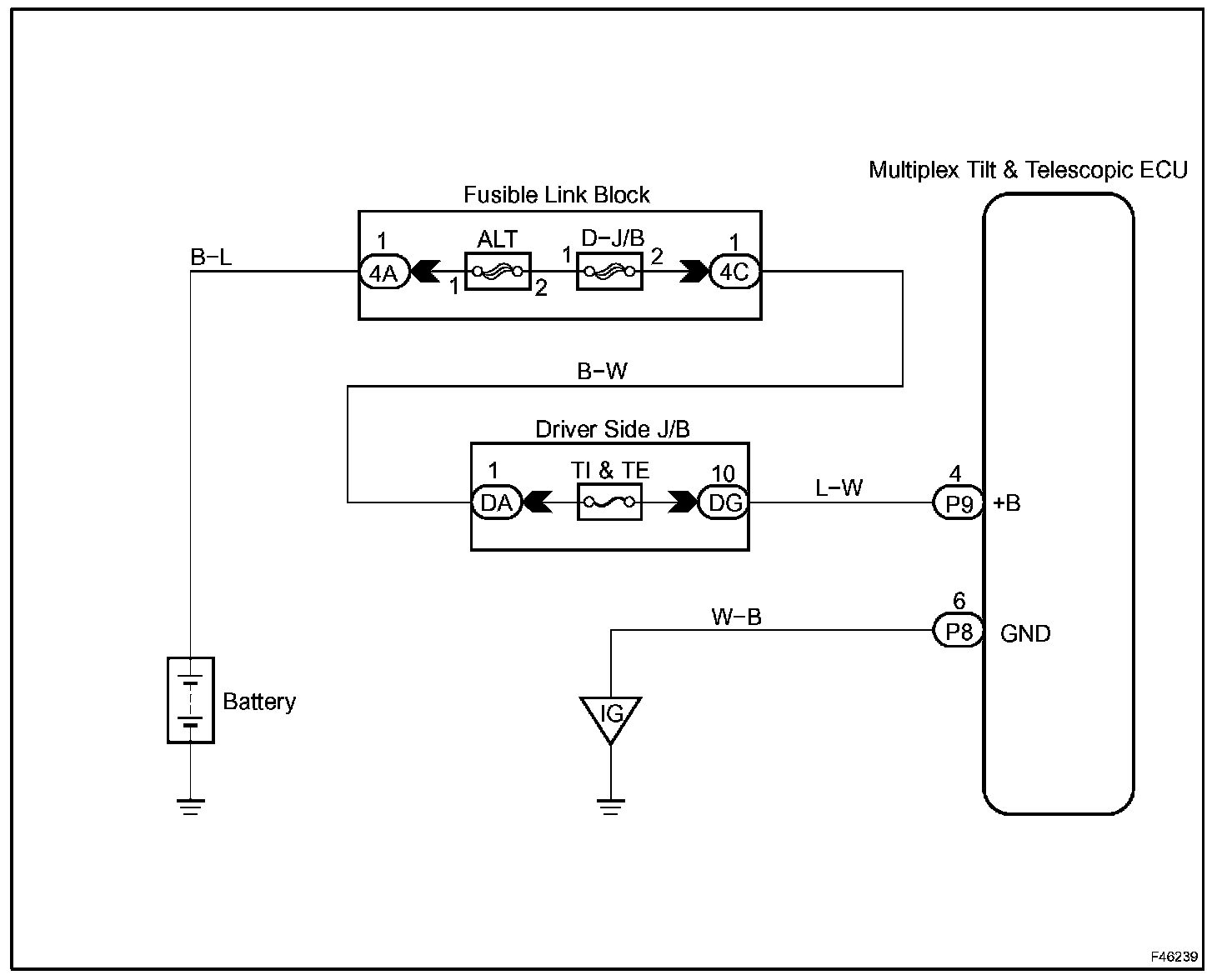

Wiring Diagram:

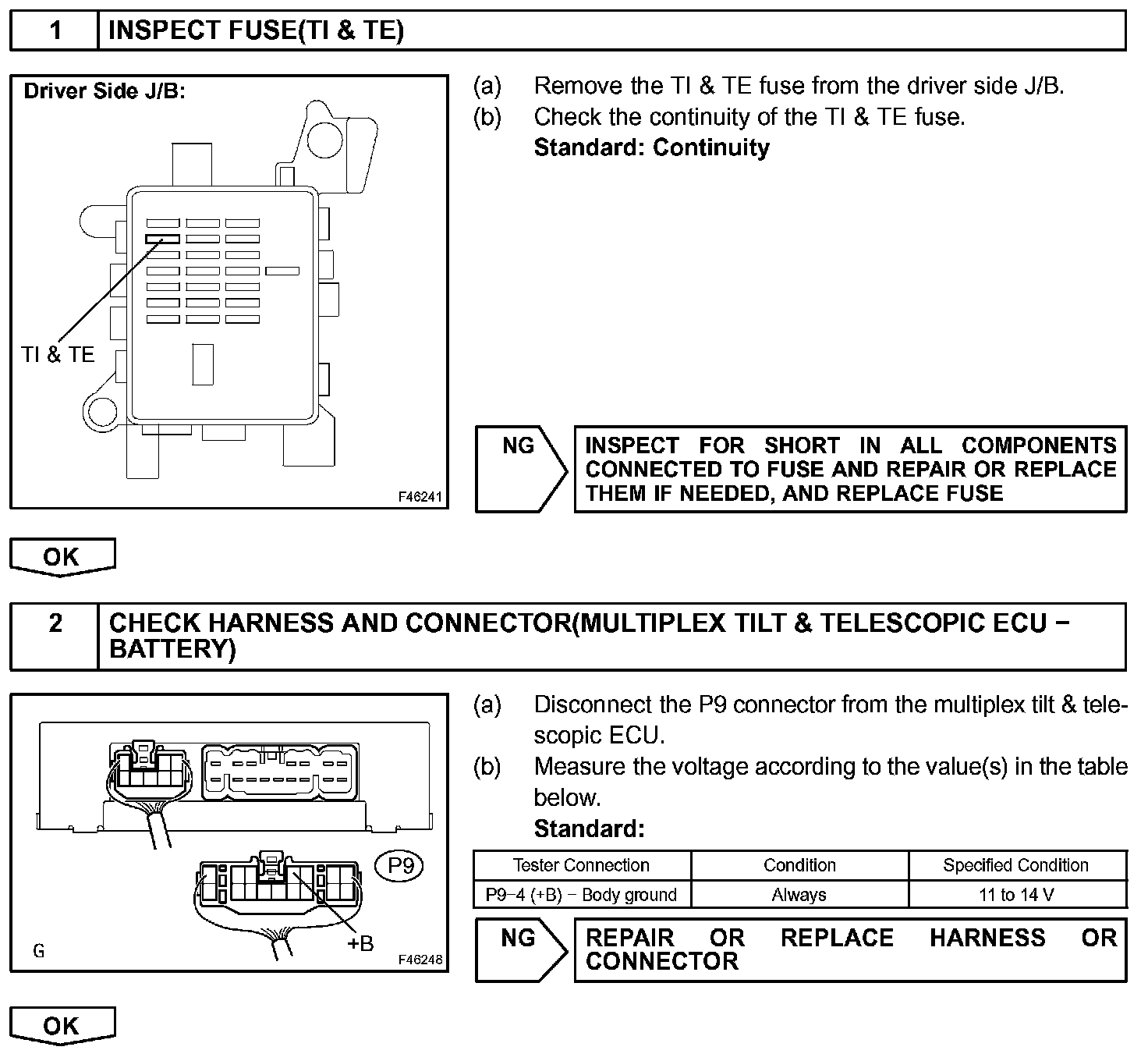

Step 1-2:

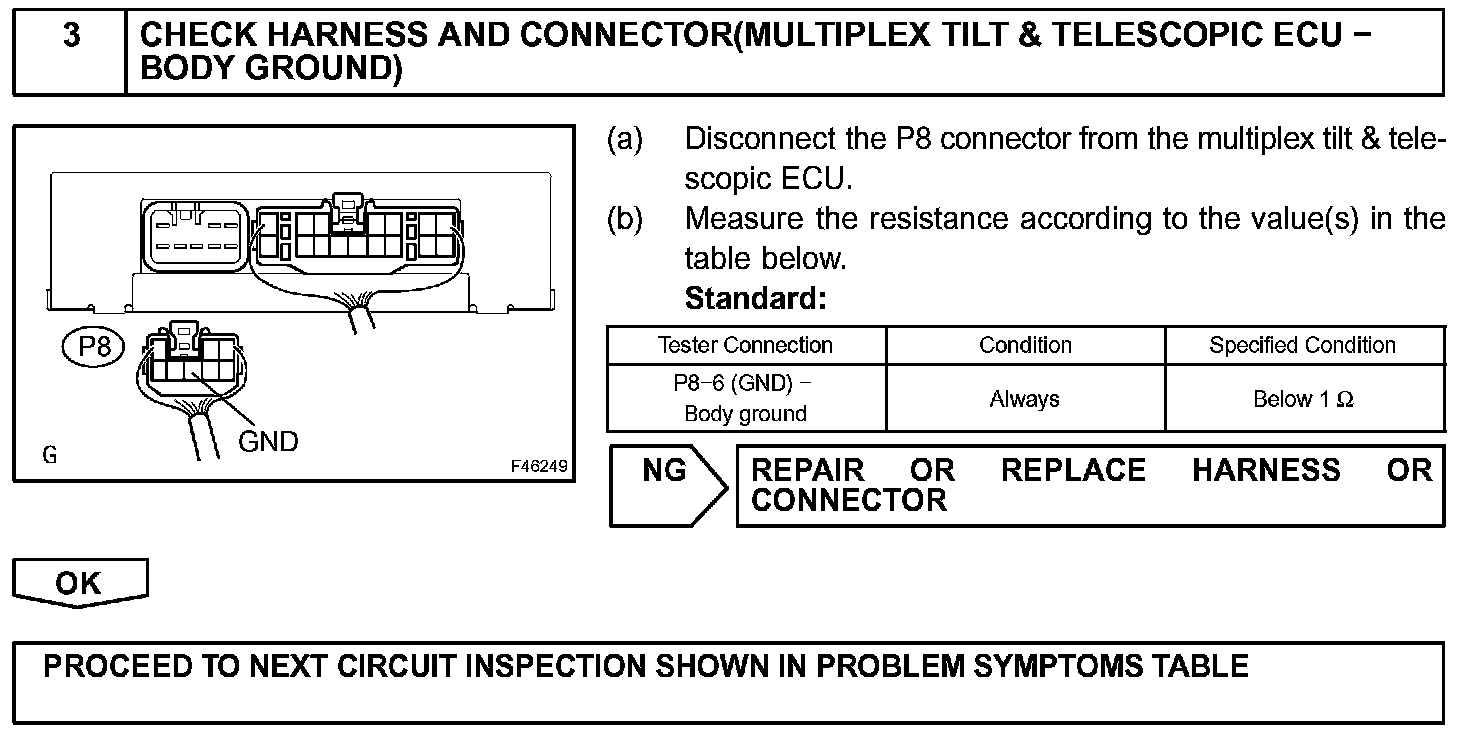

Step 3:




INSPECTION PROCEDURE
