Relay Box: Locations

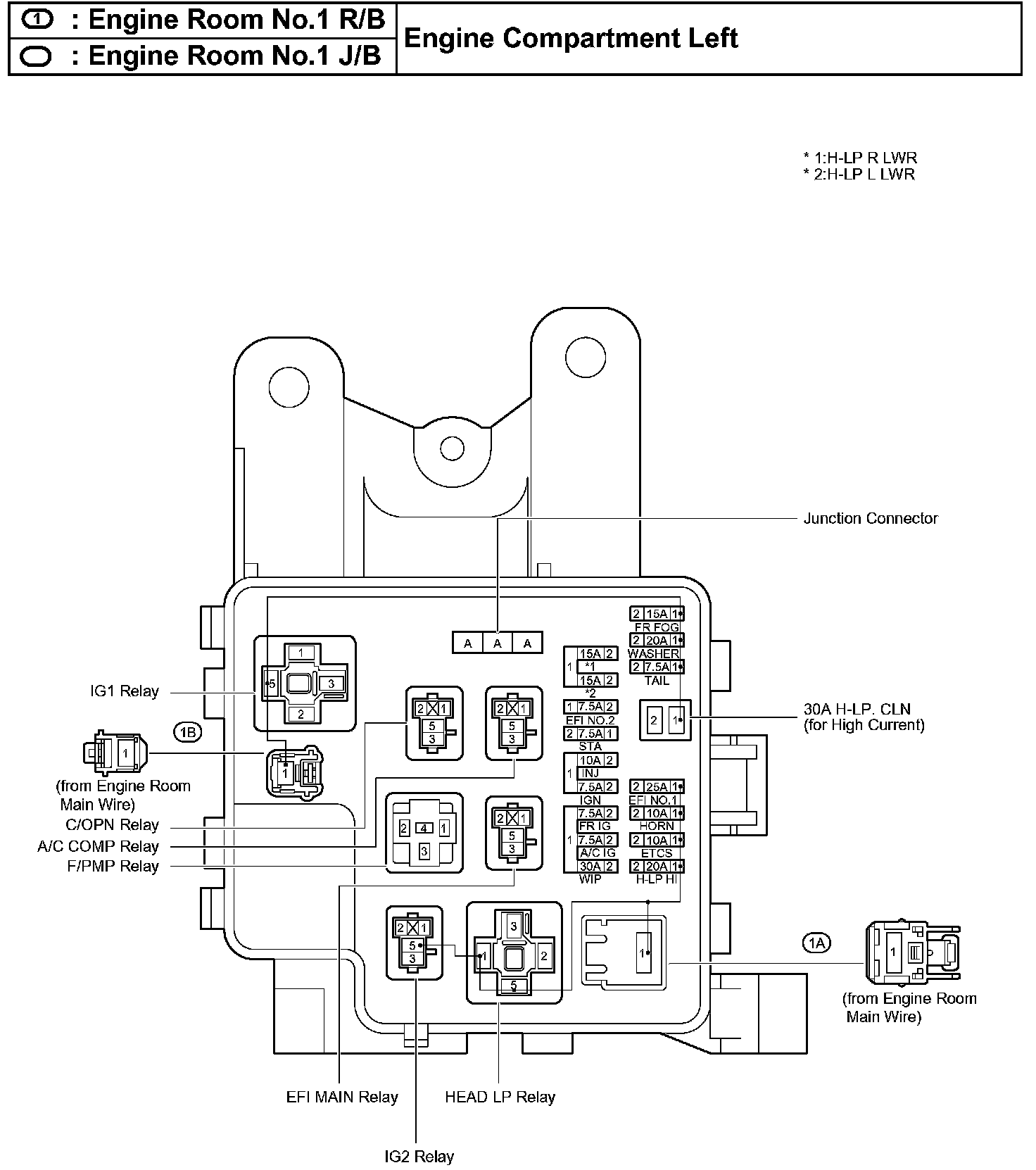

Engine Room R/B 1:

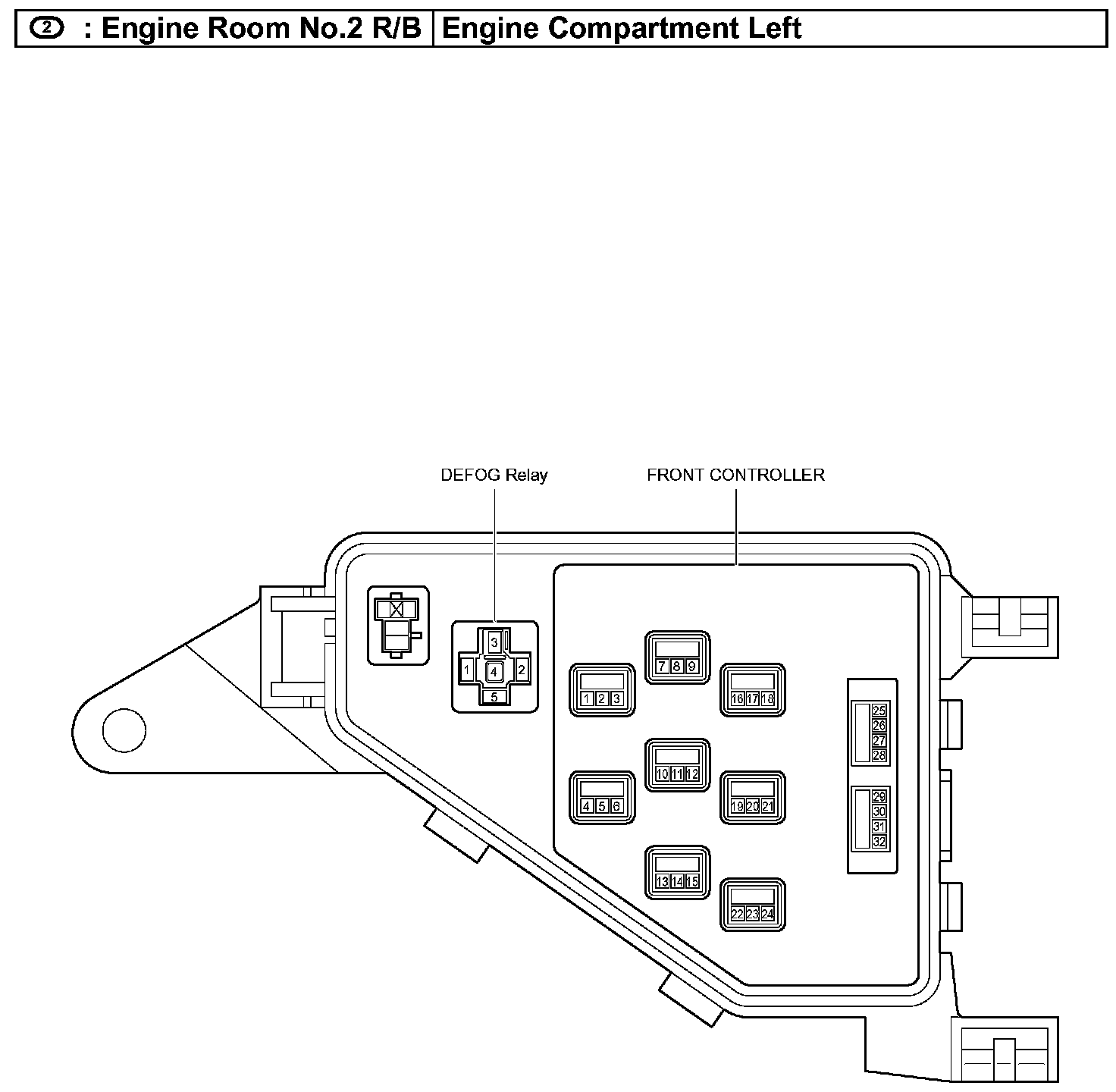

Engine Room R/B 2:

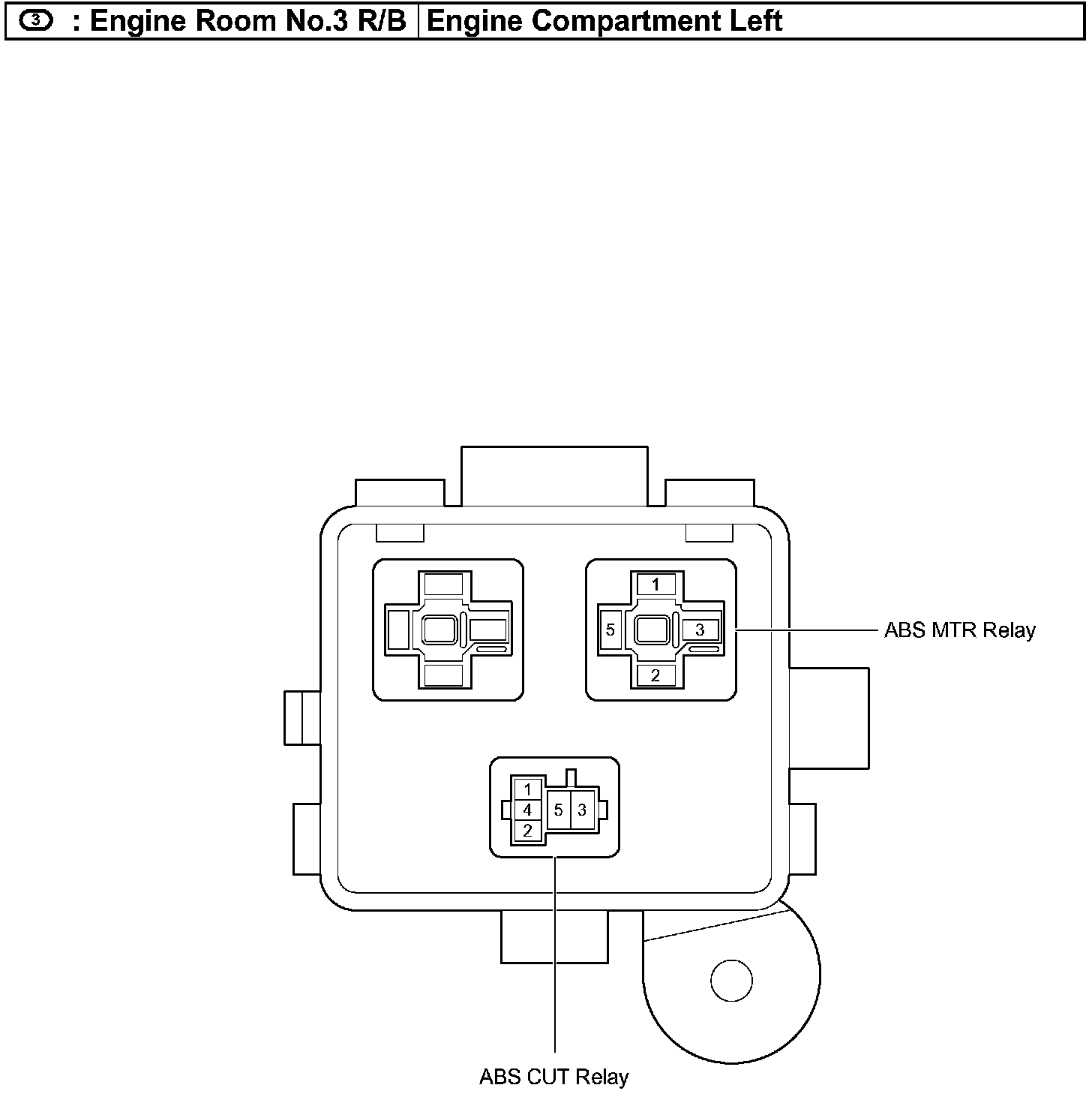

Engine Room R/B 3:

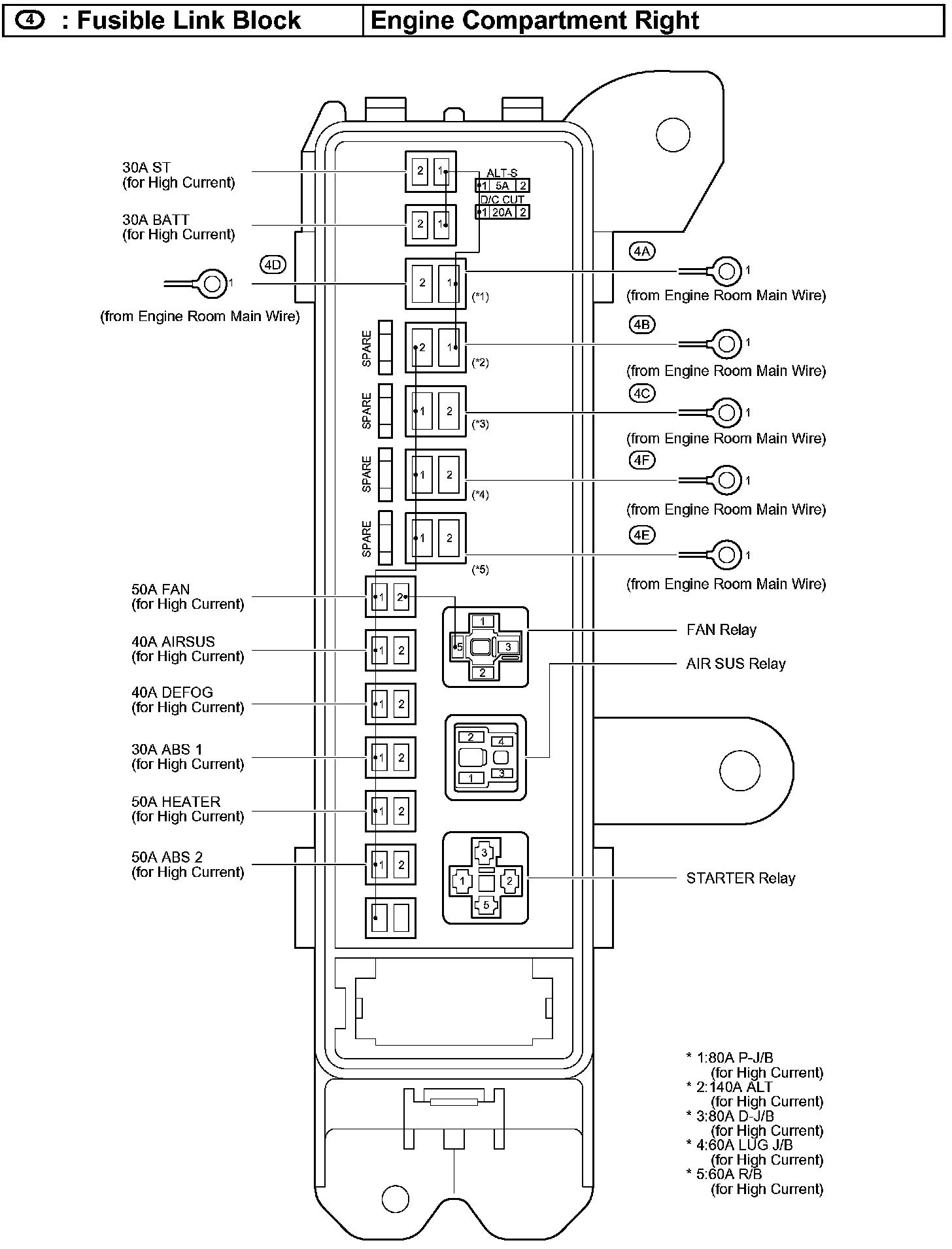

Fusible Link Block:

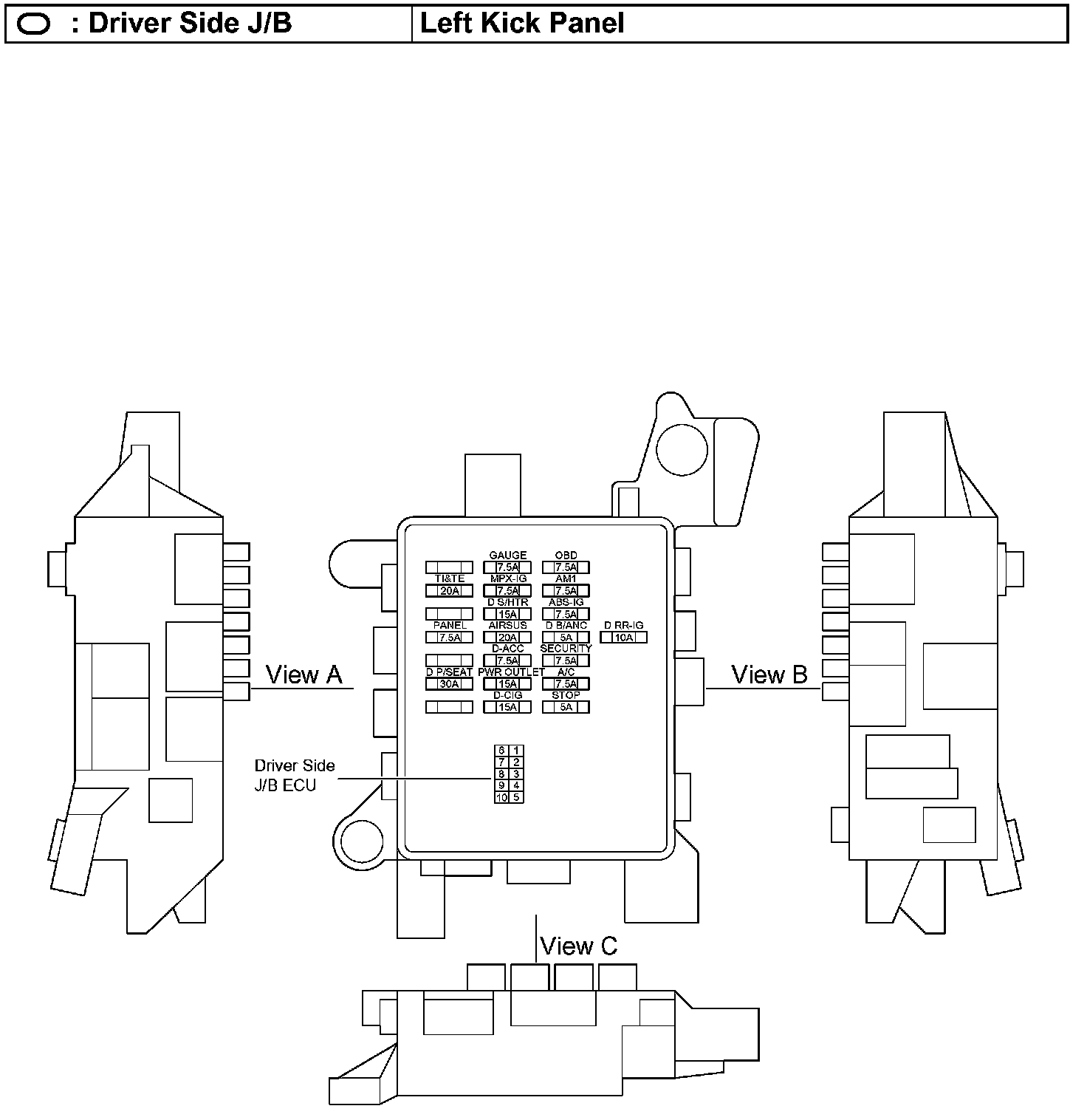

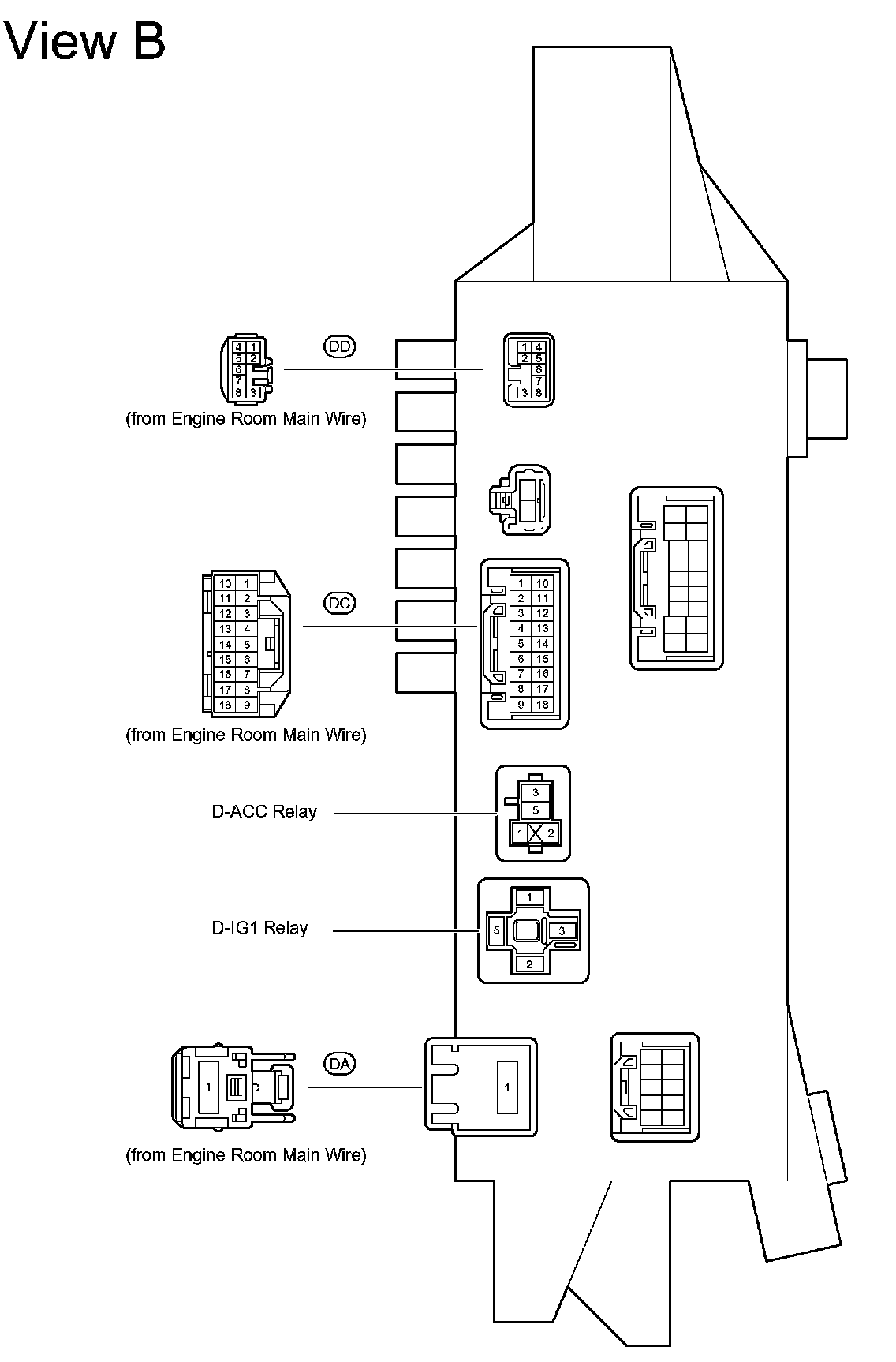

Driver Side J/B:

Driver Side J/B:

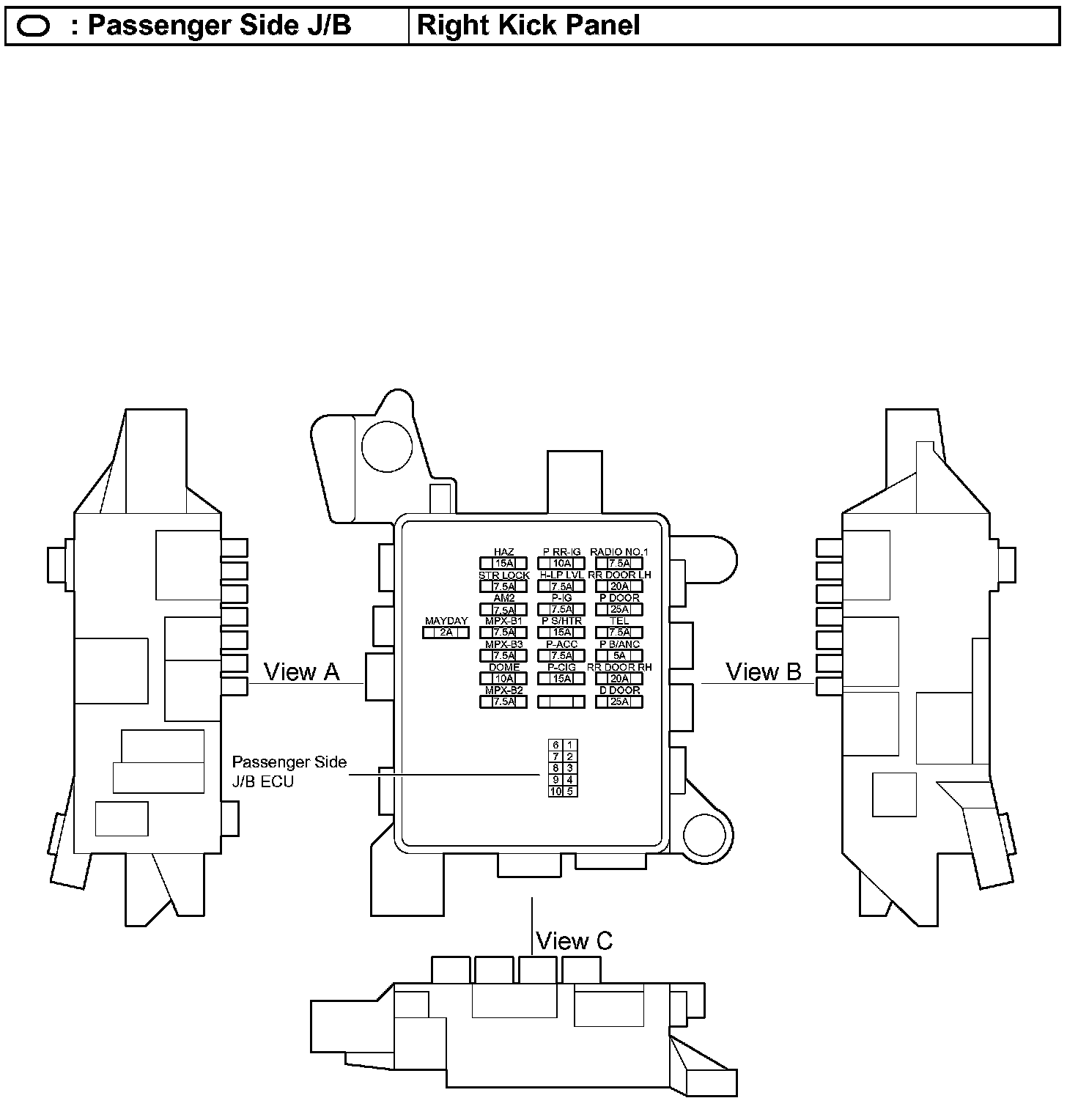

Passenger Side J/B:

Passenger Side J/B:

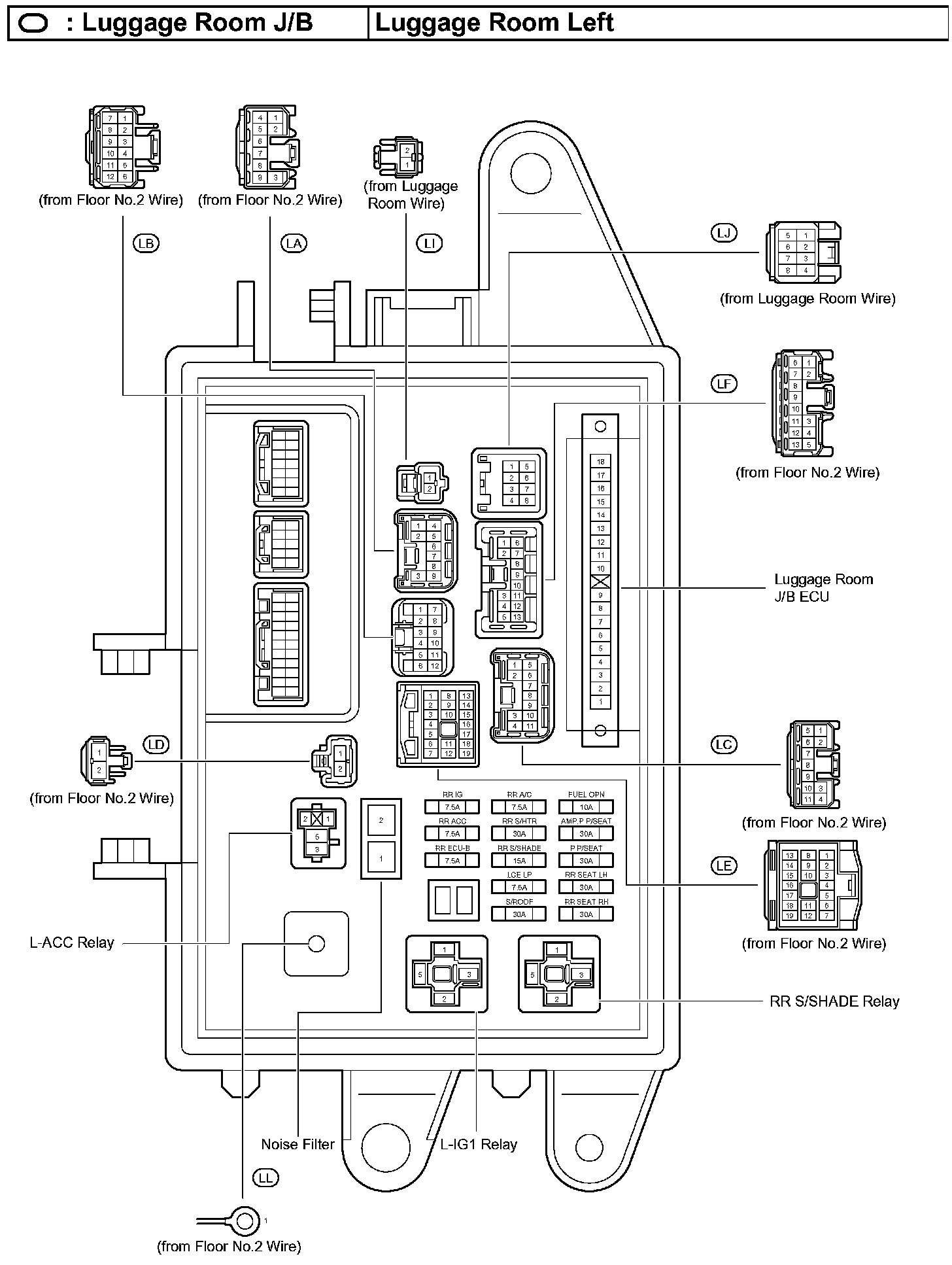

Luggage Room J/B:

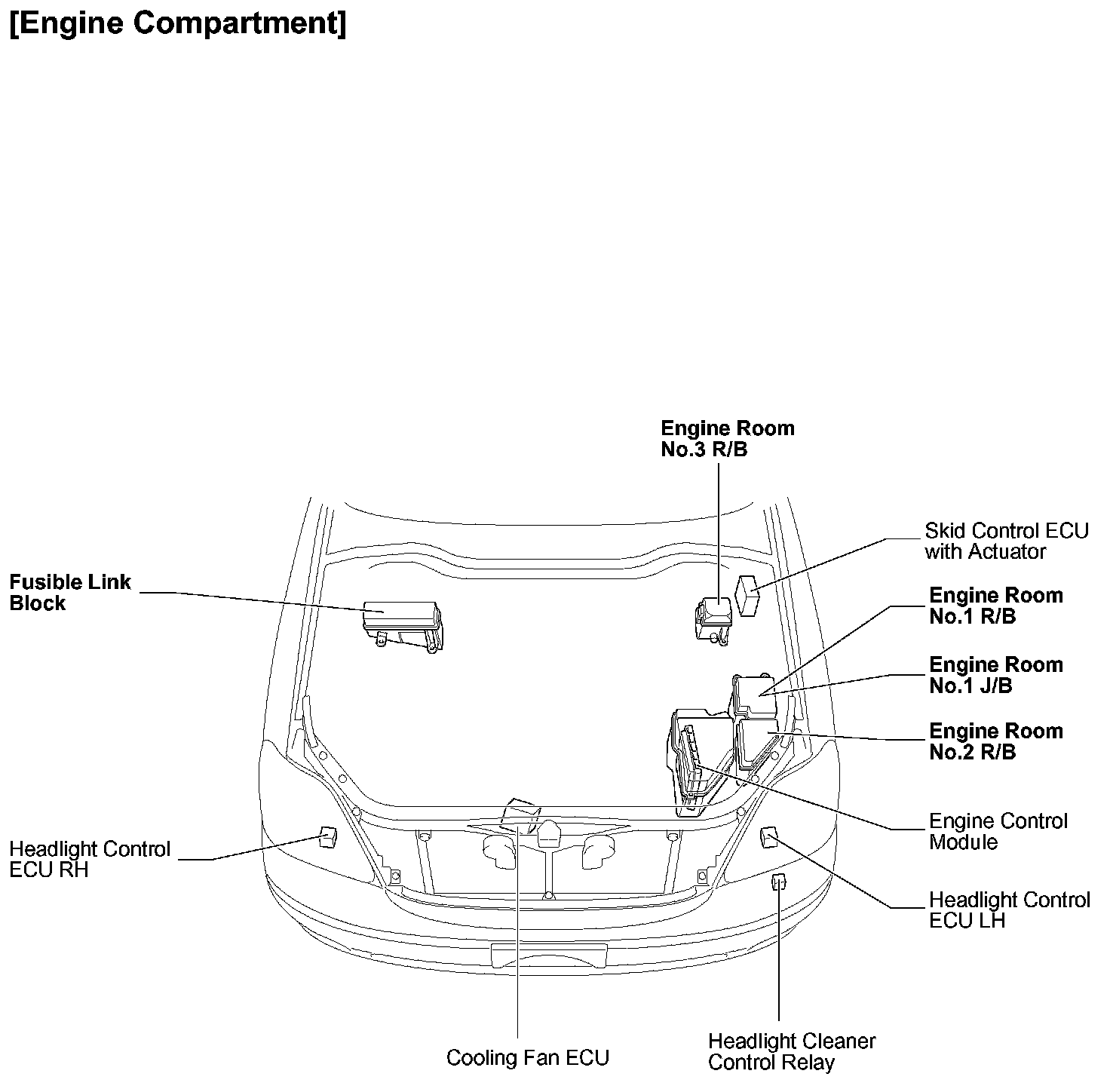

Engine Compartment:

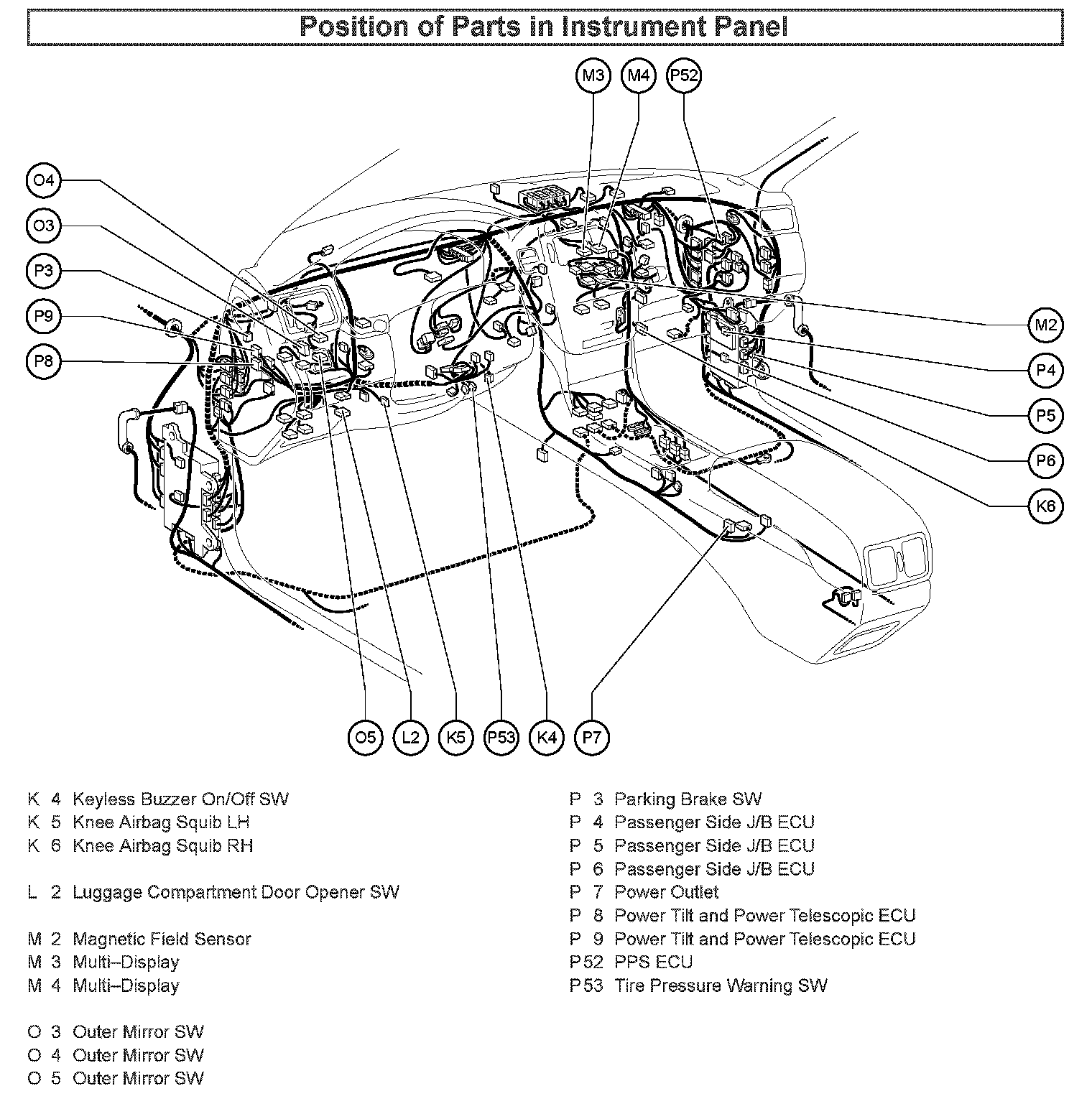

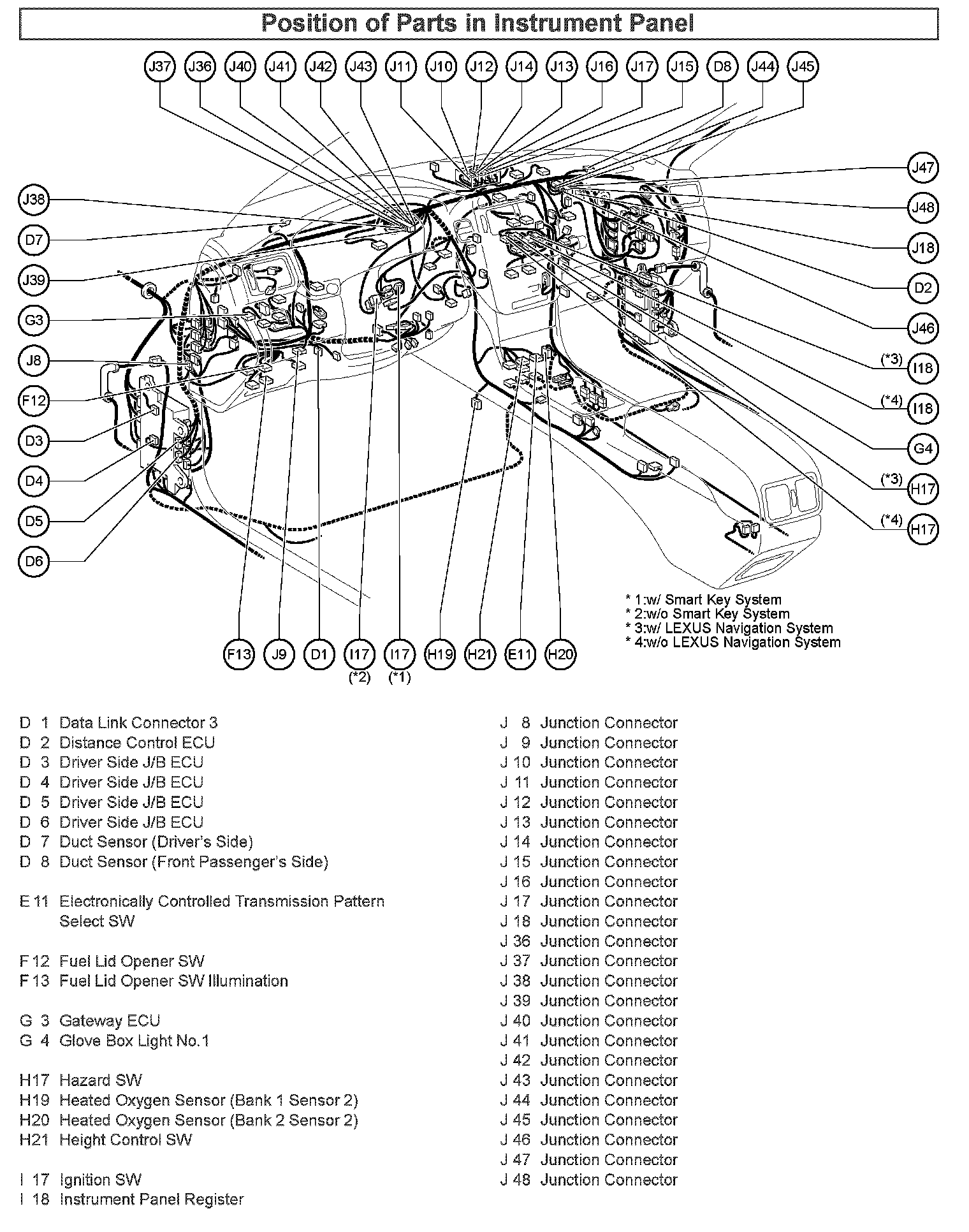

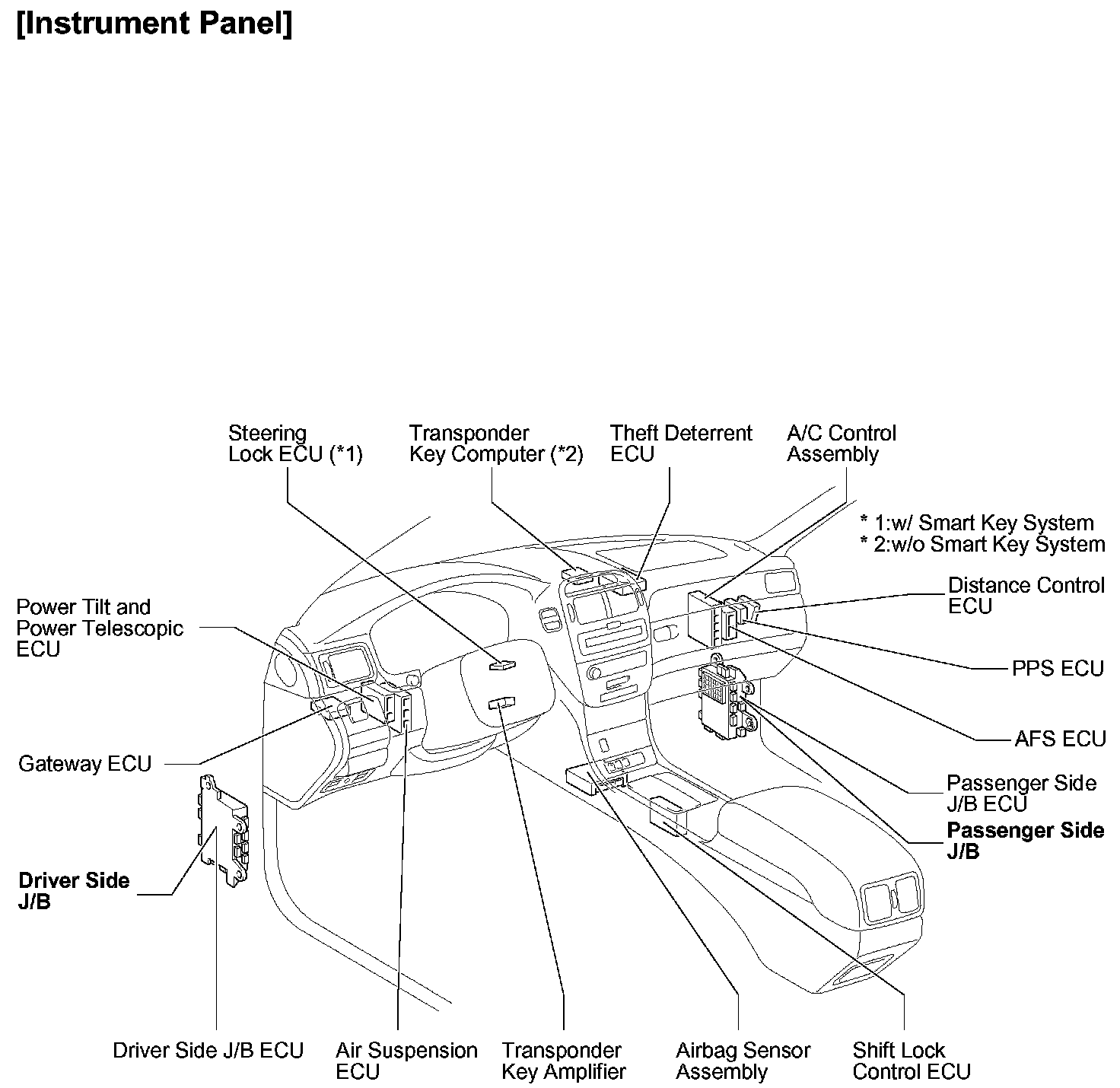

Instrument Panel:

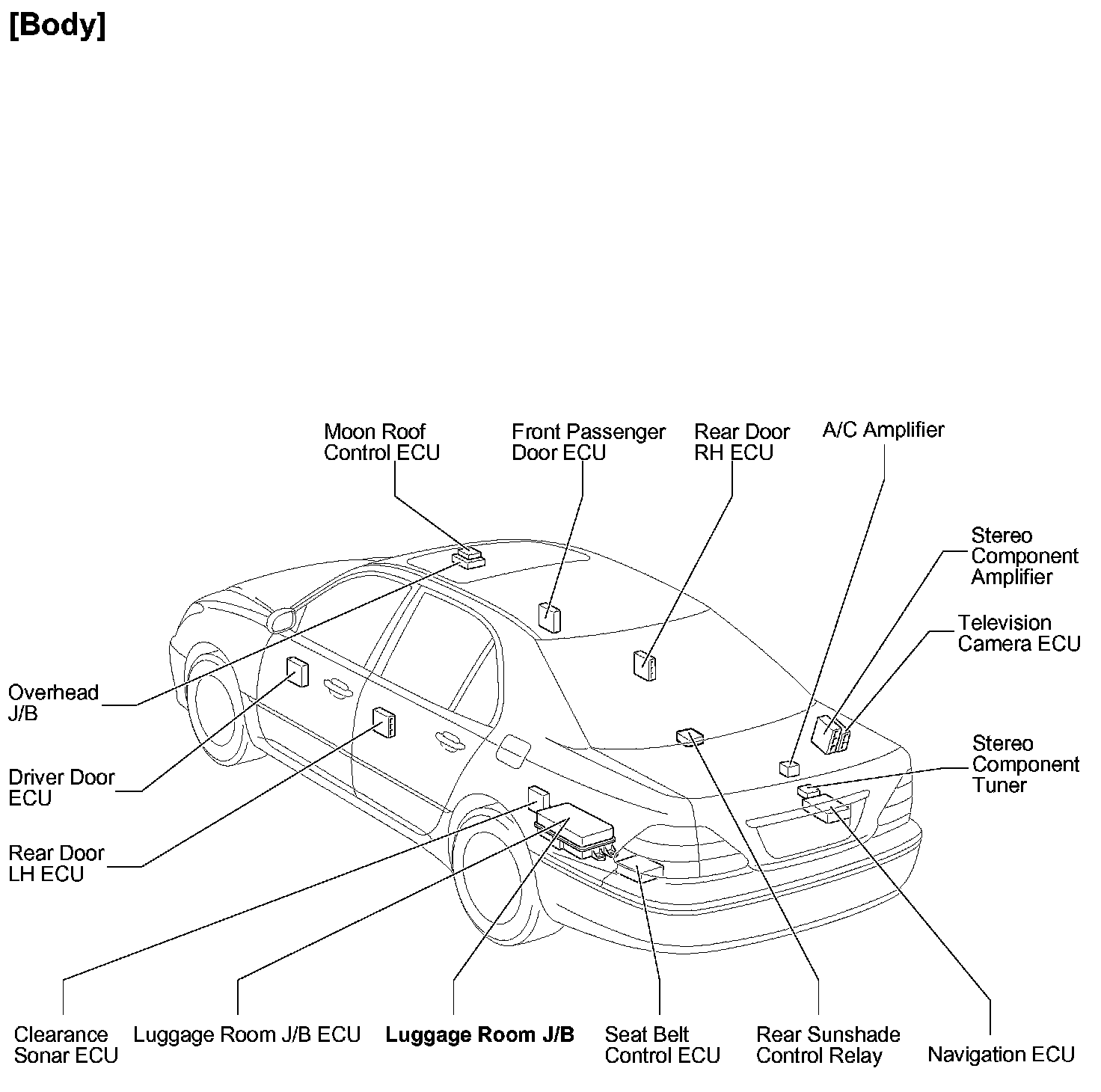

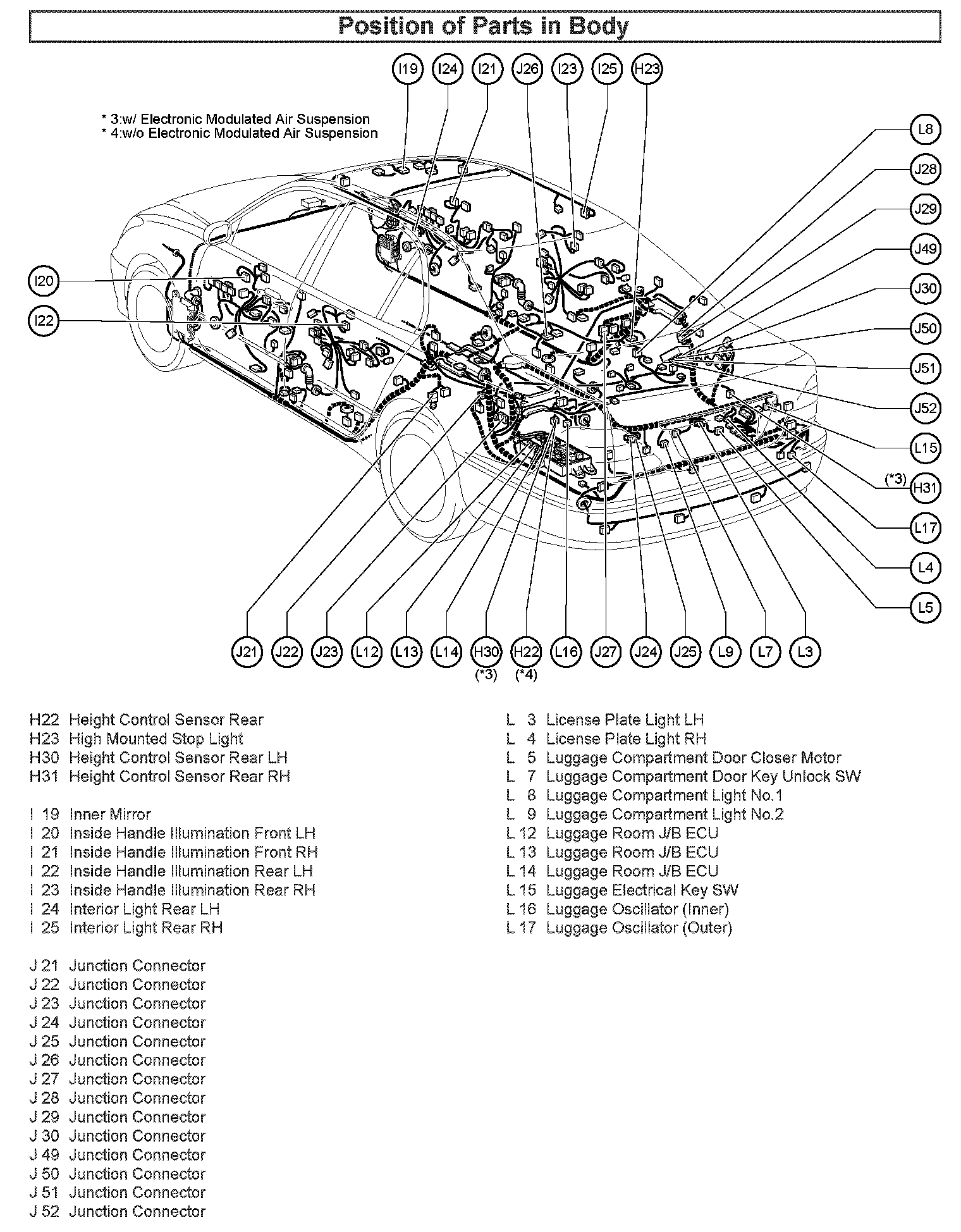

Body:

Da - Ju:

Ke - Ti:

He - Lu:

Dr - Ro:
