Multiple Junction Connector: Locations

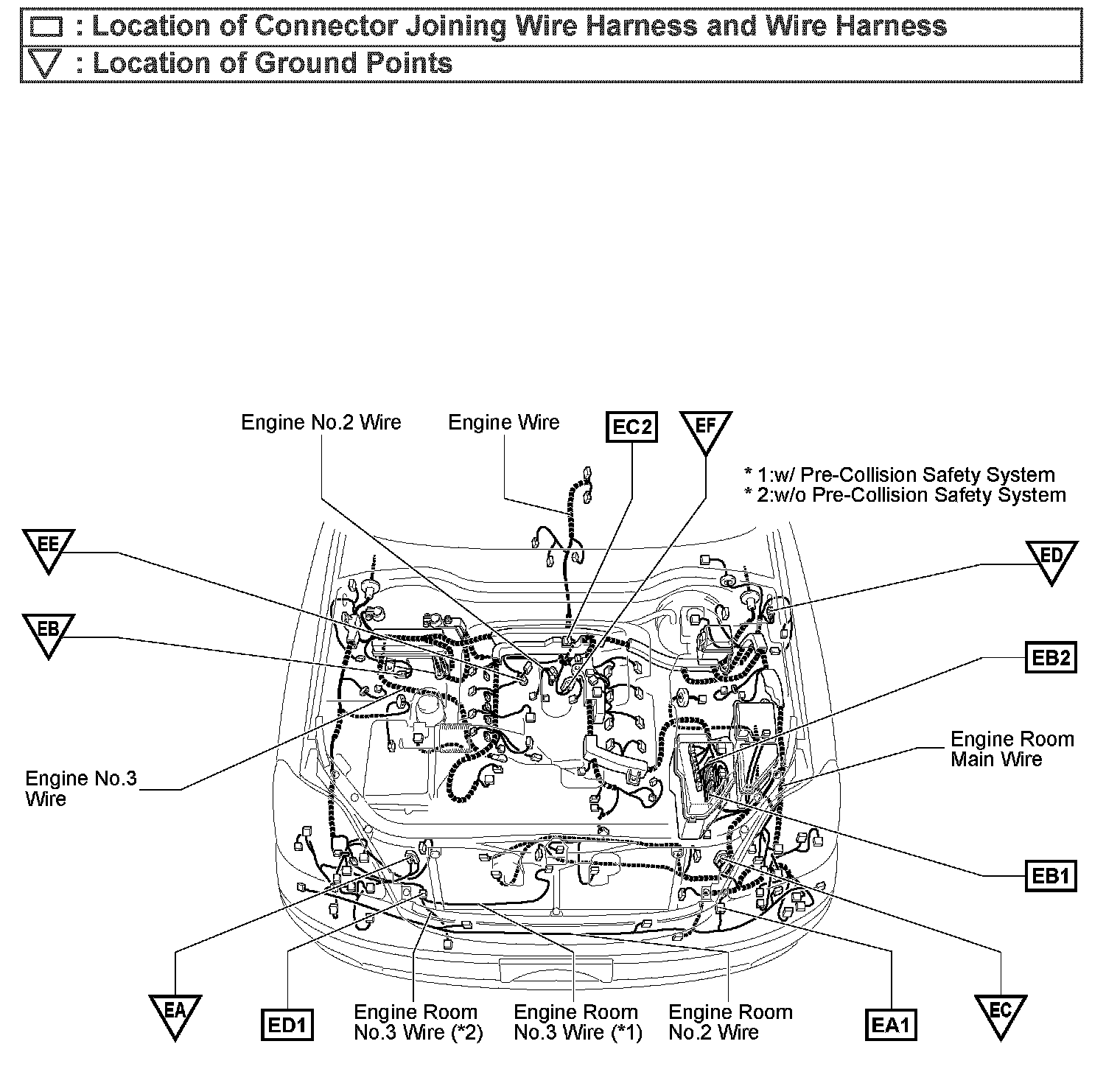

EA1 - ED1, EA - EF:

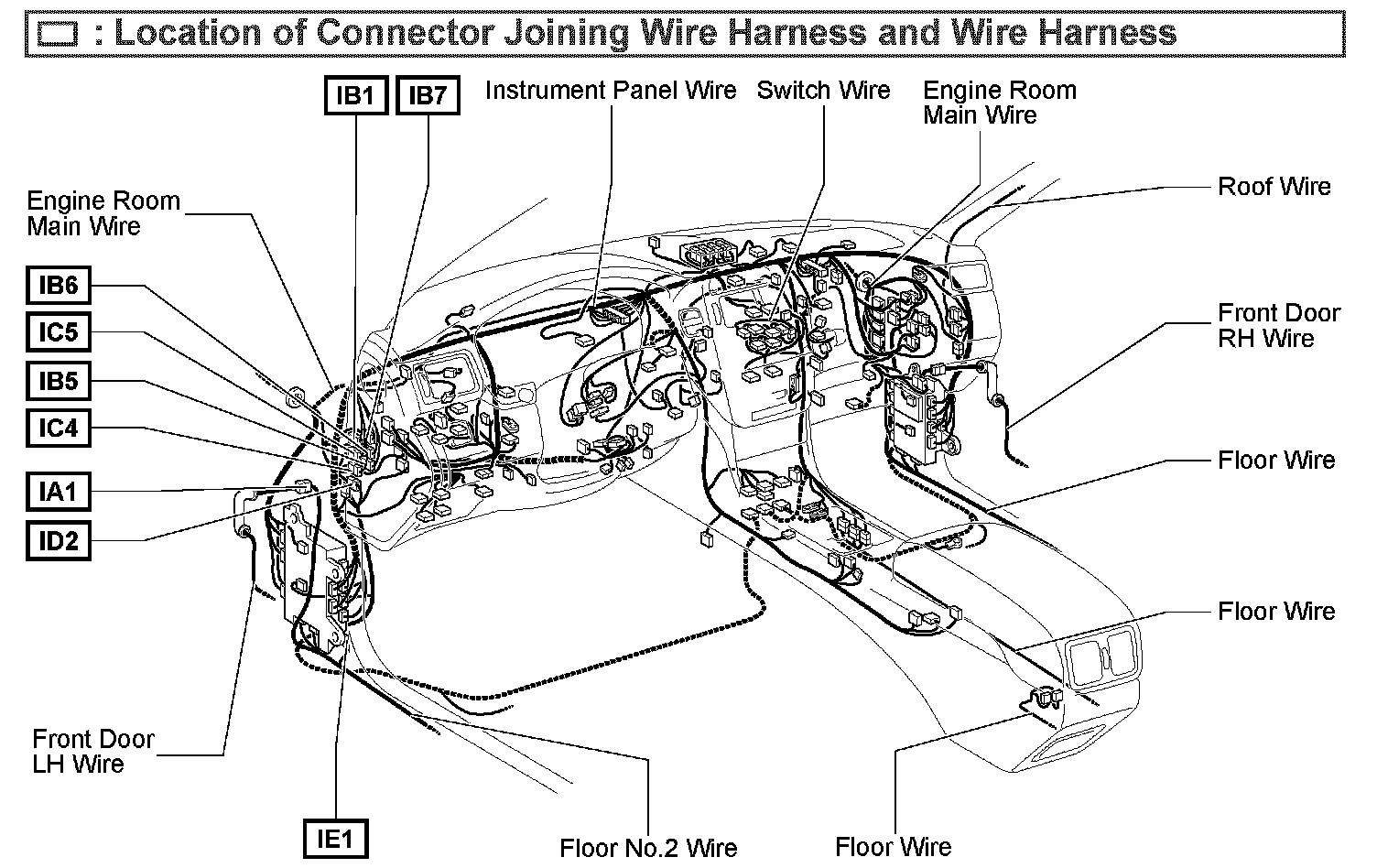

IA1 - IE1:

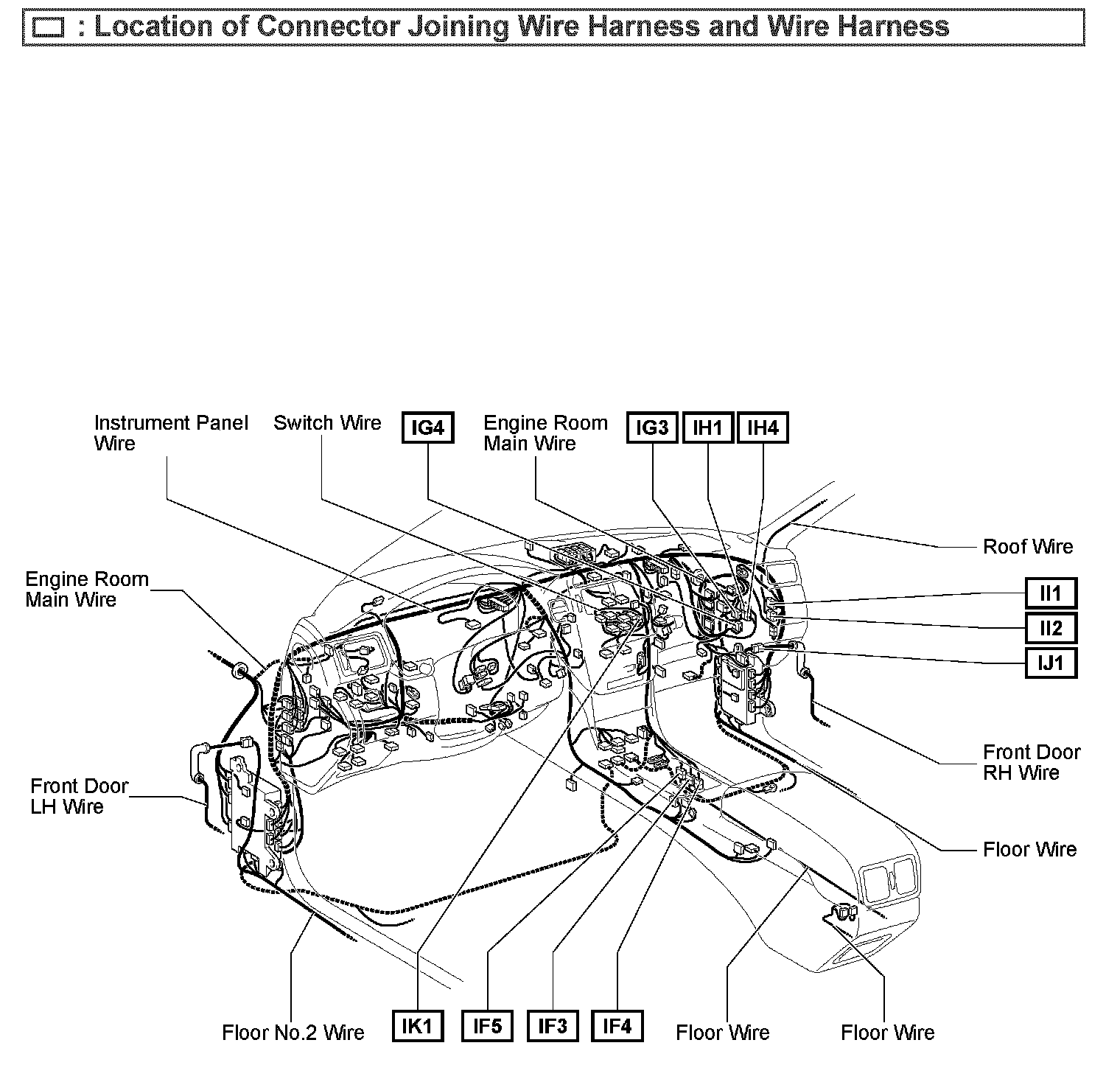

IF3 - IK1:

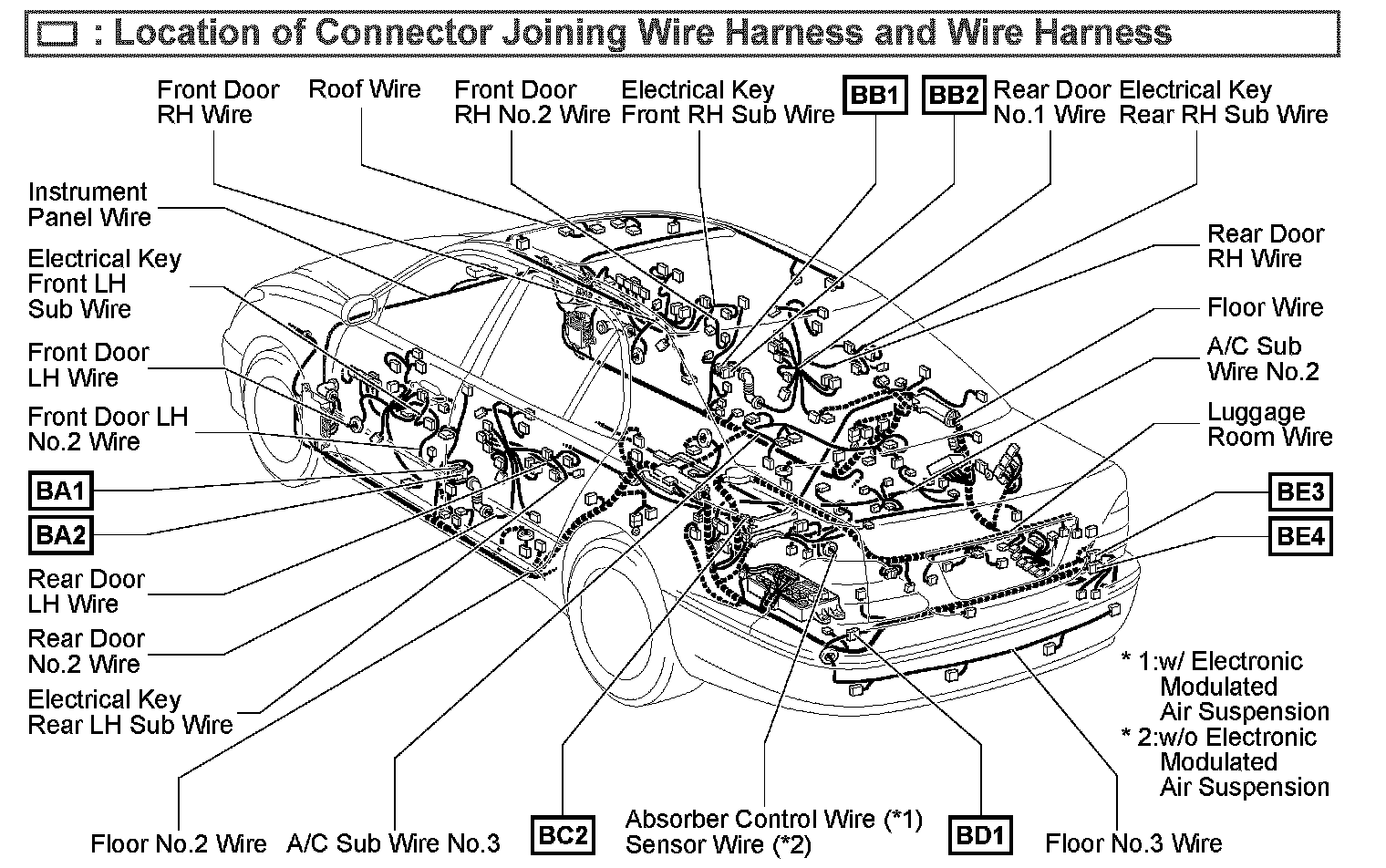

BA1 - BE4:

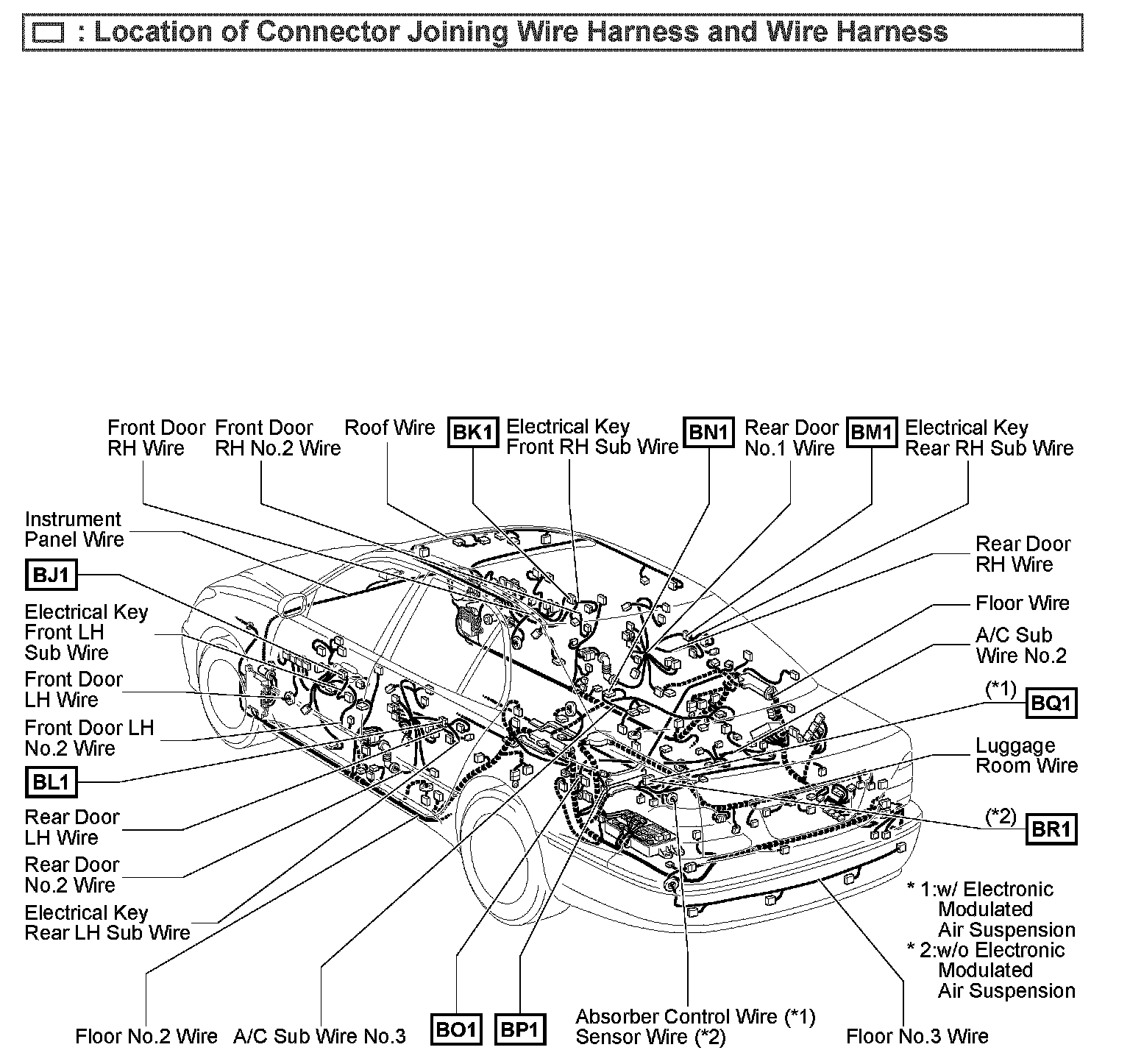

BJ1 - BR1:

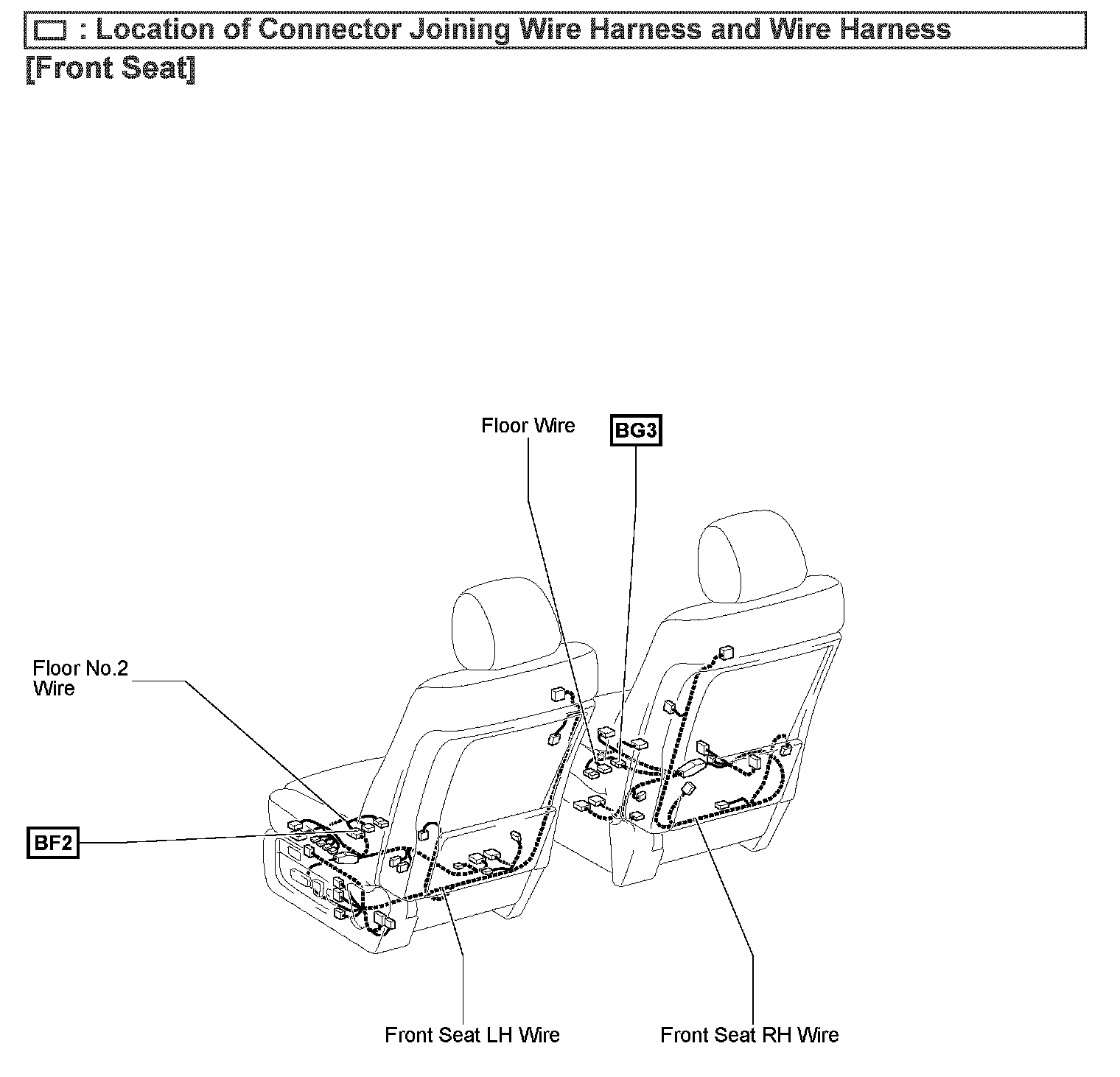

BF2 - BG3:

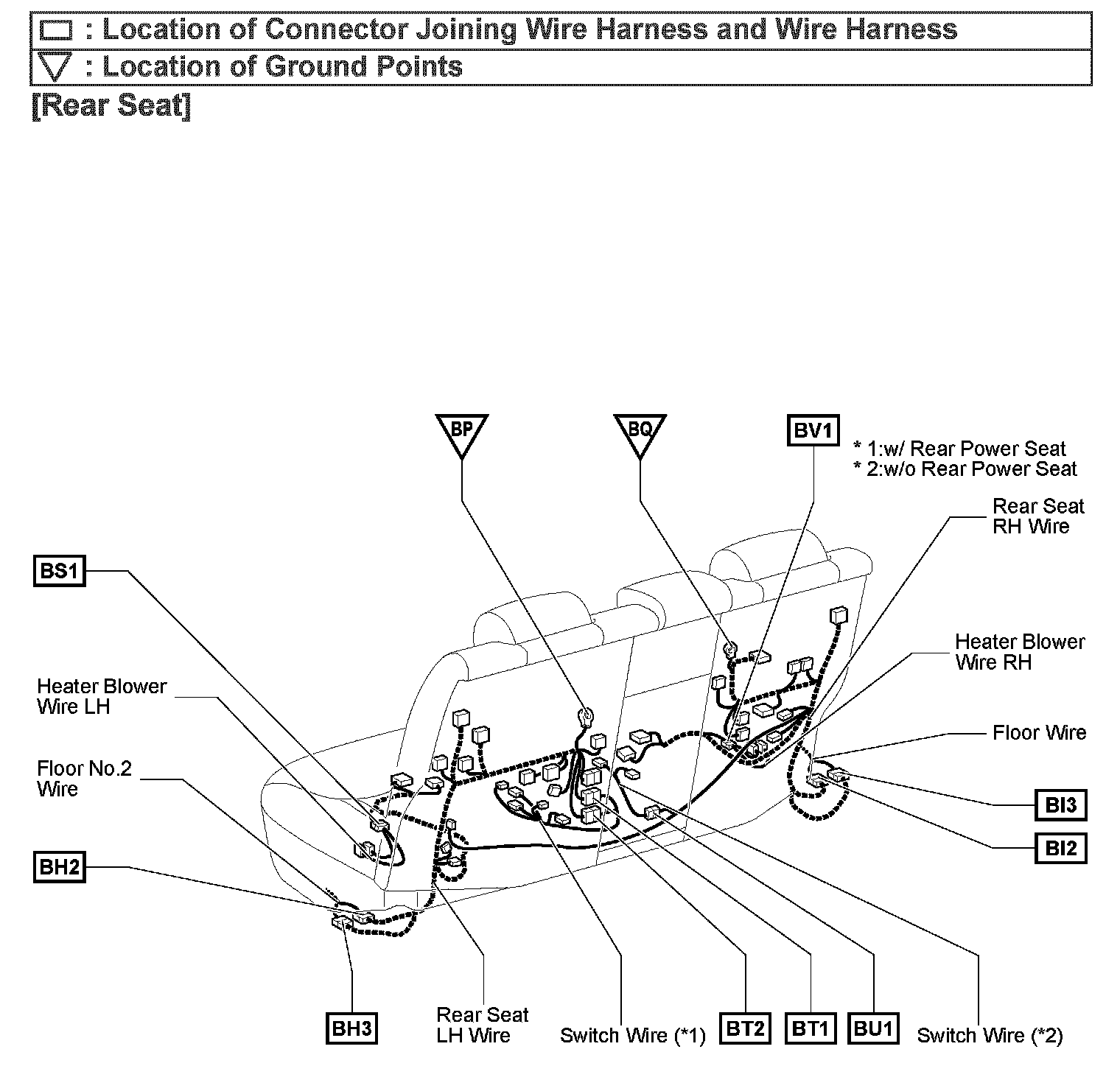

BH2 - BV1, BP - BQ:
