Home >> Lexus >> 2006 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Wiper Switch >> Locations

Wiper Switch: Locations

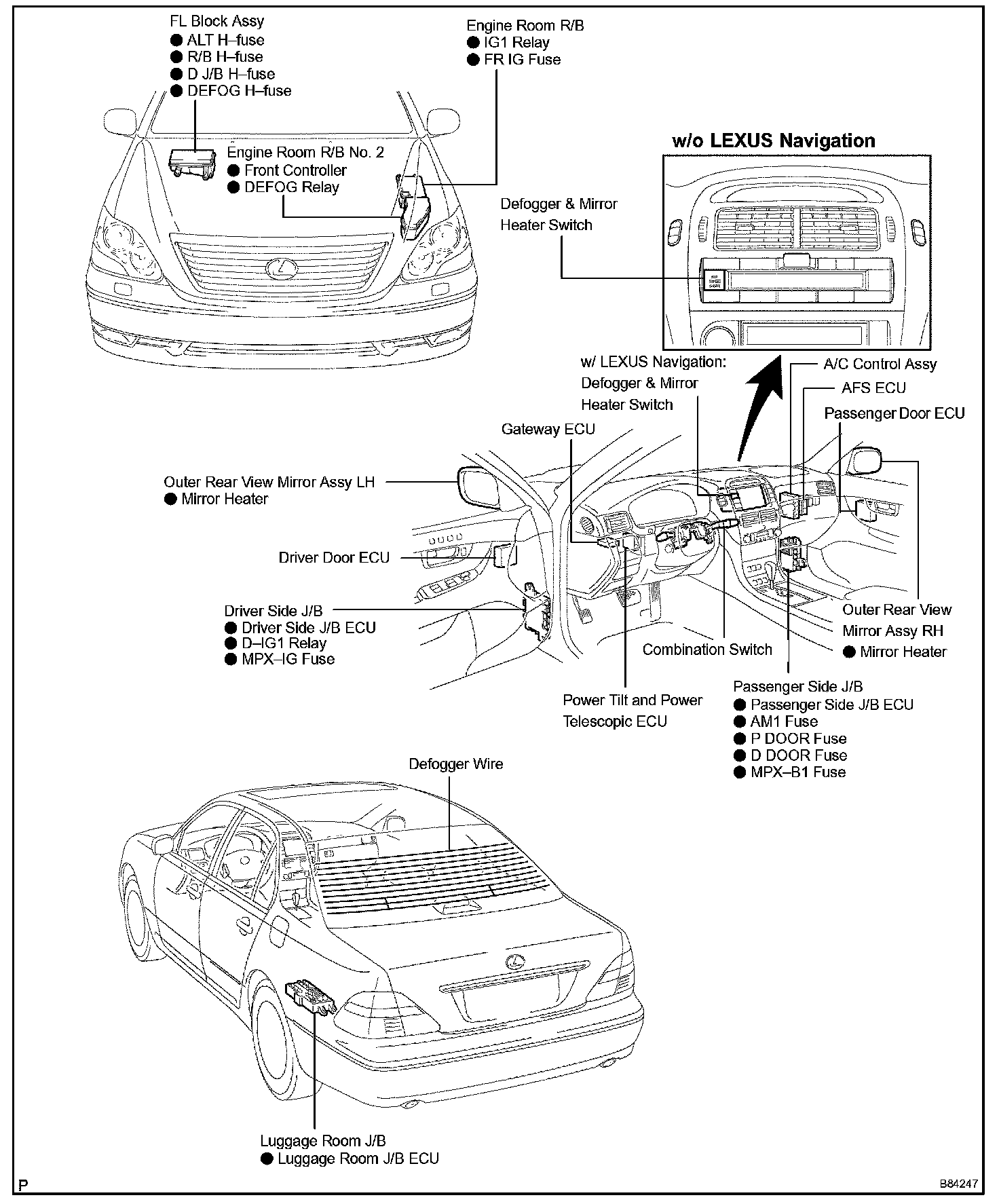

Window Defogger System:



Wiper And Washer System:
