Transmission Speed Sensor: Service and Repair

TRANSMISSION REVOLUTION SENSOR
REPLACEMENT





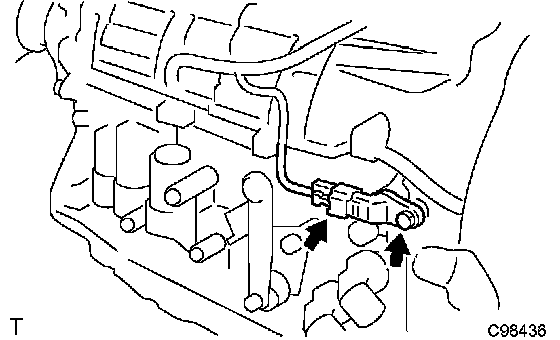

1. REMOVE TRANSMISSION REVOLUTION SENSOR (NCO SENSOR)
a. Disconnect the transmission revolution sensor connector.
b. Remove the bolt and transmission revolution sensor.
c. Remove the O-ring from the transmission revolution sensor.

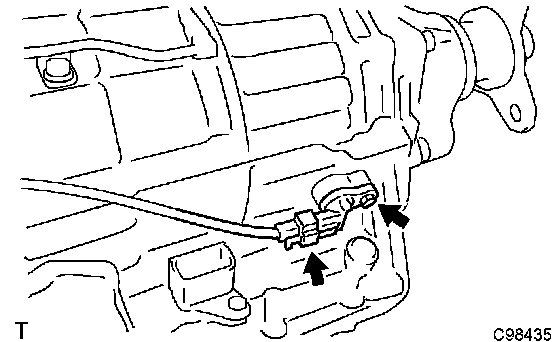

2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
a. Disconnect the transmission revolution sensor connector.
b. Remove the bolt and transmission revolution sensor.
c. Remove the O-ring from the transmission revolution sensor.

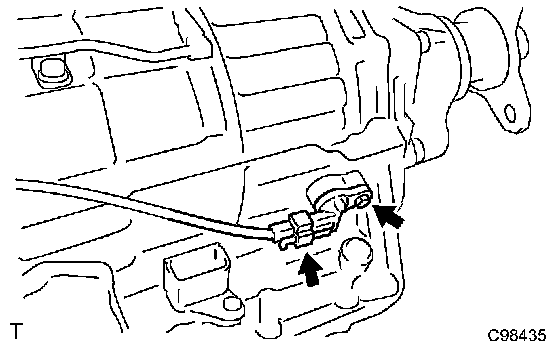

3. INSTALL TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
a. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
b. Install the transmission revolution sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
c. Connect the transmission revolution sensor connector.





4. INSTALL TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
a. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
b. Install the transmission revolution sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
c. Connect the transmission revolution sensor connector.
