Rear

HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH
REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.

1. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH





a. Disconnect the connector.
b. Place matchmarks on the height control sensor link and bracket.

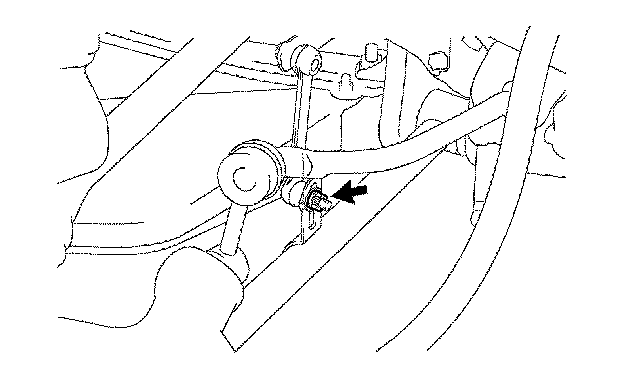

c. Remove the nut and disconnect the height control sensor link.

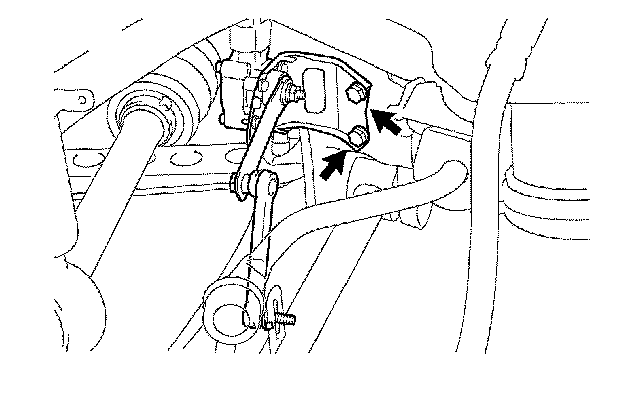

d. Remove the 2 bolts and height control sensor sub-assembly rear LH.
2. INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH

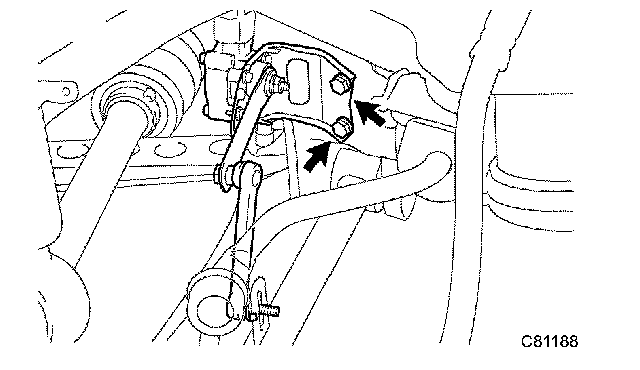

a. Install the height control sensor sub-assembly rear LH with 2 bolts.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)





b. Align the matchmarks on the height control sensor link and bracket.

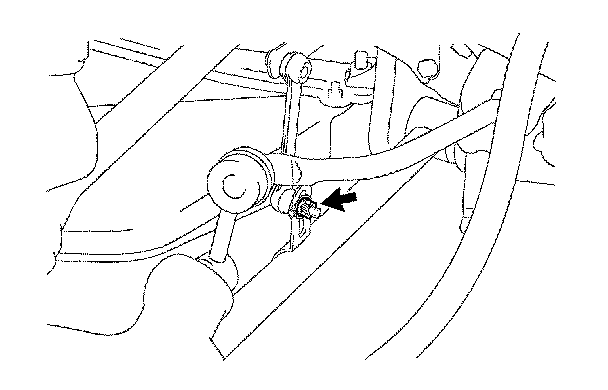

c. Install the nut.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
d. Connect the connector.
3. ADJUST VEHICLE HEIGHT
