HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH

REPLACEMENT
1. REMOVE REAR WHEEL




2. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH

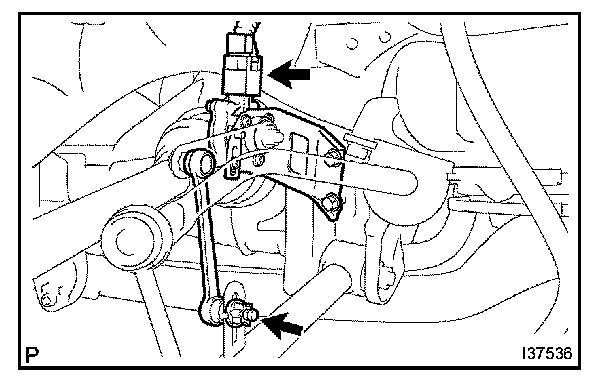

a. Disconnect the connector.
b. Remove the nut and disconnect the height control sensor link.

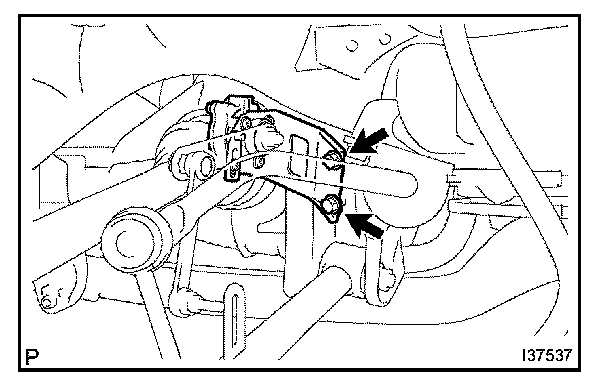

c. Remove the 2 nuts and the height control sensor sub-assembly rear LH.

3. INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH

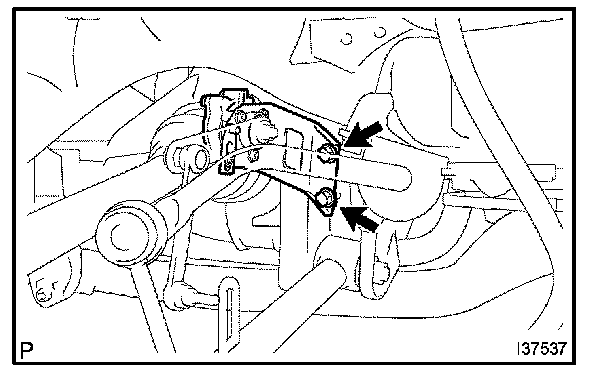

a. Install the height control sensor sub-assembly rear LH with the 2 nuts.




b. Install the height control sensor link with the nut.

Torque: 5.4 Nm (55 kgf.cm, 48 in.lbf)

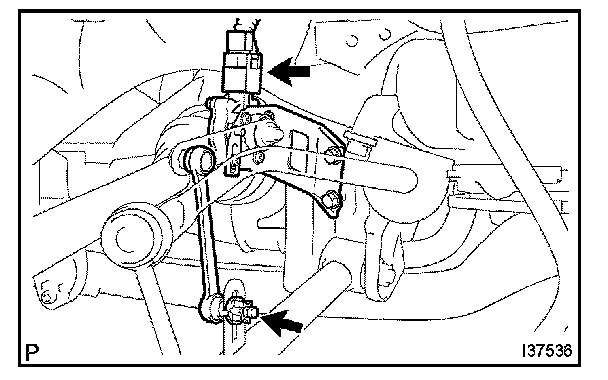

c. Connect the connector.

4. INSTALL REAR WHEEL

Torque: 103 Nm (1,050 kgf.cm, 76 ft.lbf)

5. HEADLIGHT AIM ONLY
