Hazard Warning Switch: Testing and Inspection

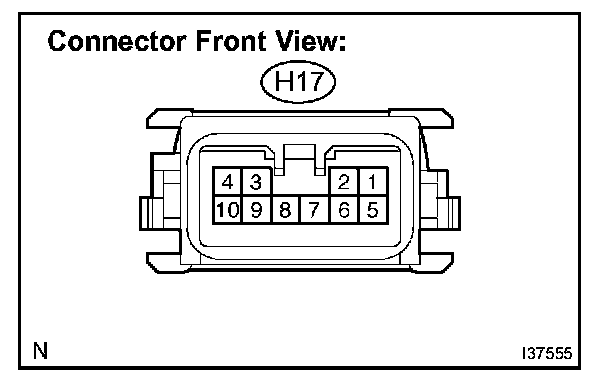

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

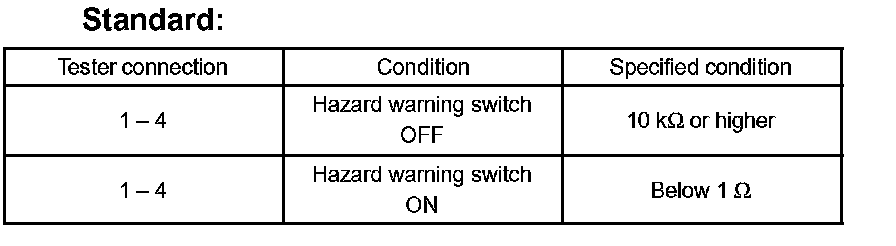

a. Measure the resistance according to the value(s) in the table.
