Brake Light Switch: Testing and Inspection

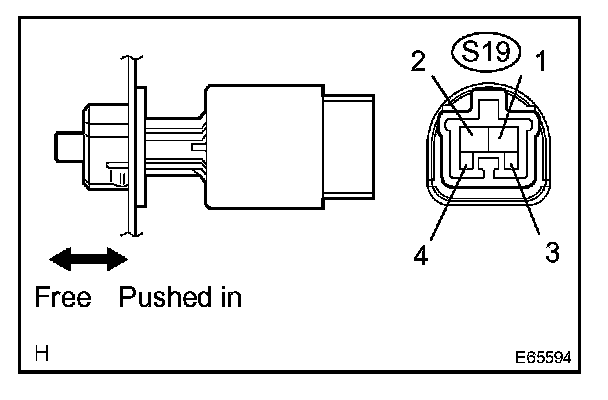

STOP LAMP SWITCH ASSEMBLY
a. Inspect stop lamp switch assembly.

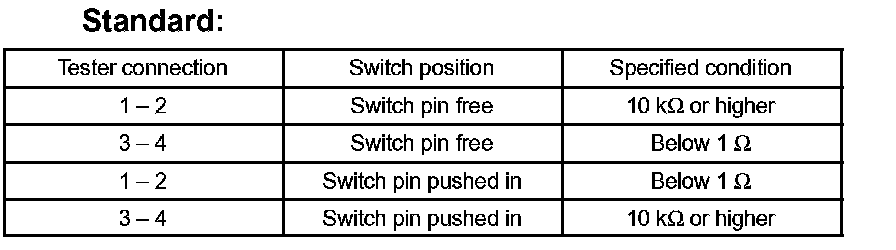

1. Measure the resistance according to the value(s) in the table.
