Remote Switch: Service and Repair

RADIO SWITCH AND VOLUME ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.




1. REMOVE RR SEAT CTR ARMREST PANEL
a. Remove the 2 rear seat back covers.

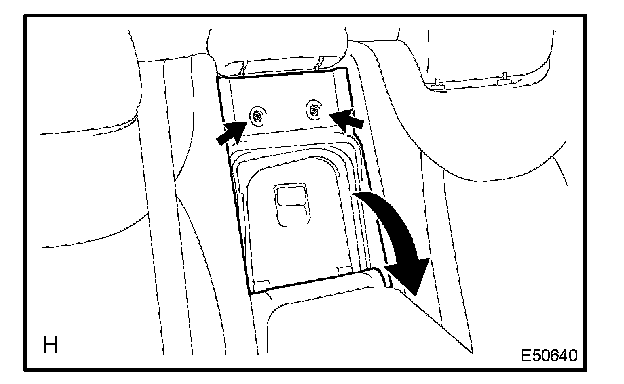

b. Remove the 2 screws and disconnect the rear seat armrest board.




c. Remove the 3 screws.

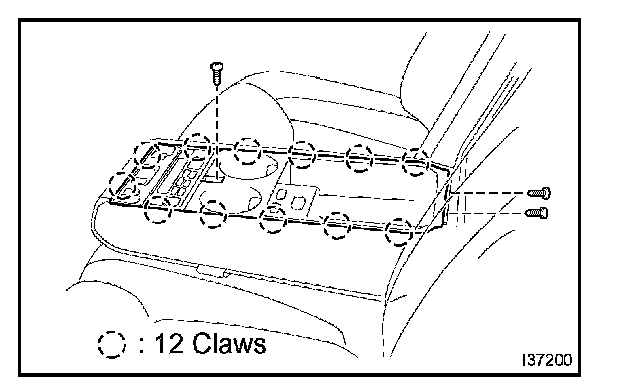

d. Disengage the 12 claws and remove the rear seat center armrest panel.




2. REMOVE RADIO SWITCH AND VOLUME ASSEMBLY
a. Disconnect the connector.

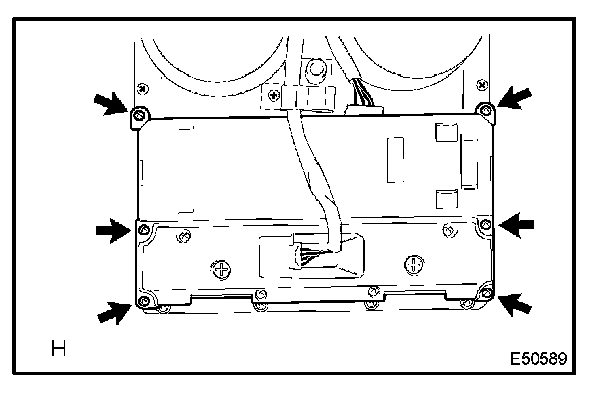

b. Remove the 6 screws and radio switch and volume assembly.
