Ultrasonic Sensor No.1

Audio Visual System Part 2:

ULTRASONIC SENSOR NO.1

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE FRONT BUMPER COVER
2. REMOVE REAR BUMPER COVER

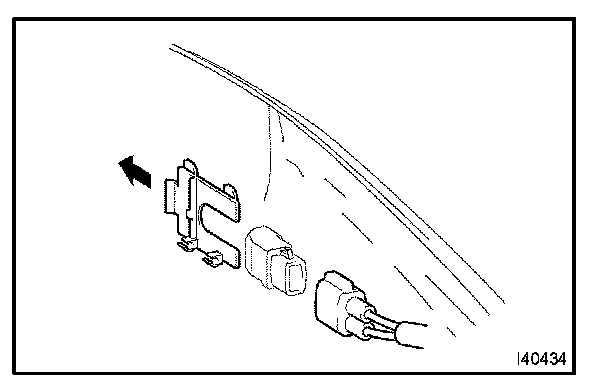

3. REMOVE ULTRASONIC SENSOR RETAINER NO.1
a. Disconnect the connector.
b. Remove the ultrasonic sensor retainer No.1 as shown in the illustration.

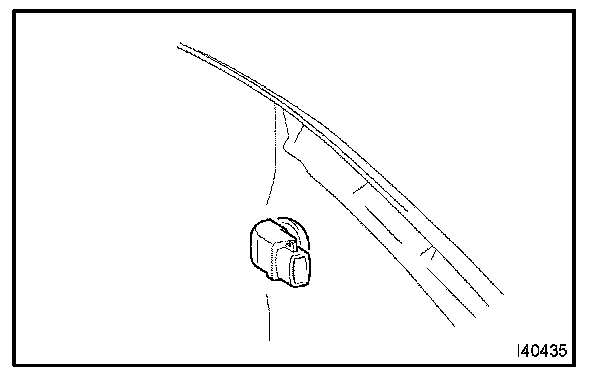

4. REMOVE ULTRASONIC SENSOR NO.1
a. Remove the ultrasonic sensor No.1.
