FAIL SAFE CHART

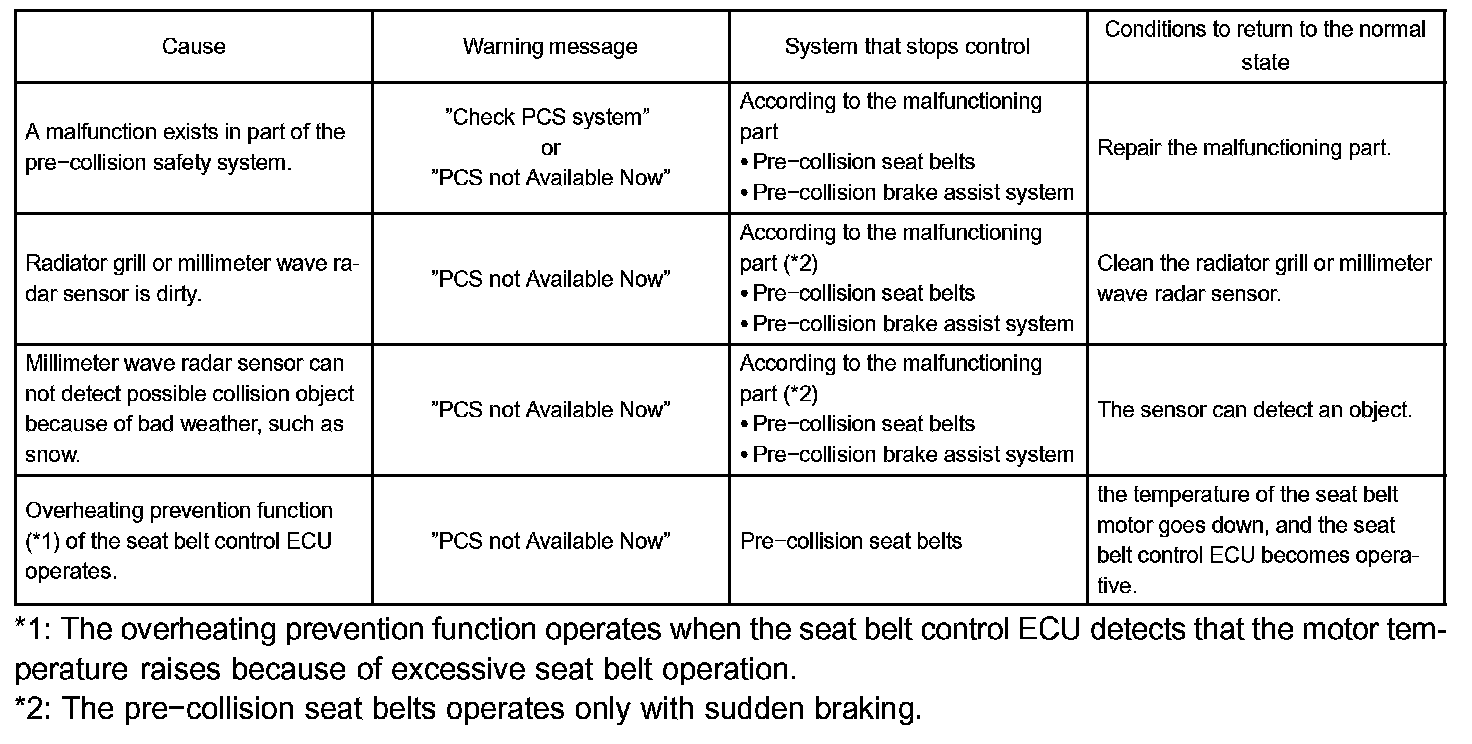

Fail-Safe Chart:
HINT:
The pre-collision safety system fail safe function and details are indicated in the table.
