Seat Belt Warning System

SEAT BELT WARNING SYSTEM

INSPECTION

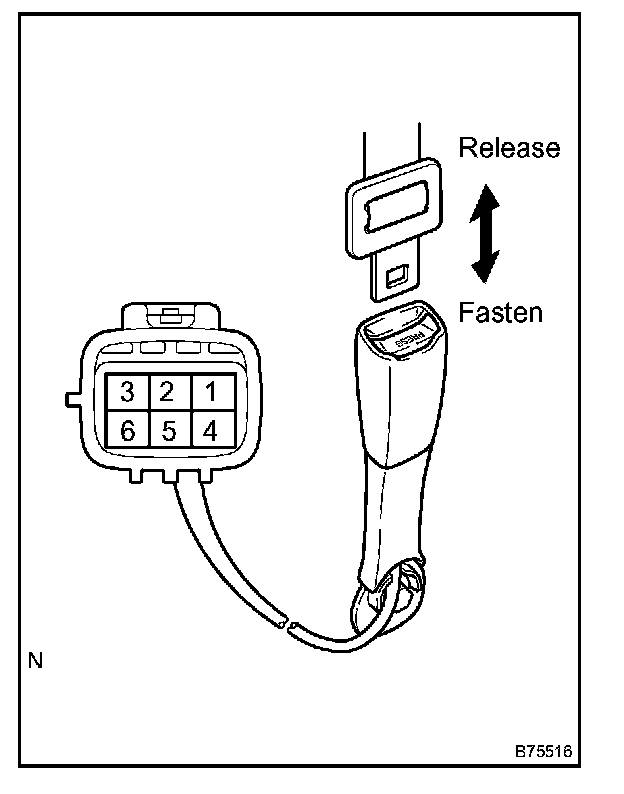

1. Diver side:
INSPECT FRONT SEAT INNER BELT ASSEMBLY

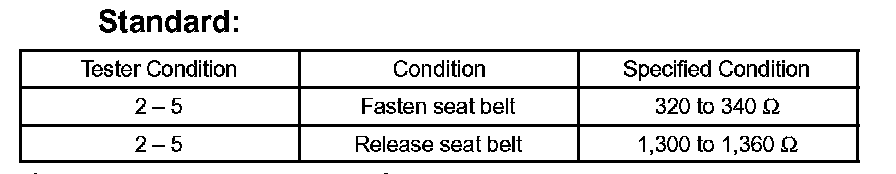

a. Measure the resistance between the terminals of the buckle switch.
If the result is not as specified, replace the inner belt assembly.

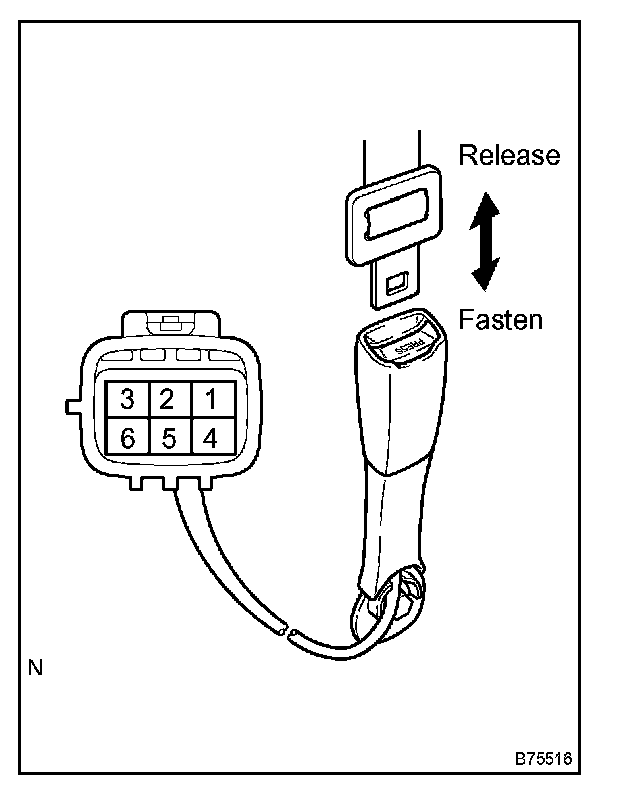

2. Passenger side:
INSPECT FRONT SEAT INNER BELT ASSEMBLY

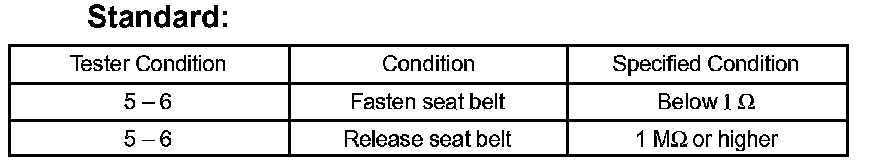

a. Measure the resistance between the terminals of the buckle switch.
If the result is not as specified, replace the inner belt assembly.







3. Passenger side only:
INSPECT OCCUPANT DETECTION SENSOR
a. Measure the resistance between the terminals.
If the result is not as specified, replace the seat cushion pad.
