Instrument Panel Airbag Assembly Lower No.2

VEHICLE NOT INVOLVED IN COLLISION
a. Perform a diagnostic system check.

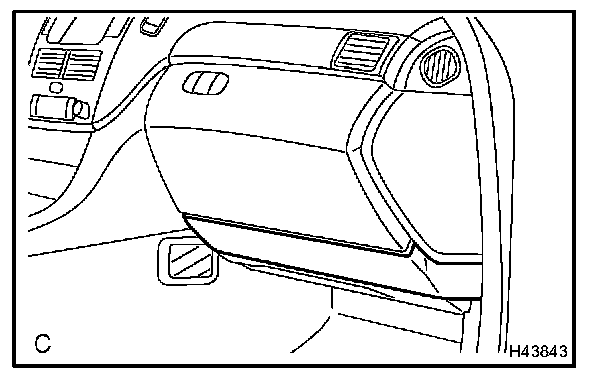

b. With the instrument panel airbag assembly lower No.2 installed on the vehicle, perform a visual check including the following: Cuts, minute cracks or marked discoloration on the glove compartment door assembly and instrument panel under cover sub-assembly No.2 around the instrument panel airbag assembly lower No.2.




VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED
a. Perform a diagnostic system check.

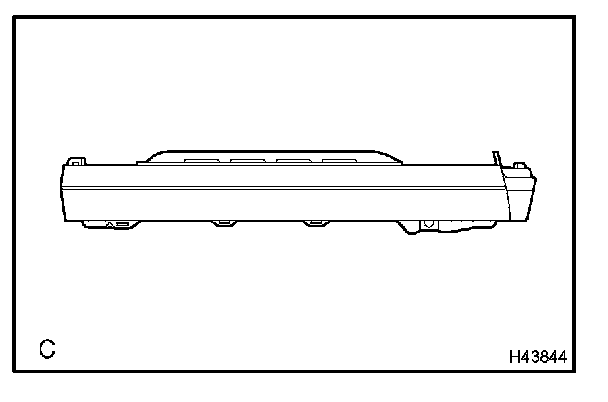

b. With the instrument panel airbag assembly lower No.2 removed from the vehicle, perform a visual check including the following:
- Cuts, minute cracks or marked discoloration on the instrument panel airbag assembly lower No.2.
- Cracks or other damage to the connector.
