Power Seat Control Module: Locations

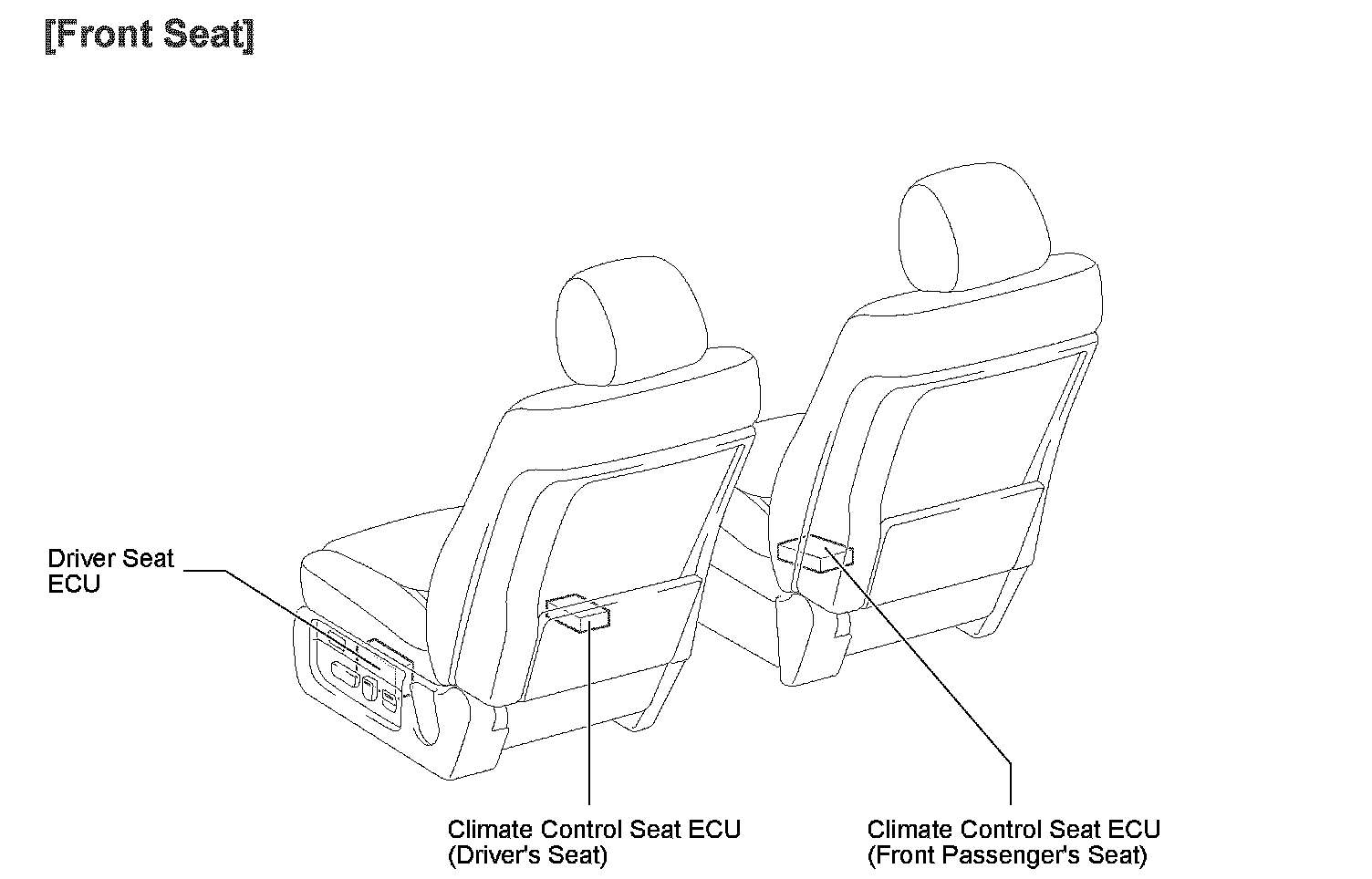

Front Seat:

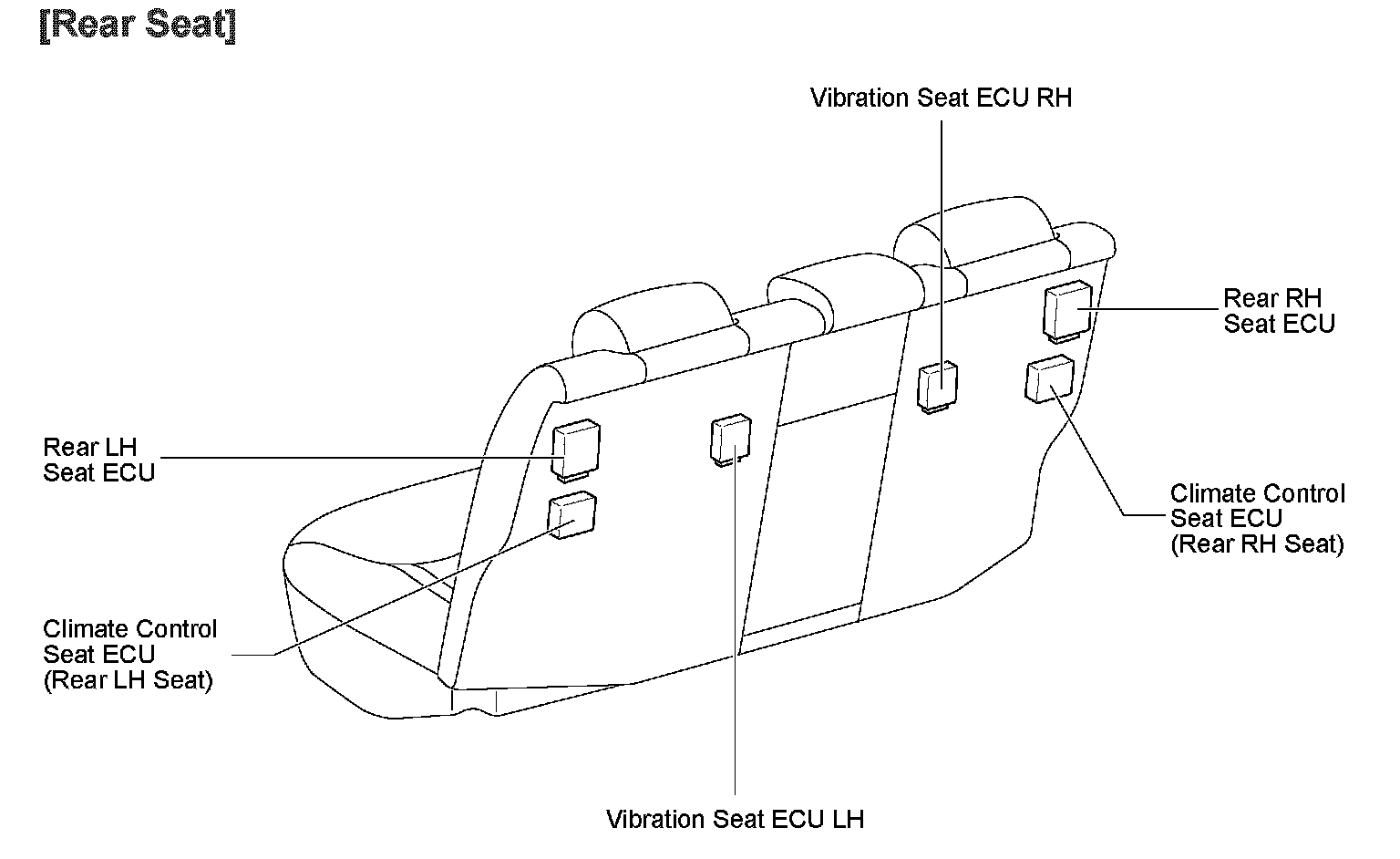

Rear Seat:

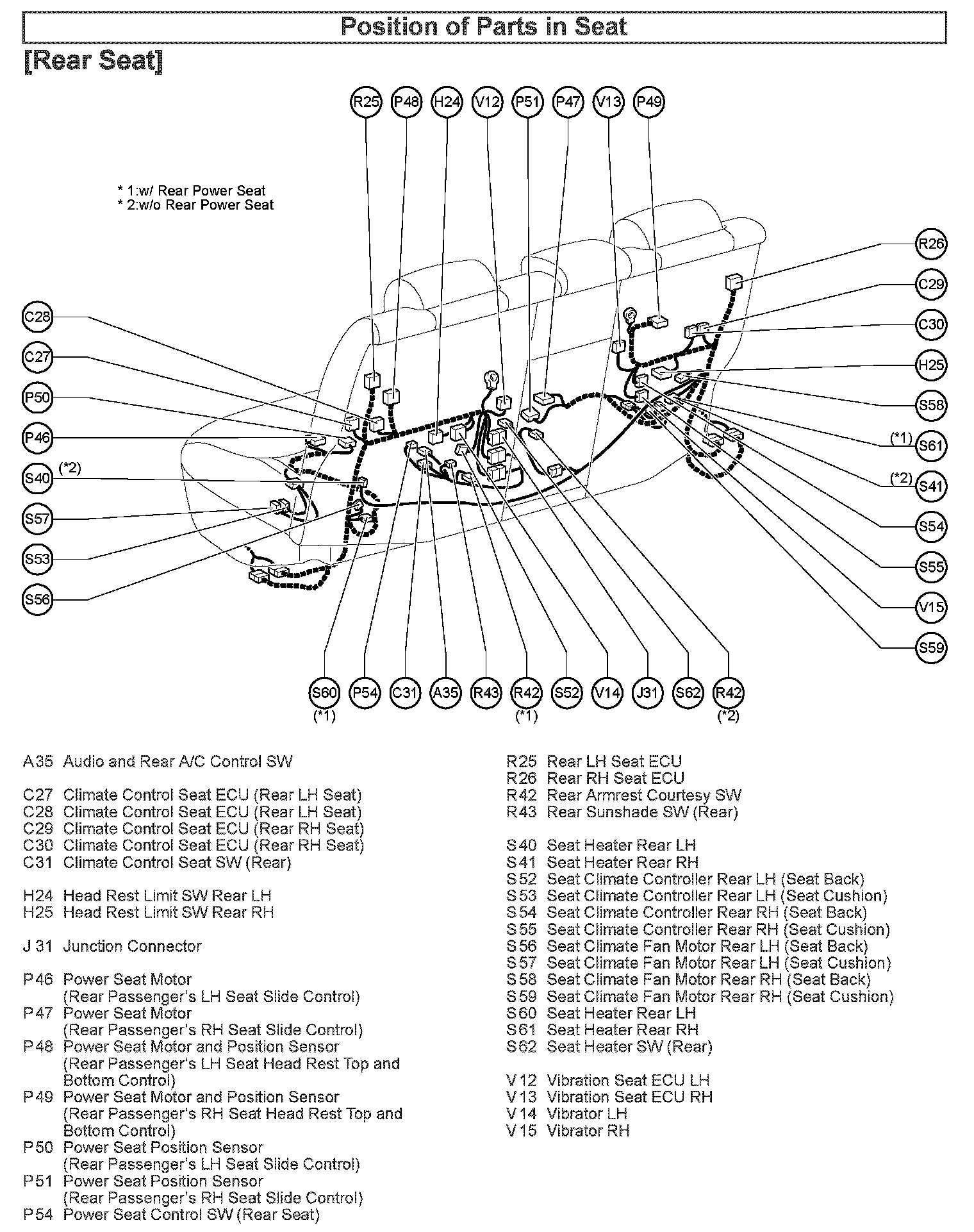

Au - Vi:

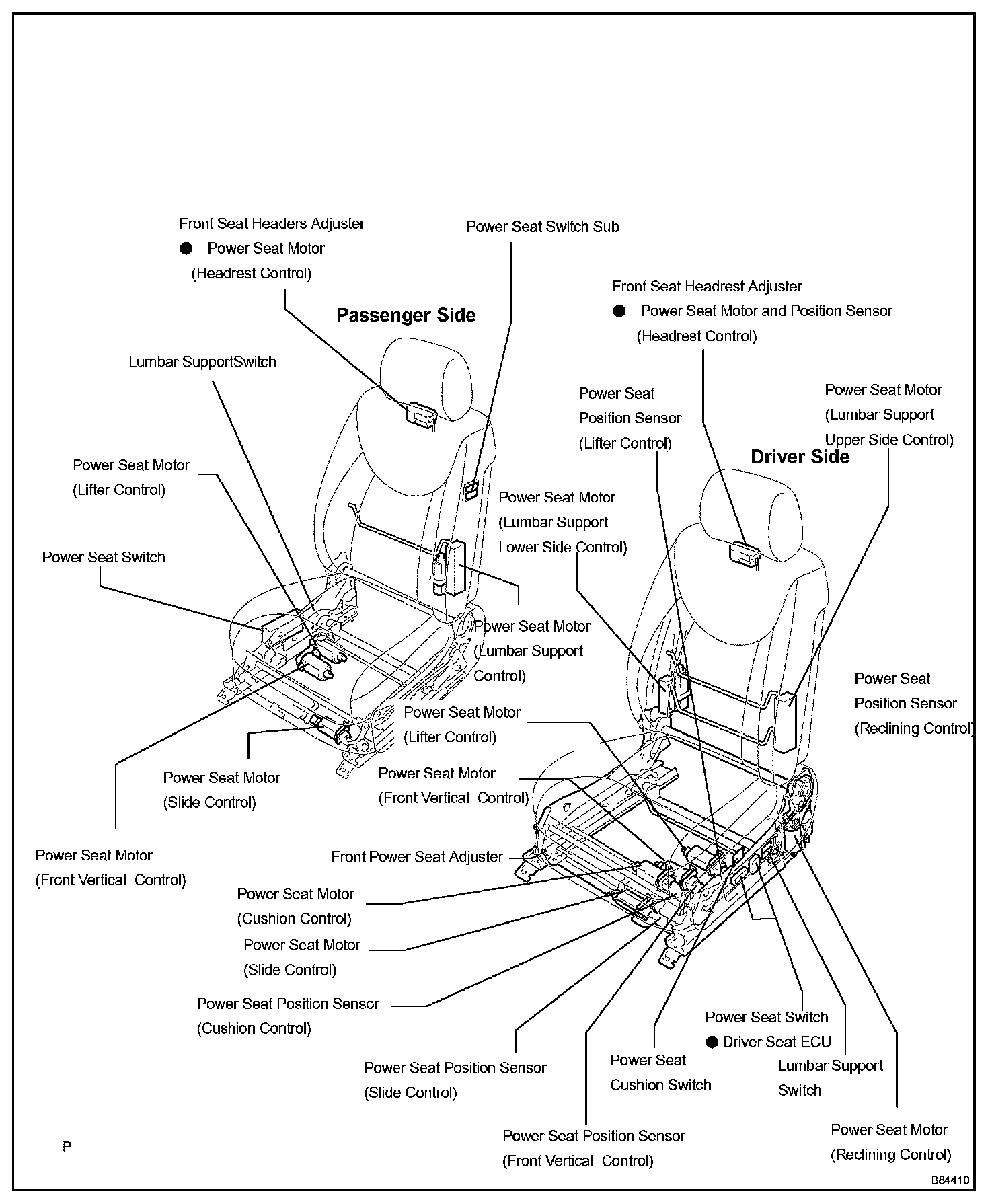

Front Power Seat Control System:

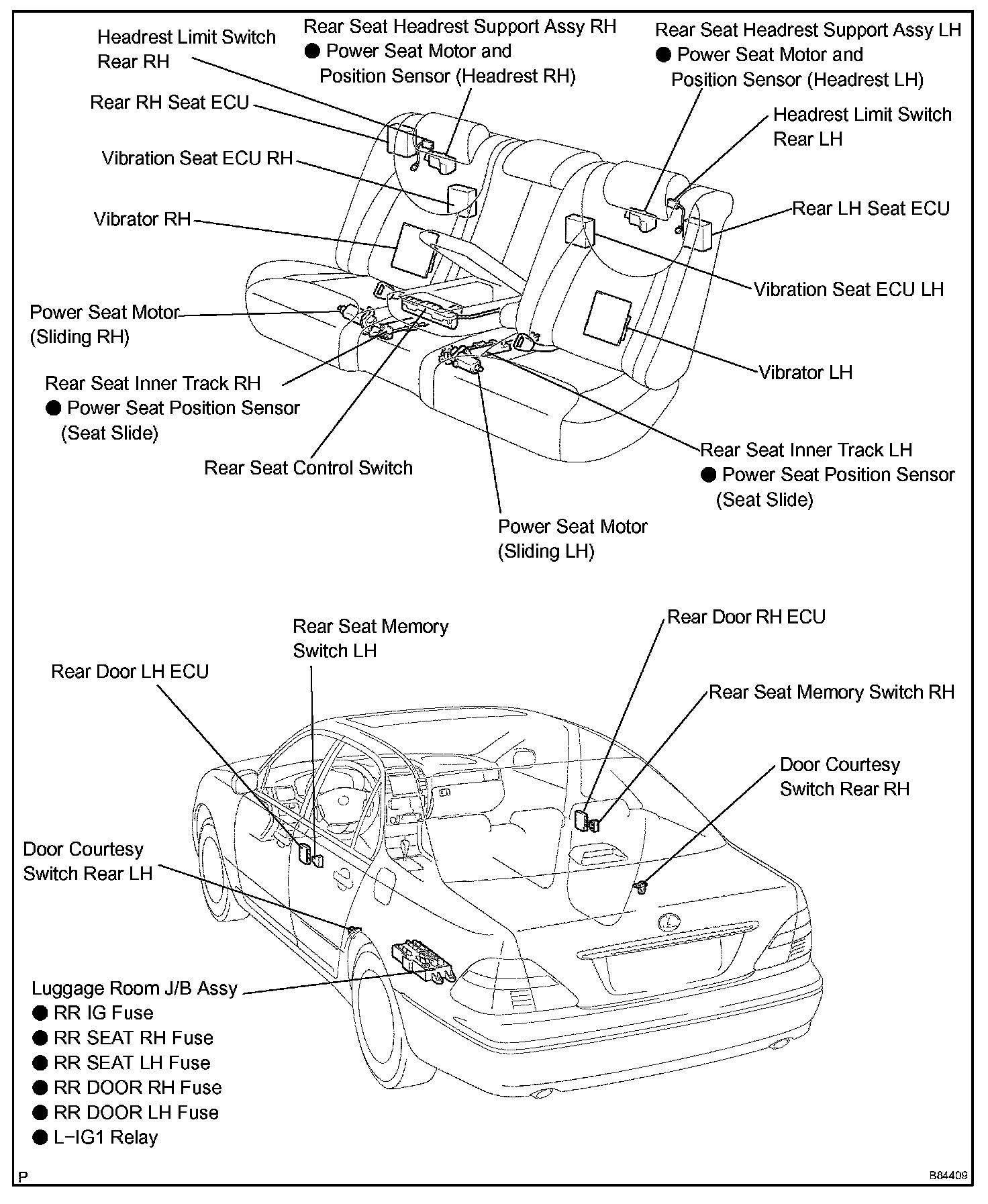

Rear Power Seat Control System:
