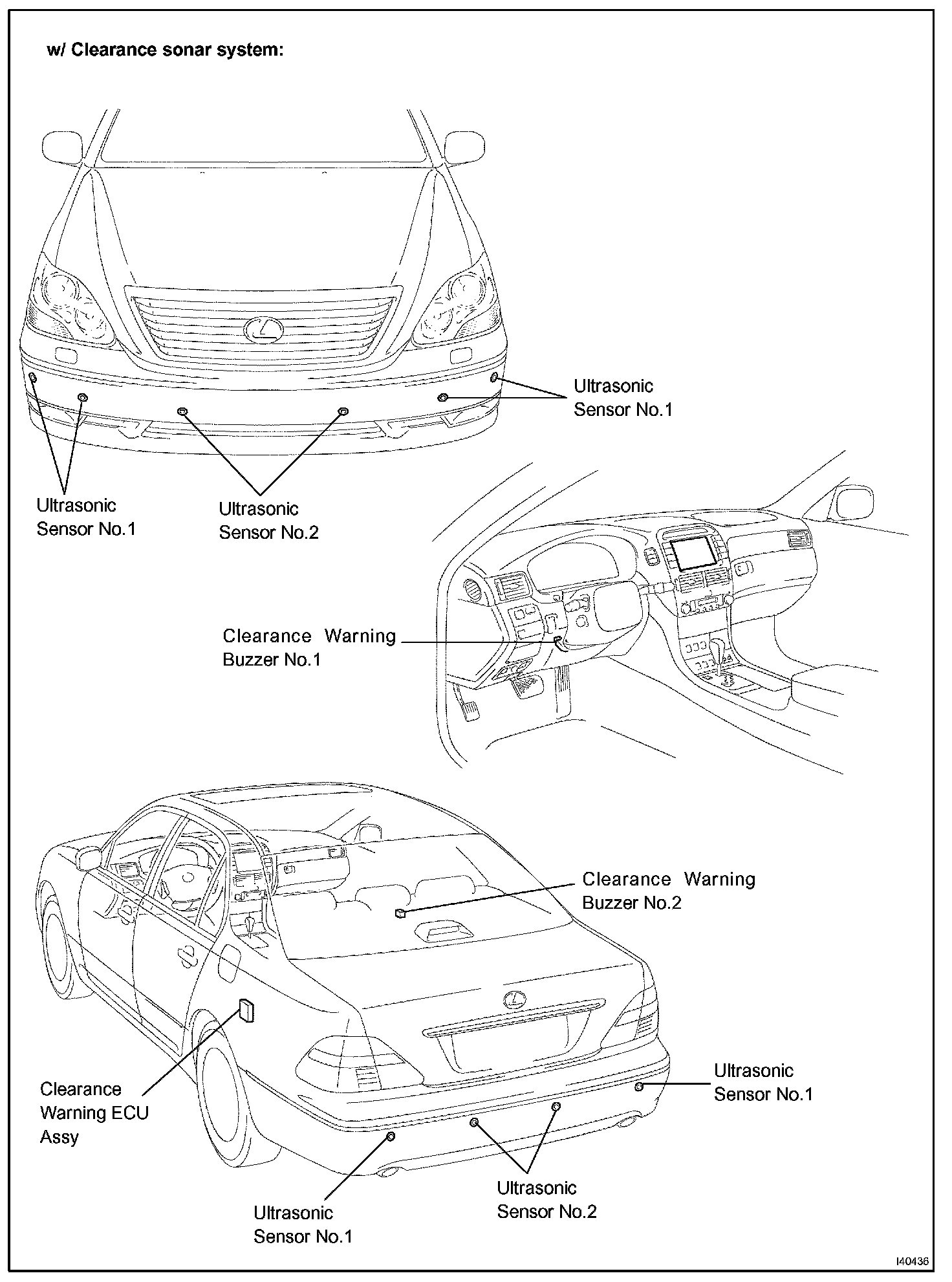

Clearance Warning ECU Assy

Audio Visual System Part 2:

CLEARANCE WARNING ECU ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE REAR FLOOR FINISH PLATE
2. REMOVE ROOM PARTITION NET ASSEMBLY
3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
4. REMOVE ROPE HOOK ASSEMBLY
5. REMOVE REAR FLOOR FINISH PLATE
6. REMOVE TOOL CASE
7. REMOVE SIDE TRIM TOOL BAG COVER
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

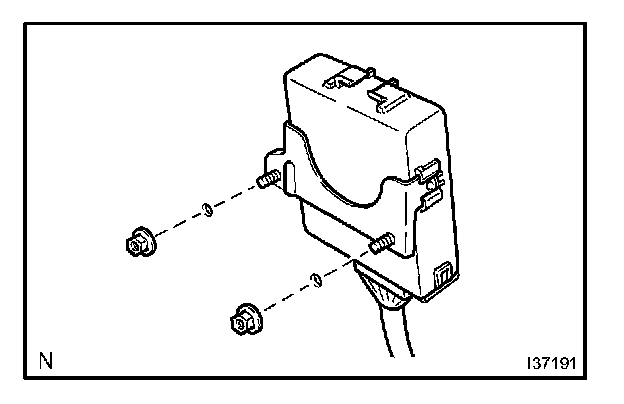

9. REMOVE CLEARANCE WARNING ECU ASSEMBLY
a. Disconnect the connector.
b. Remove the 2 nuts and clearance warning ECU assembly.
