Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL ROD ASSEMBLY

REPLACEMENT

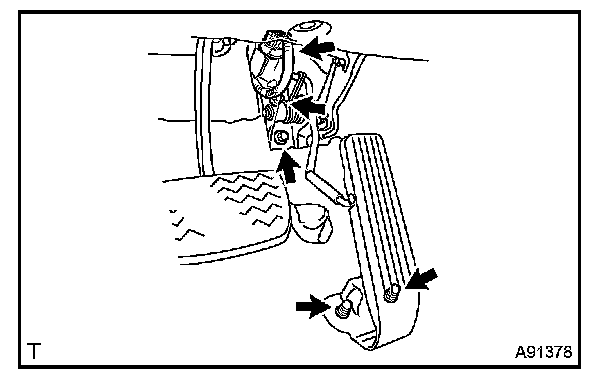

1. REMOVE ACCELERATOR PEDAL ROD ASSEMBLY




a. Disconnect the accelerator pedal position sensor connector.
b. Remove the 2 bolts, 2 nuts and accelerator pedal rod.

2. INSTALL ACCELERATOR PEDAL ROD ASSEMBLY
a. Connect the accelerator pedal position sensor connector.
b. Install the accelerator pedal rod with the 2 bolts and 2 nuts.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
