Positive Crankcase Ventilation Valve: Service and Repair
VENTILATION VALVE SUB-ASSEMBLYREPLACEMENT
1. REMOVE V-BANK COVER
2. REMOVE VENTILATION VALVE SUB-ASSEMBLY
a. Disconnect the ventilation hose from the ventilation valve.
b. Remove the ventilation valve cover.
c. Remove the ventilation valve.
3. INSTALL VENTILATION VALVE SUB-ASSEMBLY
a. Install the ventilation valve.
1. Apply adhesive to 2 or 3 threads of the valve.
Adhesive:
Part No. 08833-00070, THREE BOND 1324 or equivalent
2. Install the valve.
Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)

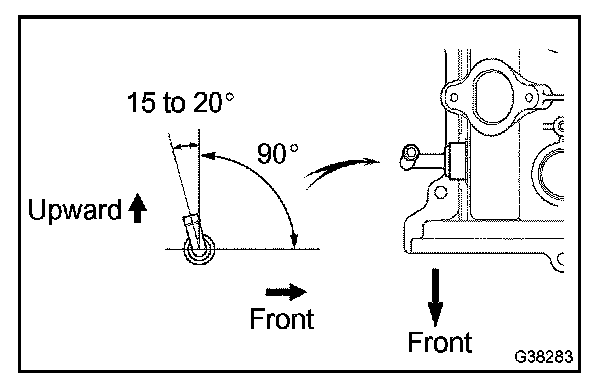

HINT: After applying the specified torque, turn the valve clockwise with the port facing the direction shown in the illustration.
b. Install the ventilation valve cover.
c. Connect the ventilation hose to the valve.
4. INSTALL V-BANK COVER
