Evaporative Emission Control Canister: Service and Repair
REPLACEMENT1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. DISCONNECT REAR DRIVE SHAFT RH
3. REMOVE CHARCOAL CANISTER ASSEMBLY

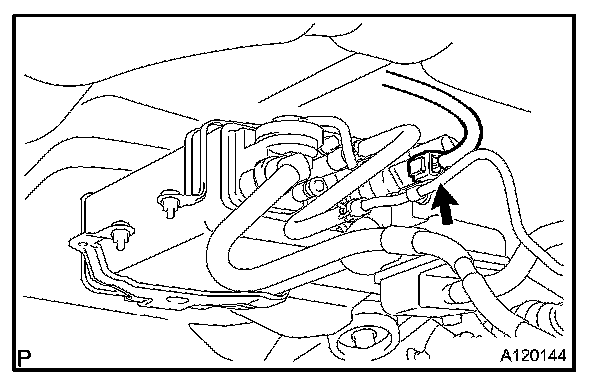

a. Disconnect the connector.

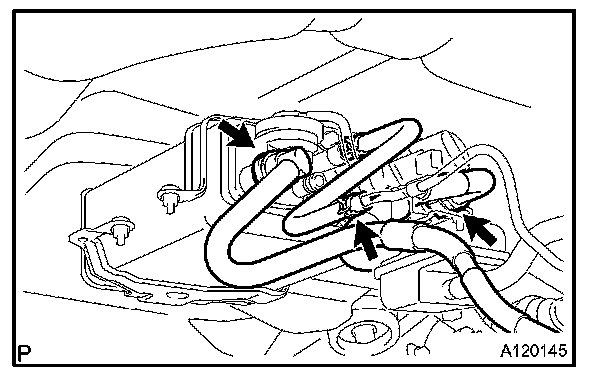

b. Disconnect the 2 tubes and hose.
1. Disconnect the purge line hose.
2. Disconnect the air inlet line tube.
3. Disconnect the vent line tube from the canister (leak detection pump).

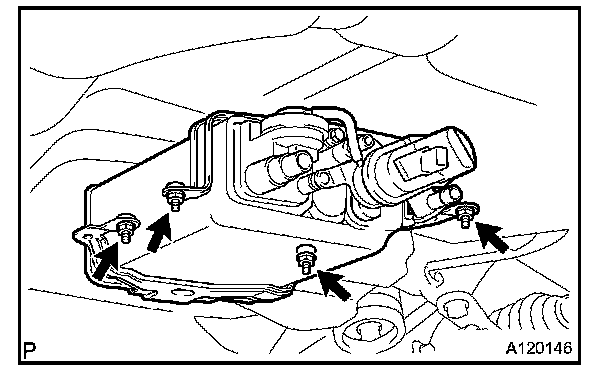

c. Remove the 4 nuts, 4 spacers and canister assembly.
4. INSTALL CHARCOAL CANISTER ASSEMBLY

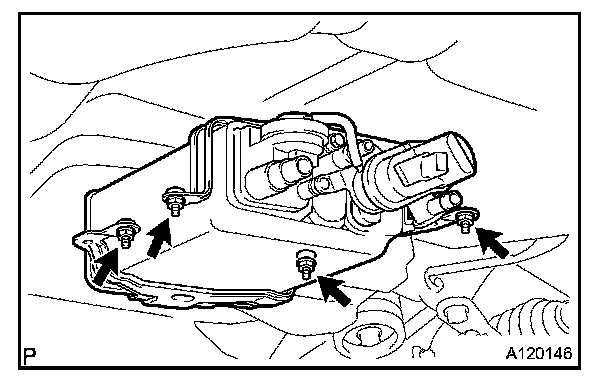

a. Install the canister and 4 spacers with the 4 nuts.
Torque: 5.5 N.m (5.6 kgf.cm, 4.9 in.lbf)

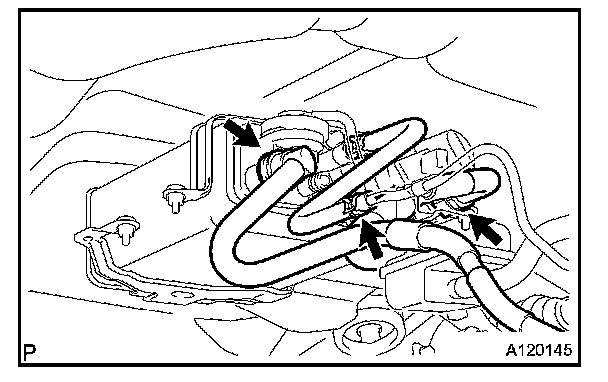

b. Connect the 2 tubes and hose.
1. Connect the air inlet line hose to the canister (leak detection pump).
2. Connect the vent line hose.
3. Connect the purge line hose.
c. Connect the connector.
5. CONNECT REAR DRIVE SHAFT ASSEMBLY RH
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
8. CONNECT REAR DRIVE SHAFT RH
