Pinout Values and Diagnostic Parameters

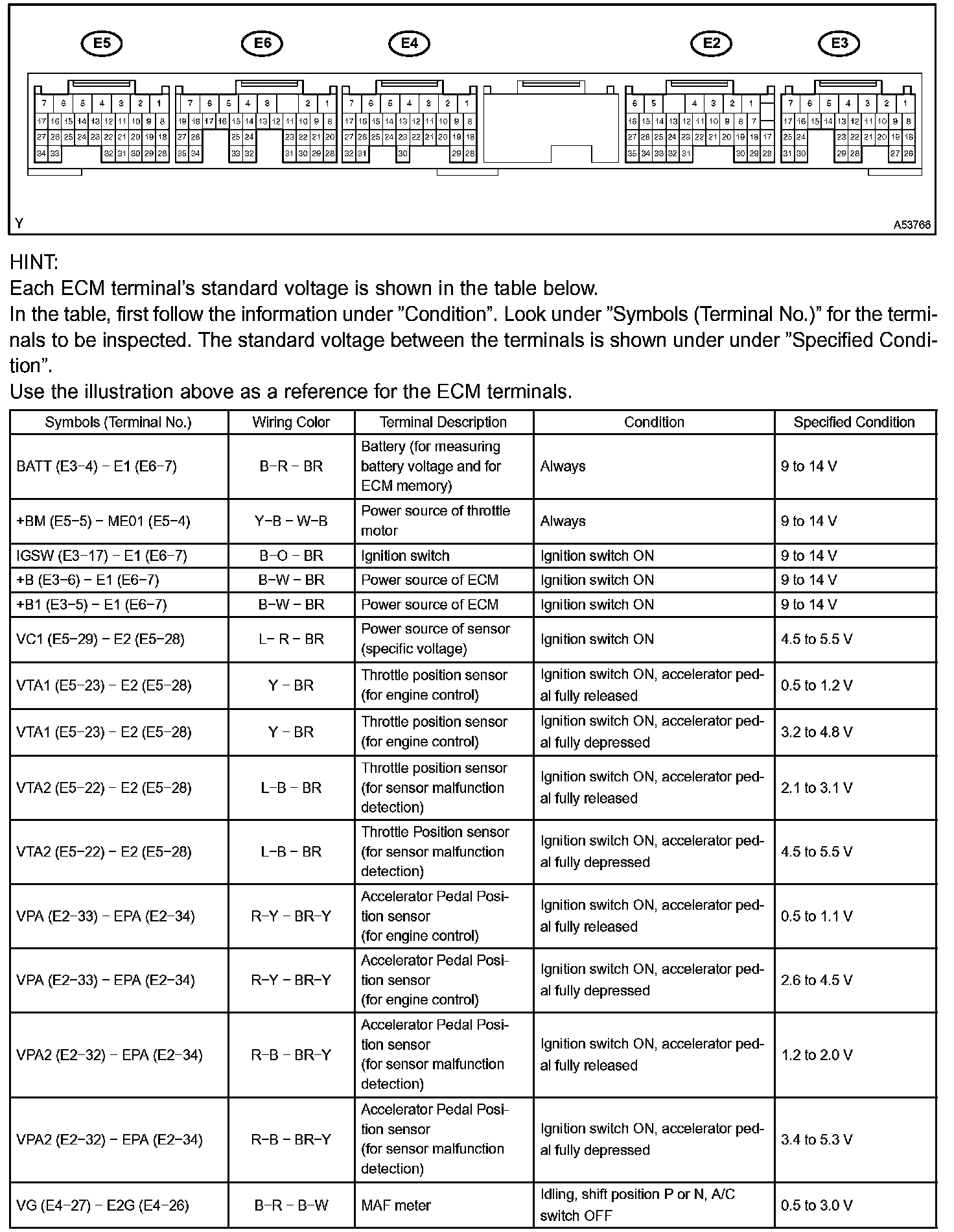

Terminals Of ECM/Pinouts (Part 1):

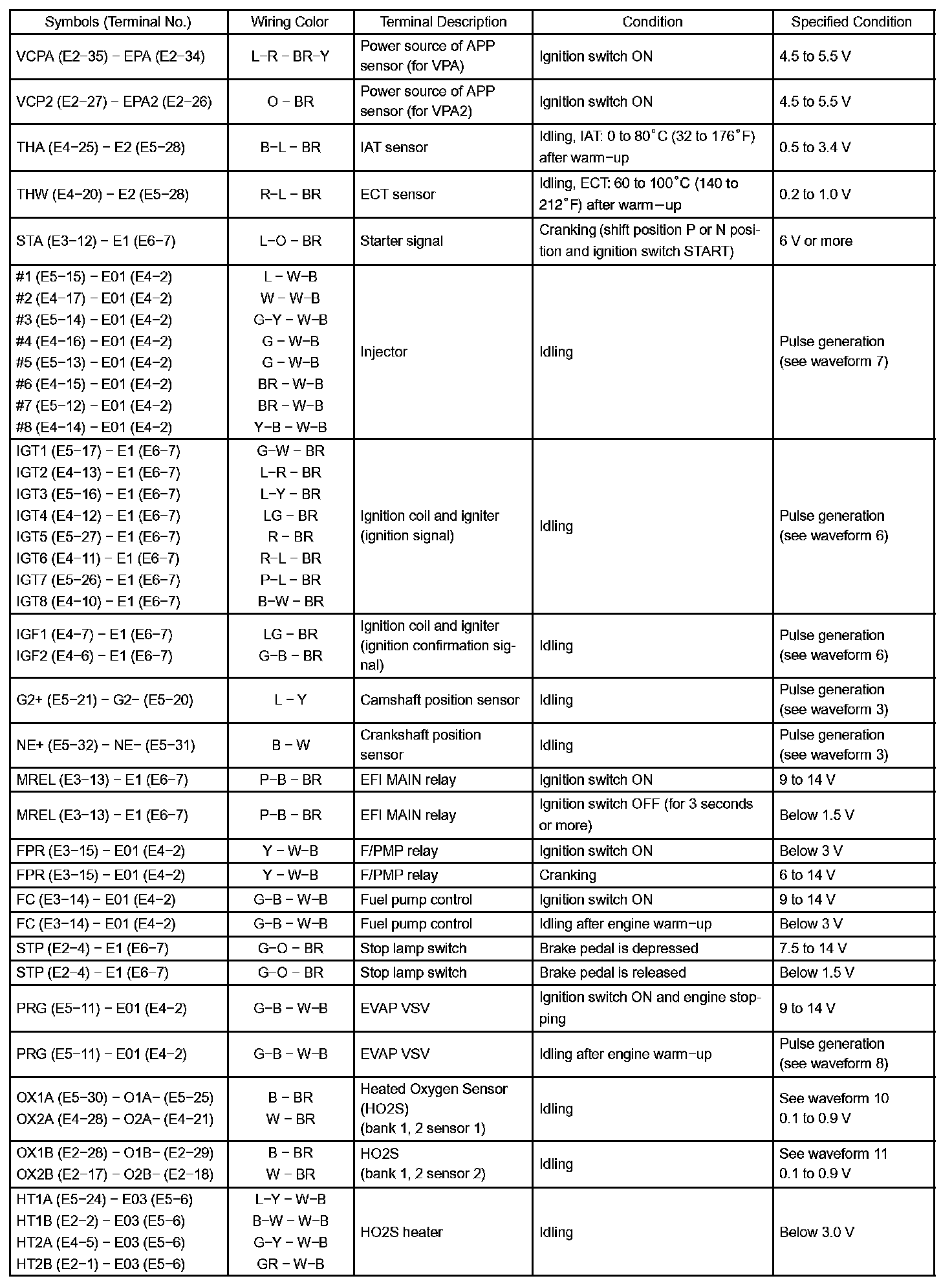

Terminals Of ECM/Pinouts (Part 2):

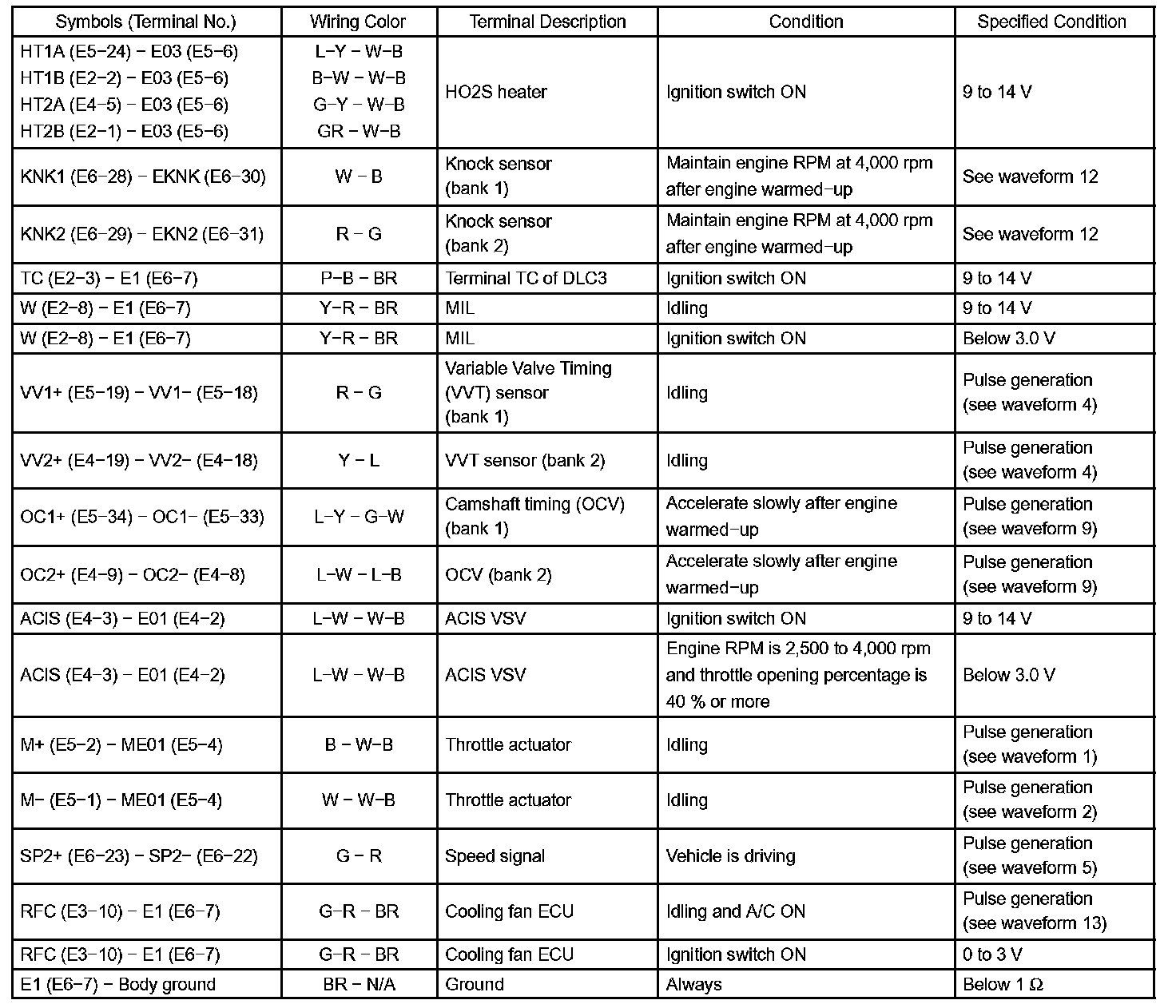

Terminals Of ECM/Pinouts (Part 3):

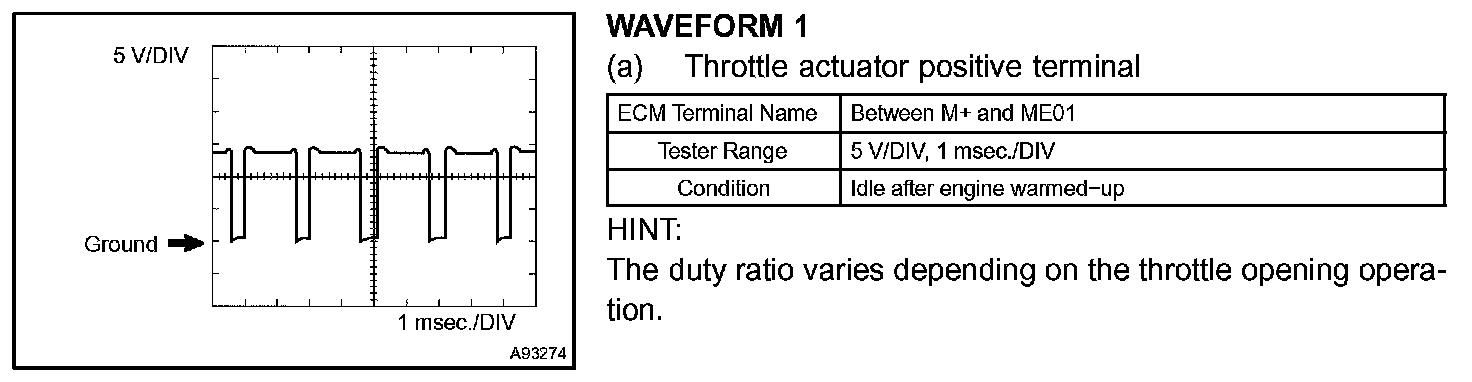

Oscilloscope Waveform 1:

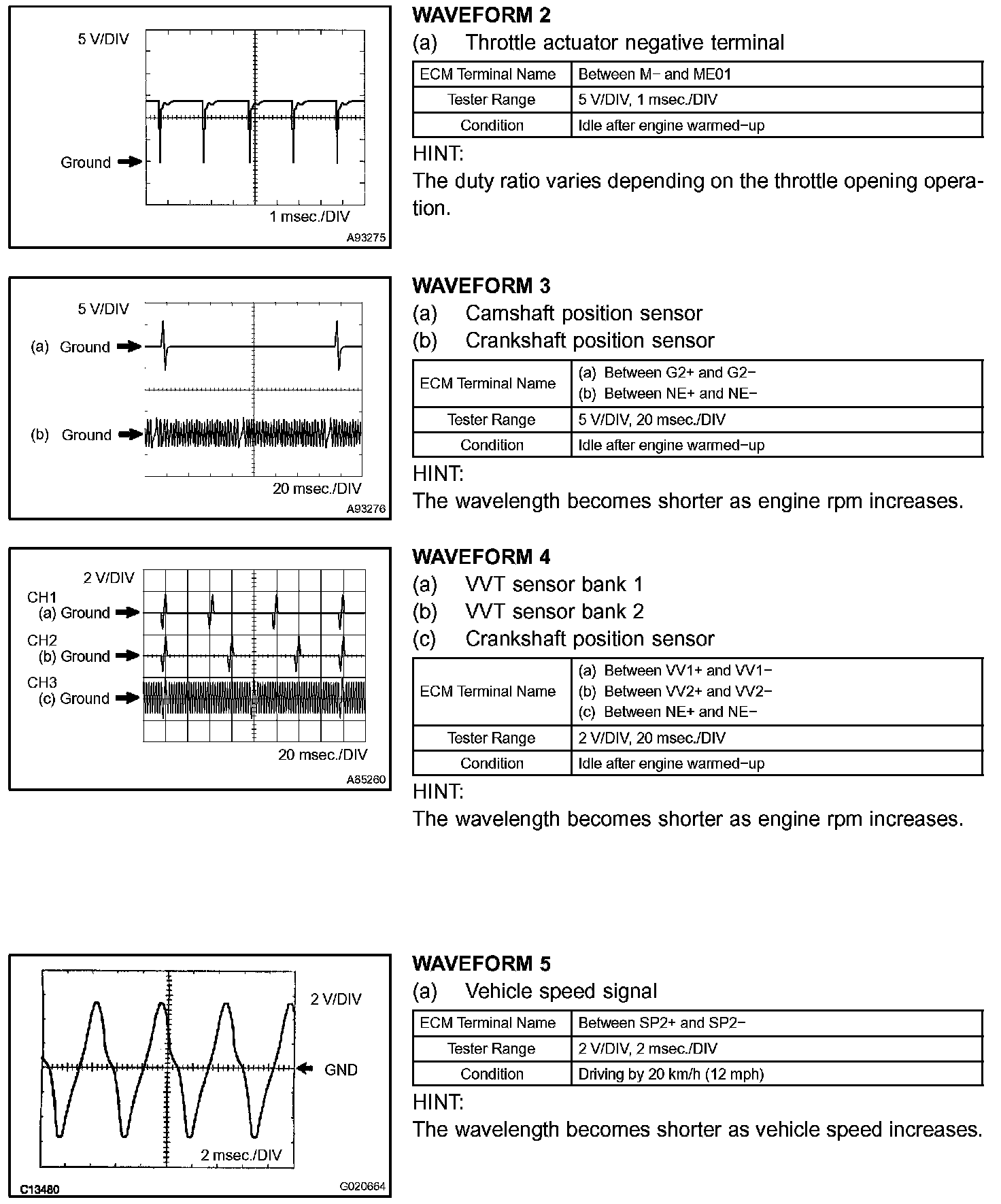

Oscilloscope Waveforms 2 - 5:

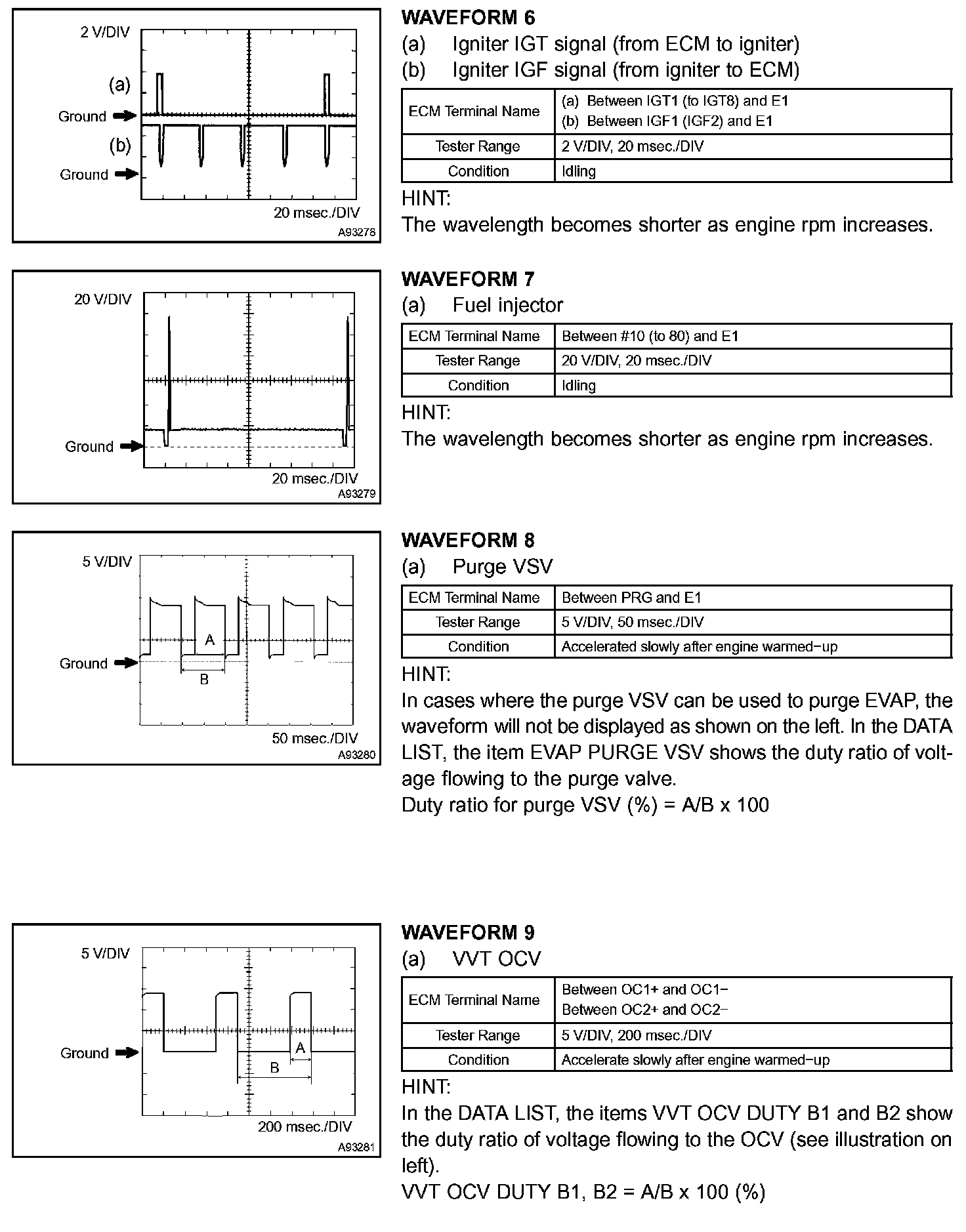

Oscilloscope Waveforms 6 - 9:

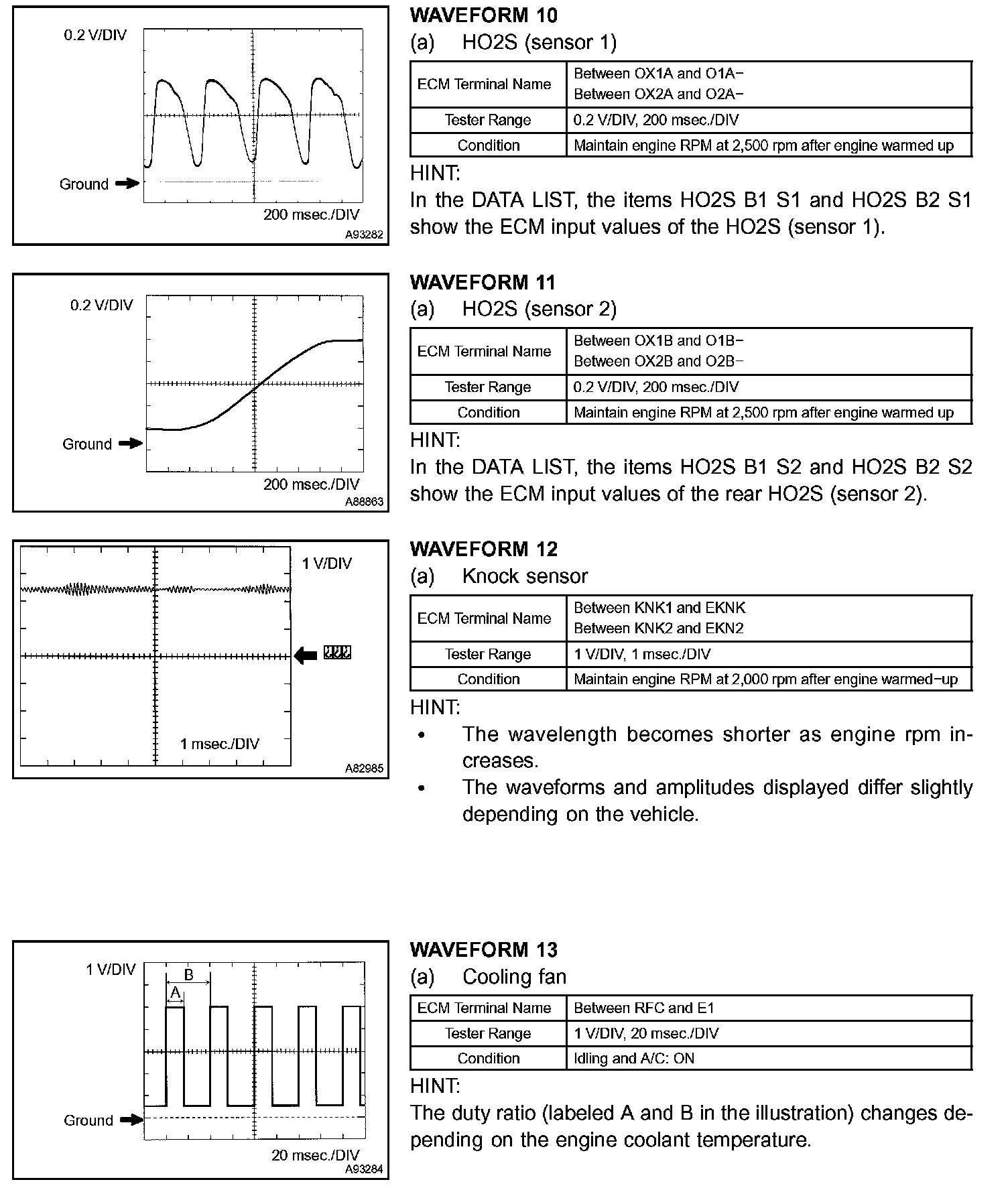

Oscilloscope Waveforms 10 - 13:
