FAIL SAFE CHART
If any of the following codes are recorded, the ECM enters fail safe mode.

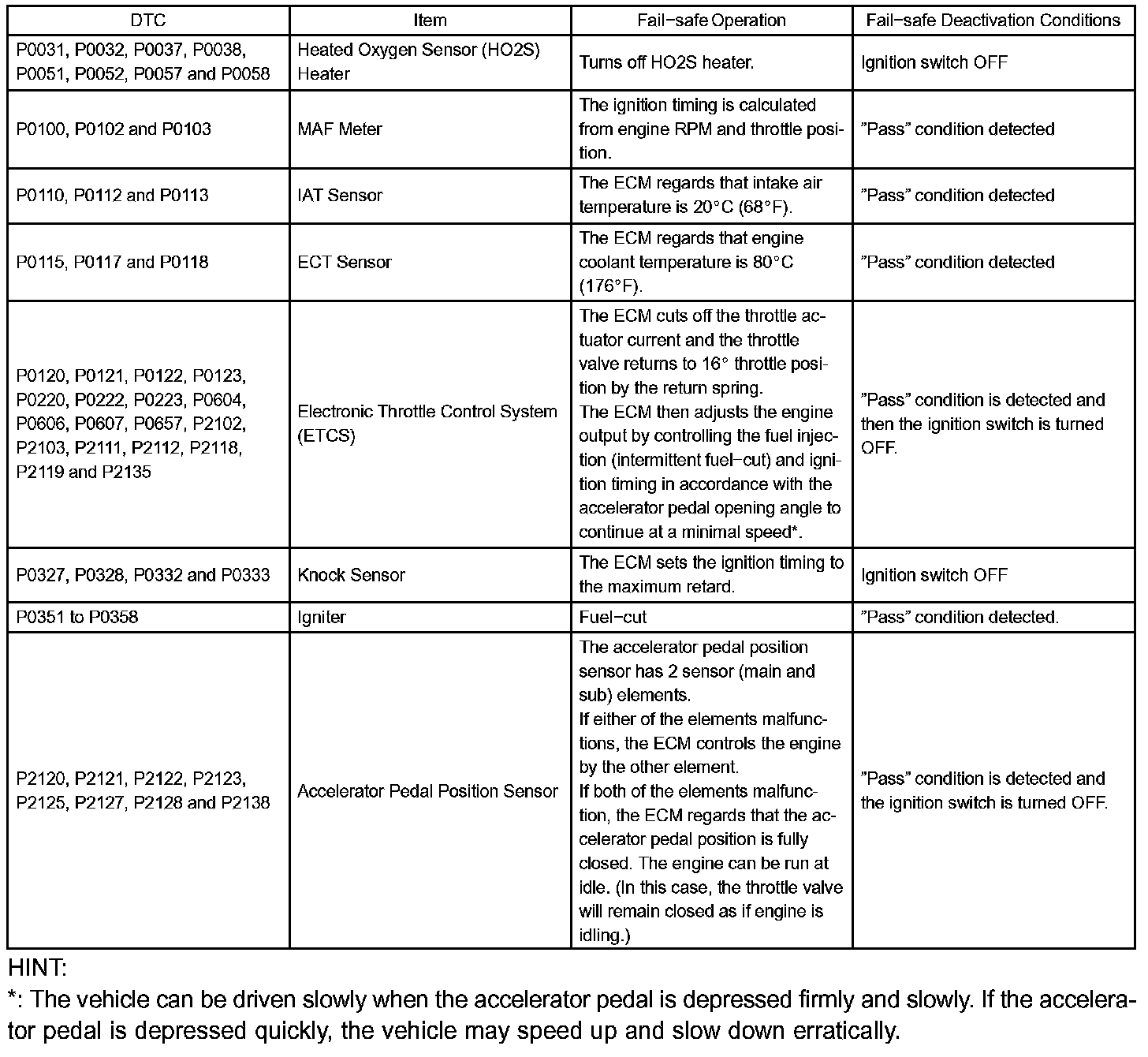

Fail-Safe Chart:
