Suspension Control ECU Communication Stop Mode

SUSPENSION CONTROL ECU COMMUNICATION STOP MODE

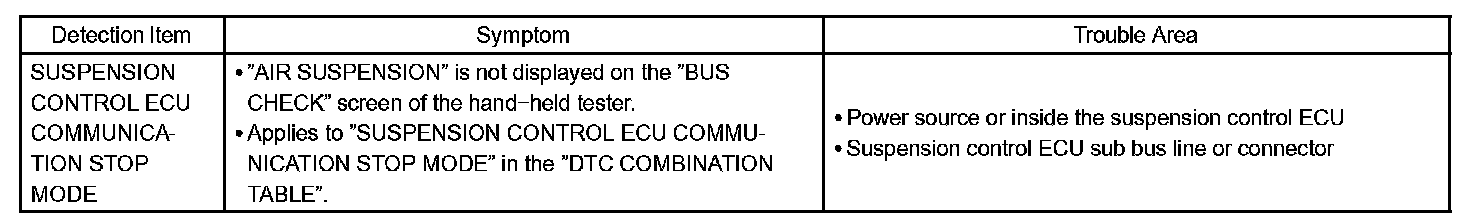

Detection Item:

MODE DESCRIPTION

NOTE: This is not applicable to a vehicle without an air suspension system.

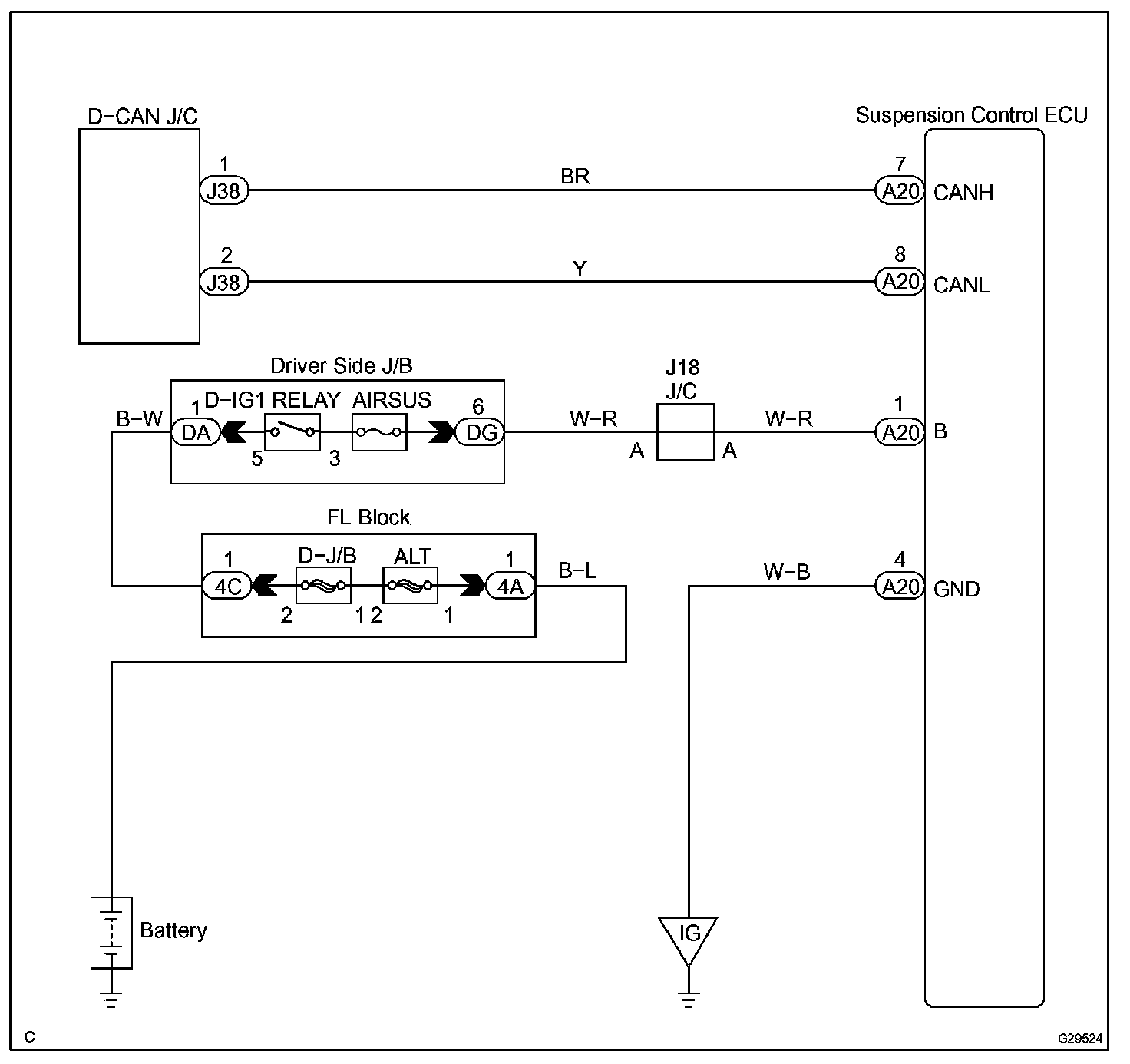

Wiring Diagram:

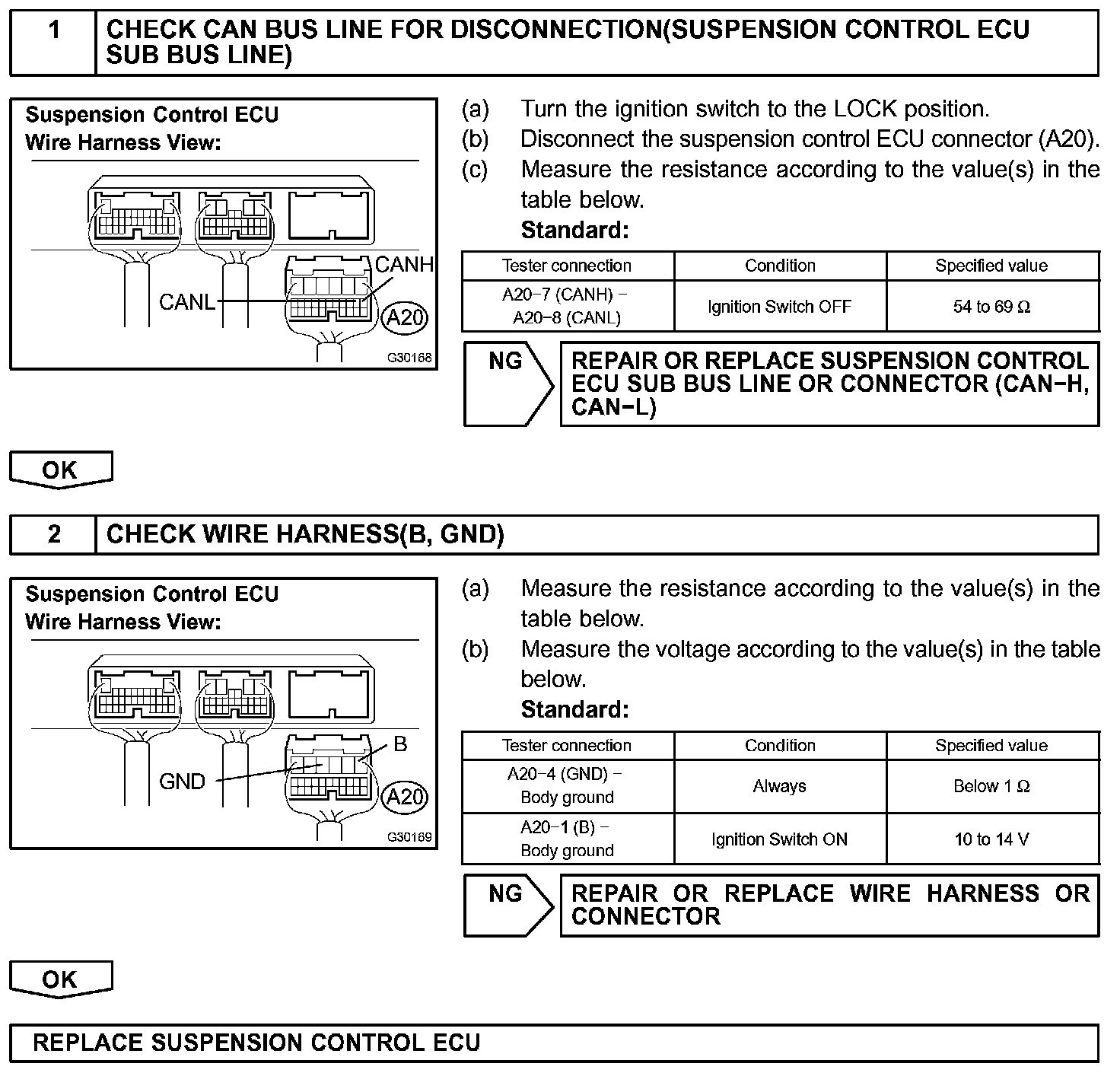

Step 1-2:

INSPECTION PROCEDURE
