Seat Belt Control ECU Communication Stop Mode

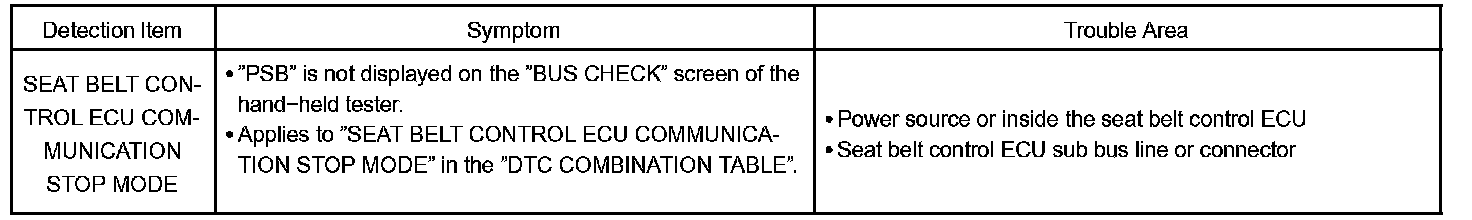

SEAT BELT CONTROL ECU COMMUNICATION STOP MODEDetection Item:
MODE DESCRIPTION
NOTE: This is not applicable to a vehicle without a Pre collision safety system.

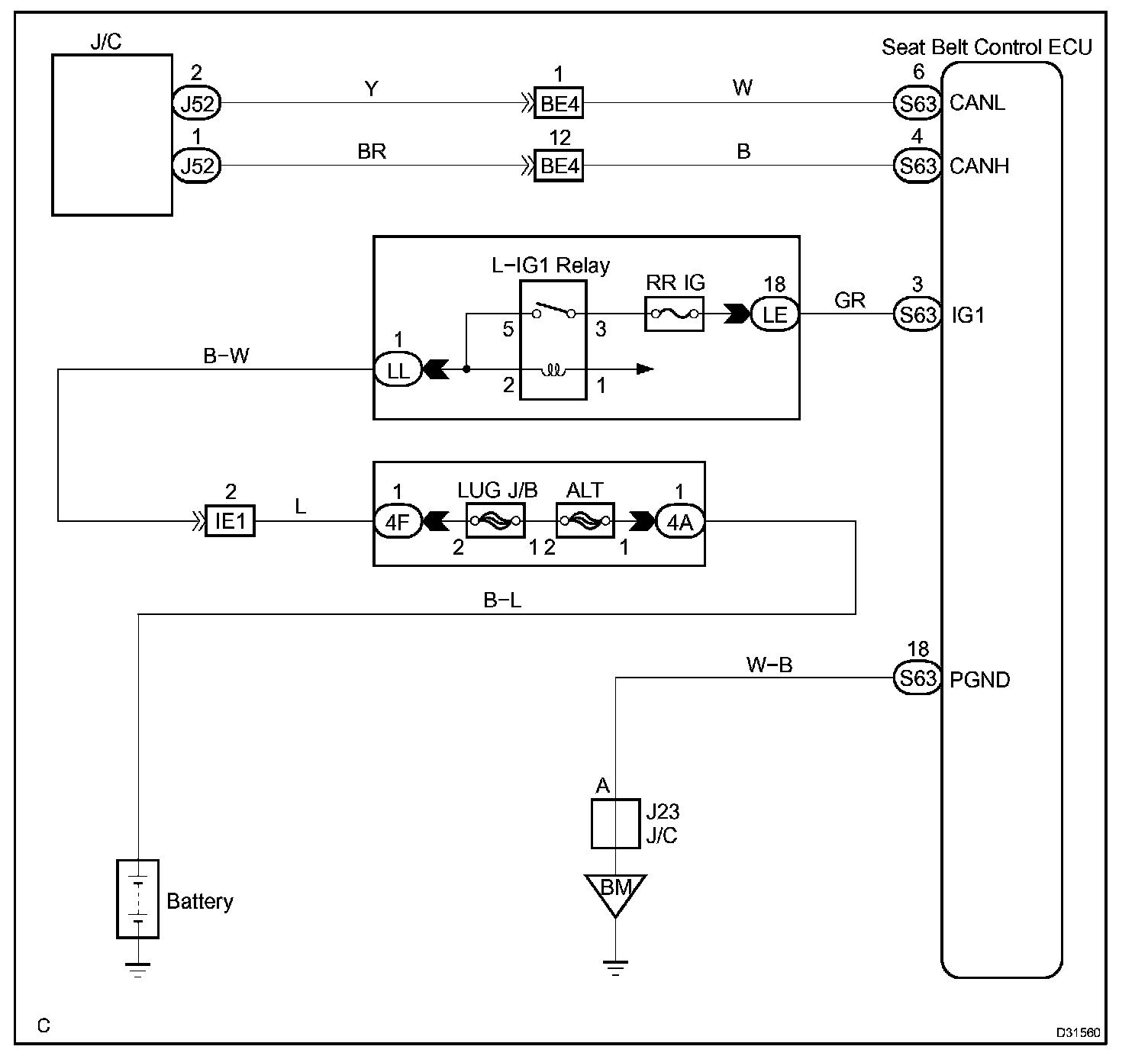

Wiring Diagram:
Step 1-2:

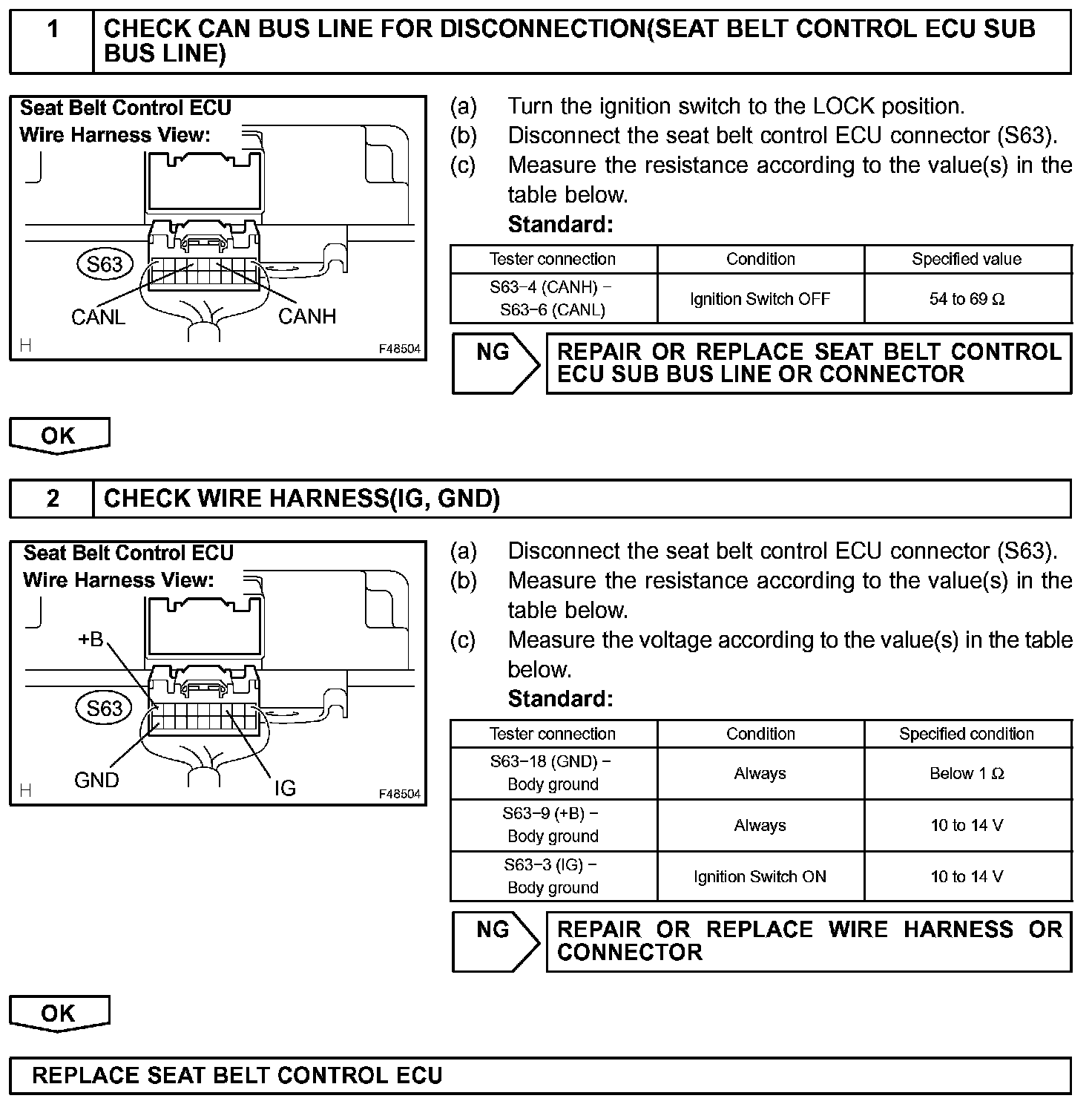

INSPECTION PROCEDURE
