Check CAN Main Bus Line For Disconnection (W/O Lexus Navigation System)

CHECK CAN MAIN BUS LINE FOR DISCONNECTION (w/o LEXUS Navigation System)

CIRCUIT DESCRIPTION

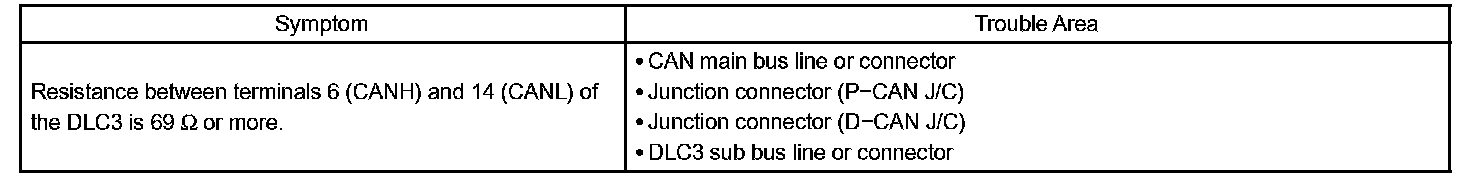

There may be an open circuit in the CAN main bus line and/or the DLC3 sub bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 Ohms or more.

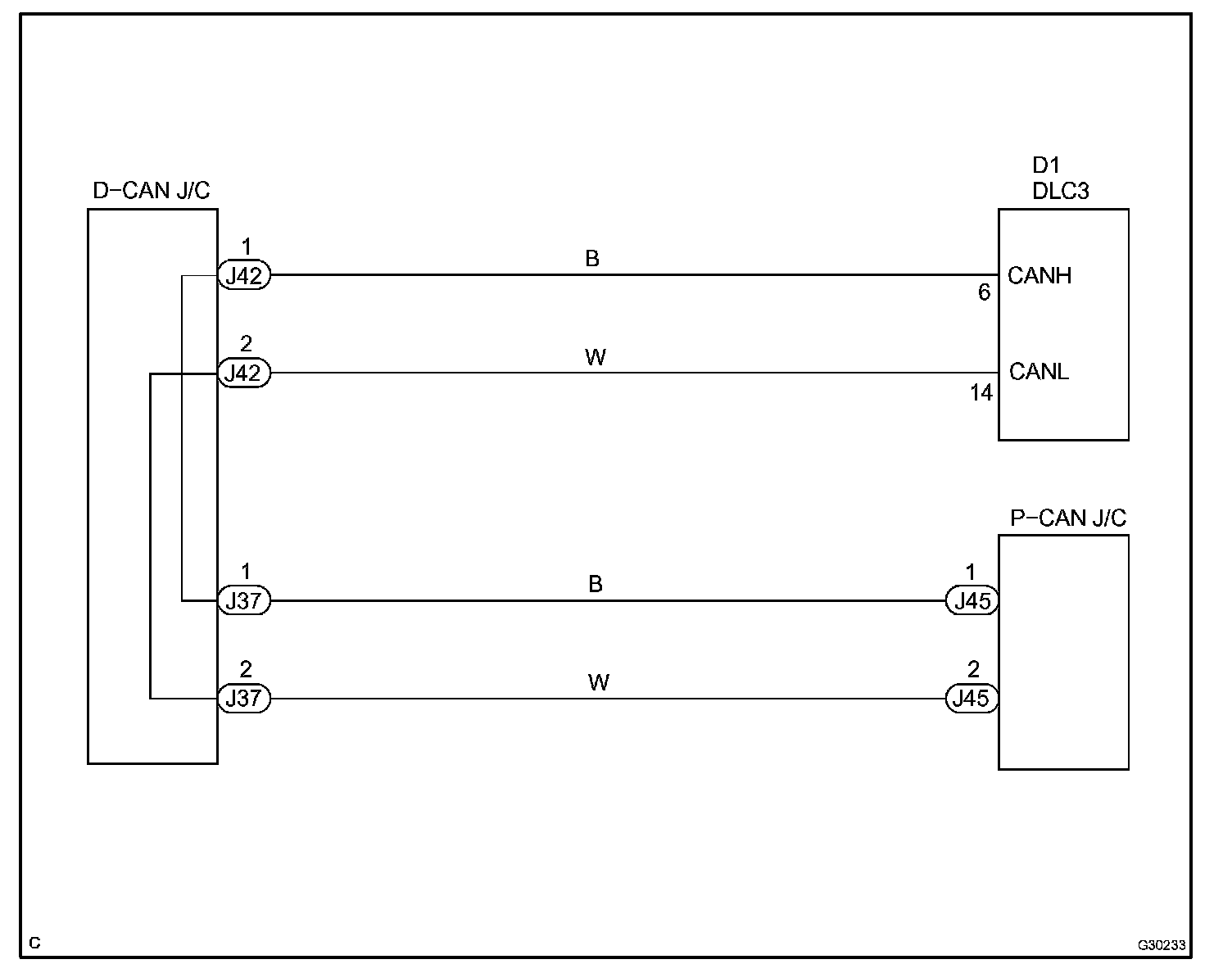

Wiring Diagram:

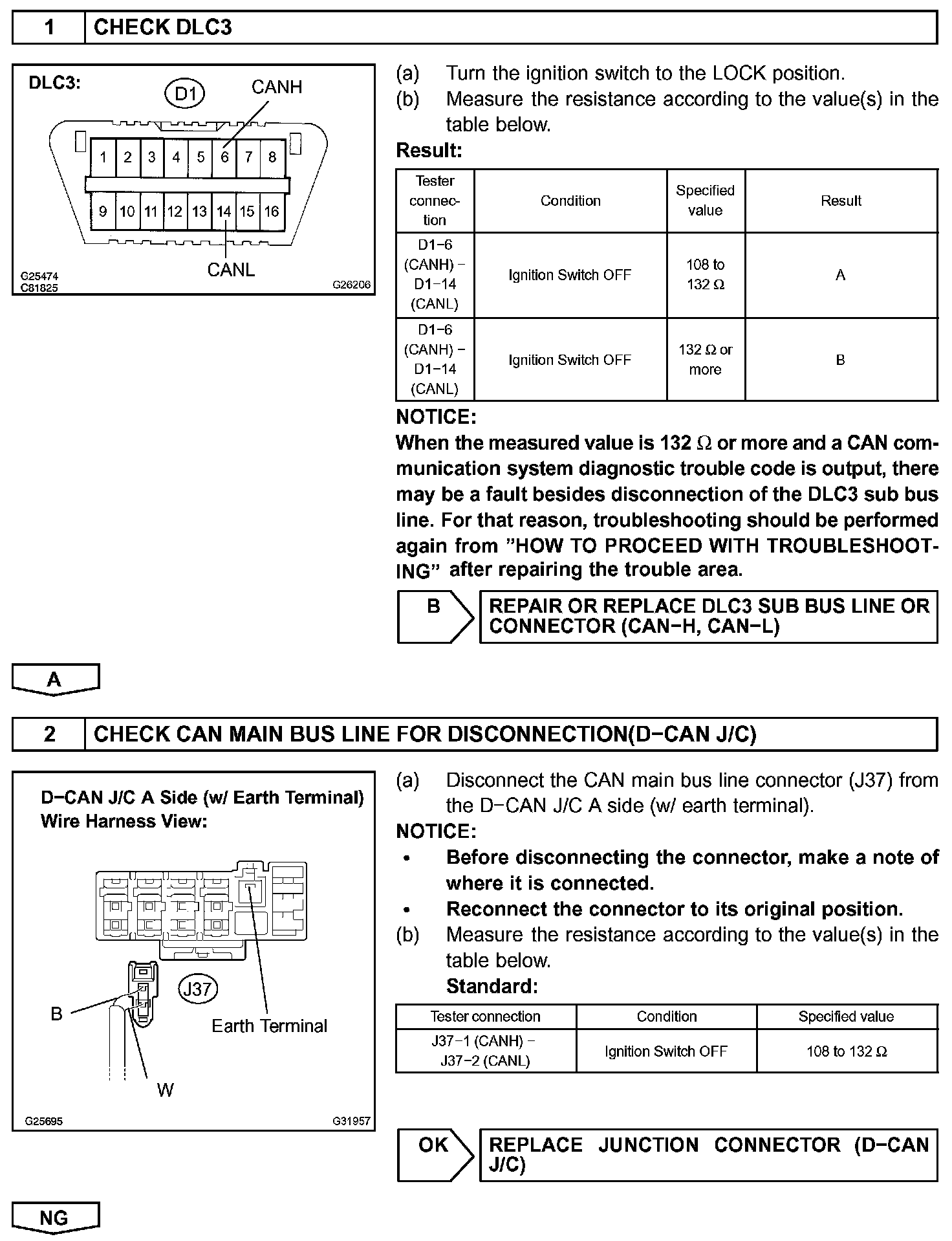

Step 1-2:

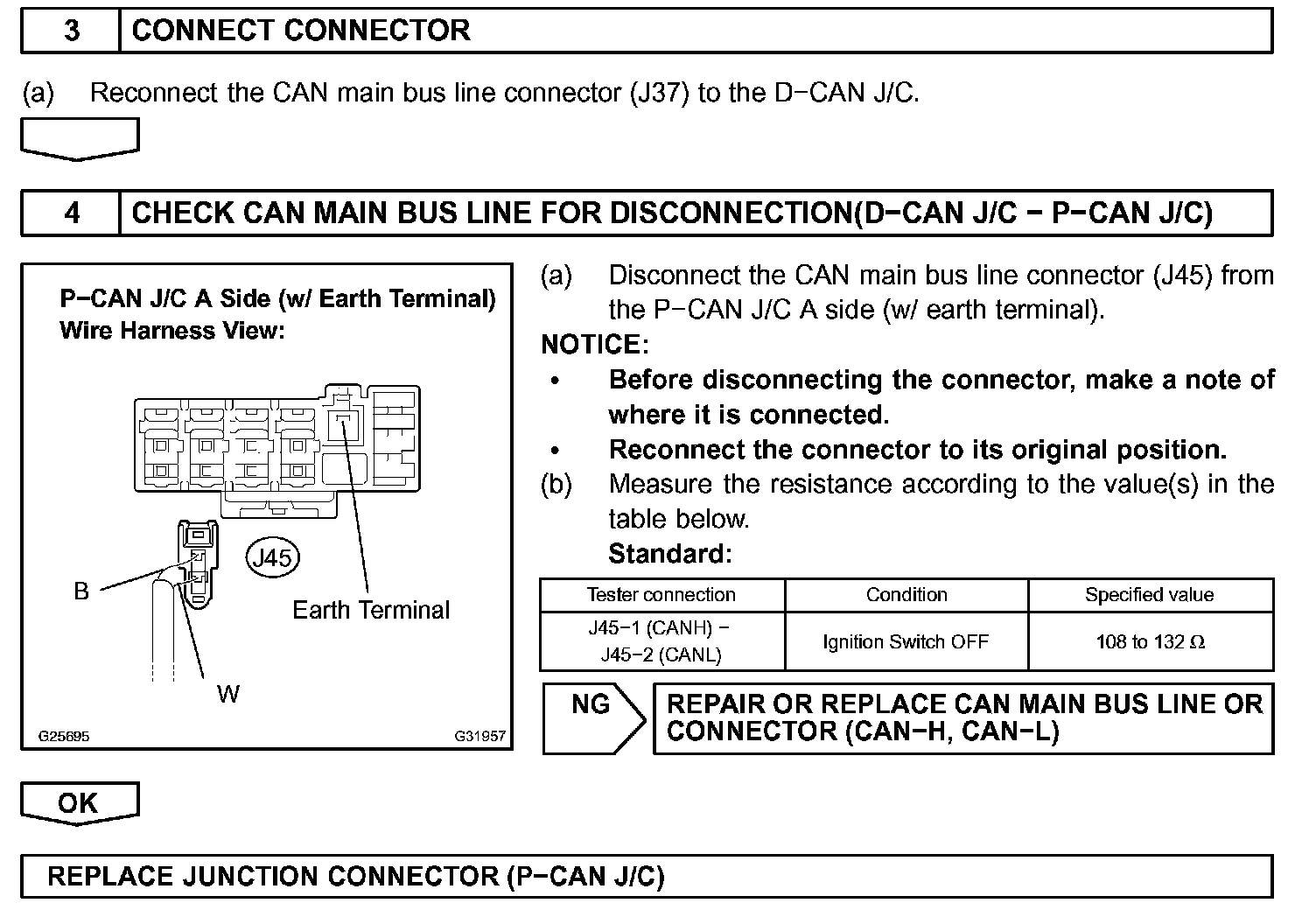

Step 3-4:

INSPECTION PROCEDURE
