Rear

REAR AXLE LH HUB BOLT
REPLACEMENT
1. REMOVE REAR TIRE
2. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH
3. REMOVE REAR DISC





4. REMOVE REAR AXLE LH HUB BOLT

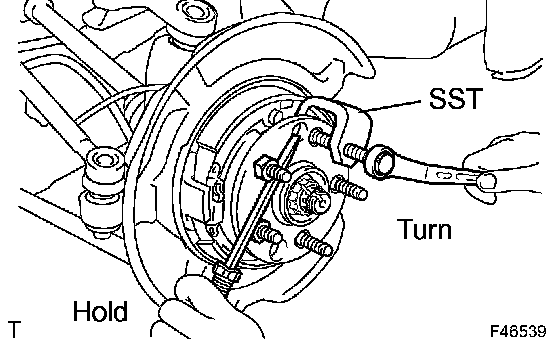

a. Using SST and a screwdriver or an equivalent to hold, re move the hub bolt.
SST 09628-10011





5. INSTALL REAR AXLE LH HUB BOLT

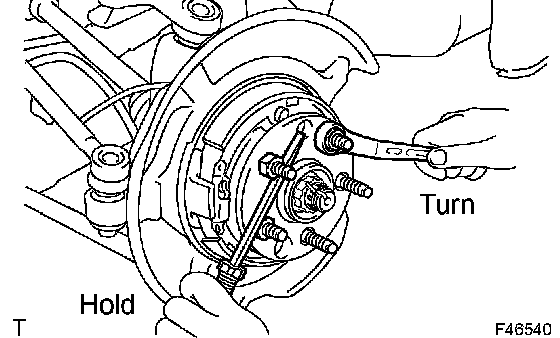

a. Install a washer and nut to a new bolt, as shown in the illustration.
b. Using a hammer handle or an equivalent to hold the hub & bearing assembly, install the rear axle LH hub bolt by tightening the nut.
6. INSTALL REAR DISC
7. ADJUST PARKING BRAKE SHOE CLEARANCE
8. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH
9. INSTALL REAR TIRE
