Tire Pressure Warning Indicator Chart

Tire Pressure Warning Indicator Chart:

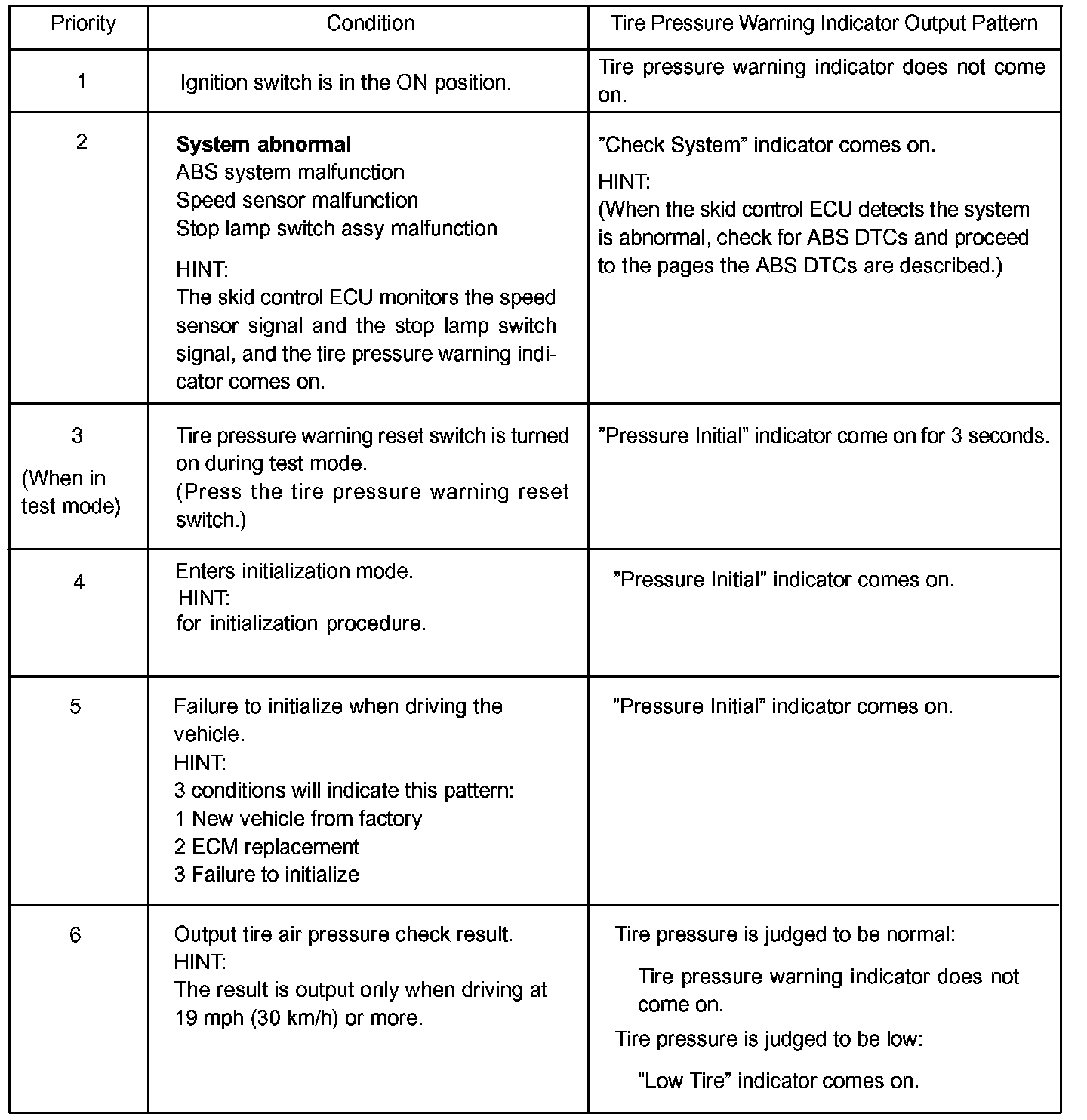

TIRE PRESSURE WARNING INDICATOR CHART

HINT: When the skid control ECU does not operate properly, the ABS warning lamp comes on as an ABS system malfunction.
