Vanity Lamp: Testing and Inspection

VISOR ASSEMBLY

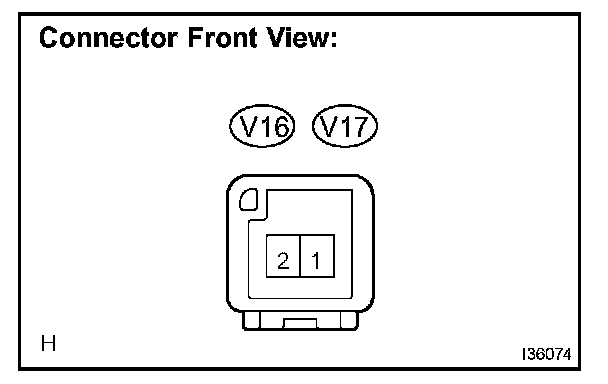

a. Connect the (+) lead from the battery to terminal 1 and the (-) lead to terminal 2, and check that the vanity light comes on when the visor is opened.
OK: Comes on.




VANITY LAMP ASSEMBLY

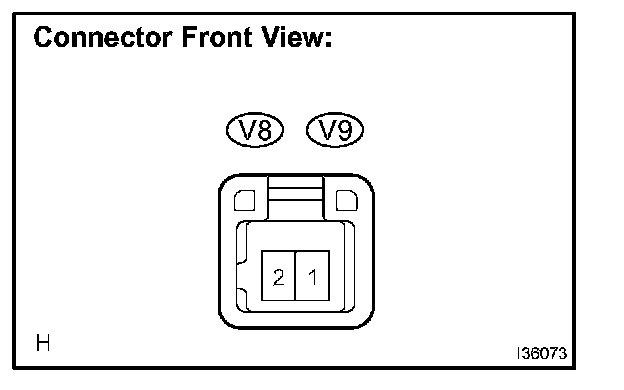

a. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1, and check that the rear vanity light comes on when the cover is opened.
OK: Comes on.
