Turn Signal Lamp Circuit

TURN SIGNAL LIGHT CIRCUIT

Circuit Description

Receiving the signal of the turn signal switch from the driver side junction block ECU, the driver side junction block ECU makes the turn signal lamp come on.

The driver side junction block ECU activates the flasher relay while the theft deterrent system gives the warning and turns on the turn signal lamp and the hazard warning light.

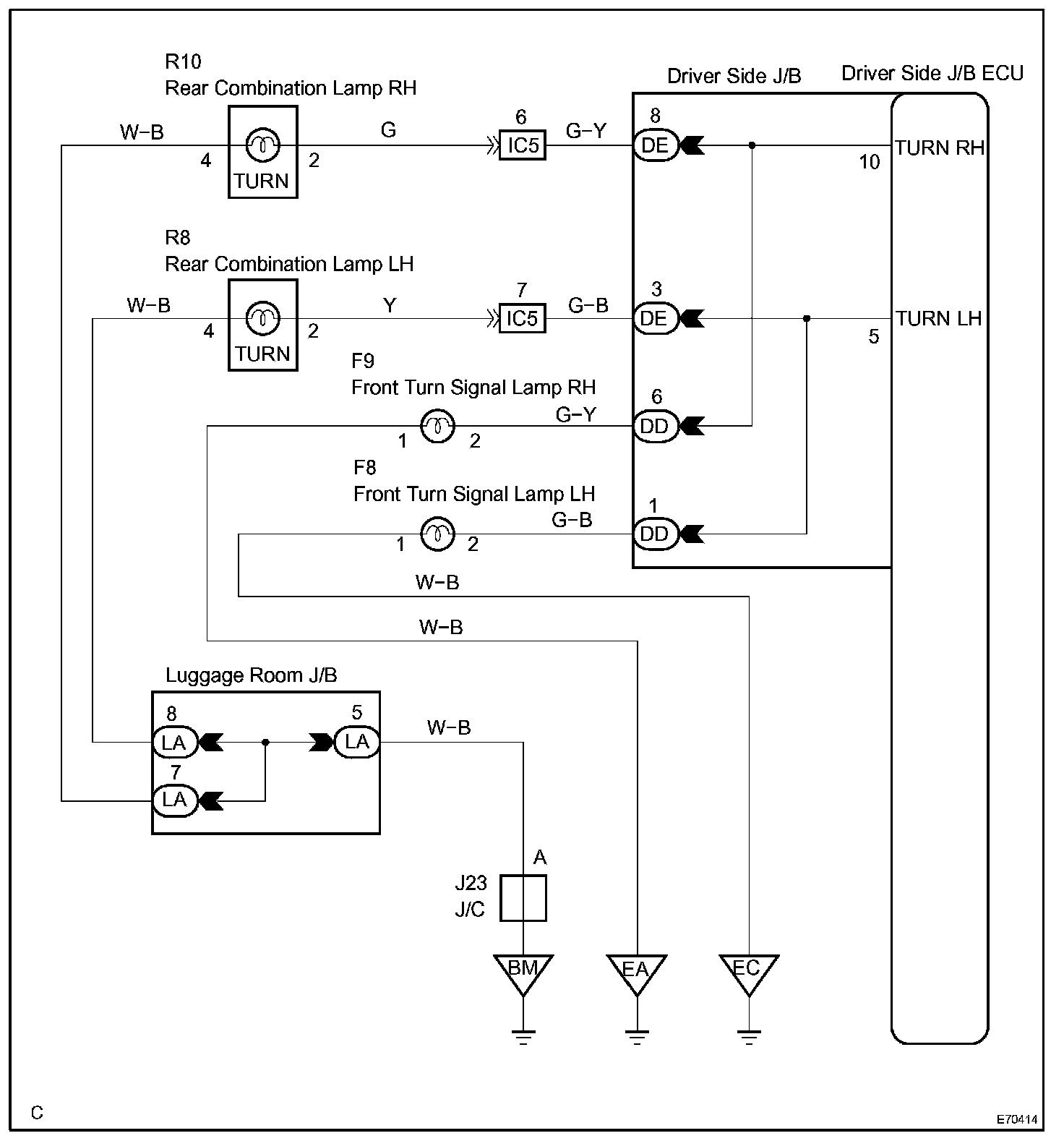

Wiring Diagram:

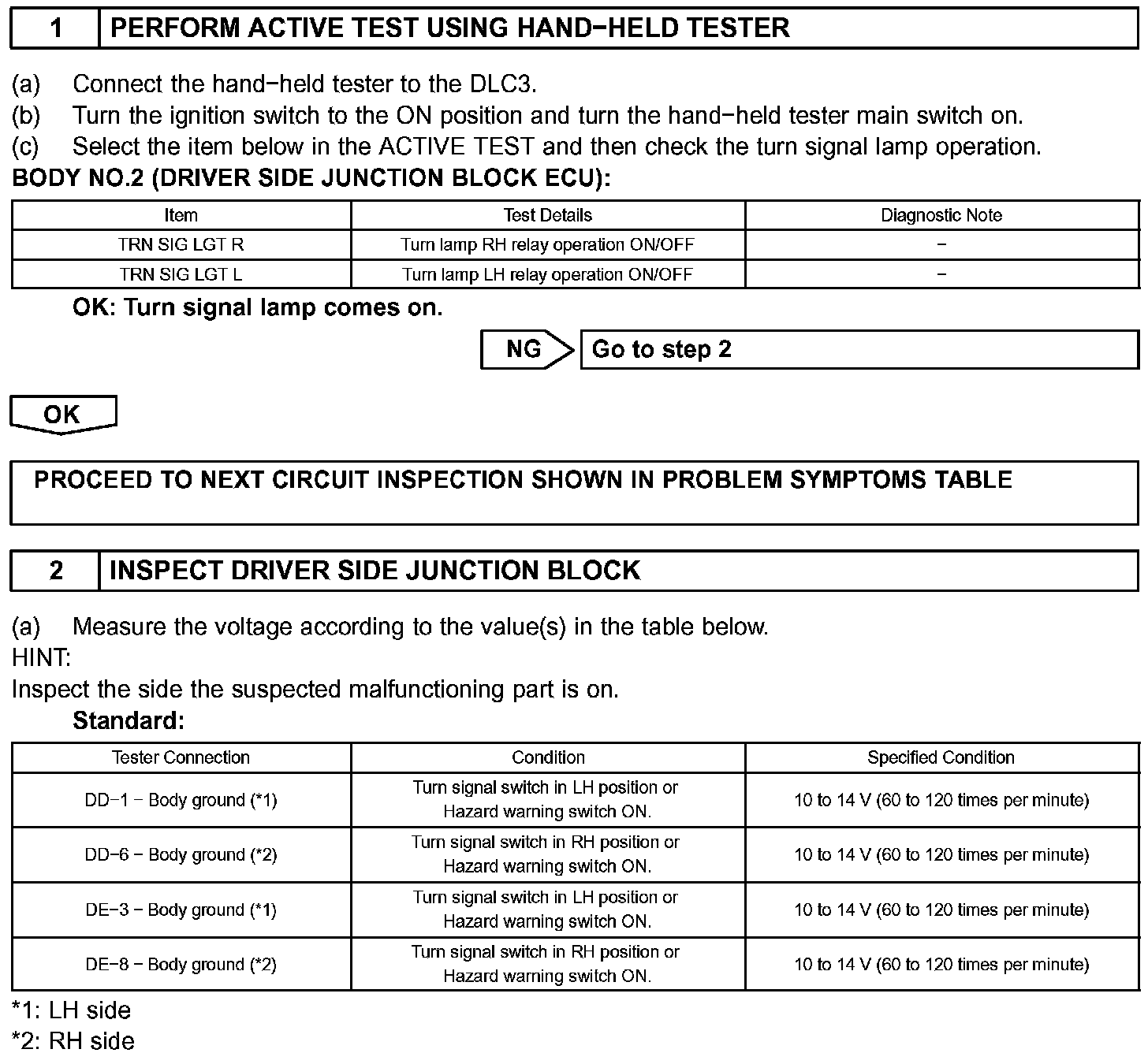

Step 1-2:

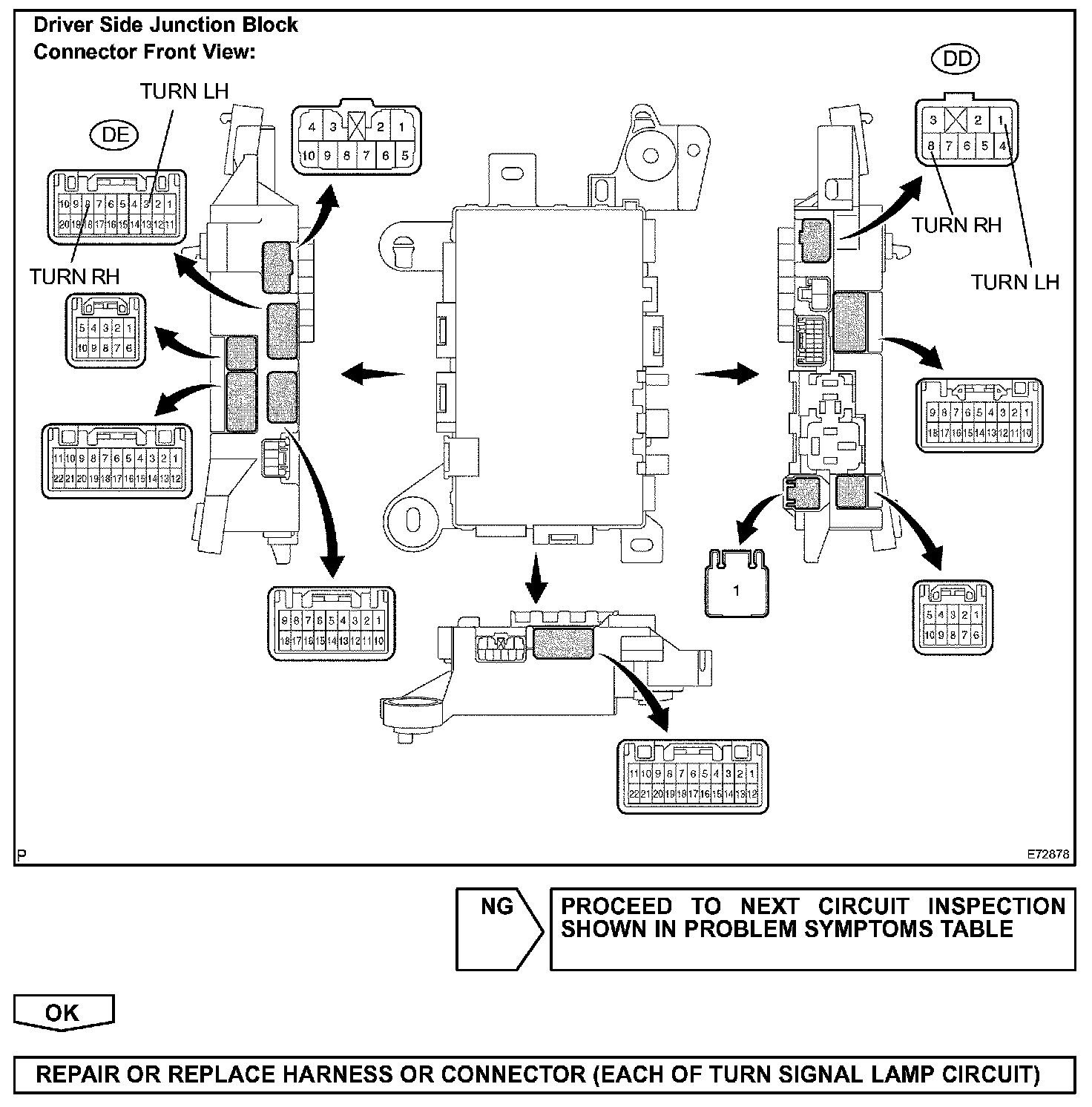

Step 2(continued):

INSPECTION PROCEDURE
