Room Light Circuit

ROOM LIGHT CIRCUIT

Circuit Description

The passenger side junction block ECU receives information regarding the door courtesy, door lock position, ignition switch and other sources, and turns on the key cylinder lamp and room lamp.

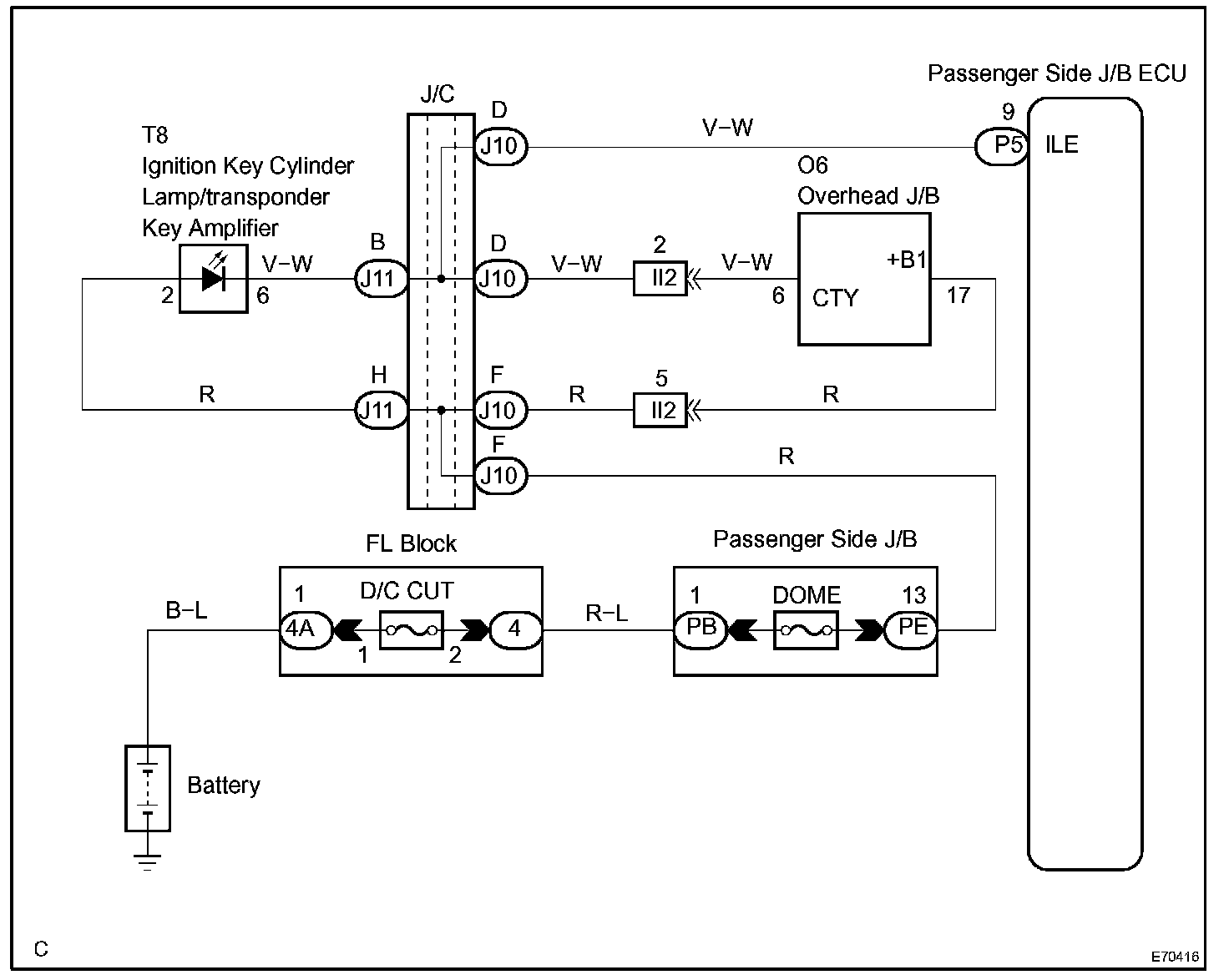

Wiring Diagram:

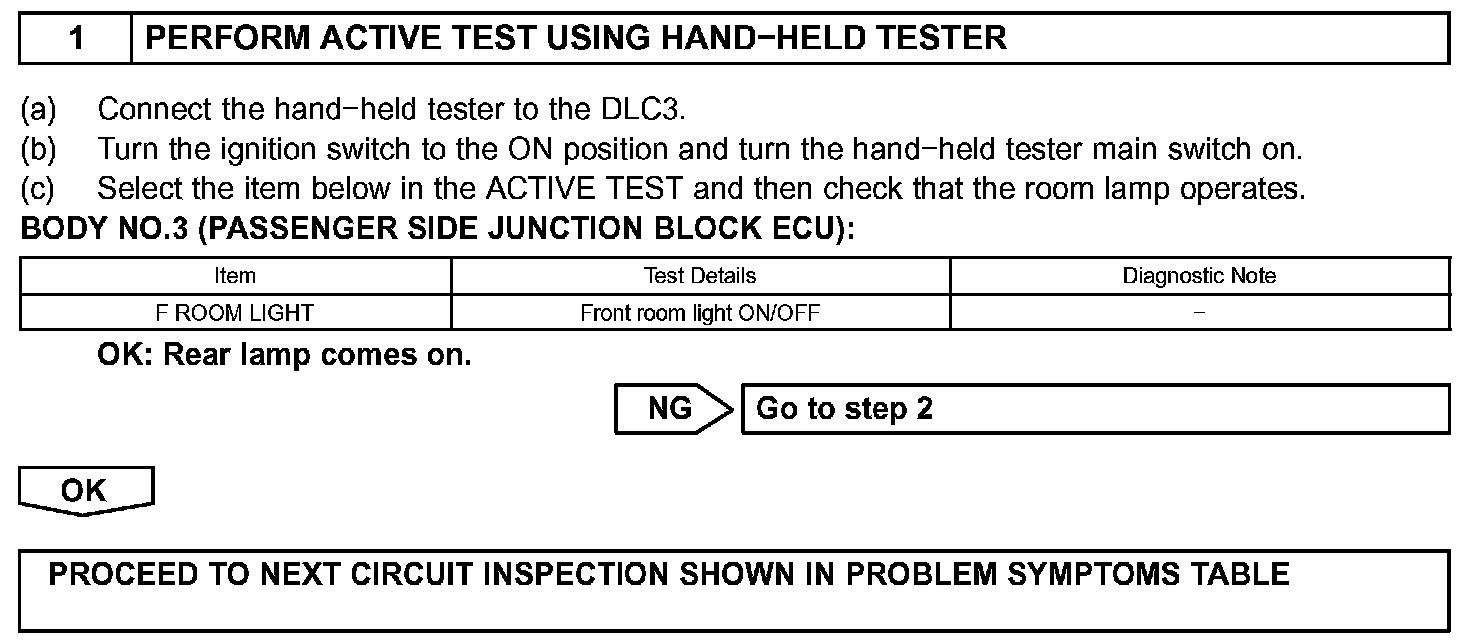

Step 1:

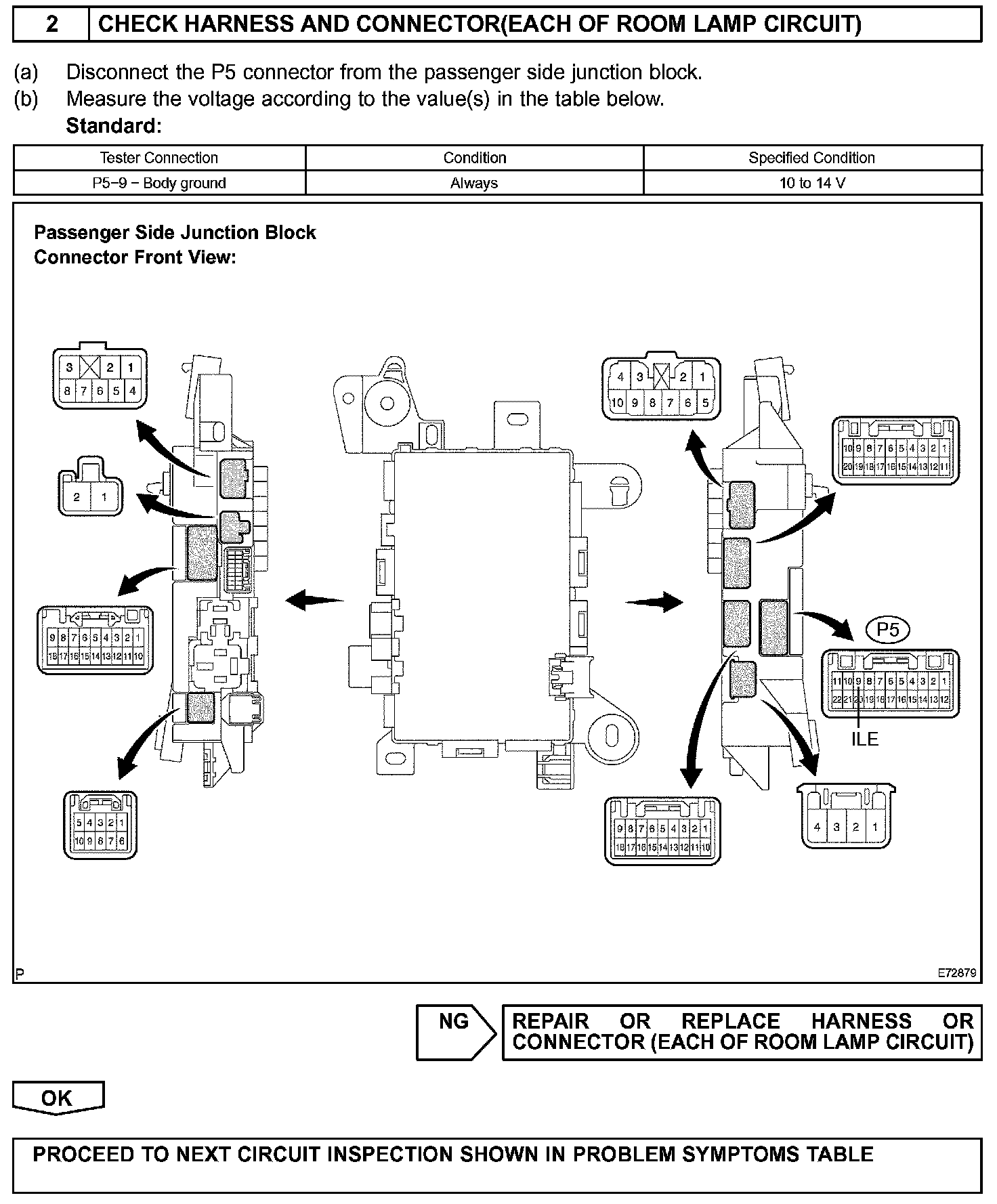

Step 2:

INSPECTION PROCEDURE
