LUGGAGE ROOM LIGHT CIRCUIT

Circuit Description

The luggage room junction block receives luggage room door information, and turns on the luggage compartment lamps.

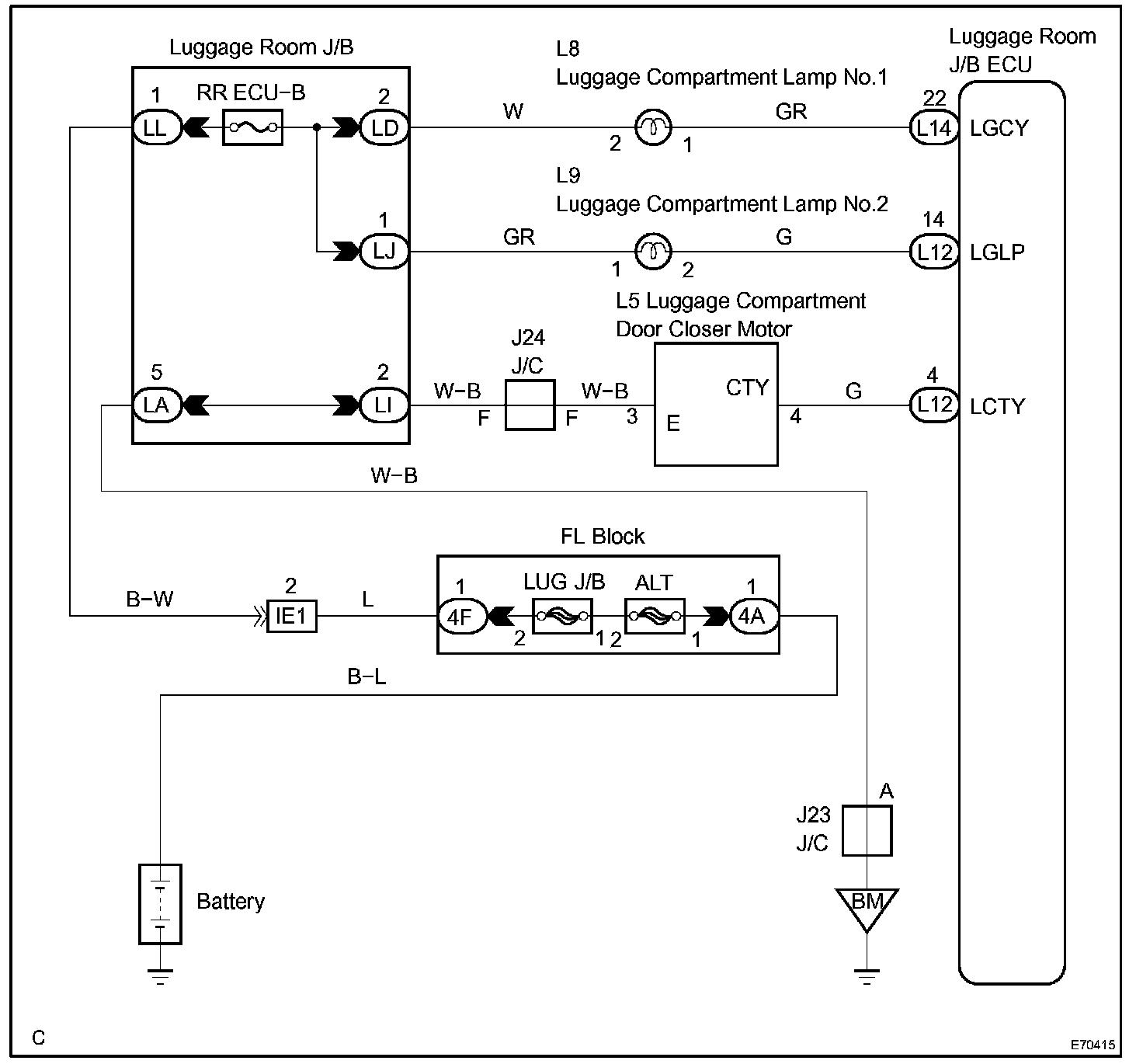

Wiring Diagram:

Step 1-2:

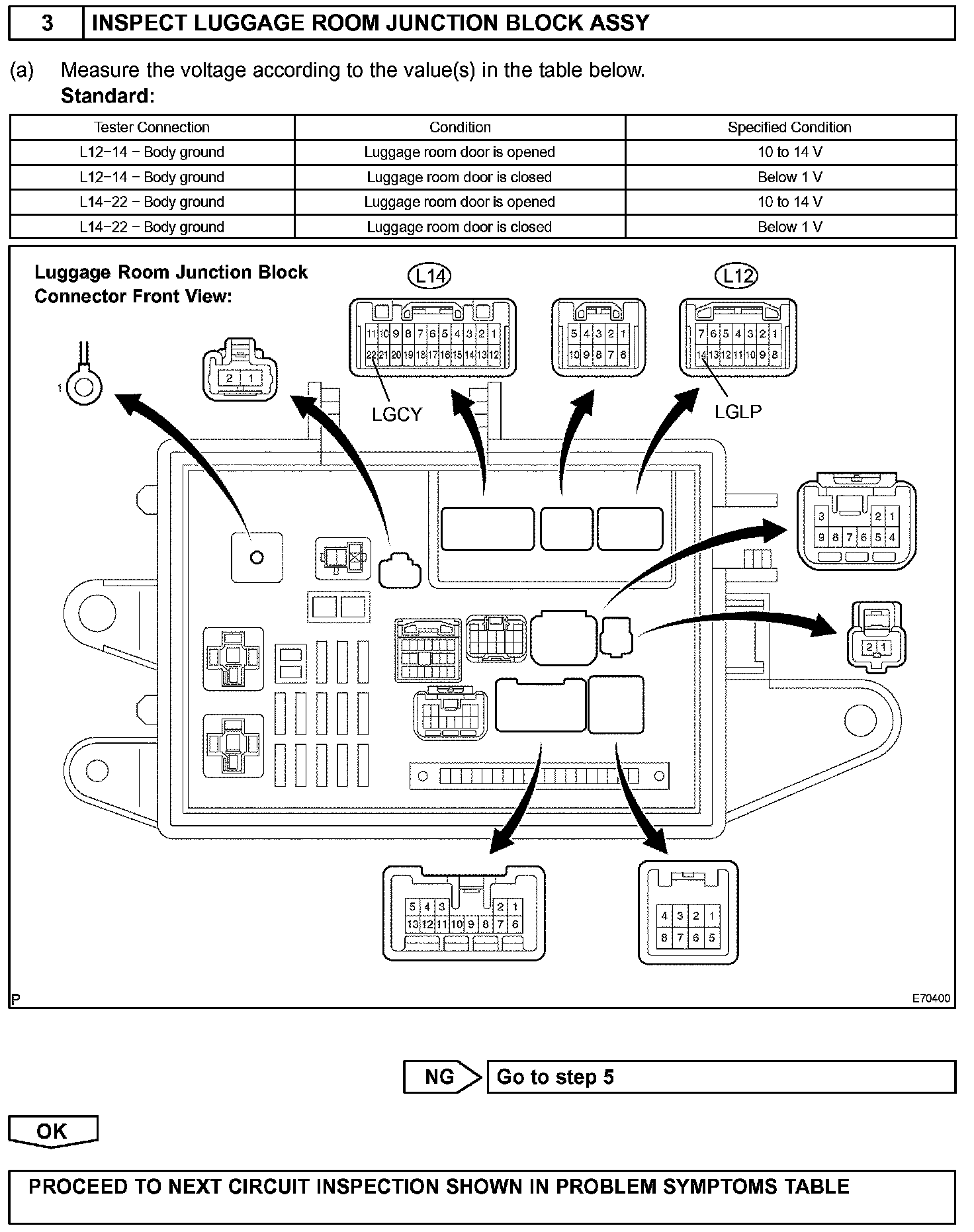

Step 3:

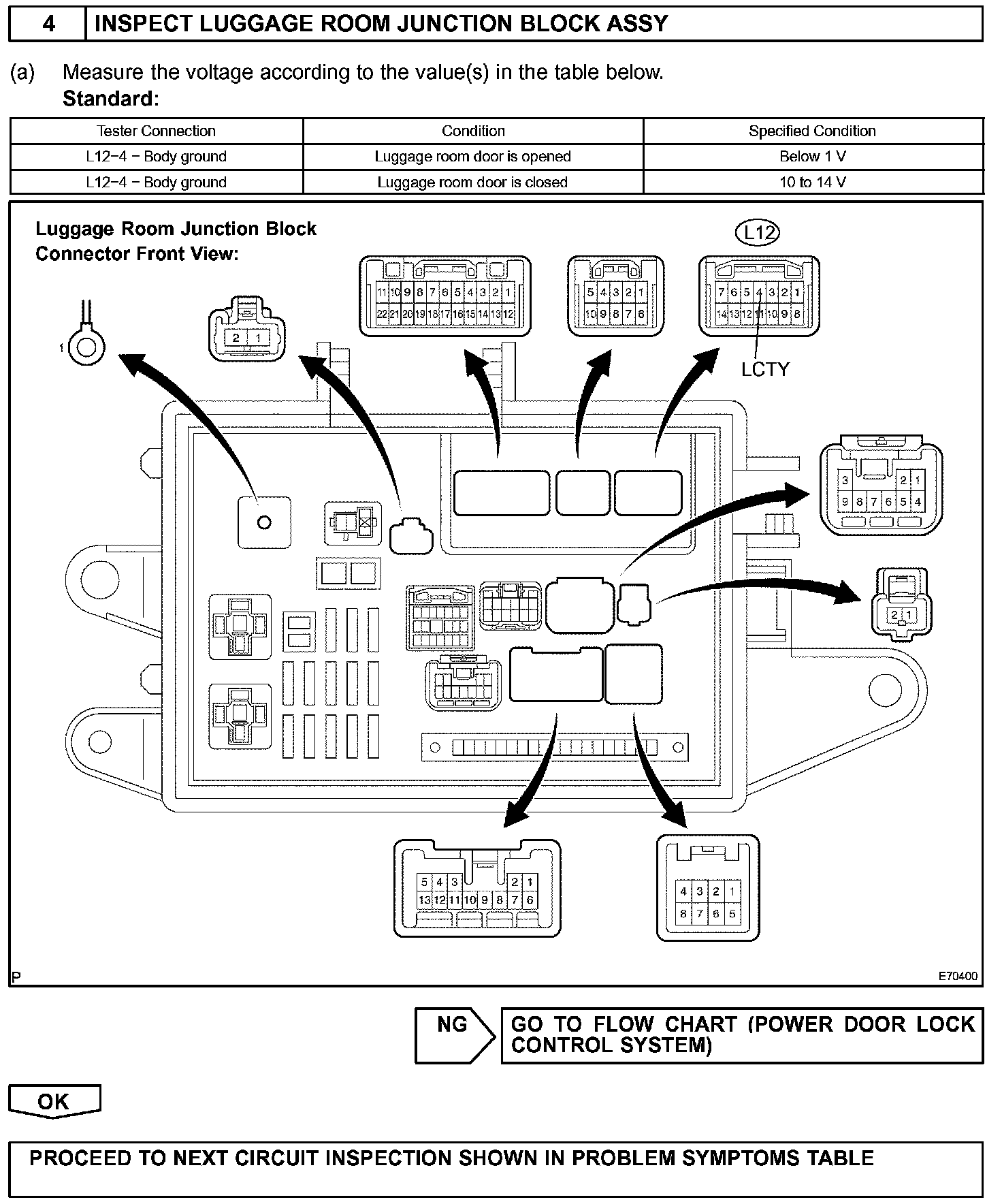

Step 4:

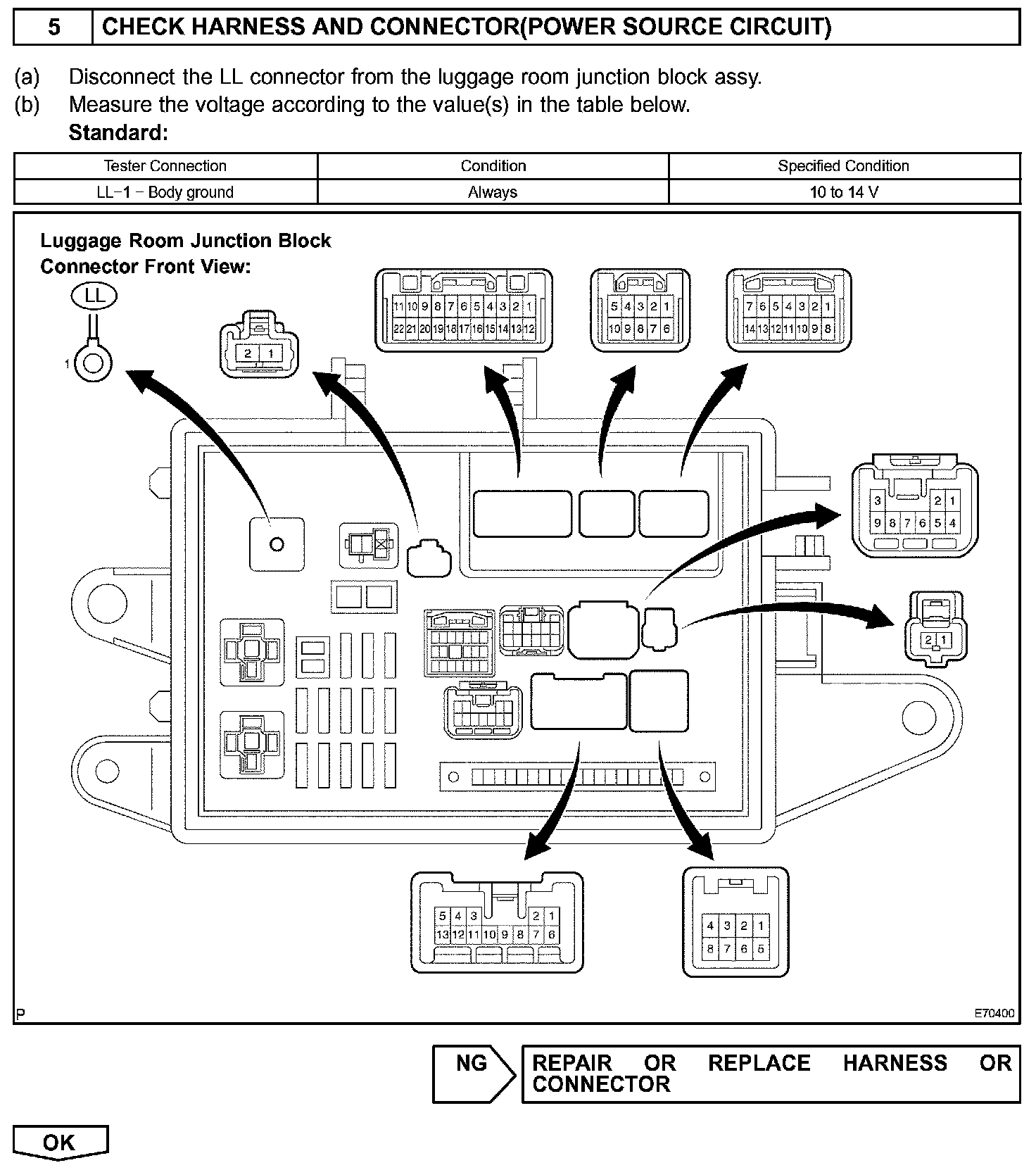

Step 5:

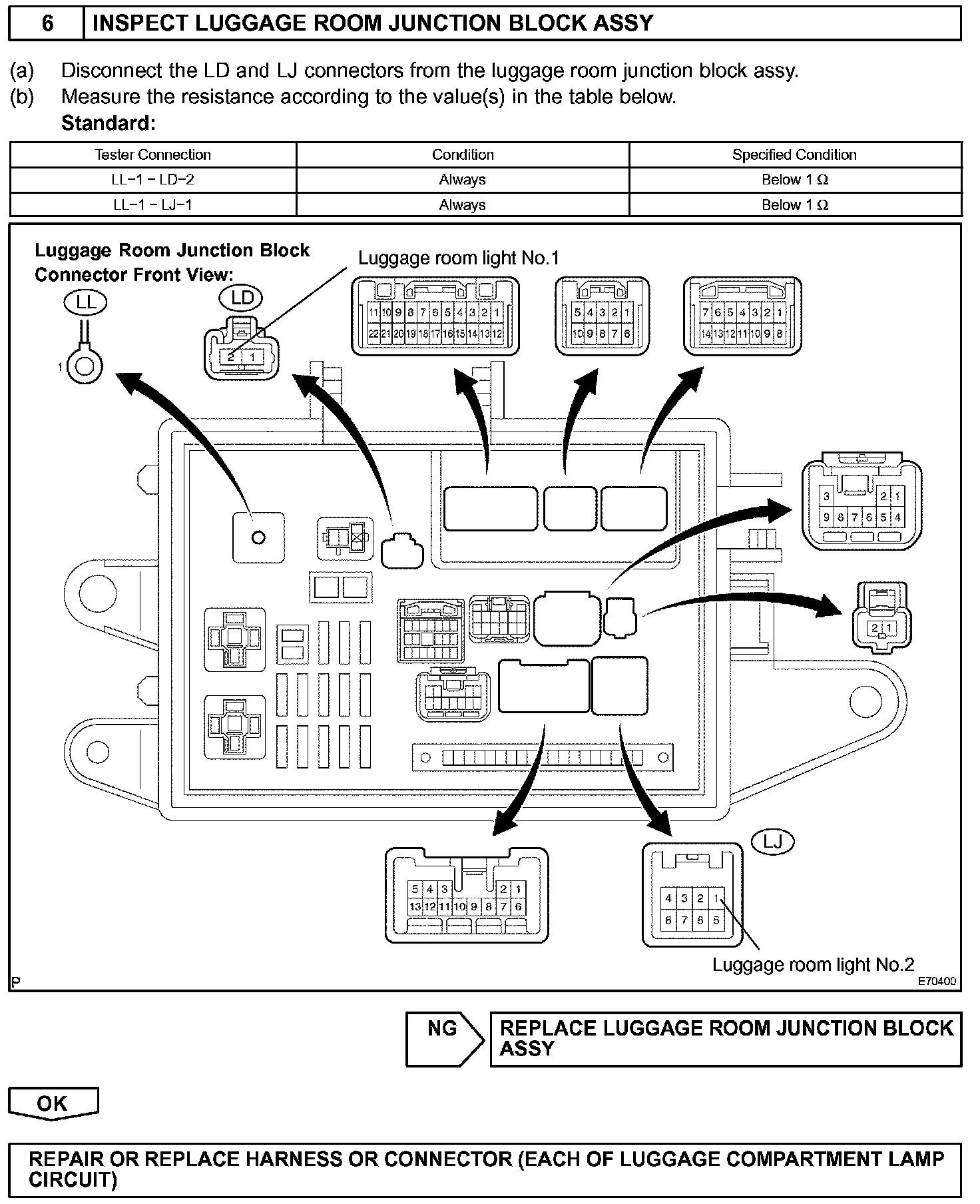

Step 6:

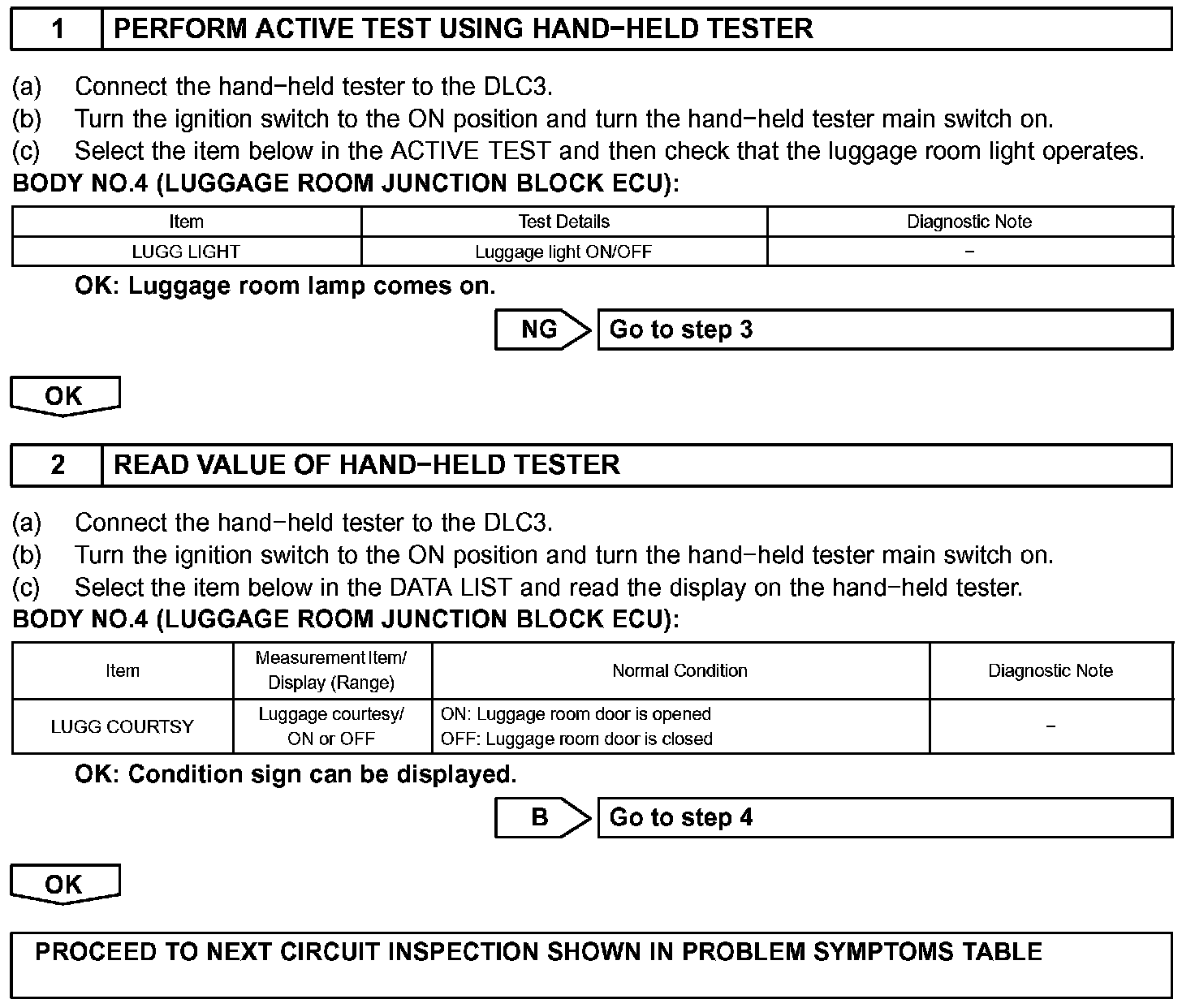

INSPECTION PROCEDURE
