Instrument Panel Illumination Circuit

INSTRUMENT PANEL ILLUMINATION CIRCUIT

Circuit Description

The driver side junction block ECU receives taillight signal information from the combination switch, and turns on each light.

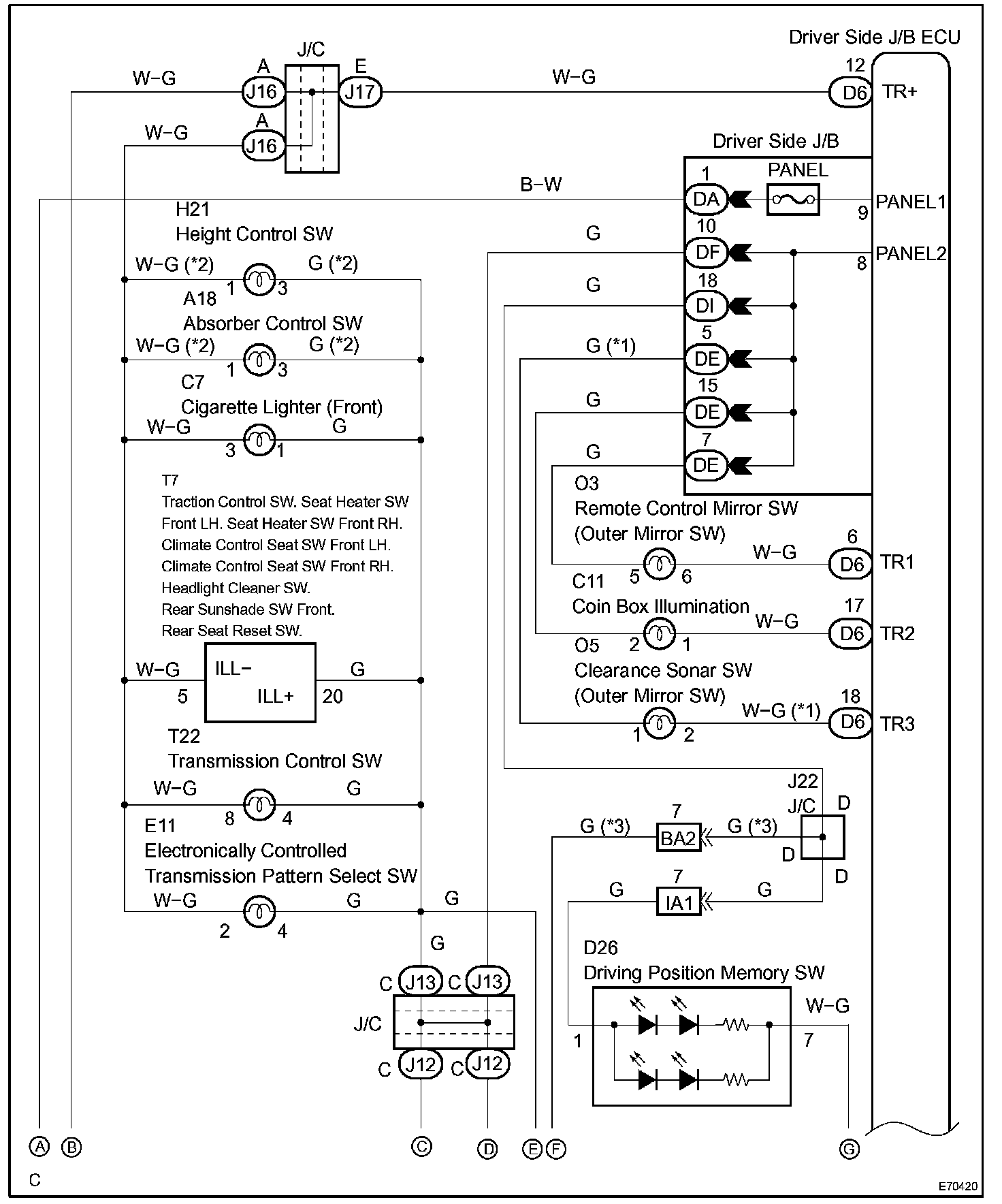

Wiring Diagram (Part 1):

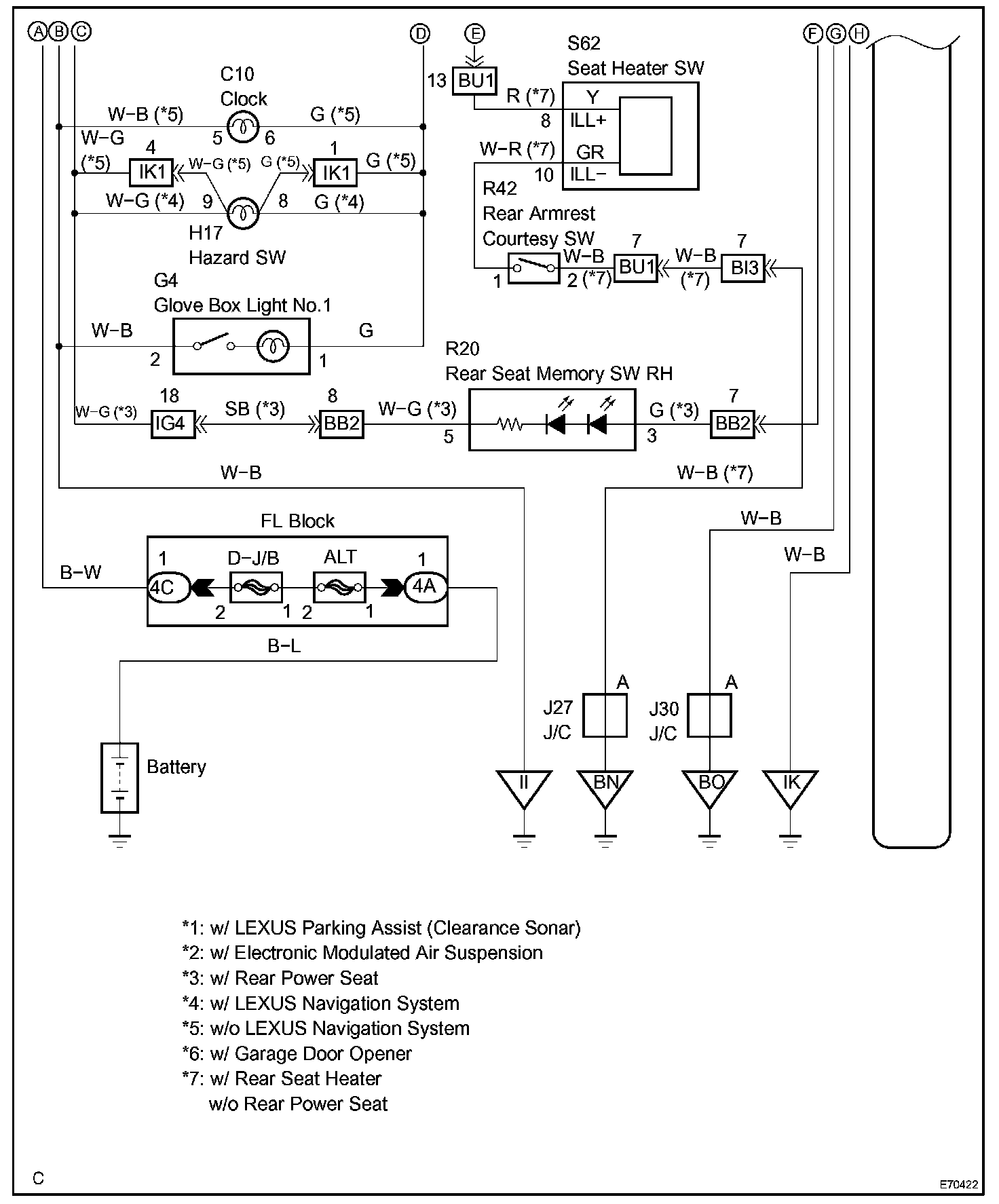

Wiring Diagram (Part 2):

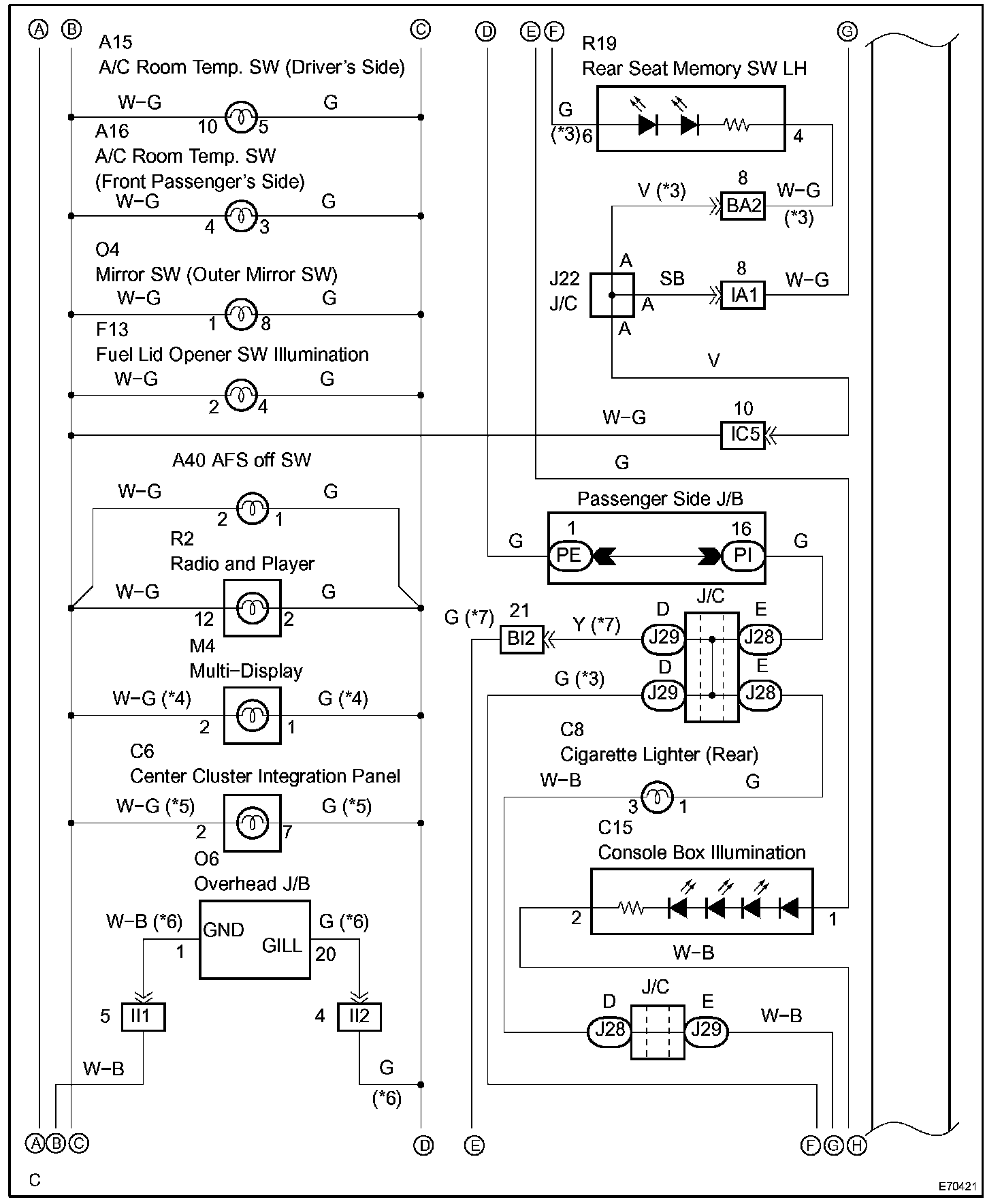

Wiring Diagram (Part 3):

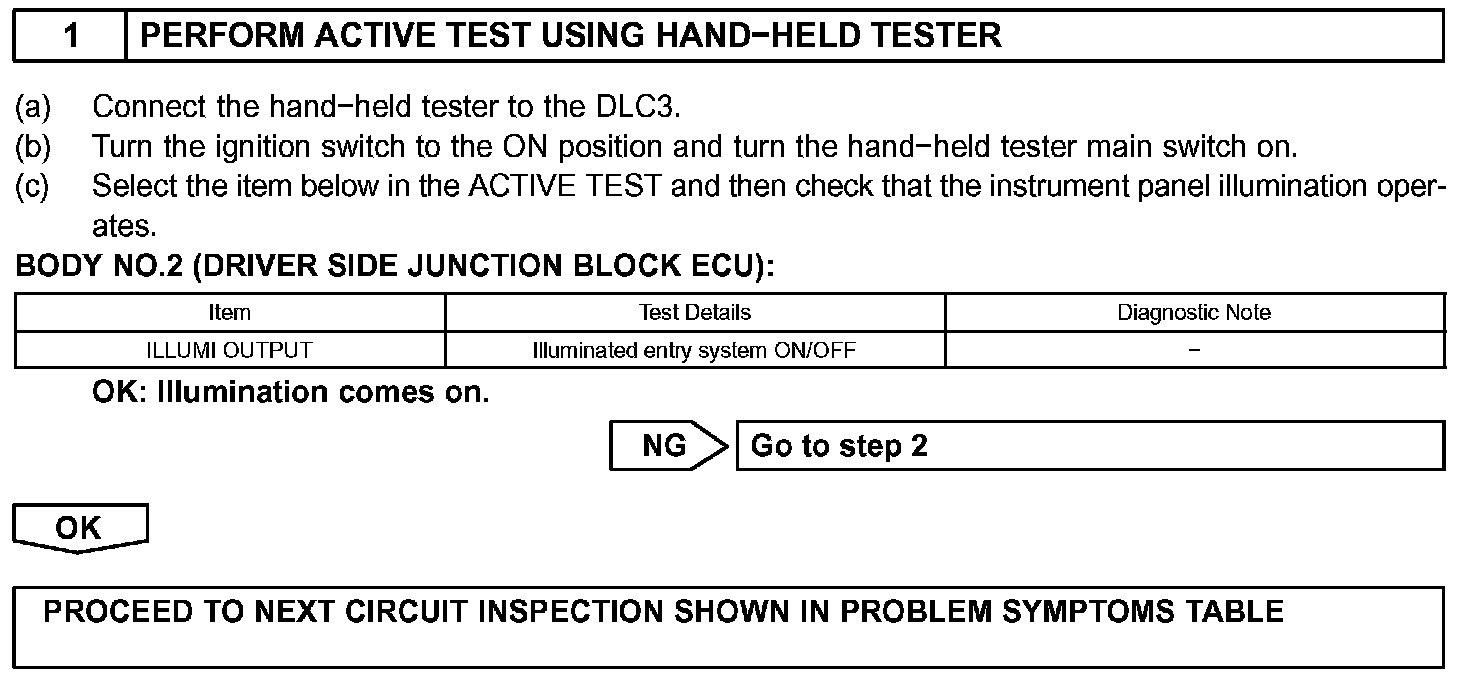

Step 1:

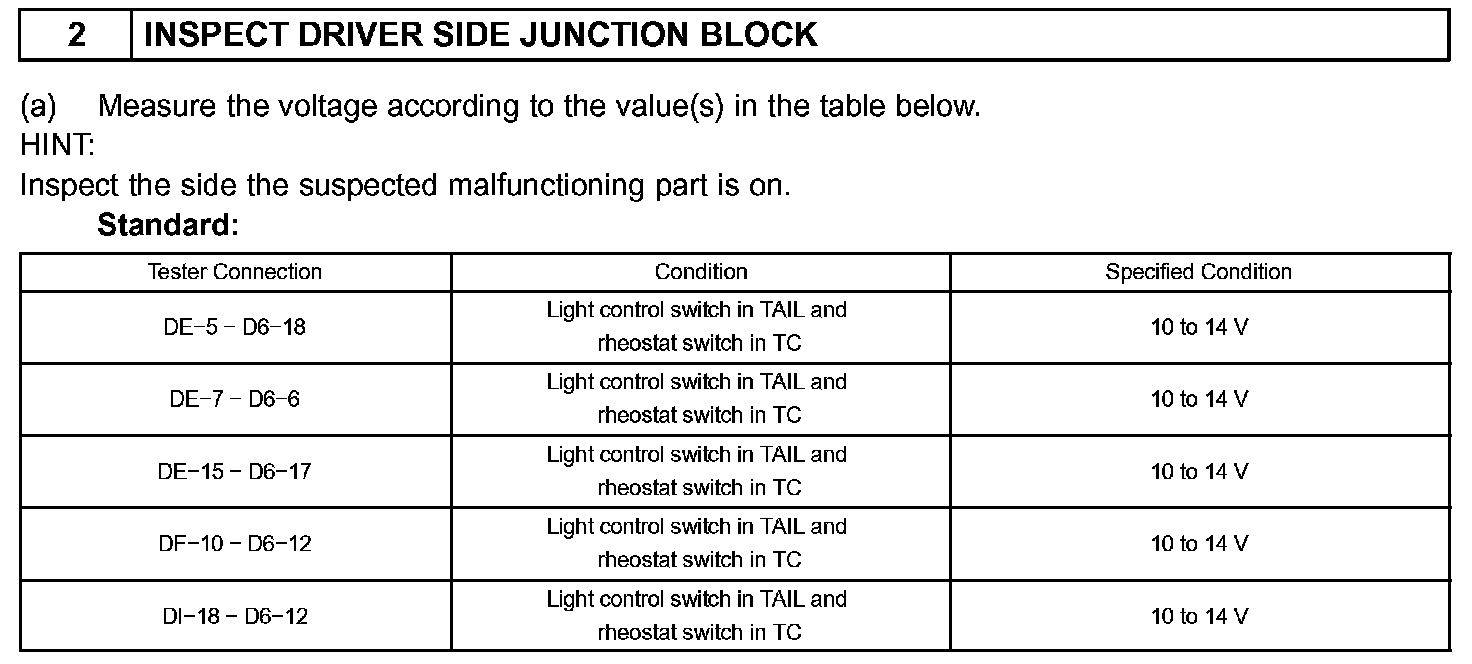

Step 2:

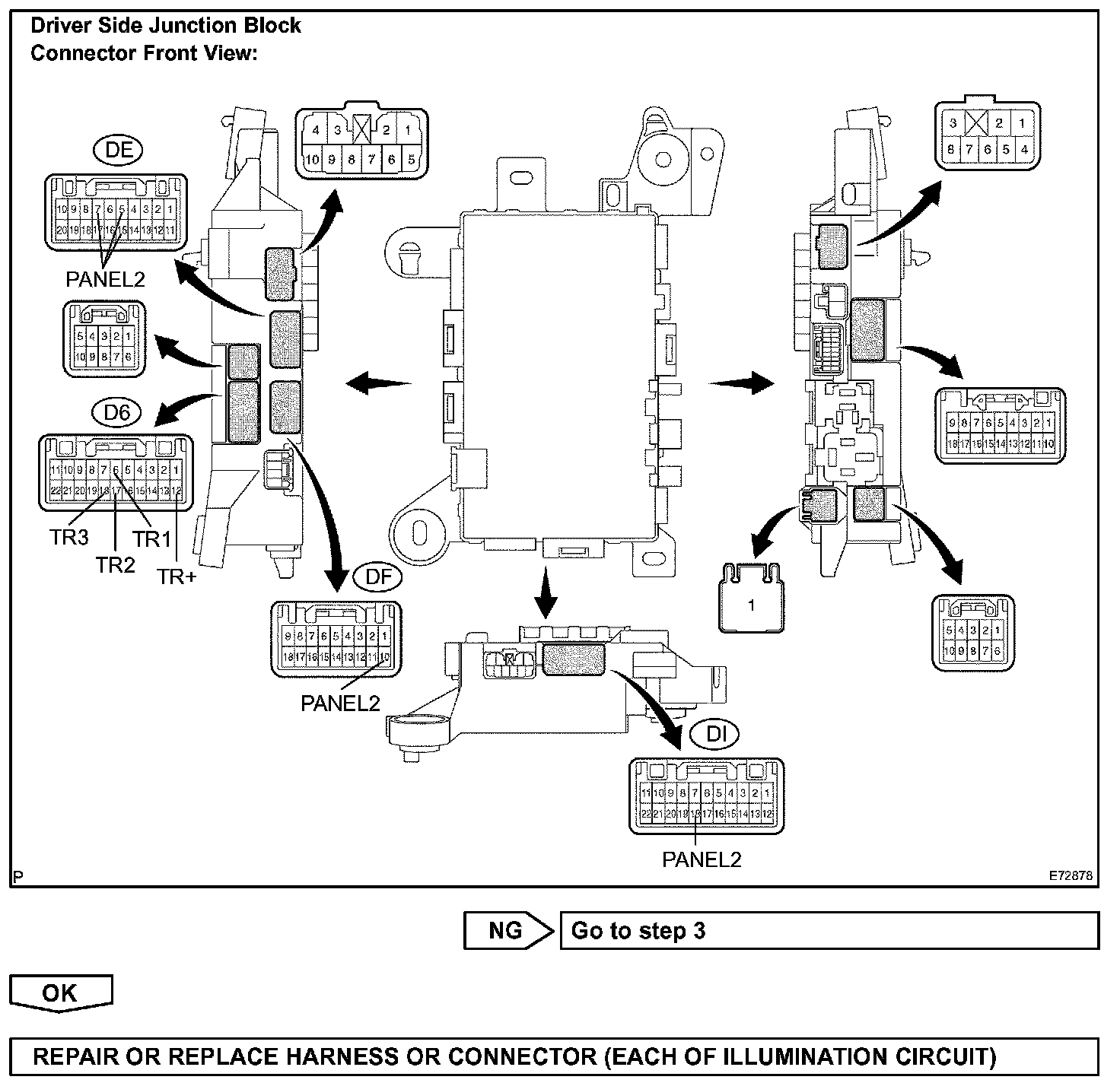

Step 2(continued):

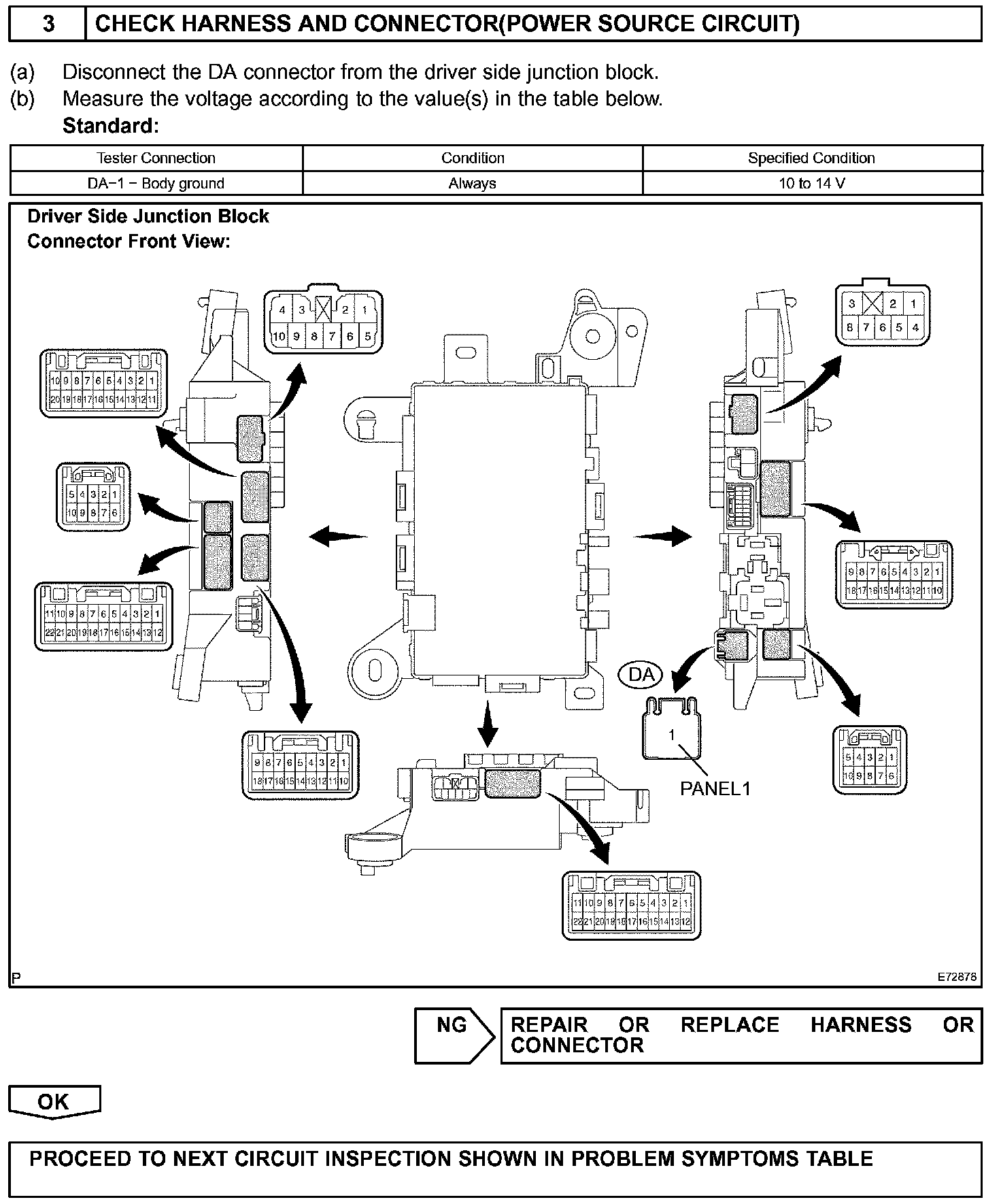

Step 3:

INSPECTION PROCEDURE
