Headlight Signal Circuit

HEADLIGHT SIGNAL CIRCUIT

Circuit Description

The driver side J/B ECU receives the HEAD position signal of light control switch to operate the HEAD relay. The HEAD position signal is also transmitted to the driver side J/B ECU by the multiplex network communication system and the back-up communication bus.

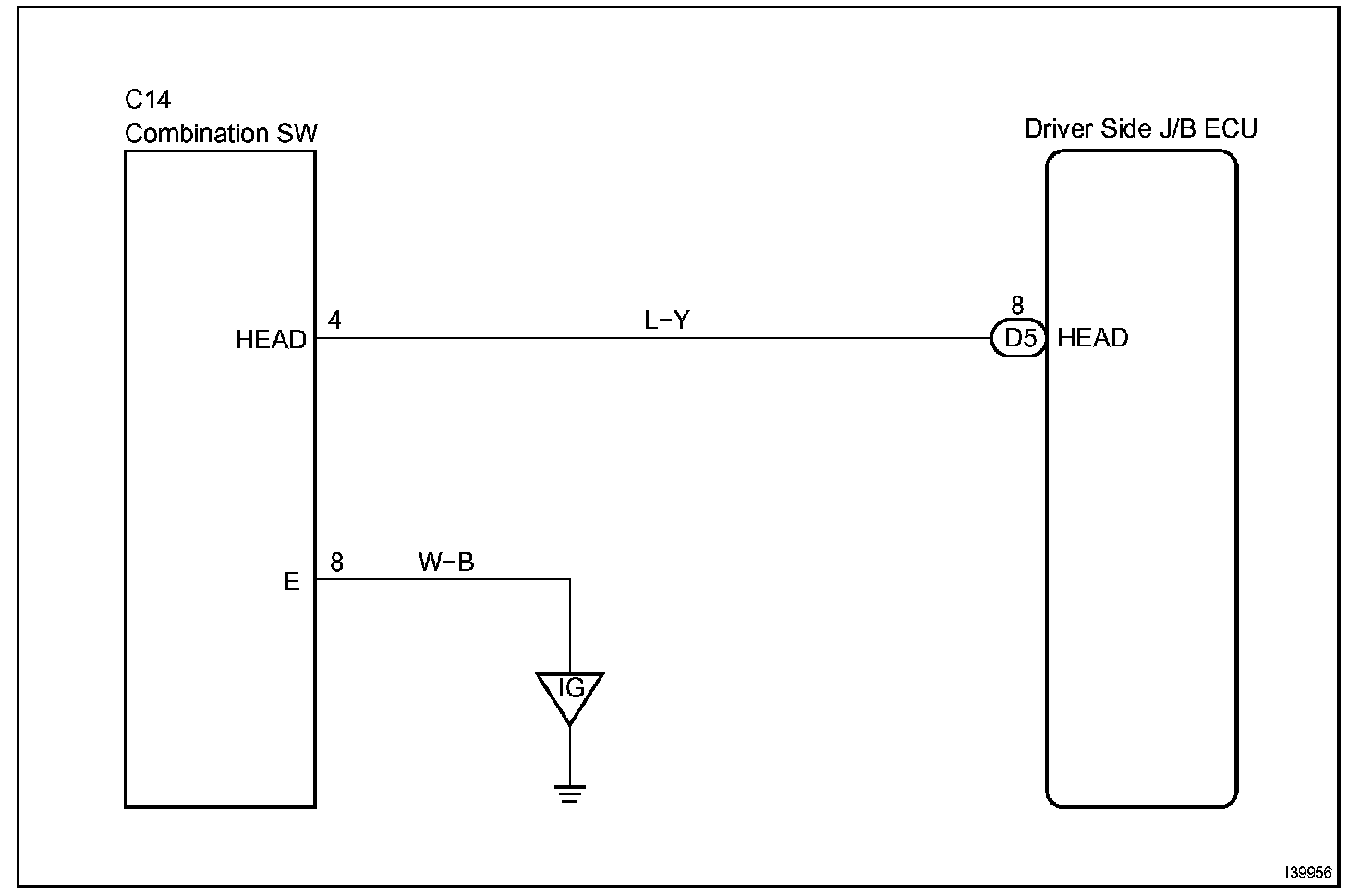

Wiring Diagram:

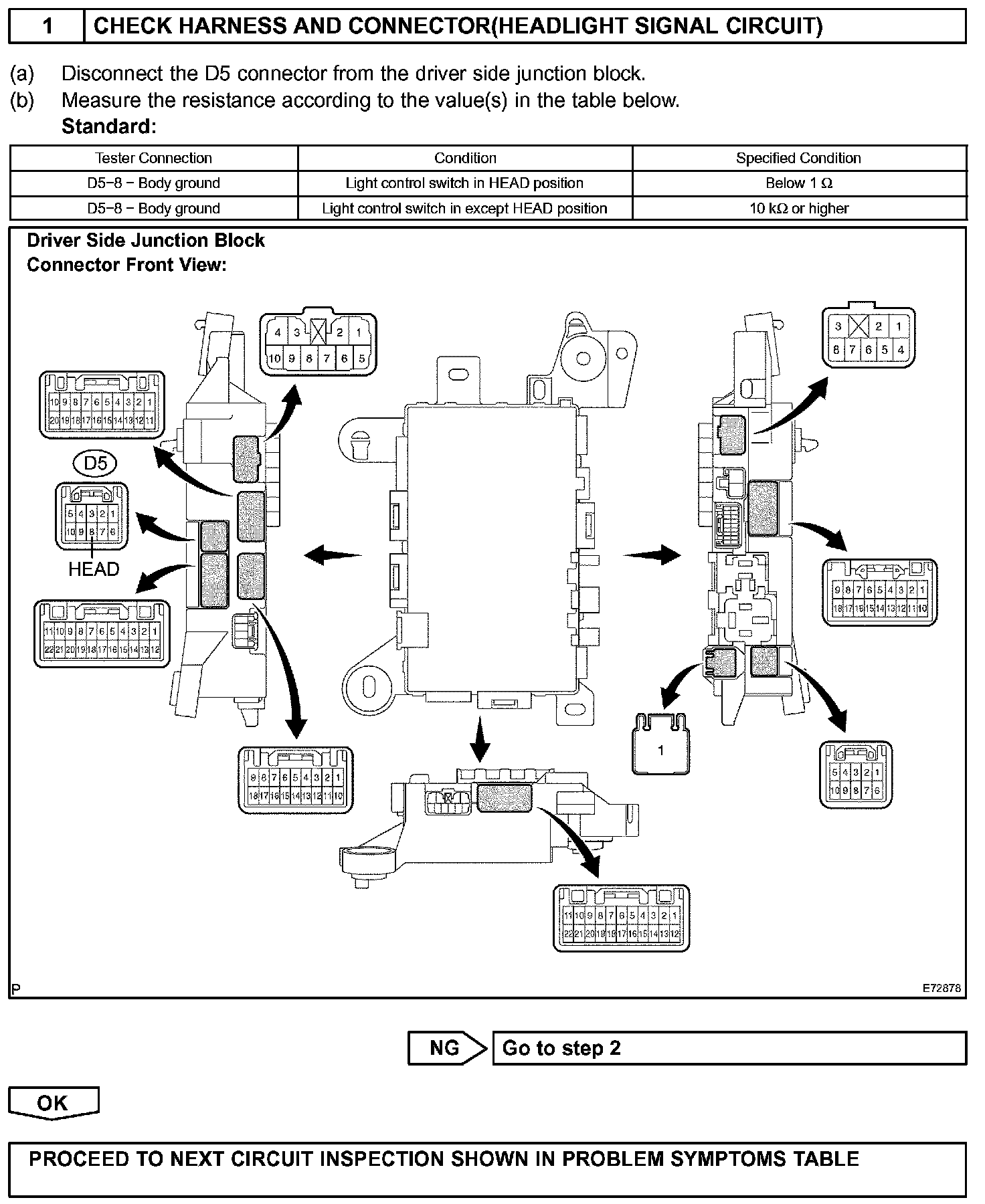

Step 1:

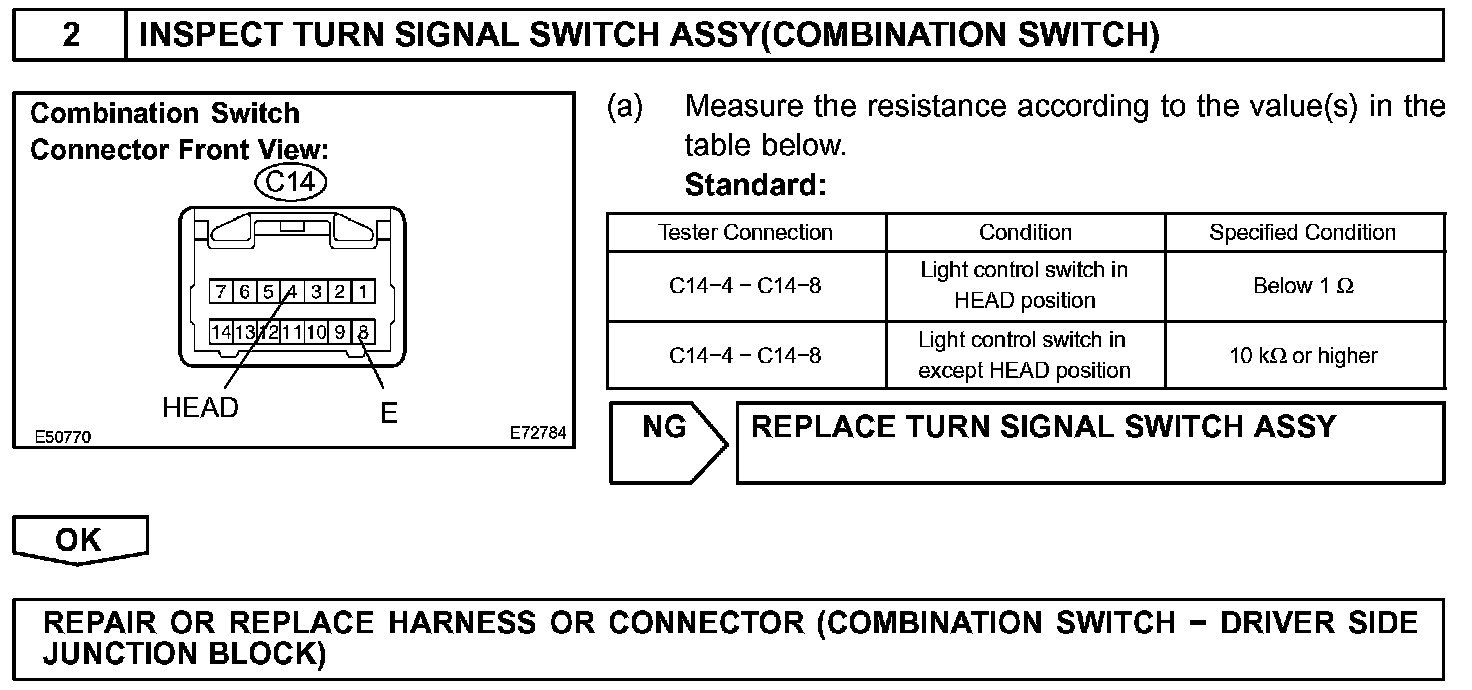

Step 2:

INSPECTION PROCEDURE
