Front Fog Lamp Circuit

FRONT FOG LIGHT CIRCUIT

Circuit Description

The front light ECU receives fog lamp switch information from the combination switch, and turns on the fog lamp.

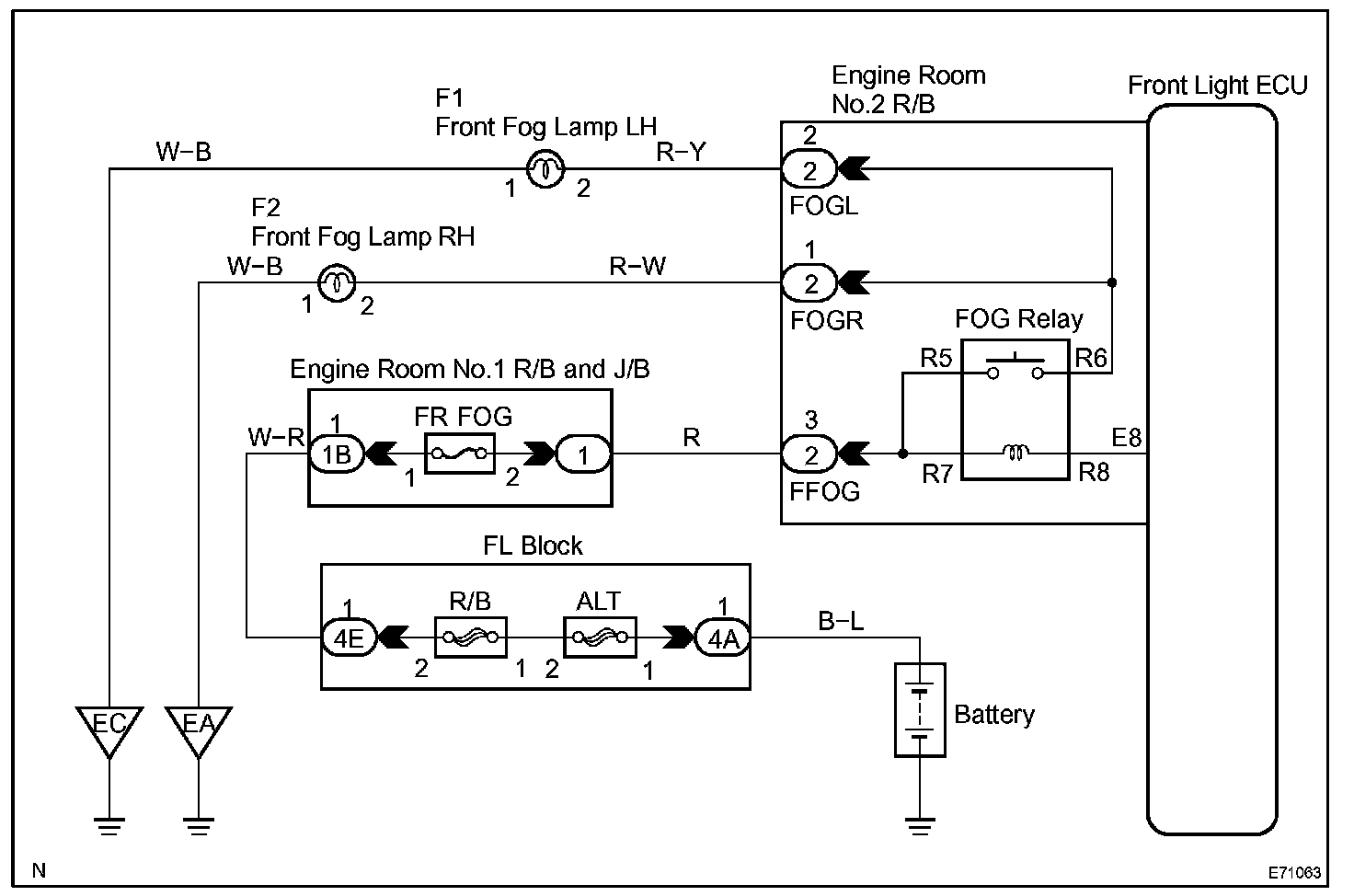

Wiring Diagram:

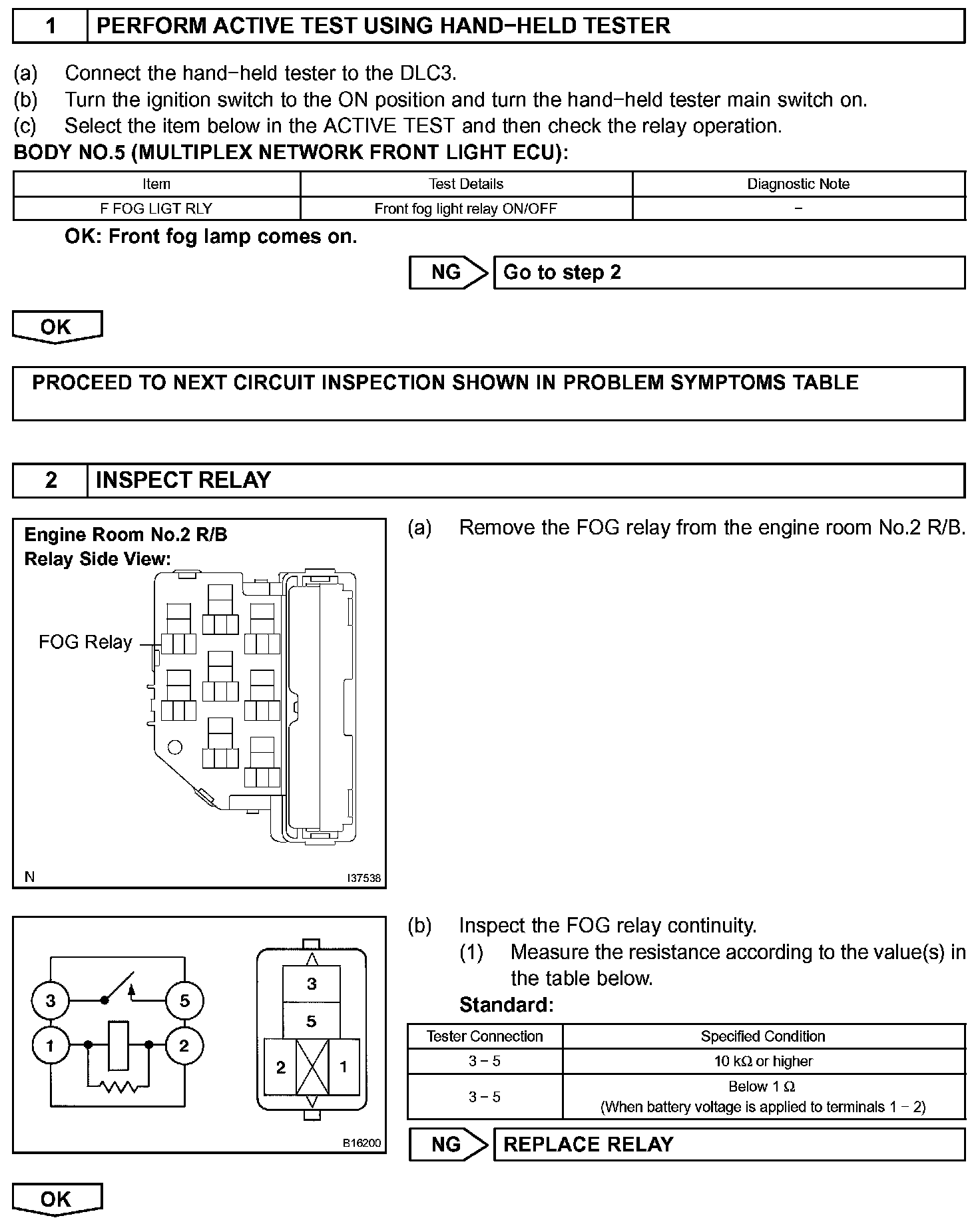

Step 1-2:

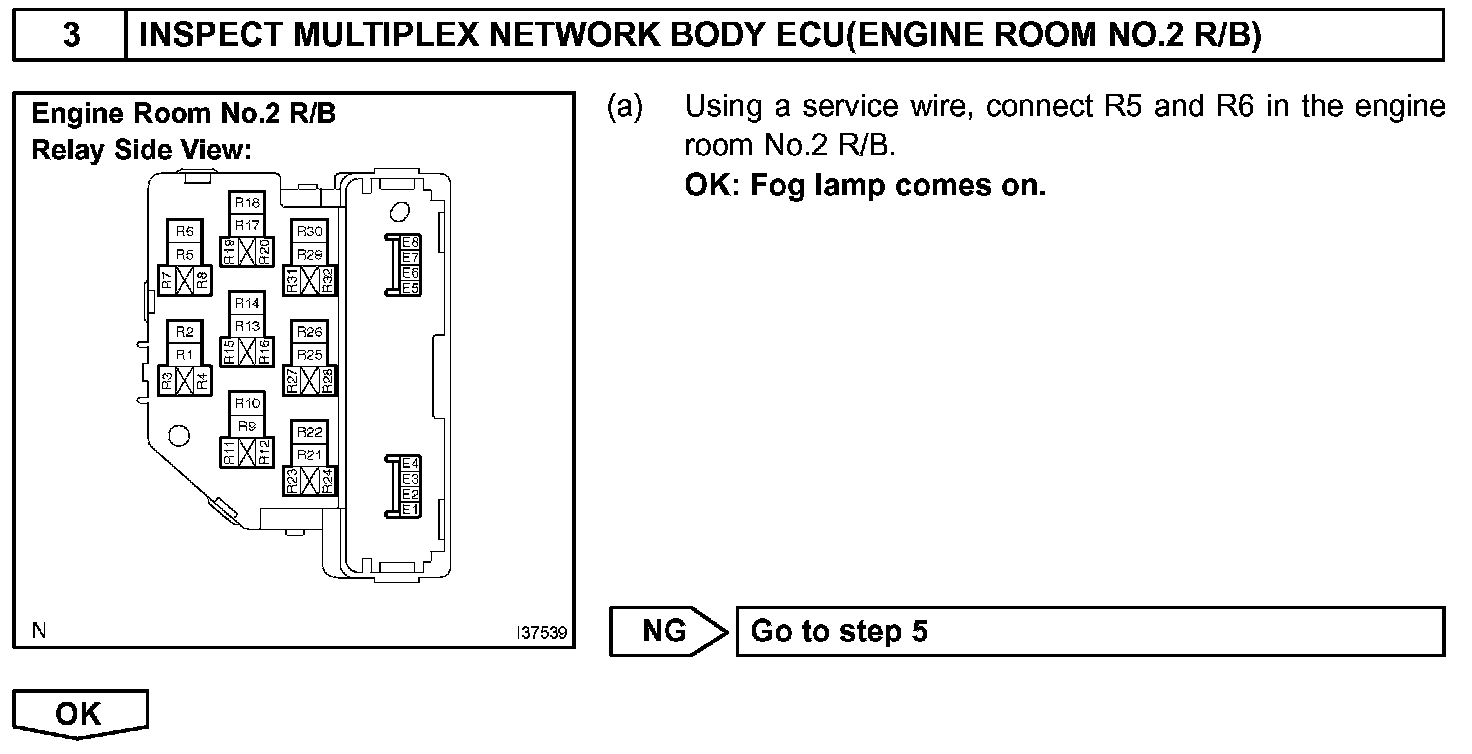

Step 3:

Step 4:

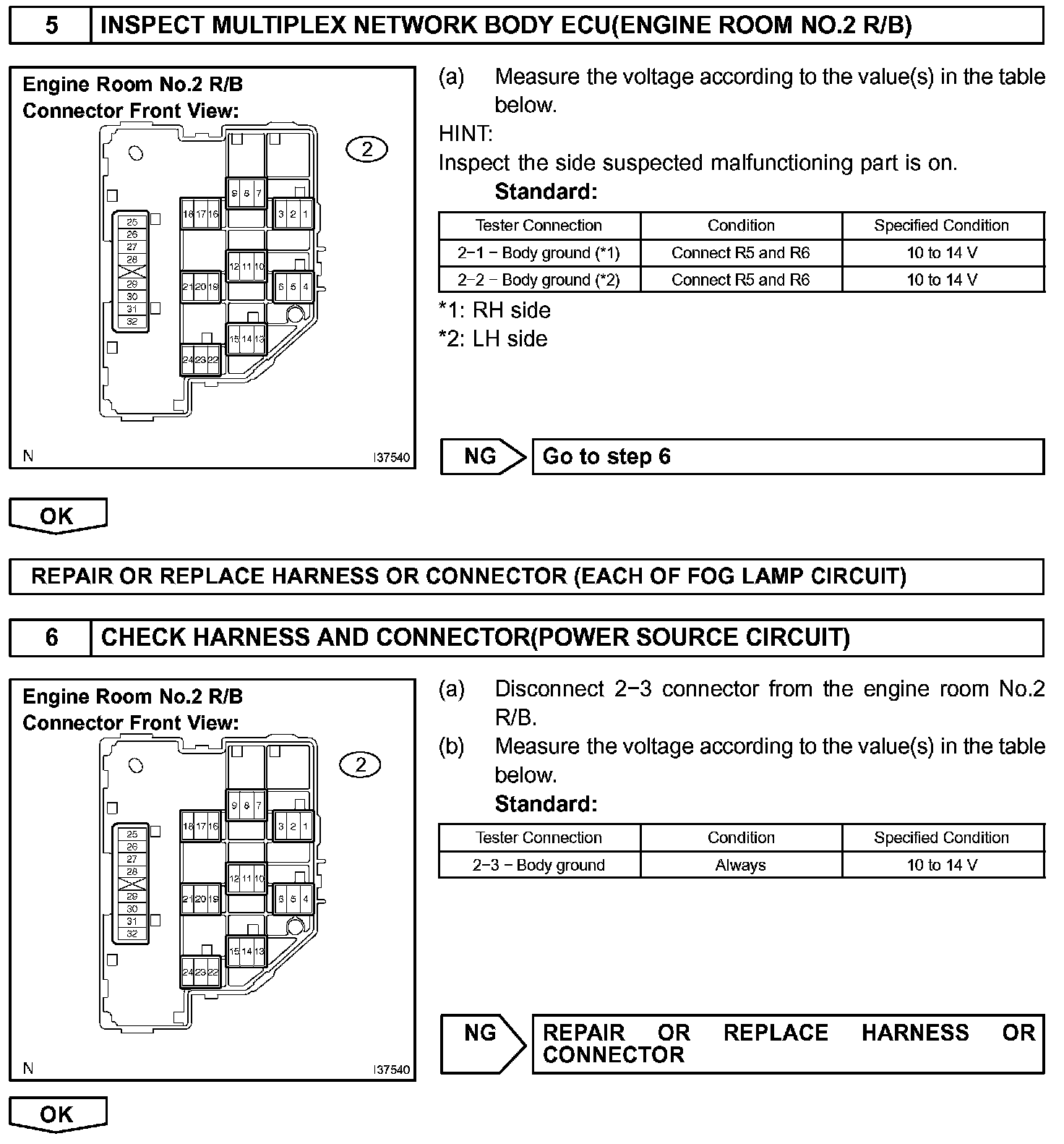

Step 5-6:

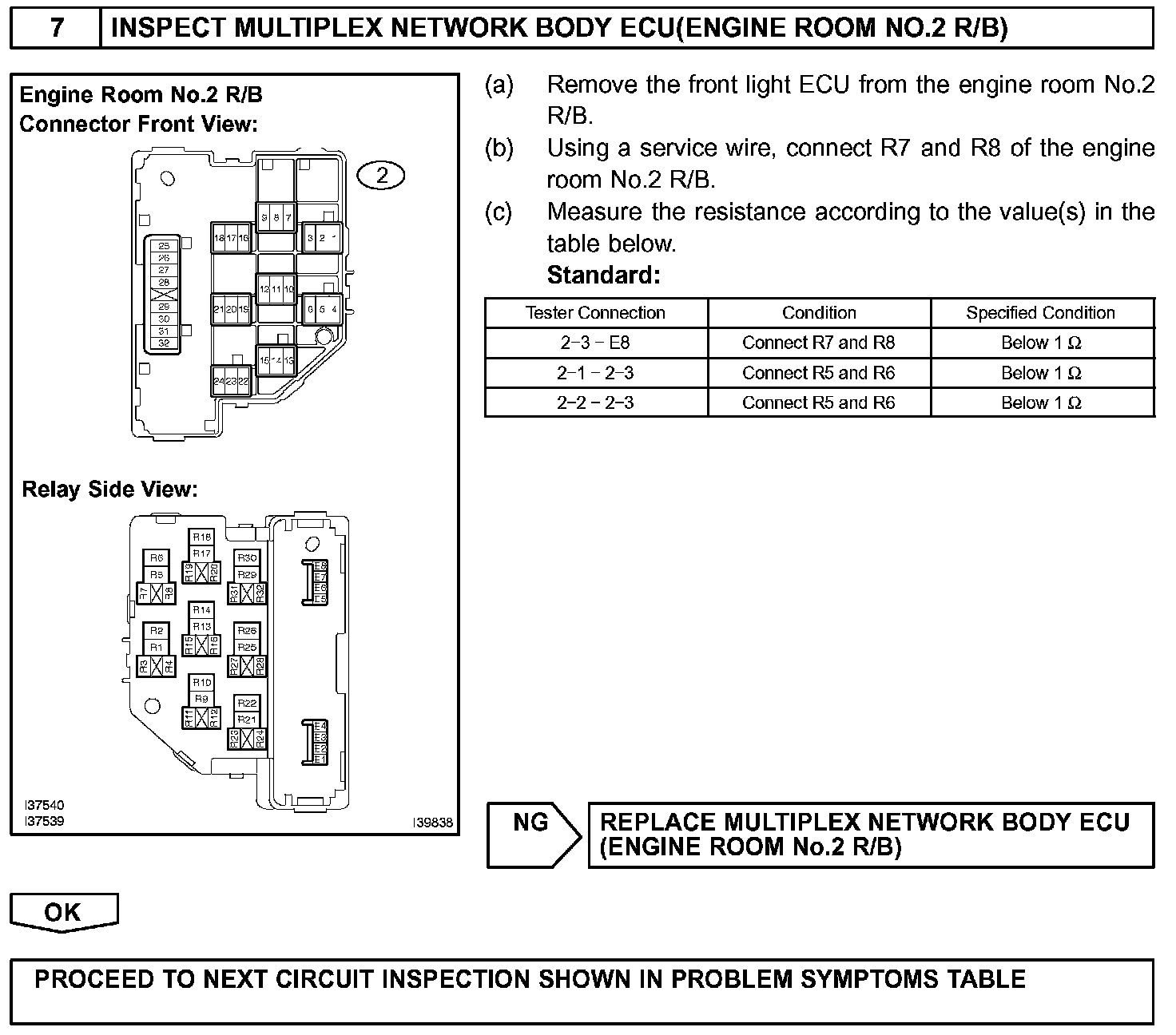

Step 7:

INSPECTION PROCEDURE
