Buckle Illumination Circuit

BUCKLE ILLUMINATION CIRCUIT

Circuit Description

The door ECUs send a door courtesy signal to the driver side and passenger side junction block ECUs. The driver side and passenger side junction block ECUs then turn on driver side and passenger side buckle illumination.

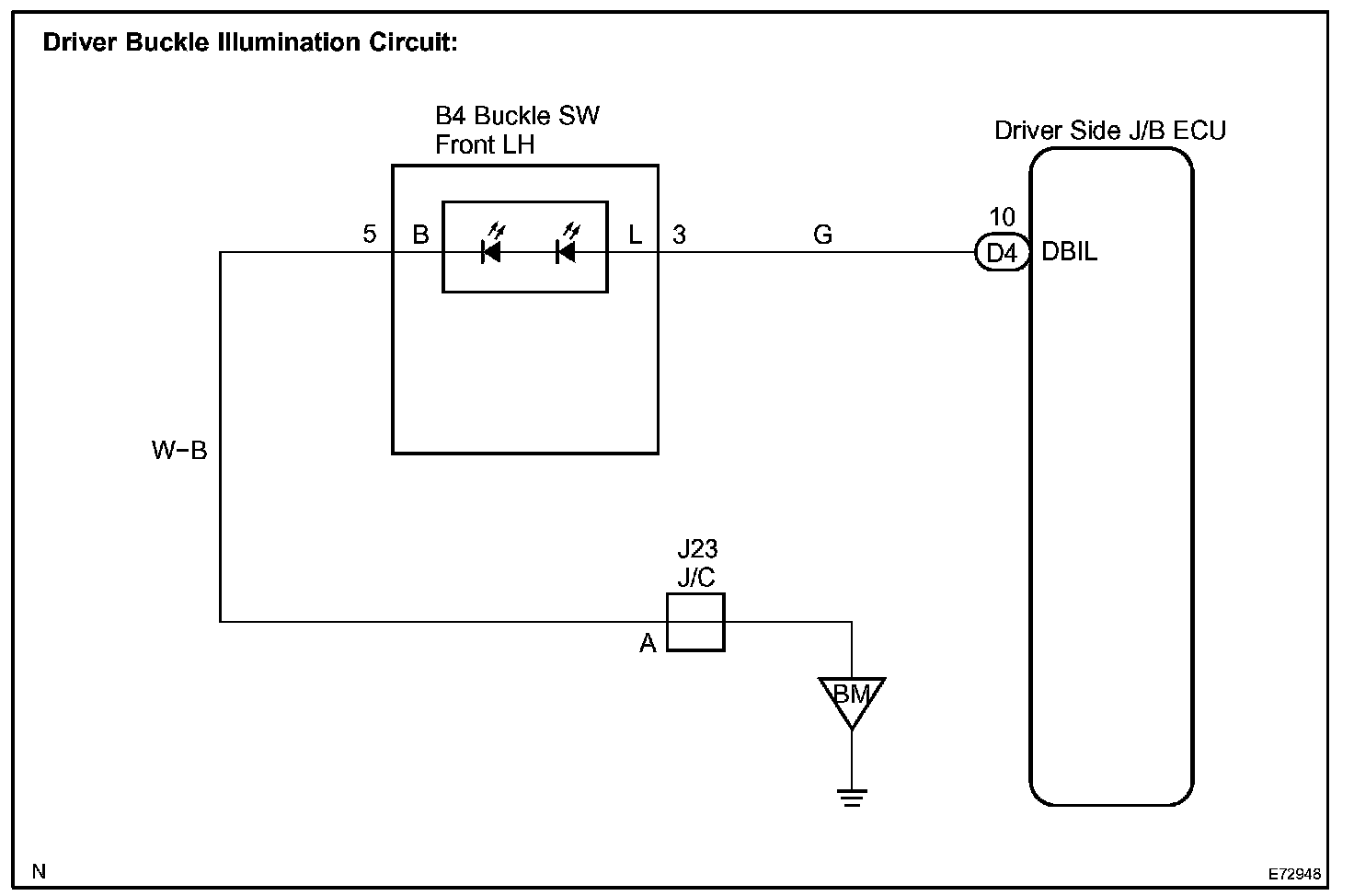

Wiring Diagram (Part 1):

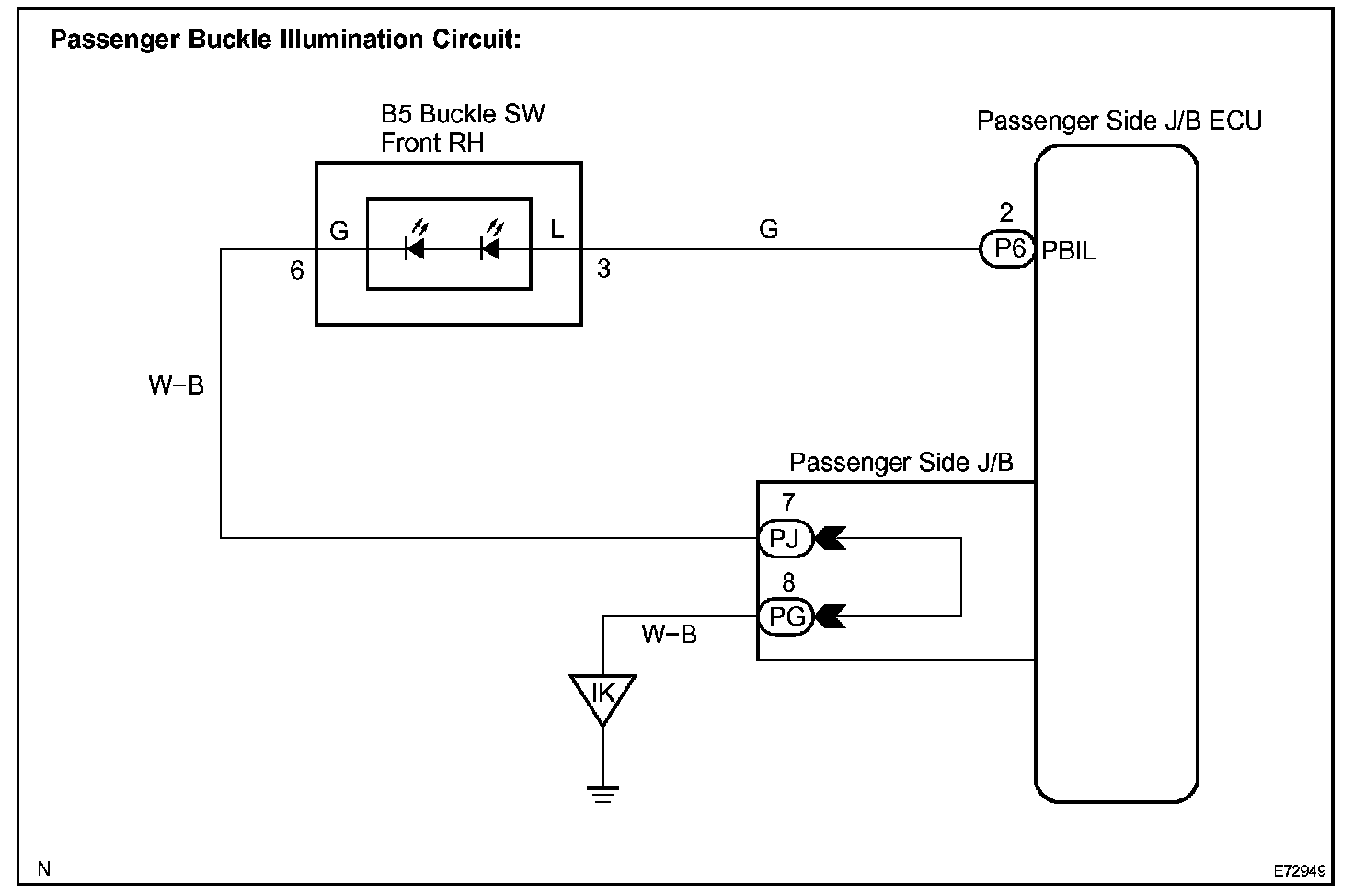

Wiring Diagram (Part 2):

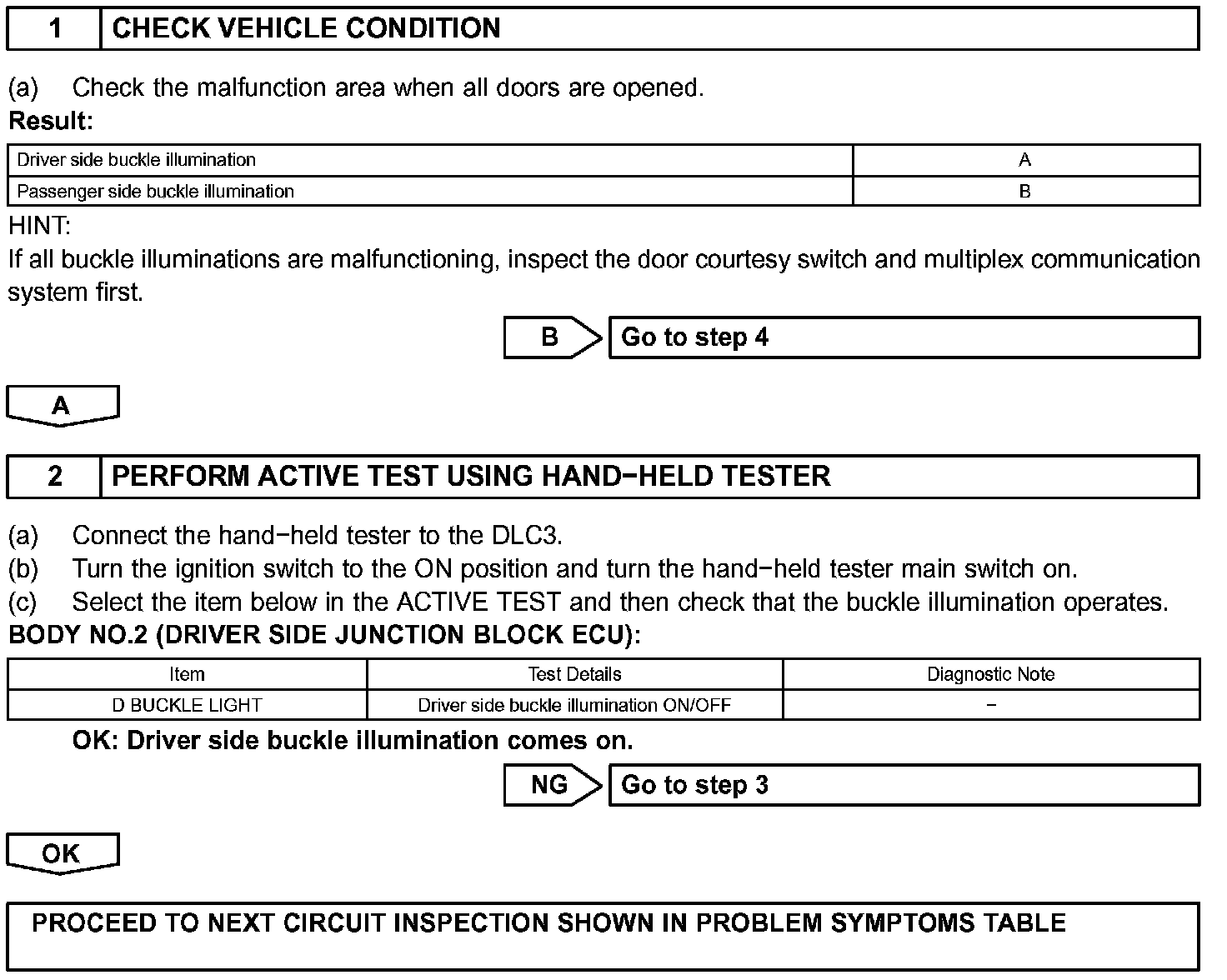

Step 1-2:

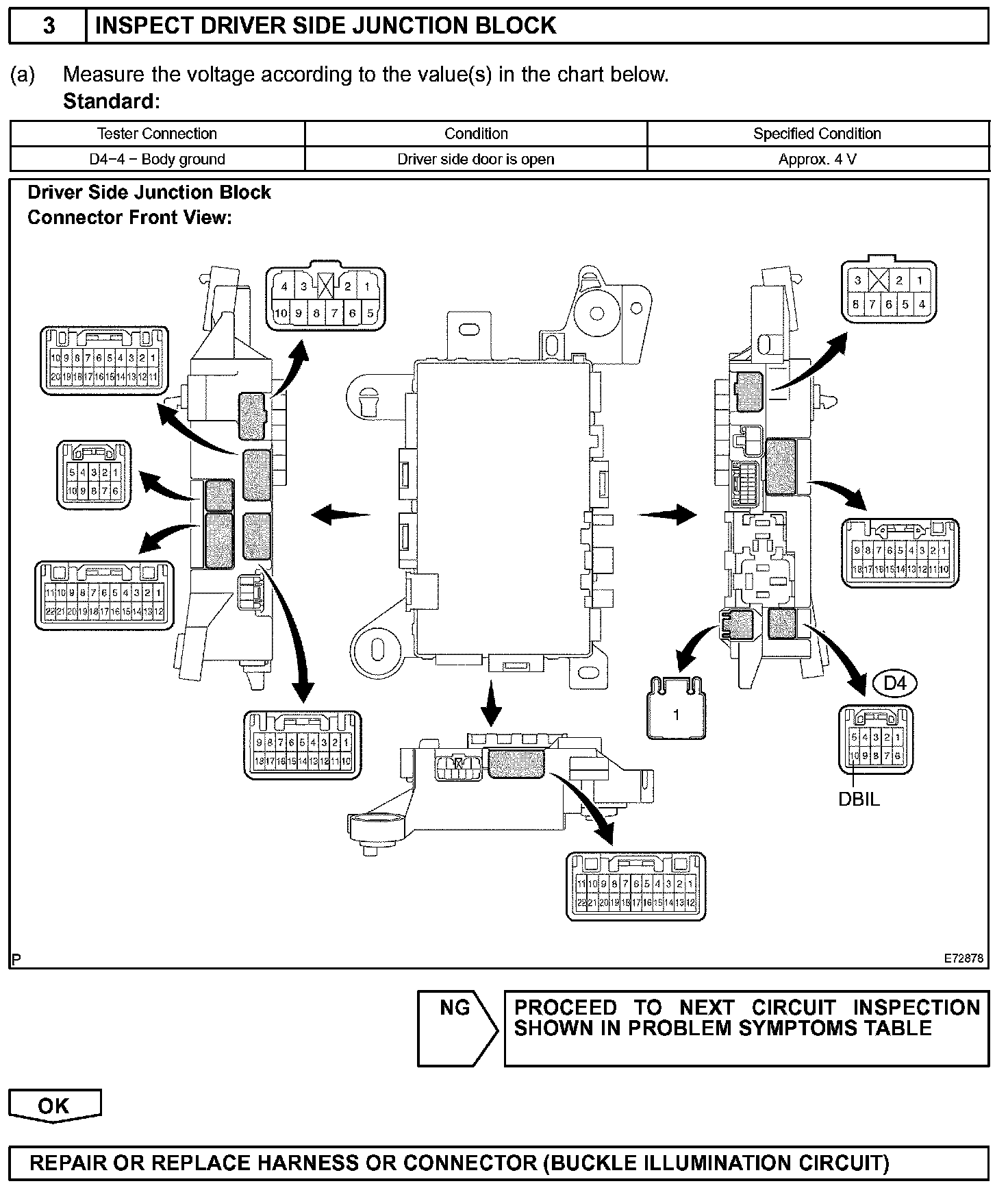

Step 3:

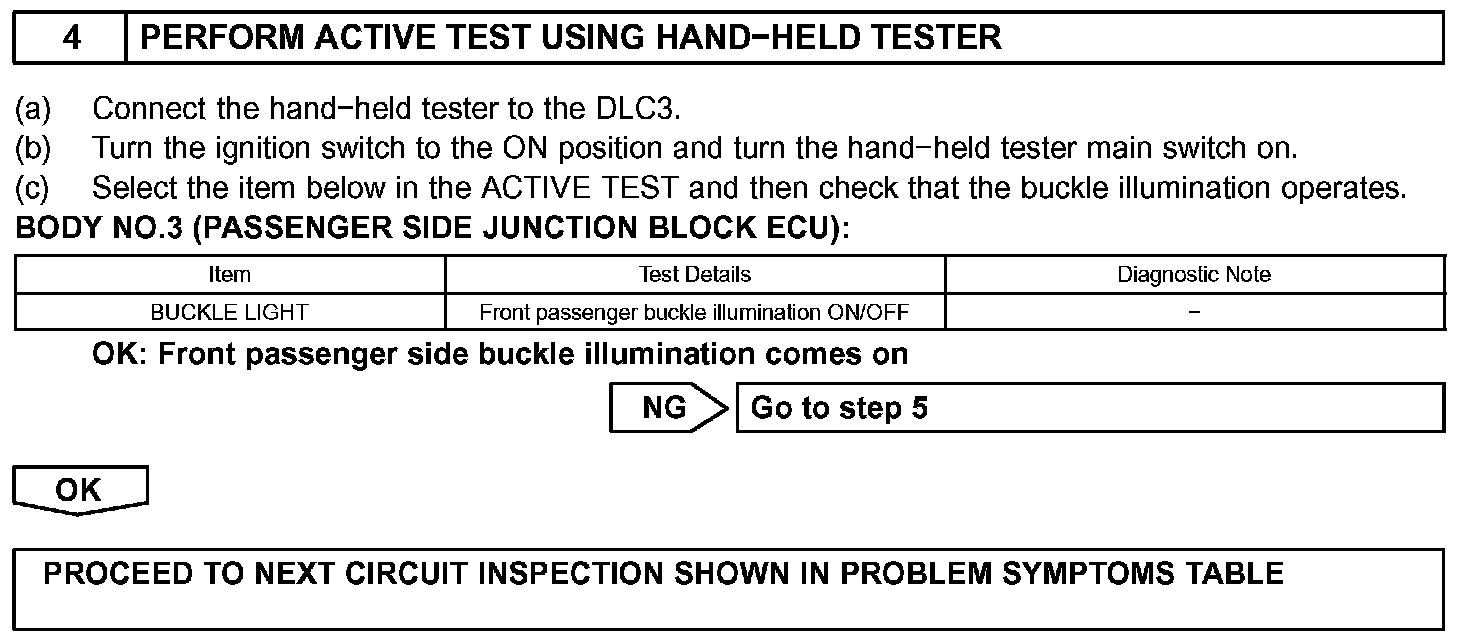

Step 4:

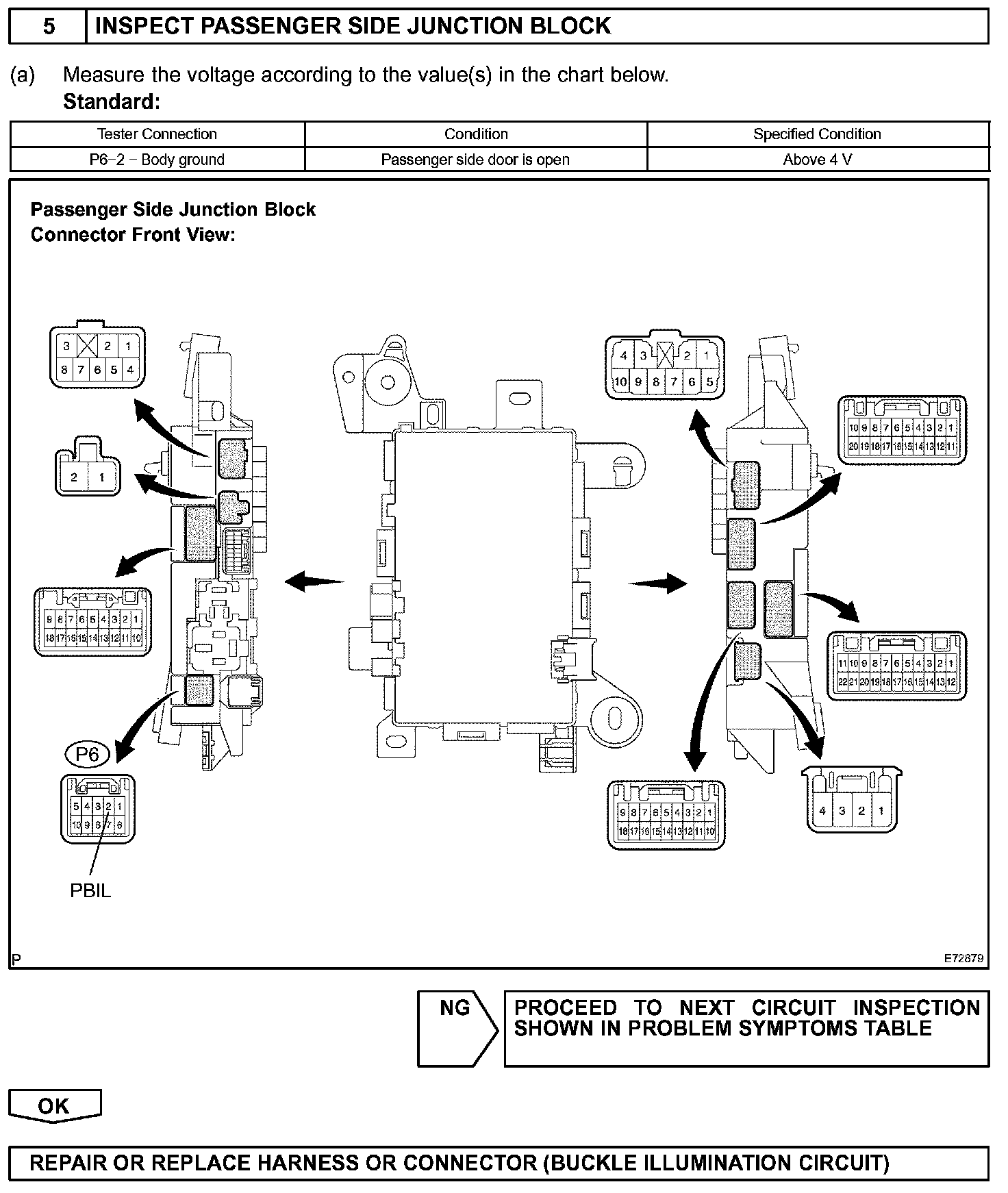

Step 5:

INSPECTION PROCEDURE
