Automatic Light Control Sensor Circuit

AUTOMATIC LIGHT CONTROL SENSOR CIRCUIT

Circuit Description

The multiplex network body ECU receives signals from the automatic light control sensor.

HINT: The DTC code is output when a malfunction of the automatic light control sensor or an open or short in the automatic light control sensor circuit occurs.

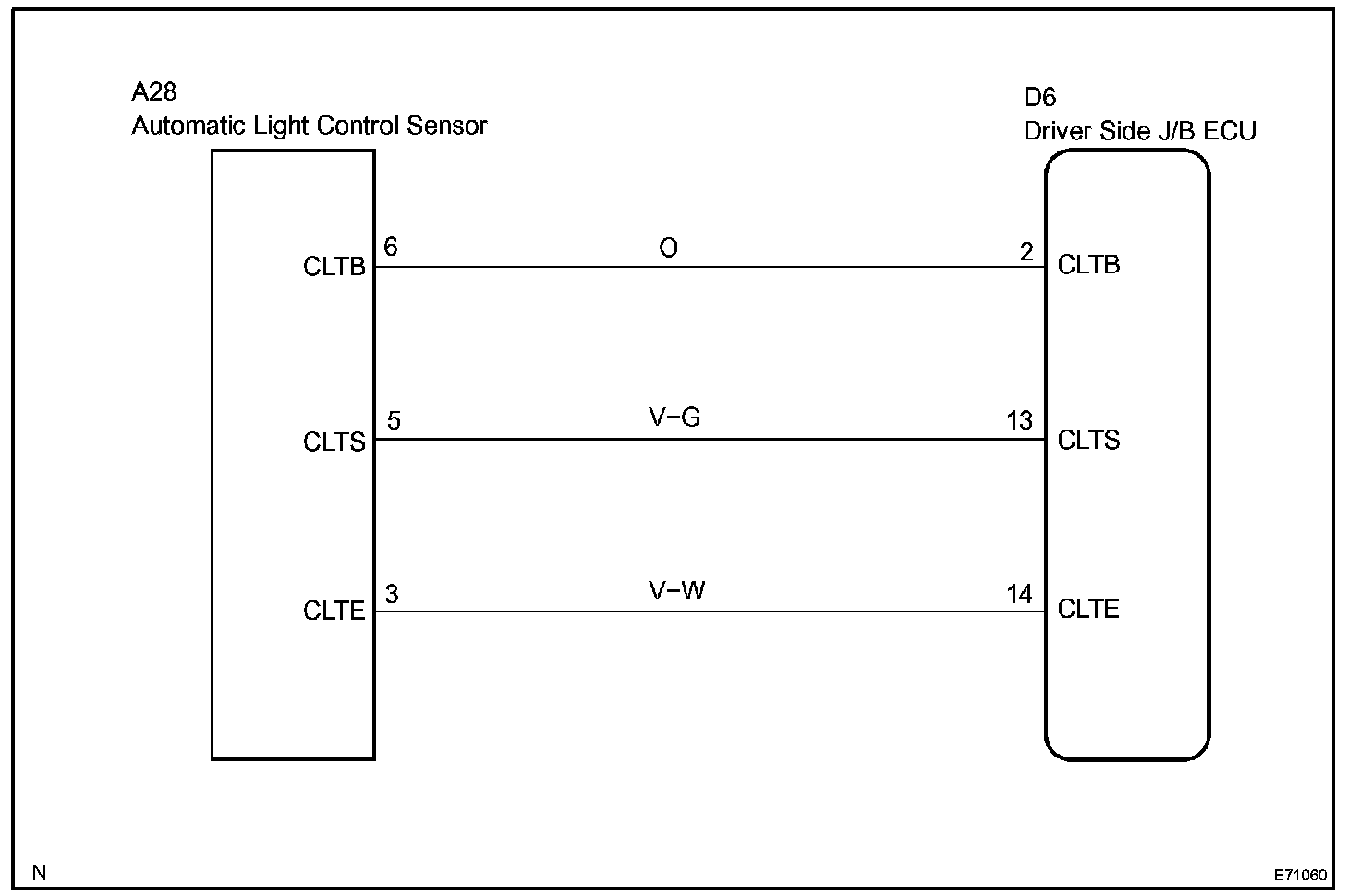

Wiring Diagram:

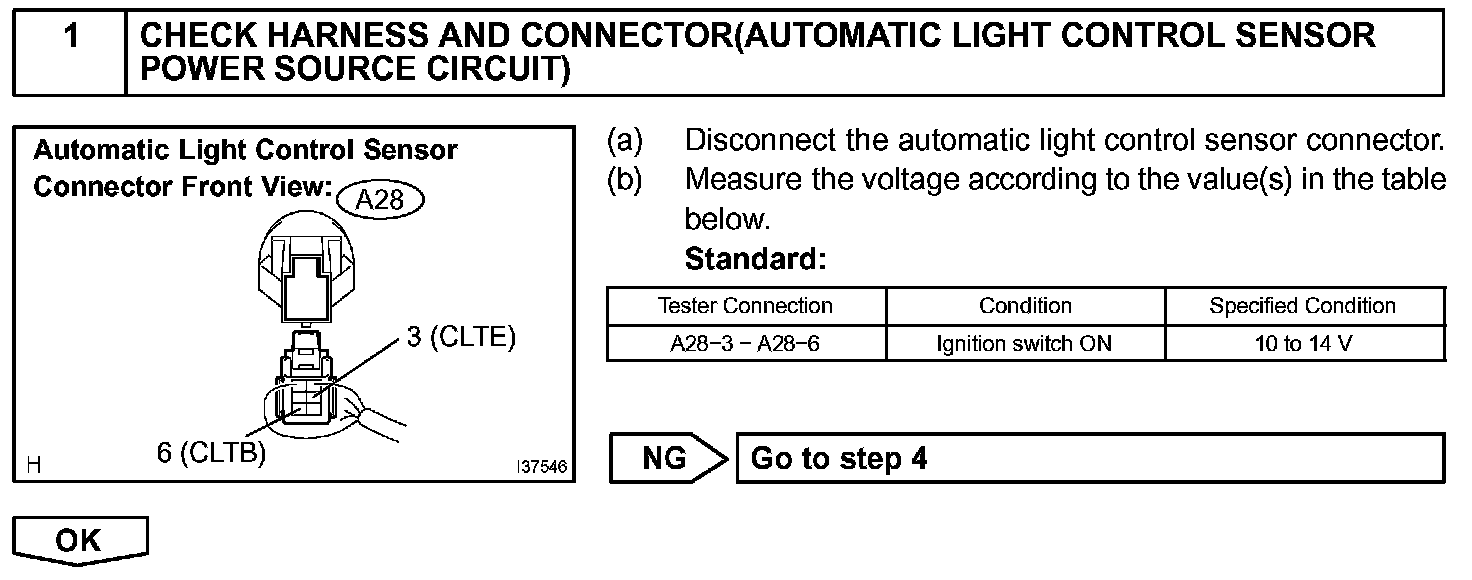

Step 1:

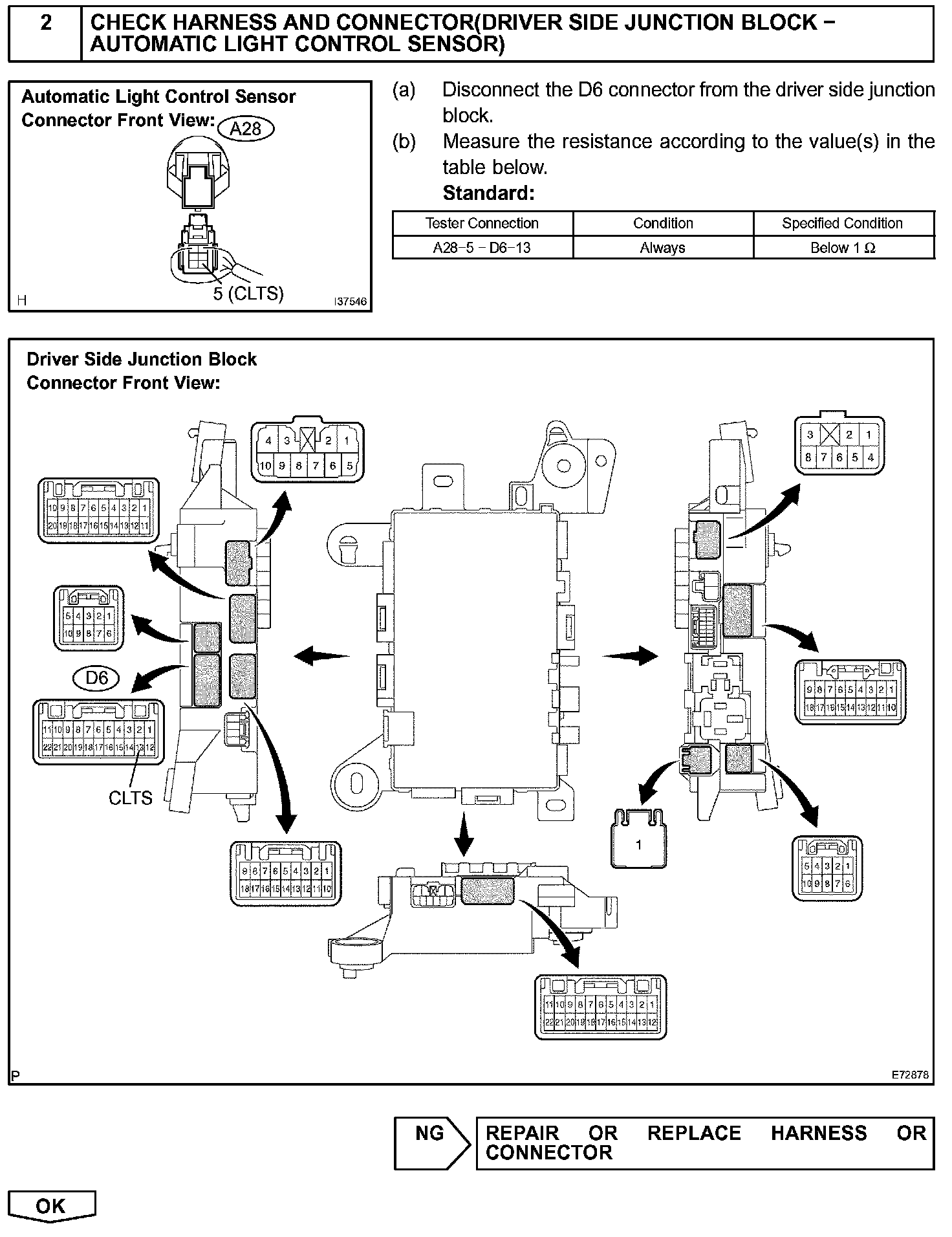

Step 2:

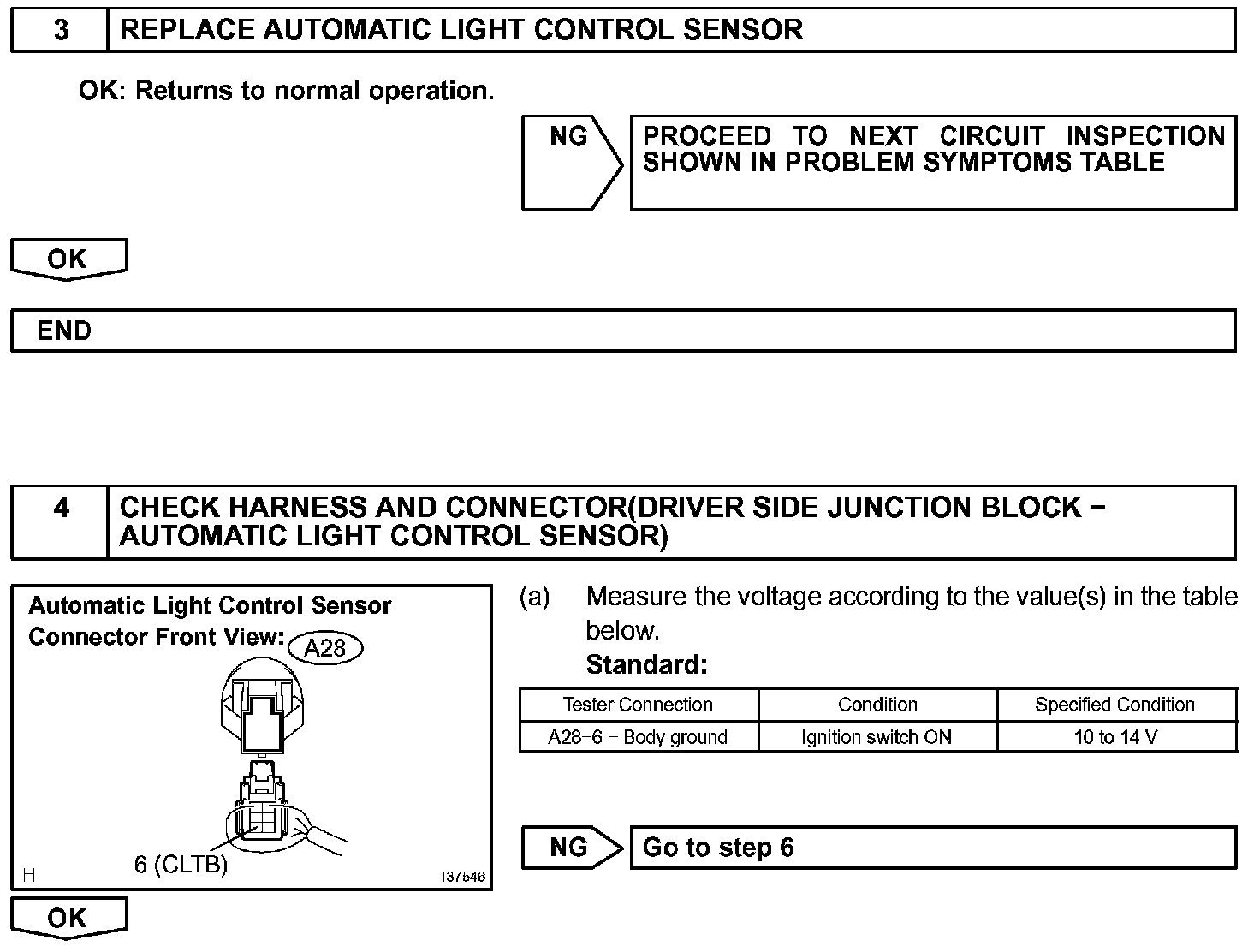

Step 3-4:

Step 5:

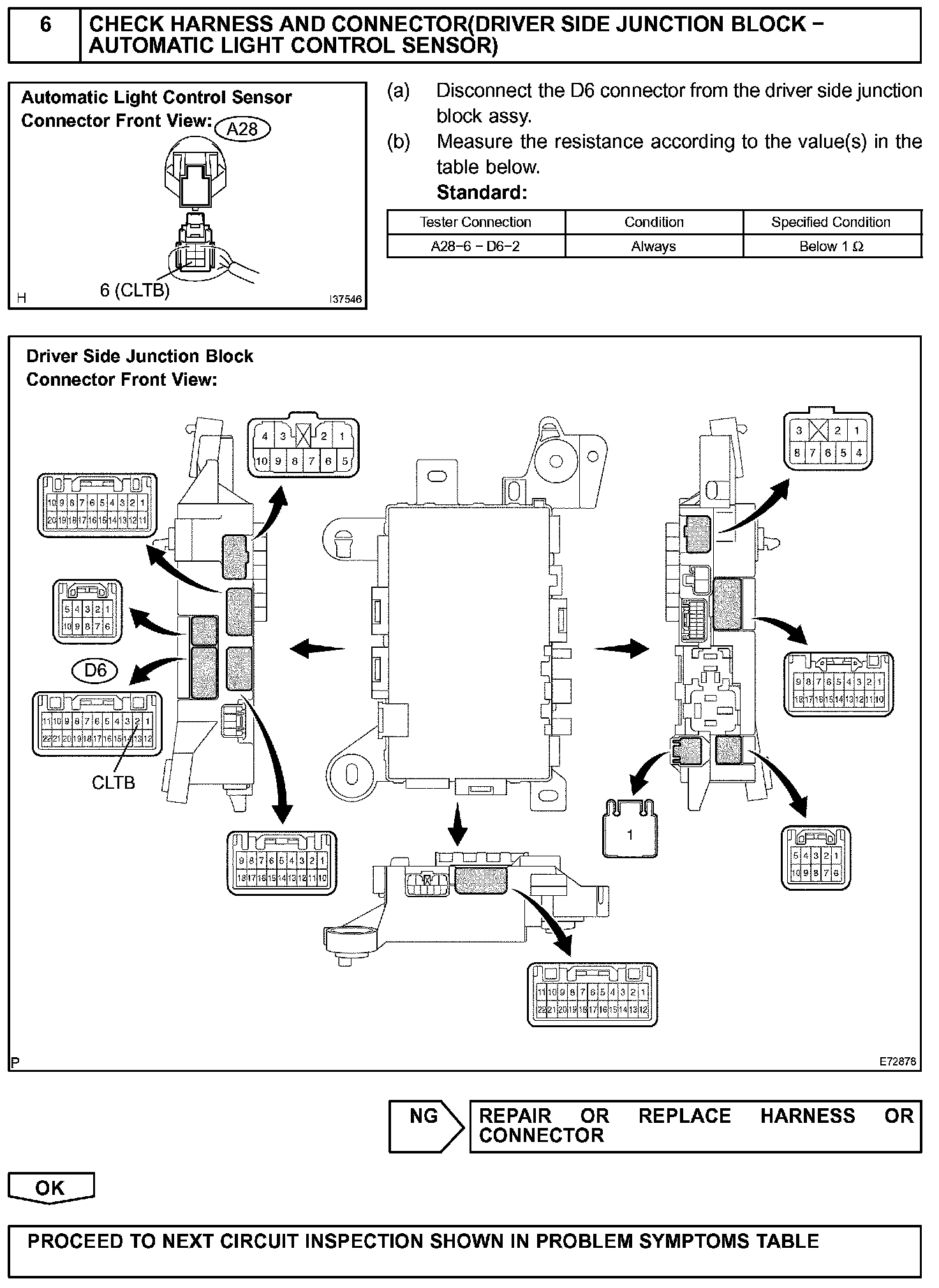

Step 6:

INSPECTION PROCEDURE
