Courtesy Lamp: Testing and Inspection

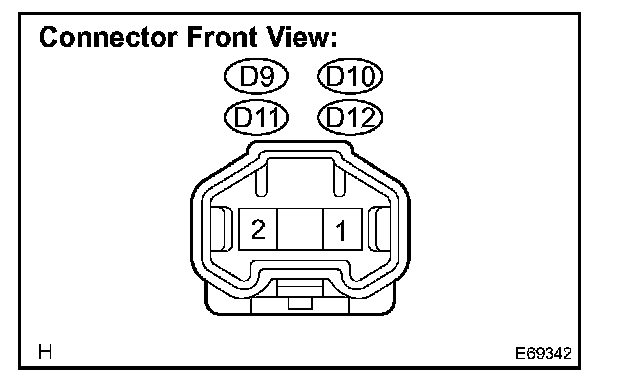

FRONT DOOR COURTESY LAMP SWITCH ASSEMBLY

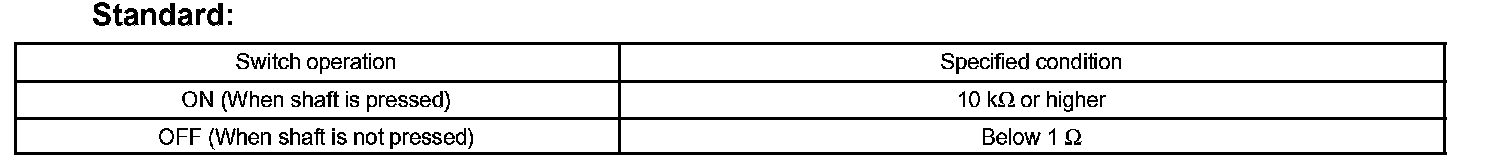

a. Measure the resistance according to the value(s) in the table.




REAR DOOR COURTESY LAMP SWITCH ASSEMBLY
a. Measure the resistance according to the value(s) in the table.

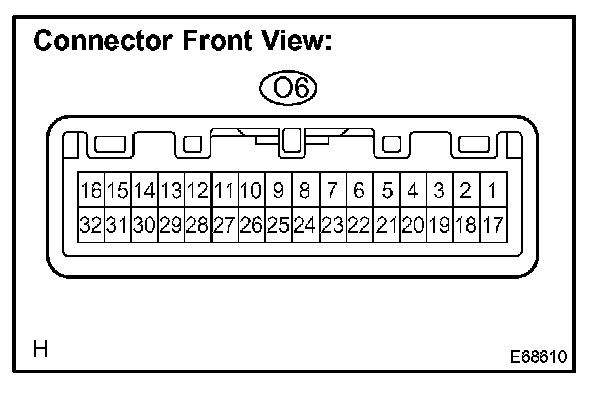

ROOM LAMP ASSEMBLY NO.1
a. Inspect room lamp assembly in the overhead J/B.
1. Connect the (+) lead from the battery to terminal 17 and the (-) lead to terminal 5, and check that the room lamp comes on when the room lamp switch is in the ON position.
OK: Comes on.
2. Connect the (+) lead from the battery to terminal 6 and the (-) lead to terminal 5, and check that the room lamp comes on when the room lamp switch is in the DOOR position.
OK: Comes on.

b. Inspect center console illumination in the overhead J/B.
1. Connect the (+) lead from the battery to terminal 13 and the (-) lead to terminal 4, and check that the center console illumination comes on.
OK: Comes on.

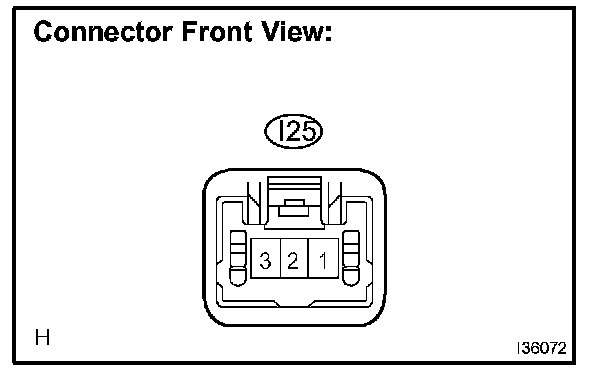

REAR ROOM LAMP ASSEMBLY LH
a. Connect the (+) lead from the battery to terminal 3 and the (-) lead to terminal 2, and check that the rear room ramp comes on when the switch is in the ON position.
OK: Comes on.
b. Connect the (+) lead from the battery to terminal 3 and the (-) lead to terminal 1, and check that the rear room ramp comes on when the switch is in the DOOR position.
OK: Comes on.

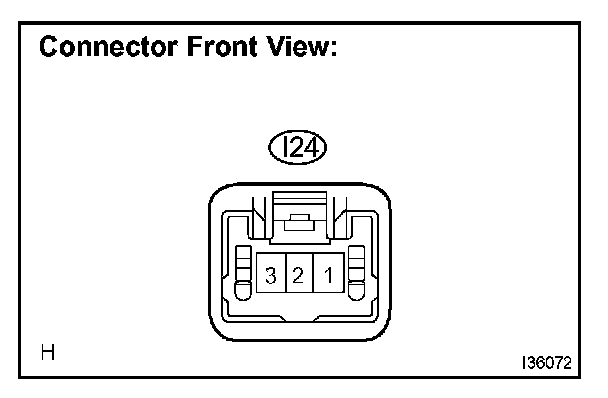

REAR ROOM LAMP ASSEMBLY RH
a. Connect the (+) lead from the battery to terminal 1 and the (-) lead to terminal 2, and check that the rear room ramp comes on when the switch is in the ON position.
OK: Comes on.
b. Connect the (+) lead from the battery to terminal 1 and the (-) lead to terminal 3, and check that the rear room ramp comes on when the switch is in the DOOR position.
OK: Comes on.

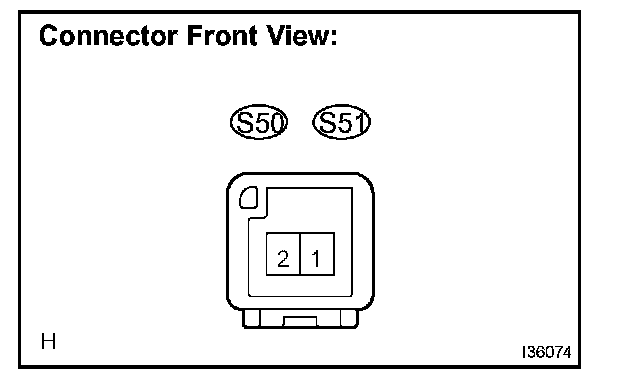

INTERIOR ILLUMINATION LAMP SUB-ASSEMBLY
a. Inspect the rear step lamp illumination.
1. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1, then check that the illumination comes on.
OK: Comes on.

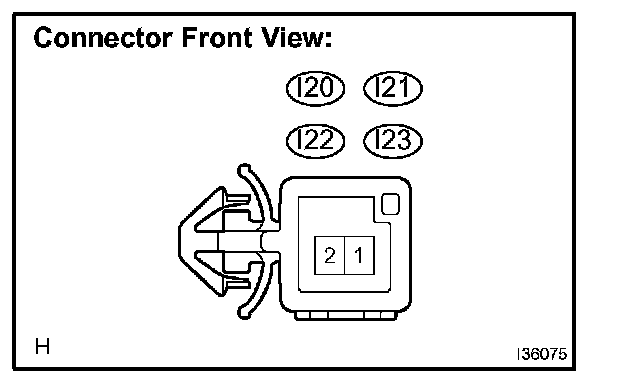

INTERIOR ILLUMINATION LAMP ASSEMBLY NO.1
a. Inspect the inside handle illumination.
1. Connect the (+) lead from the battery to terminal 1 and the (-) lead to terminal 2, then check that the illumination comes on.
OK: Comes on.




COURTESY LAMP ASSEMBLY
a. Inspect the courtesy lamp.
1. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1, then check that the courtesy lamp comes on.
OK: Comes on.
